Importing

You can bring AssetsAny media or data that can be used in your game or project. An asset may come from a file created outside of Unity, such as a 3D model, an audio file or an image. You can also create some asset types in Unity, such as an Animator Controller, an Audio Mixer or a Render Texture. More info
See in Glossary
created outside of Unity into your Unity Project by either exporting the file directly into the Assets folder under your Project, or copying it into that folder. For many common formats, you can save your source file directly into your Project’s Assets folder and Unity can read it. Unity also detects when you save new changes to the file and re-imports files as necessary.

When you create a Unity Project, you are creating a folder (named after your Project) which contains the following subfolders:

The basic file structure of a Unity Project
The basic file structure of a Unity Project

Save or copy files that you want to use in your Project into the Assets folder. You can use the Project window inside Unity to view the contents of your Assets folder. Therefore, if you save or copy a file to your Assets folder, Unity imports it and appears in your Project window.

Unity automatically detects files as they are added to the Assets folder, or if they are modified. When you put any Asset into your Assets folder, it appears in your Project ViewA view that shows the contents of your Assets folder (Project tab) More info
See in Glossary
.

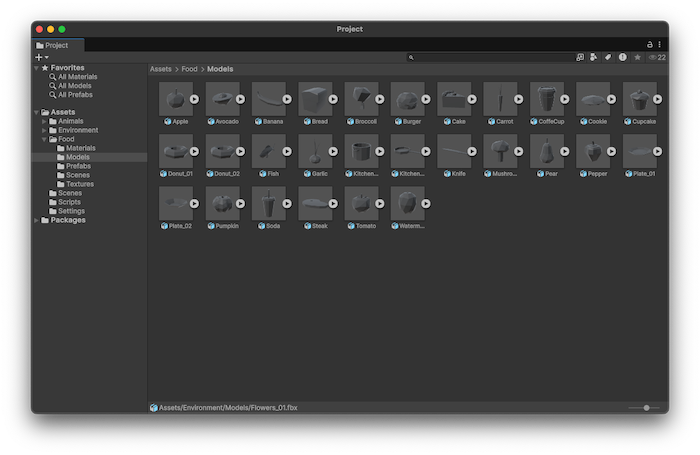

The Project Window shows Assets that Unity imported into your Project
The Project Window shows Assets that Unity imported into your Project

If you drag a file into Unity’s Project window from your computer (either from the Finder on Mac, or from the Explorer on Windows), Unity copies it into your Assets folder, and it appears in the Project window.

The items that appear in your Project window represent (in most cases) actual files on your computer, and if you delete them within Unity, you are deleting them from your computer too.

The relationship between the Assets Folder in your Unity Project on your computer, and the Project window within Unity
The relationship between the Assets Folder in your Unity Project on your computer, and the Project window within Unity

The above image shows an example of a few files and folders inside the Assets folder of a Unity Project. You can create as many folders as you like and use them to organize your Assets.

The image above shows .meta files listed in the file system, but not visible in Unity’s Project window. Unity creates these .meta files for each asset and folder, but they are hidden by default, so you may not see them in your file system either.

They contain important information about how the asset is used in the Project and they must stay with the asset file they relate to, so if you move or rename an asset file in your file system, you must also move/rename the meta file to match.

The simplest way to safely move or rename your assets is to always do it from within Unity’s Project folder. This way, Unity automatically moves or renames the corresponding meta file. If you like, you can read more about .meta files and what goes on behind-the-scenes during the import process.

If you want to bring collections of Assets into your Project, you can use Asset packagesA collection of files and data from Unity projects, or elements of projects, which are compressed and stored in one file, similar to Zip files. Packages are a handy way of sharing and re-using Unity projects and collections of assets. More info
See in Glossary
.

Inspecting Assets

Each type of Asset that Unity supports has a set of Import Settings, which affect how the Asset appears or behaves. To view an Asset’s import settings, select the Asset in the Project View. The import settings for this Asset will appear in the InspectorA Unity window that displays information about the currently selected GameObject, Asset or Project Settings, alowing you to inspect and edit the values. More info
See in Glossary
. The options that appear vary depending on the type of Asset selected.

For example, the import settings for an image allow you to choose whether Unity imports it as a Texture, a 2D spriteA 2D graphic objects. If you are used to working in 3D, Sprites are essentially just standard textures but there are special techniques for combining and managing sprite textures for efficiency and convenience during development. More info
See in Glossary
, or a normal map. The import settings for an FBX file allow you to adjust the scale, generate normals or lightmapA pre-rendered texture that contains the effects of light sources on static objects in the scene. Lightmaps are overlaid on top of scene geometry to create the effect of lighting. More info
See in Glossary
coordinates, and split & trim animation clipsAnimation data that can be used for animated characters or simple animations. It is a simple “unit” piece of motion, such as (one specific instance of) “Idle”, “Walk” or “Run”. More info
See in Glossary
defined in the file.

Clicking on an image Asset in the Project Window shows the import settings for that Asset in the Inspector
Clicking on an image Asset in the Project Window shows the import settings for that Asset in the Inspector

For other Asset types, the import settings look different. The various settings you see relate to the type of Asset selected. Here’s an example of an Audio Asset, with its related import settings shown in the inspector:

An Audio Asset selected in the Project Window shows the Audio import settings for that Asset in the Inspector
An Audio Asset selected in the Project Window shows the Audio import settings for that Asset in the Inspector

If you are developing a cross-platform Project, you can override the “default” settings and assign different import settings on a per-platform basis.

See also:
