You can use code to create many copies of a prefabAn asset type that allows you to store a GameObject complete with components and properties. The prefab acts as a template from which you can create new object instances in the scene. More info
See in Glossary in a particular configuration almost instantaneously. Using code to generate structures like this is called procedural generation.
This task demonstrates how to create a wall of block instances.
Wall
.Wall
script.Wall
script to an empty GameObjectThe fundamental object in Unity scenes, which can represent characters, props, scenery, cameras, waypoints, and more. A GameObject’s functionality is defined by the Components attached to it. More infousing UnityEngine;
public class Wall : MonoBehaviour
{
public GameObject block;
public int width = 10;
public int height = 4;
void Start()
{
for (int y=0; y<height; ++y)
{
for (int x=0; x<width; ++x)
{
Instantiate(block, new Vector3(x,y,0), Quaternion.identity);
}
}
}
}
Result: The InspectorA Unity window that displays information about the currently selected GameObject, asset or project settings, allowing you to inspect and edit the values. More info
See in Glossary displays the Block
variable with None
in the field. A value of None
means that no Prefab has been assigned to this variable yet.
The example script above won’t work until you assign a Prefab to the Block variable. To create a simple block Prefab:
Choose GameObject > 3D Object > Cube.
Drag the cube from the Hierarchy window into the Assets folder in the Project window. This creates a Prefab Asset.
Rename your Prefab to Block
.
Now that your Block
Prefab exists as an Asset, you can safely delete the cube from your Hierarchy.
Now that you have created a Block
Prefab, you can assign it to the Block variable. Select your original GameObject (the one with the Wall
script attached to it). Then drag the Block
Prefab from the Project windowA window that shows the contents of your Assets
folder (Project tab) More info
See in Glossary into the Block variable slot (where it says None
).

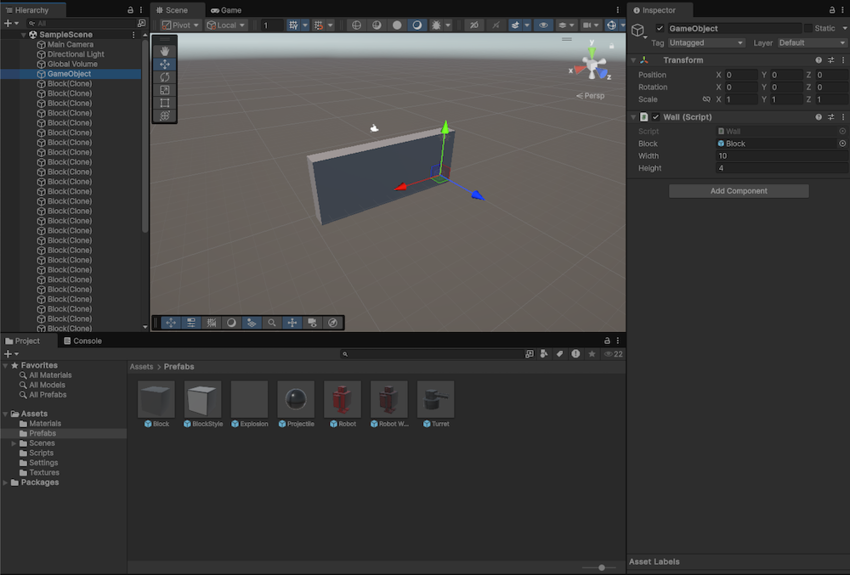

When you have finished this set-up, click Play and you’ll see that Unity builds the wall using the Prefab:
This is a flexible workflow pattern that you can use over and over again in Unity. Because you are using a Prefab in this script, you can easily replace or edit the Prefab to modify the properties of the bricks in the wall, without needing to touch the script. You can also use your Wall
script on other GameObjects in your Scene with different Prefabs assigned to them to have various walls made from different types of Prefab.

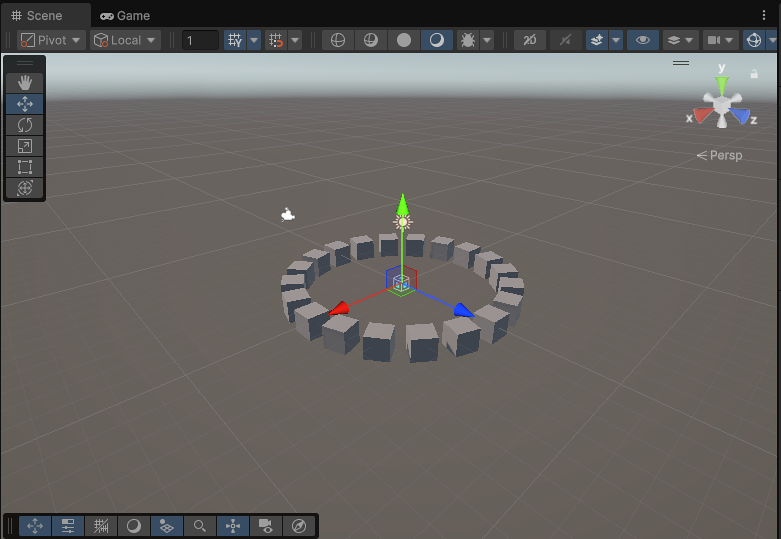

You can use code to place a GameObject in a grid, in a circle pattern, randomly scattered, or any other configurations that you can think of to fit whatever game or app you are creating. Here’s another example showing how to place instances in a circular formation:
using UnityEngine;
public class CircleFormation : MonoBehaviour
{
// Instantiates prefabs in a circle formation
public GameObject prefab;
public int numberOfObjects = 20;
public float radius = 5f;
void Start()
{
for (int i = 0; i < numberOfObjects; i++)
{
float angle = i * Mathf.PI * 2 / numberOfObjects;
float x = Mathf.Cos(angle) * radius;
float z = Mathf.Sin(angle) * radius;
Vector3 pos = transform.position + new Vector3(x, 0, z);
float angleDegrees = -angle*Mathf.Rad2Deg;
Quaternion rot = Quaternion.Euler(0, angleDegrees, 0);
Instantiate(prefab, pos, rot);
}
}
}
