Introduction to stereo rendering

Virtual Reality (VR) and most Mixed Reality (MR) devices require rendering the Unity scene in stereo. Unity XR supports two stereo render modes:

• Multi-pass: in this mode, Unity performs a render pass for each eye. Unity shares some parts of the render loop between the two passes, so multi-pass rendering is faster than rendering the scene with two unique cameras. Multi-pass mode provides the widest compatibility with existing shaders and rendering utilities, but is slower than single pass instanced mode.
• Single-pass instanced: in this mode, Unity renders the scene in a single pass using instanced draw calls. This mode significantly decreases CPU usage and slightly decreases GPU usage compared to the multi-pass mode.
• Multiview: A variation of single-pass instanced rendering supported by some OpenGL and OpenGL ES devices. This option replaces single-pass instanced when available.

Note: The earlier technique of rendering the scene into a double-wide texture using a single render pass is no longer available.

Single-pass instanced stereo rendering is now available on most VR platforms.

Set the render mode

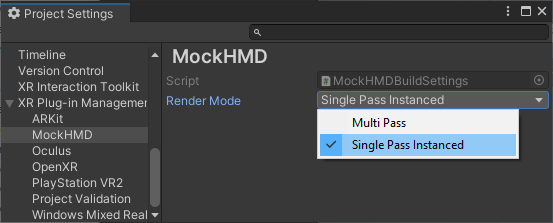

You can find the Render mode setting under XR Plug-in Management in Project Settings. Each XR provider plug-in provides its own setting, if supported.

To set a render mode:

1. Open Project Settings (menu: Edit > Project Settings).
2. Expand the XR Plugin Management section, if necessary.
3. Select the settings page for the relevant provider plug-in.
4. Choose a mode from the list.

Note: Some plug-ins name the setting Stereo Rendering Mode.

Single-pass instanced render mode support

The following platforms and devices support single-pass instanced render mode:

• Android devices that support the Multiview extension
• PlayStation®VR
• Windows devices (tethered):
• On desktop, the only tested and supported graphics APIs for XR are DirectX 11 and DirectX 12. For DirectX on desktop, the GPU must support Direct3D 11 and the VPAndRTArrayIndexFromAnyShaderFeedingRasterizer extension.
• OpenGL and Vulkan aren’t supported for XR on desktop. Unity doesn’t prevent you from using or enabling them, but they’re untested for XR and might not work as expected. For OpenGL on desktop, the GPU must support one of the following extensions:
  • GL_NV_viewport_array2
  • GL_AMD_vertex_shader_layer
  • GL_ARB_shader_viewport_layer_array

If you set the Render Mode to Single Pass Instanced when that mode isn’t supported, then rendering falls back to multi-pass mode.

Notes:

• Unity doesn’t support single-pass instanced rendering in the built-in render pipeline when using Shader Graph.
• Unity doesn’t support single-pass instanced rendering in the built-in render pipeline when using deferred rendering.
