Reference runtime visual elements in Inspector

You can use UQuery to find visual elements in the UI hierarchy. However, this can lead to issues if the selector names change or if the hierarchy is modified. To address this, use visual elementA node of a visual tree that instantiates or derives from the C# VisualElement class. You can style the look, define the behaviour, and display it on screen as part of the UI. More info
See in Glossary reference to access visual elements for runtime UI, which lets you connect script to element through the InspectorA Unity window that displays information about the currently selected GameObject, asset or project settings, allowing you to inspect and edit the values. More info
See in Glossary rather than code queries. It allows scriptsA piece of code that allows you to create your own Components, trigger game events, modify Component properties over time and respond to user input in any way you like. More info
See in Glossary to work with different UI layouts without code changes and makes them easier to reuse. It also promotes a more modular and maintainable codebase, as scripts aren’t tightly coupled to specific UI structures.

Note:: Visual element reference isn’t available for the Editor UI.

When to use

Use visual element reference when:

• UI designers need to configure element connections.
• Element names or structure might change frequently.
• You want to decouple scripts from specific UI hierarchy.
• Multiple team members work on UI layout and scripting.

Use query-based access when:

• You have stable visual element names.
• The script author controls the UI structure.
• You need dynamic element discovery.
• You’re working with dynamically generated visual elements.

Note: Visual element reference works only with the Panel Renderer component. If you use the legacy UI Document component for runtime UI, you must use query-based access to find visual elements. To migrate from UI Document components to Panel Renderer components, refer to Migration to Panel Renderer.

Implementation details

To implement visual element reference for your runtime UI, do the following in your MonoBehaviour script:

• Define typed or untyped references for the visual element you want to access.
• In your Start() method, register reference callbacks for each element reference.
• Implement setup methods that run when the reference resolves and the element becomes available.

Typed references

For elements of a specific type, use VisualElementReference<T>. A typed reference only allows to select that element type in the Inspector and passes that type to the callbacks.

The following example is based on Get started with runtime UI and replaces the query-based access with visual element reference. It uses VisualElementReference<Button>, VisualElementReference<Toggle>, and VisualElementReference<TextField> to reference the buttons, toggles, and input fields respectively.

You can attach this script to the example’s GameObjectThe fundamental object in Unity scenes, which can represent characters, props, scenery, cameras, waypoints, and more. A GameObject’s functionality is defined by the Components attached to it. More info
See in Glossary instead of the original SimpleRuntimeUI.cs script, and assign Button, Toggle, and TextField to the respective reference fields in the Inspector. It maintains the same functionality as the original script.

using UnityEngine;
using UnityEngine.UIElements;

public class RuntimeUIWithReferences : MonoBehaviour
{
    // Define VisualElementReferences for the visual elements you want to access.
    [Header("UI Element References")]
    public VisualElementReference<Button> buttonReference = new VisualElementReference<Button>();
    public VisualElementReference<Toggle> toggleReference = new VisualElementReference<Toggle>();
    public VisualElementReference<TextField> inputFieldReference = new VisualElementReference<TextField>();

    private Button button;
    private Toggle toggle;
    private TextField inputField;

    private int clickCount;

    private void Start()
    {
        // Register callbacks for when each visual element reference is resolved.
        buttonReference.RegisterReferenceResolvedCallback(SetupButton);
        toggleReference.RegisterReferenceResolvedCallback(SetupToggle);
        inputFieldReference.RegisterReferenceResolvedCallback(SetupInputField);
    }

    private void OnDisable()
    {
        // Clean up event listeners when the component is disabled.
        if (button != null)
        {
            button.UnregisterCallback<ClickEvent>(PrintClickMessage);
        }
        if (inputField != null)
        {
            inputField.UnregisterCallback<ChangeEvent<string>>(InputMessage);
        }
    }

    // Implement the setup methods for each visual element reference,
    // which are called when the references are resolved.
    private void SetupButton(Button resolvedButton)
    {
        button = resolvedButton;
        button.RegisterCallback<ClickEvent>(PrintClickMessage);
    }

    private void SetupToggle(Toggle resolvedToggle)
    {
        toggle = resolvedToggle;
    }

    private void SetupInputField(TextField resolvedInputField)
    {
        inputField = resolvedInputField;
        inputField.RegisterCallback<ChangeEvent<string>>(InputMessage);
    }

    private void PrintClickMessage(ClickEvent evt)
    {
        ++clickCount;

        Debug.Log($"{"button"} was clicked!" +
                (toggle != null && toggle.value ? " Count: " + clickCount : ""));
    }

    public static void InputMessage(ChangeEvent<string> evt)
    {
        Debug.Log($"{evt.newValue} -> {evt.target}");
    }
}

Untyped references

For elements of any type, use VisualElementReference. It lets you to select any element type in the Inspector and passes that type to the callbacks.

The following example sets up an element’s background color to red. You can attach this script to the previous example’s GameObject, and assign any element to the reference field in the Inspector to make its background color red.

using UnityEngine;
using UnityEngine.UIElements;

public class VisualElementReference_Example : MonoBehaviour
{
    // Set via the inspector
    public VisualElementReference elementReference = new VisualElementReference();
    public Color customColor = Color.red;

    void Start()
    {
        elementReference.RegisterReferenceResolvedCallback(SetupElementBackground);
    }

    void SetupElementBackground(VisualElement ve)
    {
        ve.style.backgroundColor = customColor;
    }
}

Enable hierarchy integration

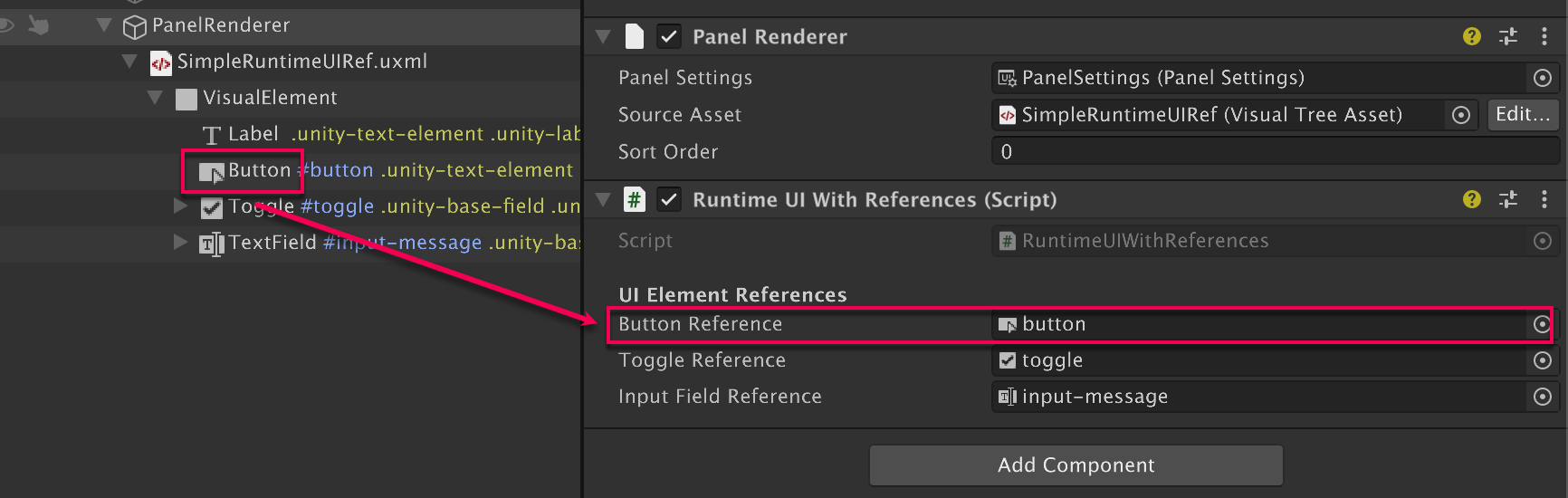

You can enable hierarchy integration to drag visual elements from the Hierarchy window directly into the reference fields in the Inspector.

To enable hierarchy integration, do the following:

• In the Preferences window, go to General > New Hierarchy, and enable Use new Hierarchy window.
• In the Project Settings window, go to UI Toolkit > UI Authoring, and enable Enable Hierarchy Integration.

Additional resources

• Get started with runtime UI
• Panel Renderer component
