Wrapped diffuse Surface Shader example in the Built-In Render Pipeline

Important: The Built-In Render Pipeline is deprecated and will be made obsolete in a future release.
It remains supported, including bug fixes and maintenance, through the full Unity 6.7 LTS lifecycle.
For more information on migration, refer to Migrating from the Built-In Render Pipeline to the Universal Render Pipeline and Render pipeline feature comparison.

The following example shows Wrapped Diffuse, a modification of Diffuse lighting where illumination “wraps around” the edges of objects. It’s useful for simulating subsurface scattering effects. Only the CGPROGRAM section changes, so once again, the surrounding ShaderA program that runs on the GPU. More info
See in Glossary code is omitted:

    ...ShaderLab code...
    CGPROGRAM
    #pragma surface surf WrapLambert

    half4 LightingWrapLambert (SurfaceOutput s, half3 lightDir, half atten) {
        half NdotL = dot (s.Normal, lightDir);
        half diff = NdotL * 0.5 + 0.5;
        half4 c;
        c.rgb = s.Albedo * _LightColor0.rgb * (diff * atten);
        c.a = s.Alpha;
        return c;
    }

    struct Input {
        float2 uv_MainTex;
    };

    sampler2D _MainTex;
        void surf (Input IN, inout SurfaceOutput o) {
        o.Albedo = tex2D (_MainTex, IN.uv_MainTex).rgb;
    }
    ENDCG
    ...ShaderLab code...

Here’s how it looks like with a Texture and without a Texture, with one directional Light in the SceneA Scene contains the environments and menus of your game. Think of each unique Scene file as a unique level. In each Scene, you place your environments, obstacles, and decorations, essentially designing and building your game in pieces. More info
See in Glossary:

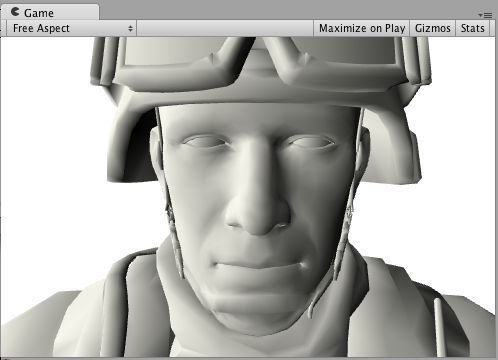

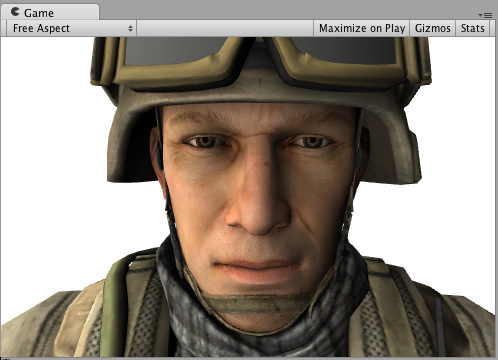

Shader using a wrapped diffuse texture. Shader without a texture.
