Introduction to D3D12 Device Filtering Asset

D3D12 Device Filtering Asset allows you to fine-tune which Windows devices should use the D3D12 API and define your preferred graphics jobs modes. This asset uses the following filter lists:

  • Allow Filter List: Defines which Windows devices should use the D3D12 API when running Unity application.
  • Deny Filter List: Defines which Windows devices shouldn’t use the D3D12 API when running Unity application.
  • Preferred Graphics Jobs Filter List: Defines specific graphics jobs mode for Windows devices.

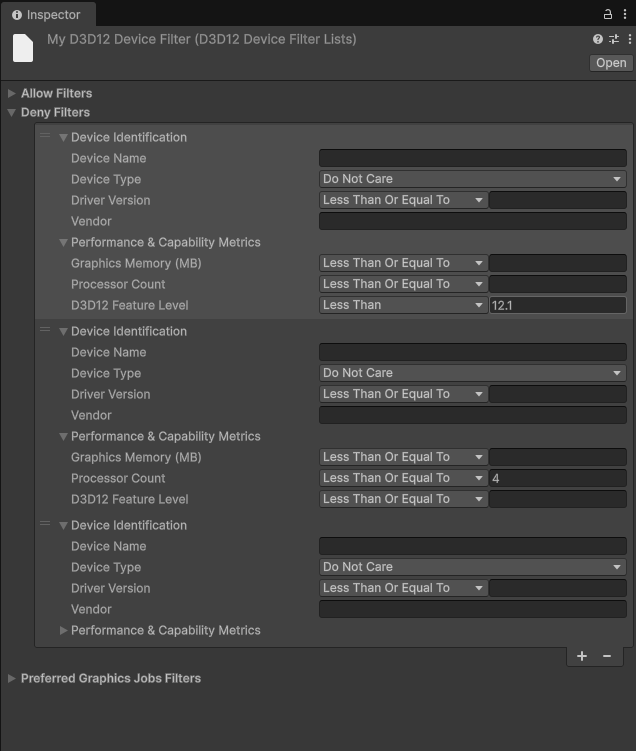

D3D12 Device Filtering Asset
D3D12 Device Filtering Asset

Filter list parameters

Each filter list contains a set of parameters to enter device specifications. You can add multiple entries to each filter list. Unity then allows or restricts the devices that match the specifications entered in the filter lists from using the D3D12 API and assigns any specific graphics jobs modes.

You can specify values for the following parameters to identify a device or set of devices:

  • Preferred Graphics Jobs Mode
  • Graphics Device Vendor
  • Graphics Device Name
  • Graphics Driver Version
  • D3D12 Feature Level
  • Graphics Memory
  • Processor Count
  • Graphics Device Type

The Preferred Graphics Jobs Mode parameter is available in the Preferred Graphics Jobs Filter List only.

The device properties must match all the parameter values (logical AND) to determine whether it’s allowed or denied the ability to run your application with D3D12 API and use the preferred graphics jobs mode. You can use C# regular expressions for the Graphics Device Vendor and Graphics Device Name. For example, \[I|i\]ntel .\*6\[0-9\]\[0-9\], Qual\*. The Unity Editor displays an error for an invalid regular expression. If the parameter values are set with invalid regular expressions, the application build fails.

The Allow Filter List uses your chosen comparison operators to identify devices that match the specified parameter values for driver version, D3D12 feature level, graphics memory, and processor count.

For example, if you set up the following:

  • GPU Vendor: NVIDIA
  • GPU Model Name: RTX 3080
  • Driver Version: 347.23.0.12
  • Comparison Operator: Greater Than or Equal To

In this case, the Allow Filter List includes all devices with an NVIDIA RTX 3080 GPU, and a driver version greater than or equal to 347.23.0.12

The Deny Filter List uses your chosen comparison operators to restrict devices that match the specified parameter values for driver version, D3D12 feature level, graphics memory, and processor count.

For example, if you specify:

  • GPU vendor : ATI
  • GPU model name : Radeon RX 9000
  • Processor count : 8
  • Comparison operator: Less Than Or Equal To

In this case, the Deny Filter List restricts all the devices with ATI Radeon RX 9000 GPU that have less than or equal to 8 processors.

The Preferred Graphics Jobs Filter List uses your chosen comparison operators to identify devices that match the specified parameter values for driver version, D3D12 feature level, graphics memory, and processor count in order to apply the specified graphics jobs mode.

For example:

  • Graphics Jobs Mode: Native
  • GPU Model Name: RTX 3080
  • Driver Version: 347.23.0.12
  • Comparison Operator: Less Than

In this case, the Preferred Graphics Jobs Filter List enables the Native graphics jobs mode on all devices with an RTX 3080 GPU that have a driver version less than 347.23.0.12.
