Visual Compositor Nodes

• Regular Nodes
  • Add
  • Alpha Clip
  • Bandpass Filter
  • Blend
  • Blur
  • Coherent Noise
  • Color Channel
  • Color Mask
  • Depth Comparison
  • Depth Conversion
  • Difference
  • Directional Mask
  • Drawn Edges
  • Drop Shadow
  • Easy Color Adjustment
  • HSV
  • Final Output
  • Invert
  • Layer
  • Level Adjustment
  • Linear Gradient
  • Material ID Color Render
  • Multiply
  • Object ID Color Render
  • Post Process
  • Preview
  • Proc Amp
  • Render
  • Render Texture
  • Selection Group Color Render
  • Shadow Render
  • Solid Color
  • Spherical Gradient
  • Spline Mask
  • Streaming Image Sequence
  • Subtract
  • Texture2D
  • Toon ClipMask Render
  • Transform
  • Vertex Color Render
  • Waifu2x

• Value Nodes

  • Abs Value
  • ACos Value
  • Add Value
  • ASin Value
  • ATan Value
  • Bool Value
  • Ceil Value
  • Clamp Value
  • Clamp01 Value
  • Color Value
  • Cos Value
  • Deg2Rad Value
  • Divide Value
  • Float Value
  • Floor Value
  • Frac Value
  • Inverse Lerp Value
  • Lerp Value
  • Max Value
  • Min Value
  • Multiply Value
  • Pack Vector Value
  • Perlin Noise Value
  • Ping Pong Value
  • Playable Director Time
  • Power Value
  • Random Value
  • Rad2Deg Value
  • Repeat Value
  • Round Value
  • Sign Value
  • Sin Value
  • Smooth Step Value
  • Subtract Value
  • Tan Value
  • Unpack Vector Value
  • Vector2 Value
  • Vector3 Value
  • Vector4 Value

• GameObject Nodes

  • GameObject
  • GoQL
  • Selection Group
  • Selection Group Difference
  • Selection Group Intersection
  • Selection Group Union
• Organize Nodes
  • Comment
  • Group
  • Junction

---

Regular Nodes

Nodes that output RenderTextures.

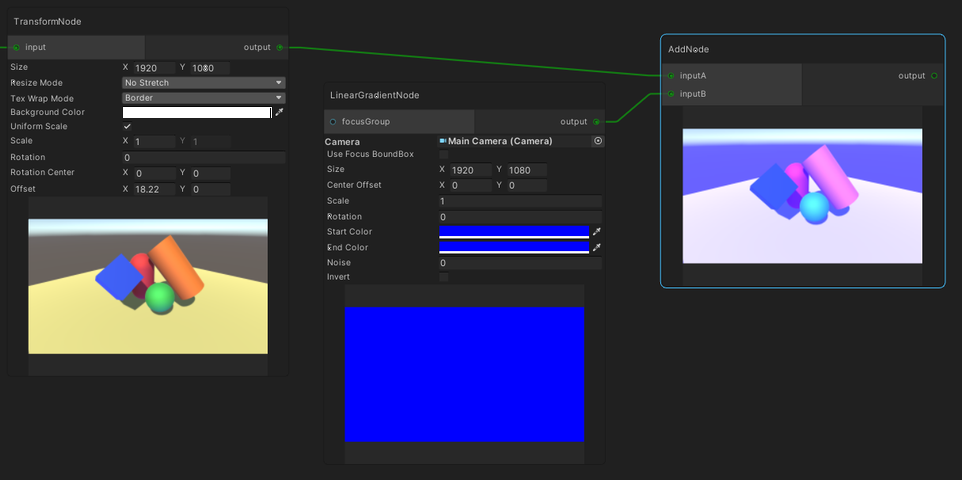

Add

Brightens the first input with the second input.
This is the same as Add mode in Blend node.

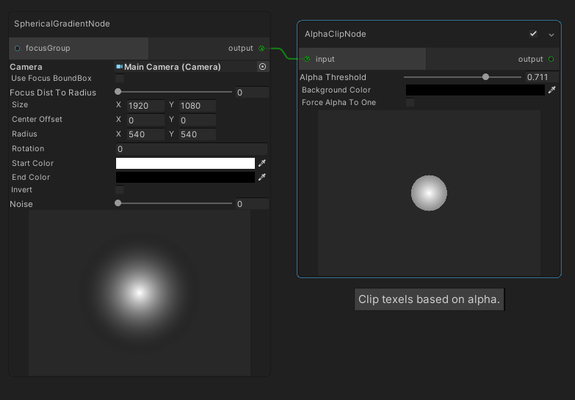

Alpha Clip

Clips input texels which have alpha below the Alpha Threshold parameter.

Parameters	Description
Alpha Threshold	The threshold for clipping.
Background Color	The color to replace clipped texels.
Force Alpha To One	Force the alpha of unclipped texels to one.

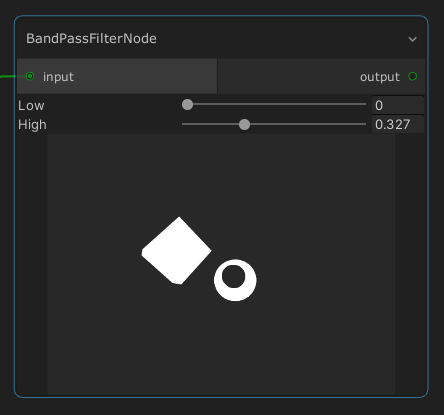

Bandpass Filter

Outputs a mask based on the red color of the input image between Low and High slider values.

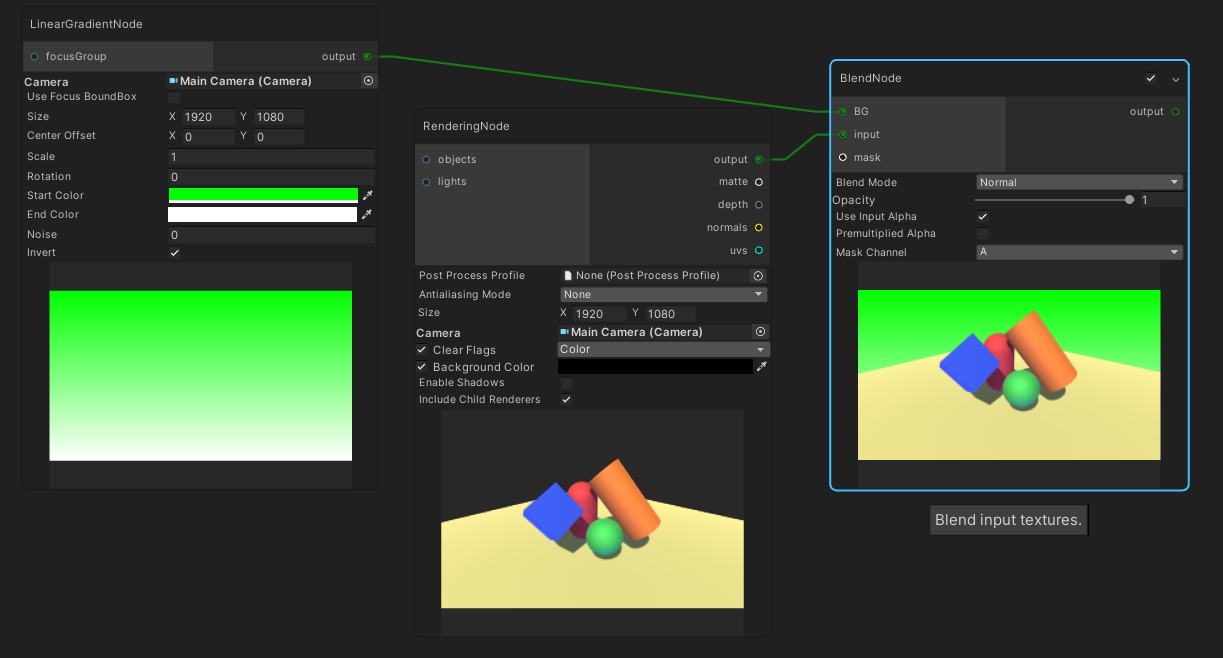

Blend

Blends input texture with the background texture, based on the following equation.
Equation: blendModeEq(background, input) * opacity + background * (1.0 - opacity)

Parameters	Description
Blend Mode	The blend mode.
Opacity	The blend strength.
Use Input Alpha	Multiply opacity with the input alpha for blending.
Premultiplied Alpha	Ignores the left opacity in the above equation.
Mask Channel	The channel of the mask texture to be used in blending, if assigned.

The effect of each blend mode for each color channel is as follows:

Blend Mode	RGB	Alpha
Add	Adds both colors.	Adds both alpha.
Average	Averages both colors.	Averages both alpha.
Color Burn	Darkens the background color to reflect the input color by increasing the contrast.	Outputs the input alpha.
Color Dodge	Brightens the background color to reflect the input color by decreasing the contrast.	Outputs the input alpha.
Darken	Selects the darker color.	Selects the lower alpha.
Difference	Subtracts the brighter color between the input and the background texture with the other.	Selects the higher alpha.
Exclusion	Similar to Difference but with lower contrast.	Selects the higher alpha.
Glow	Same as Reflect	Same as Reflect
Hard Light	Same as Overlay	Same as Overlay
Hard Mix	Changes all colors to primary colors (red, green, or blue), white, or black.	Outputs the input alpha.
Lighten	Selects the brighter color.	Selects the higher alpha.
Linear Burn	Darkens the background color to reflect the input color by decreasing the brightness.	Same as RGB.
Linear Dodge	Same as Add	Same as Add
Linear Light	Burns or dodges the colors by decreasing or increasing the brightness, depending if the input color is less than 0.5 or not.	Outputs the input alpha.
Multiply	Multiplies both colors.	Multiplies both alpha.
Negation	Calculates the absolute of the inverse of both added colors, and negates it	Outputs the input alpha.
Normal	Outputs the input color.	Outputs the input alpha.
Overlay	Multiplies or screens the colors, depending if the input color is less than 0.5 or not.	Outputs the input alpha.
Phoenix	Outputs the inverse of the color differences.	Outputs the input alpha.
Pin Light	Darkens or brightens the colors, depending if the input color is less than 0.5 or not.	Same as RGB.
Reflect	Darkens the background color with the input color.	Outputs the input alpha.
Screen	Multiplies the inverse of the input and background color.	Outputs the input alpha.
Soft Light	Darkens or lightens the colors, depending if the input color is less than 0.5 or not.	Outputs the input alpha.
Subtract	Subtracts the input color from the background color.	Outputs the background alpha.
Vivid Light	Burns or dodges the colors by increasing or decreasing the contrast, depending if the input color is less than 0.5 or not.	Outputs the input alpha.

Notes:

• Mask is only applied to the input texture.
• If background texture size is prioritized to be the size of the output texture.

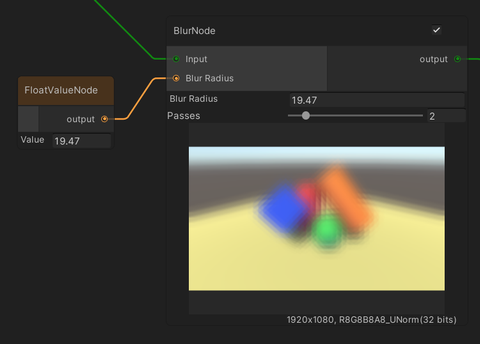

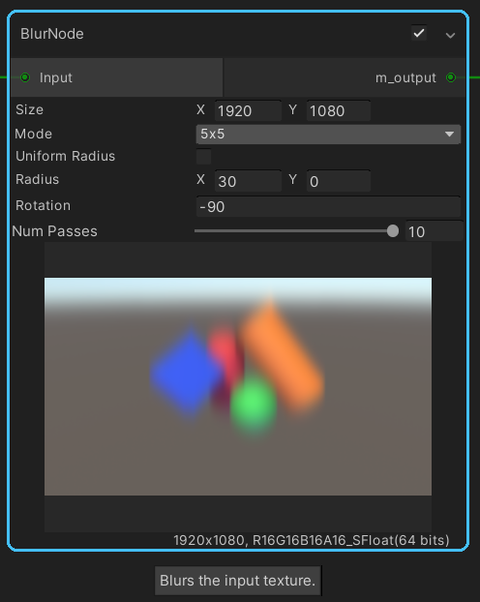

Blur

Blurs the input texture.

Parameters	Description
Size	The target resolution size. This is used to reduce artifacts around the edges by blurring bigger input textures.
Mode	Blur mode specifies how pixels are taken into account in blurring. 3x3 is the lightest, while 7x7 is the heaviest.
Uniform Radius	Apply uniform radius (force y-radius to equal x-radius).
Radius	The radius of the blur for each axis.
Rotation	The rotation of the blur.
Num Passes	The number of passes to smoothen the blur result. Note that the performance gets heavier with more passes.

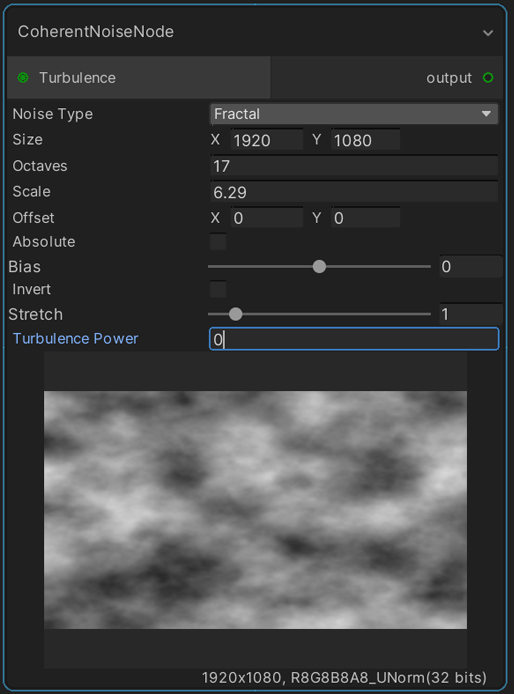

Coherent Noise

Creates deterministic procedural noise.

Parameters	Description
Noise Type	The type of noise: fractal, cylinders or spheres. The fractal noise is of brownian motion type. Cylinder noise is sin(uv.x) and sphere noise is sin(length(uv)).
Octaves	How many times to sample the fractal noise. Each additional sample is applied with 50% of the previous sample, at 2x the scale of the previous sample.
Scale	This changes the zoom level of the noise, which could also be called the frequency of the noise.
Offset	A position vector where sampling of the noise will begin. Use this as a seed parameter, or to scroll across the noise.
Absolute	If checked, this uses the absolute value of the noise sample. For the sine wave noises (cylinders and spheres) which range from -1 to +1, the formula is abs(sample). For fractal noise, which range from 0 to 1, the formula is abs(lerp(-1, 1, sample)).
Bias	Shift the noise value by a fixed amount. (sample + bias)
Invert	Inverts the value. (1 - sample)
Stretch	Modifies the sampling distance coordinate (uv.x * stretch) to stretch or compress the noise output texture.
Turbulence Power	If the Turbulence input is assigned, the sample coordinates will be shifted in a direction specified by the turbulence texture, with a maximum magnitude of this the Turbulence Power value.

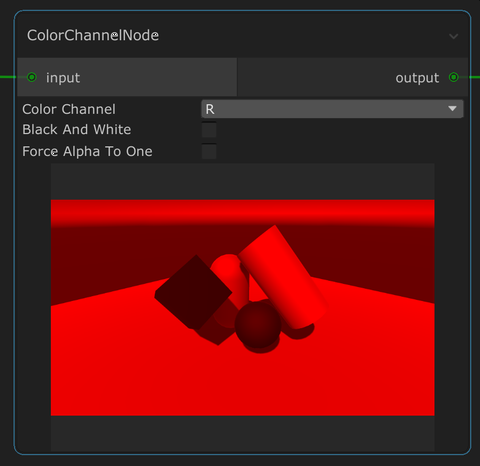

Color Channel

Outputs the selected color channel from the input.

Parameters	Description
Color channel	The color channel to show.
Black And White	Shows the chosen color channel as black and white.
Force Alpha To One	Force the alpha values of all pixels to one.

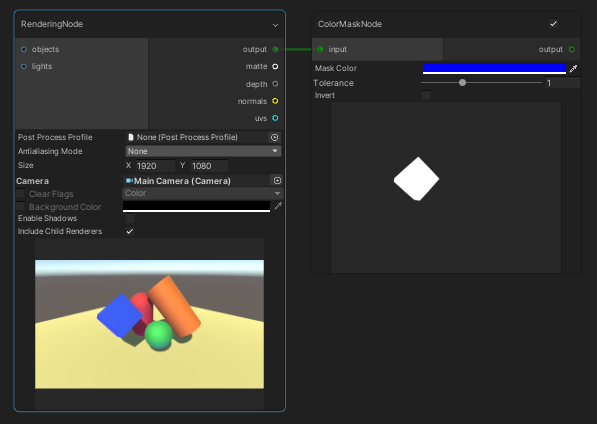

Color Mask

Creates a mask from input based on the specified color and tolerance.

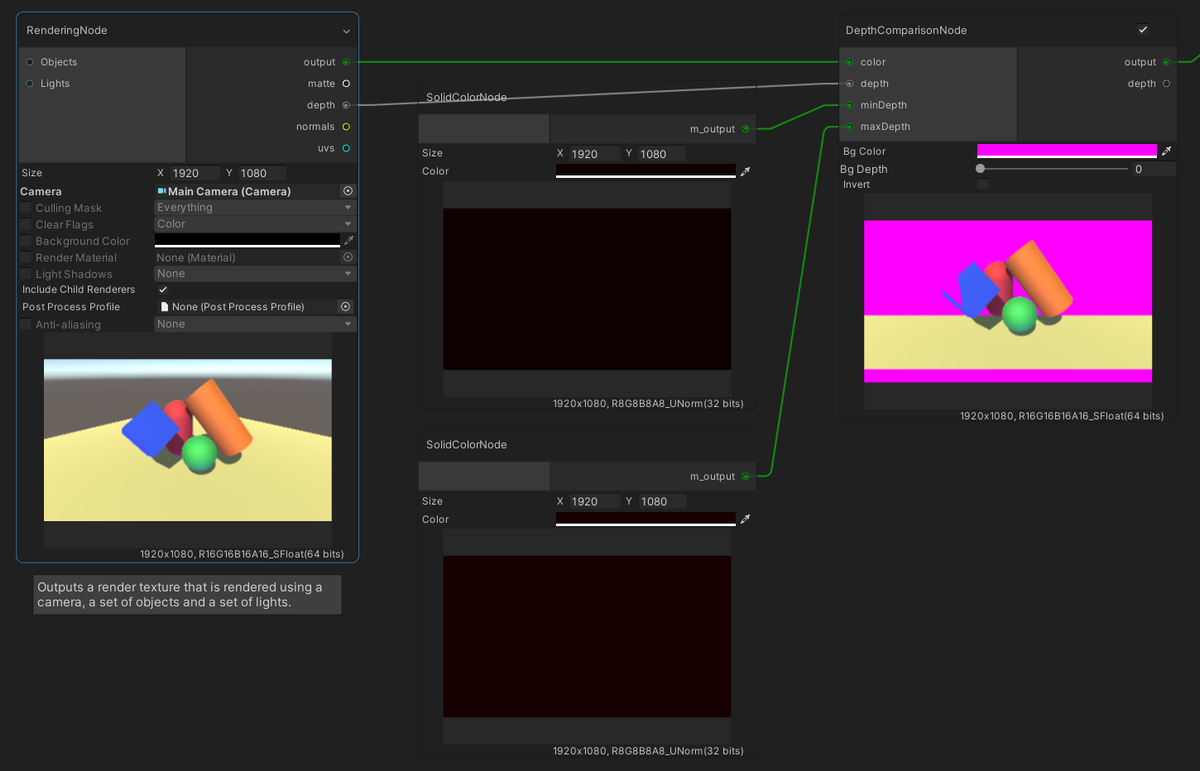

Depth Comparison

Filters color by comparing the input depth with minDepth (defaults to 0) and maxDepth (defaults to 1).

Parameters	Description
Bg Color	The output color of pixels that don't pass the test.
Bg Depth	The output color depth of pixels that don't pass the test.
Invert	Inverts the depth test result.

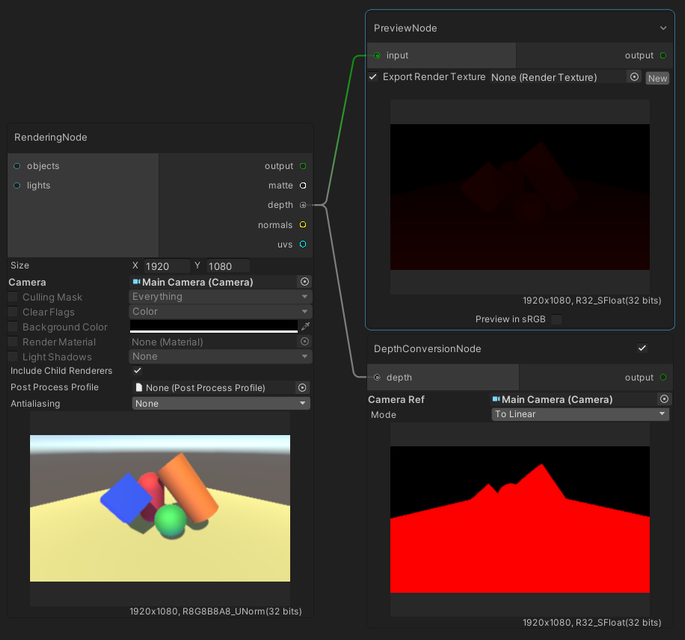

Depth Conversion

Converts depth to linear or non-linear space.

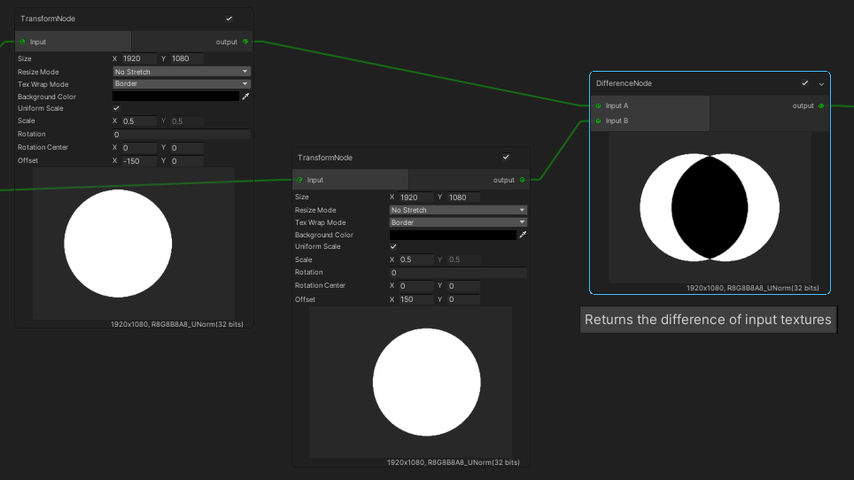

Difference

Returns the difference of input textures.
This is the same as Difference mode in Blend node.

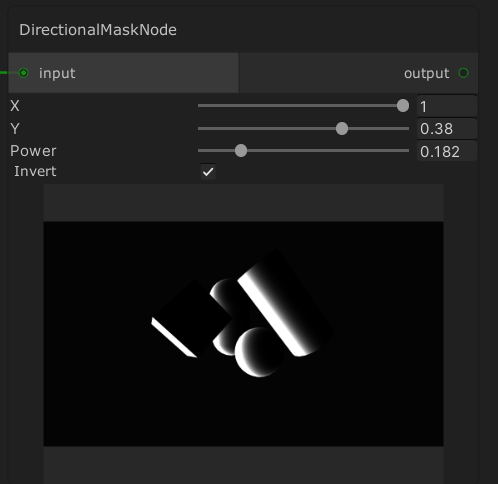

Directional Mask

This node takes a normal map as input, and produces a mask based on those normals and the X / Y slider values.

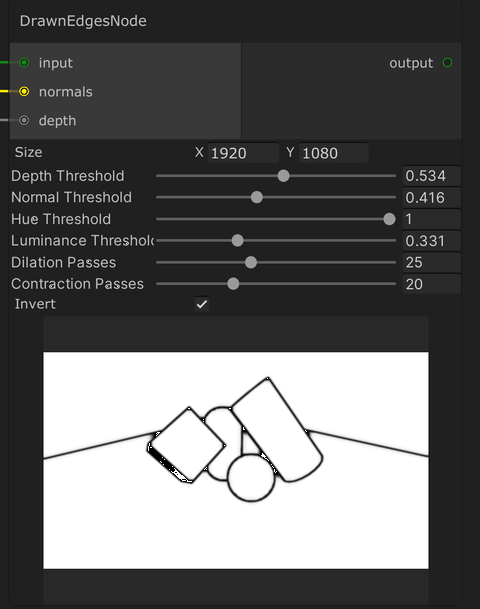

Drawn Edges

Draws edges based on color, normals, and depth.

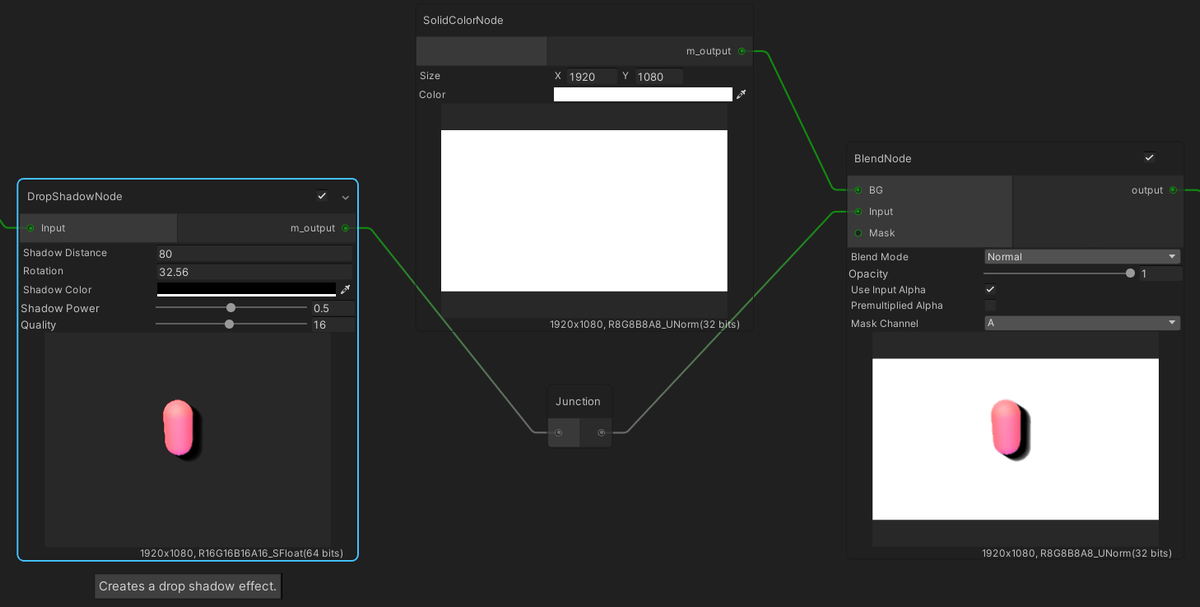

Drop Shadow

Creates a drop shadow effect.

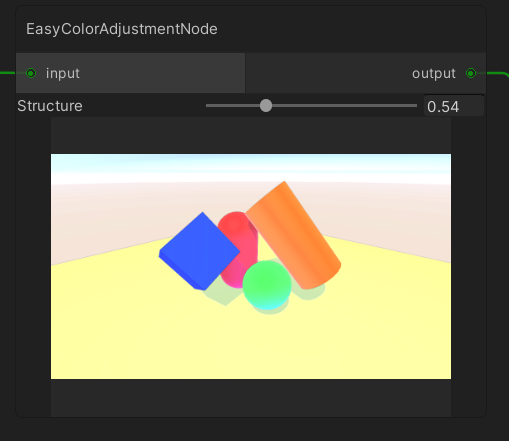

Easy Color Adjustment

Performs simple color adjustment on the input by applying an amount of saturation, contrast and sharpening.

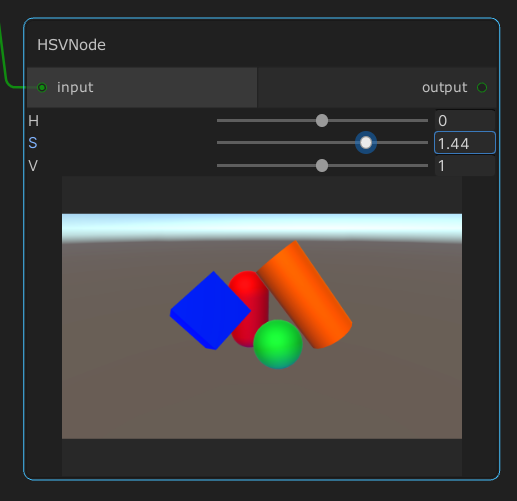

HSV

Simultaneously adjusts the hue, saturation, and brightness of the image.

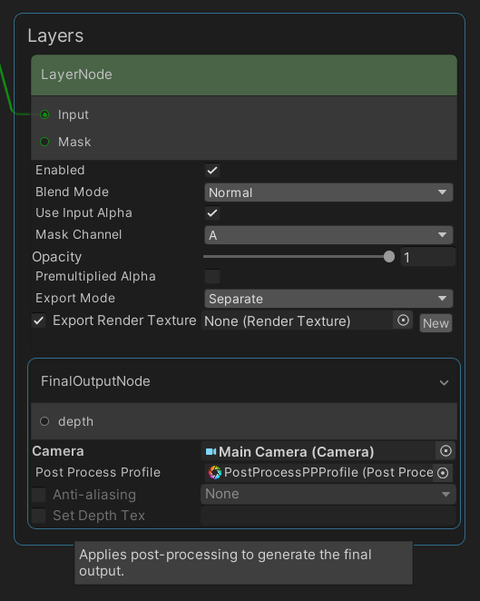

Final Output

This node is created automatically inside the layer stack and applies post-processing to generate the final output.
Please refer to the post-processing documentation for details on its render pipeline compatibility.

Parameters	Description
Camera	The reference camera for applying post processing.
Set Depth Tex	Used for custom effects. If enabled and a variable is assigned, the variable will be set with the input depth.
Post Process Profile	The profile to apply in this node.
Anti-aliasing	The selected anti-aliasing mode to reduce the appearance of jagged edges in the scene.

Final Output Node is currently only applicable for built-in projects.

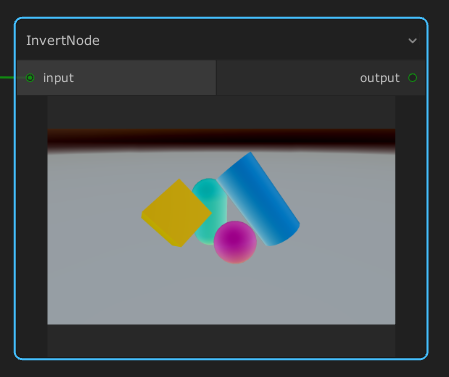

Invert

Invert the color of the input image.

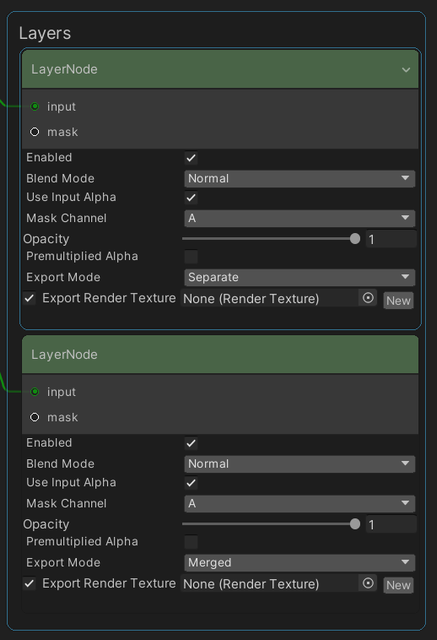

Layer

A layer node, which is activated only inside the layer stack, blends input with the layer result up to the previous layer.
This is similar to Blend node, with the previous layer node result acting as the background texture.

We can use the export settings to export the render output into a RenderTexture, which can then be saved into files using Recorder.

Export Mode	Description
Separate	Exports the input of the LayerNode.
Merged	Exports the merge result of the input and the output of the previous layer.

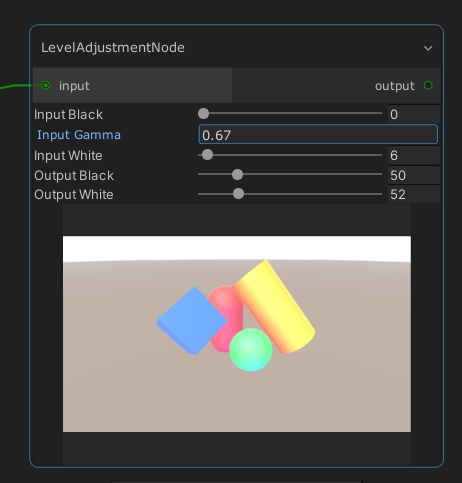

Level Adjustment

Adjusts the contrast and the overall gamma of the input image.

Linear Gradient

Generates a linear gradient texture.

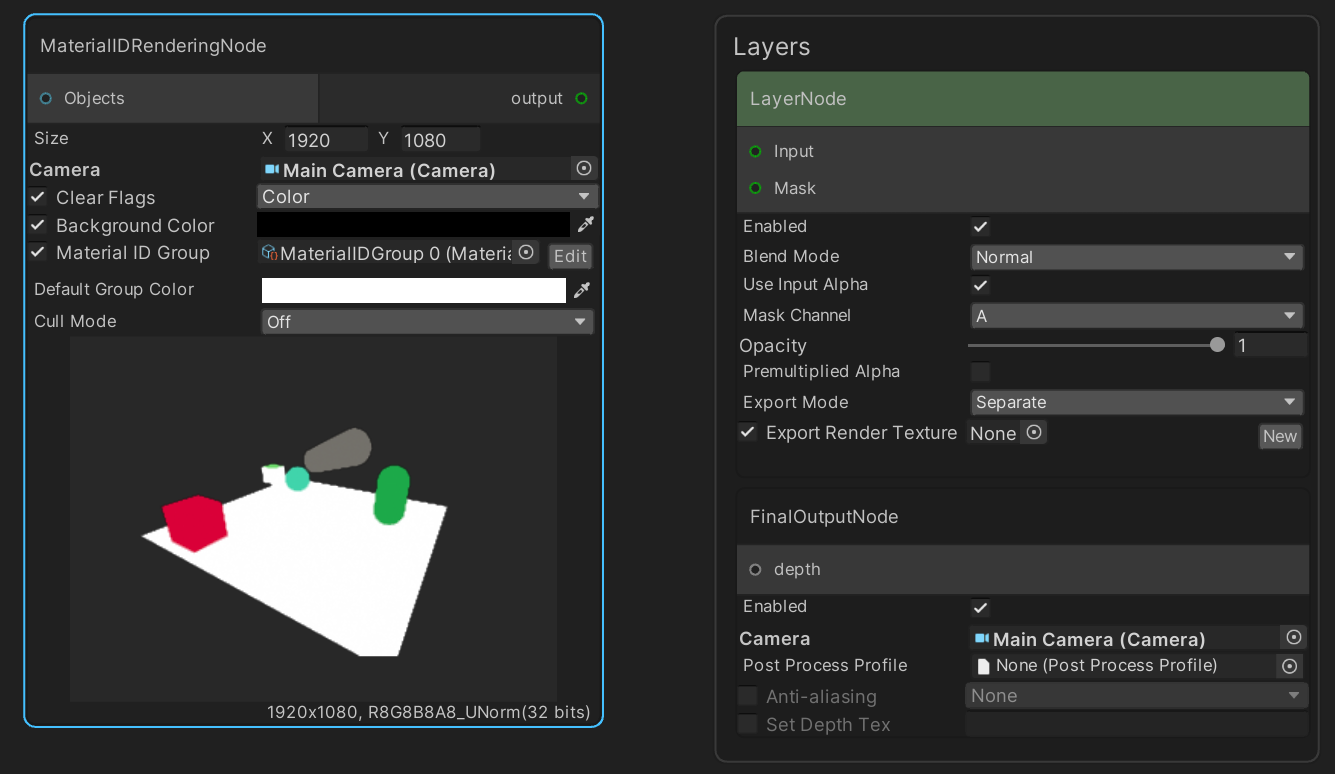

Material ID Color Render

Renders meshes with the colors assigned to the Material IDs. By default, this node will render all objects, and the objects port can be used to render only selected objects.

Properties	Description
Size	The target resolution size.
Camera	The camera to used for rendering.
Clear Flags	Override the clear flags of the camera.
Background Color	Override the background color of the camera.
Material ID Group	If checked, the node will render Objects with Material ID Colors which can be edited in Material ID Color Window.
Default Group Color	The color for rendering objects not assigned in any group.
Cull Mode	Backface culling mode.

Material ID Color Window

Each material color for Material ID Color Render Node is editable in this window. Pressing Reset button assigns all the colors automatically.

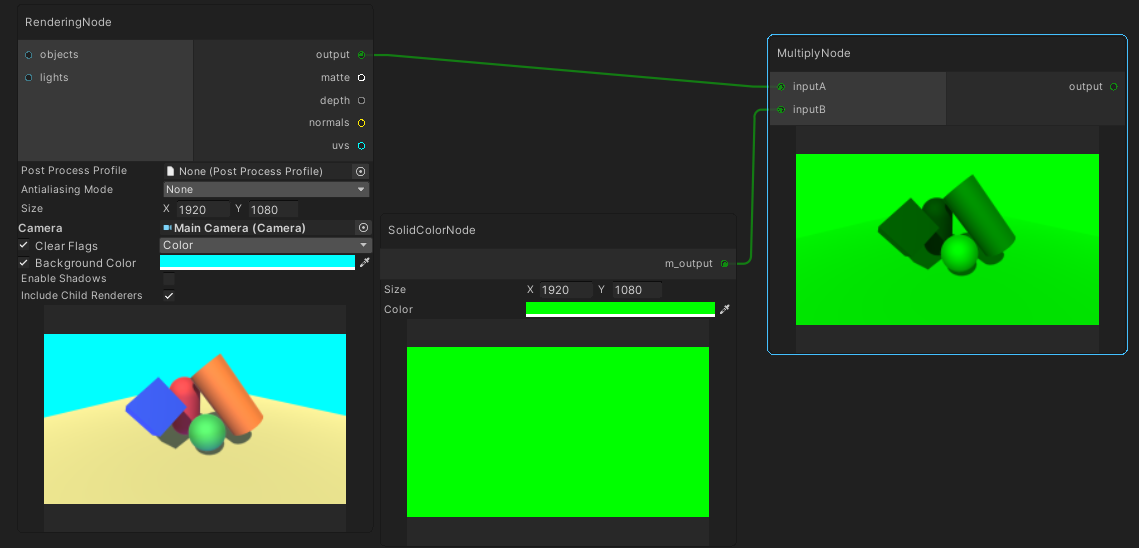

Multiply

Multiplies the color values of the two input textures.
This is the same as Multiply mode in Blend node.

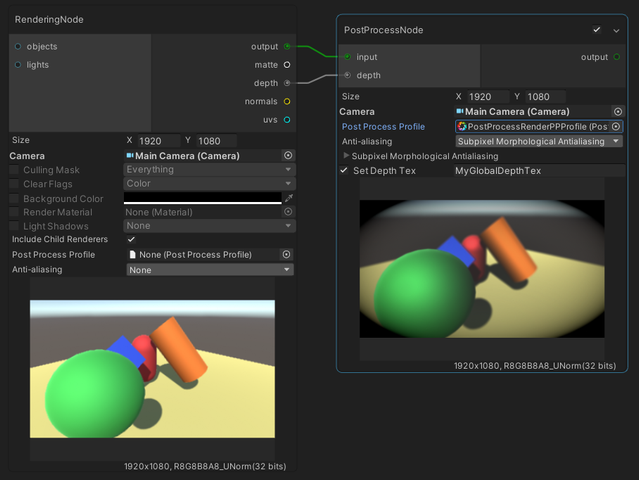

Post Process

Applies post processing based on the active render pipeline.

Built-In Render Pipeline

Requires the project to use Post Processing Stack v2.

Parameters	Description
Size	The target resolution size.
Camera	The reference camera for applying post processing.
Set Depth Tex	Used for custom effects. If enabled and a variable is assigned, the variable will be set with the input depth.
Post Process Profile	The profile to apply in this node.
Anti-aliasing	The selected anti-aliasing mode to reduce the appearance of jagged edges in the scene.

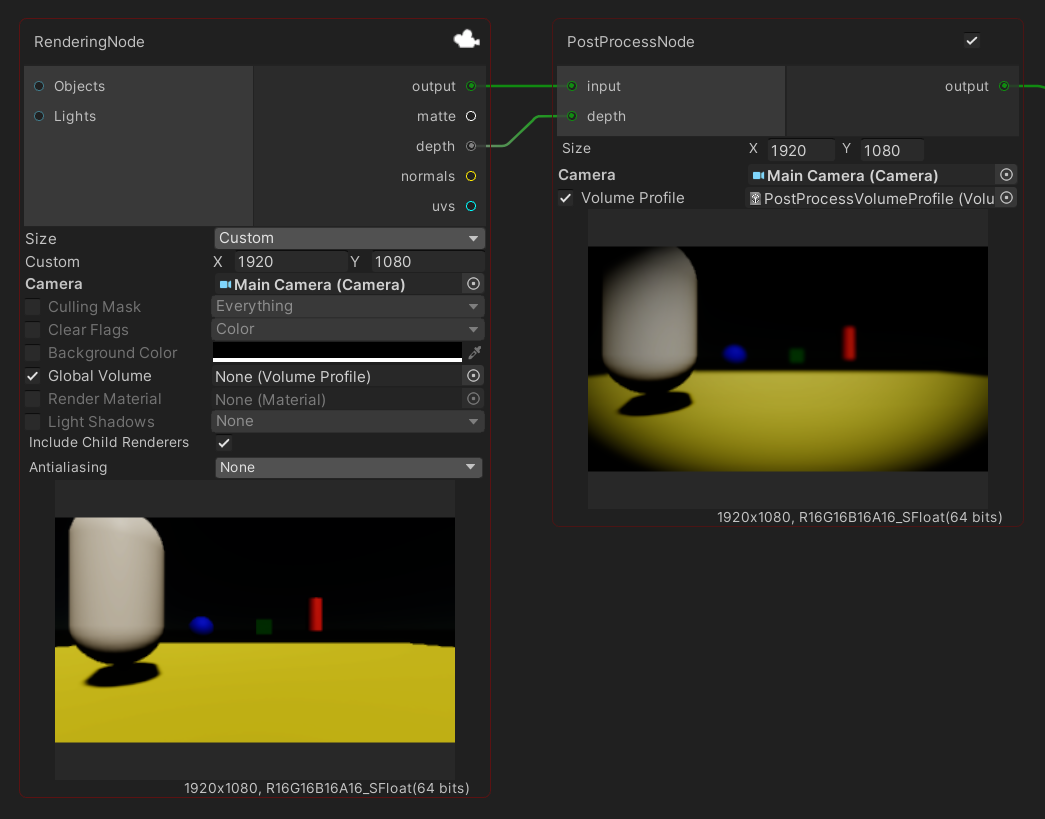

HDRP/URP

Applies HDRP Post Processing or URP Post Processing based on the active render pipeline.

Parameters	Description
Size	The target resolution size.
Camera	The reference camera for applying post processing.
Volume Profile	The profile to apply in this node.

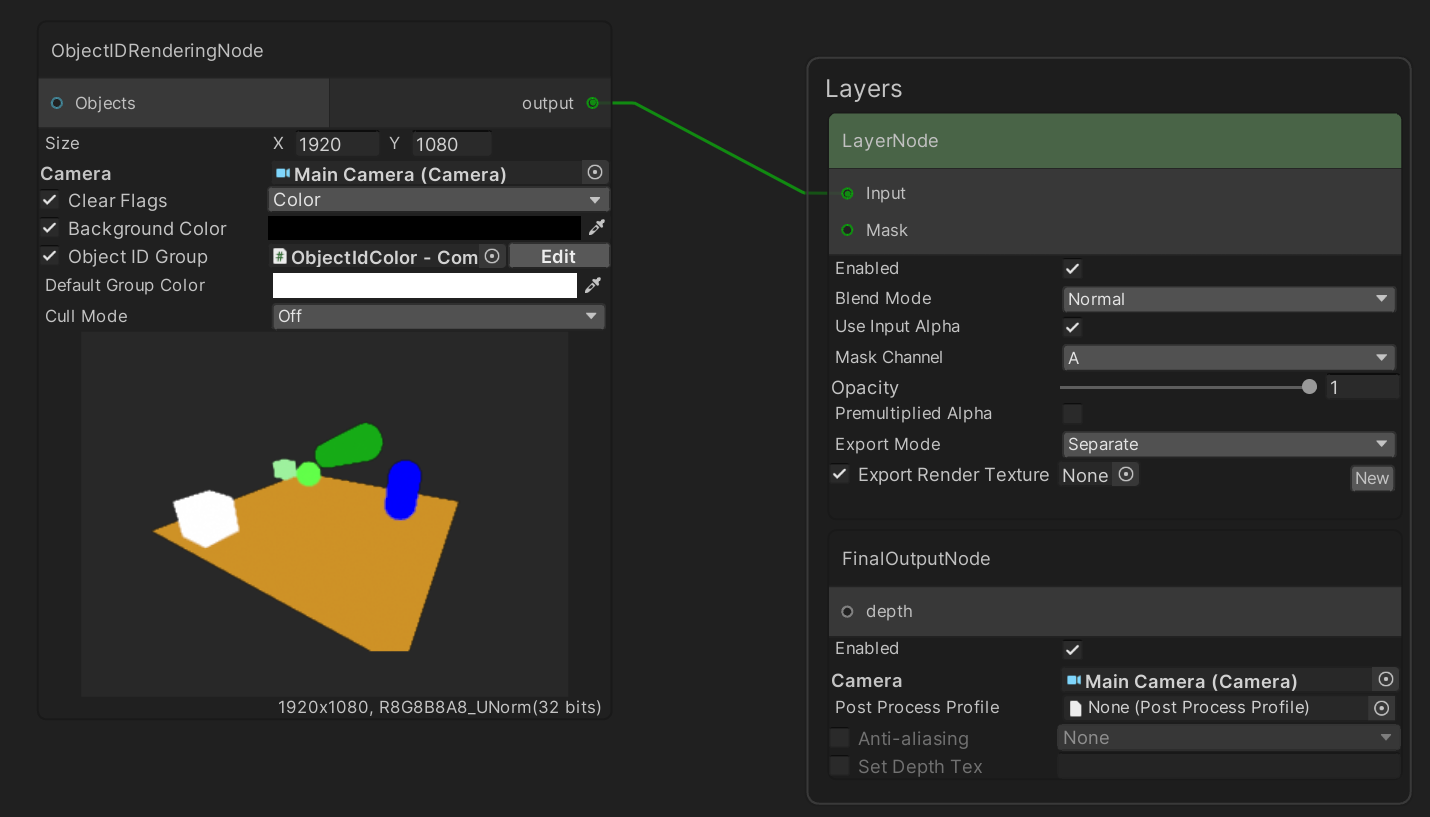

Object ID Color Render

Renders objects with the colors assigned to the Object IDs. By default, this node will render all objects, and the objects port can be used to render only selected objects.

Properties	Description
Size	The target resolution size.
Camera	The camera to used for rendering.
Clear Flags	Override the clear flags of the camera.
Background Color	Override the background color of the camera.
Object ID Group	If checked, the node will render Objects with Object ID Colors which can be edited in Object ID Color Window.
Default Group Color	The color for rendering objects not assigned in any group.
Cull Mode	Backface culling mode.

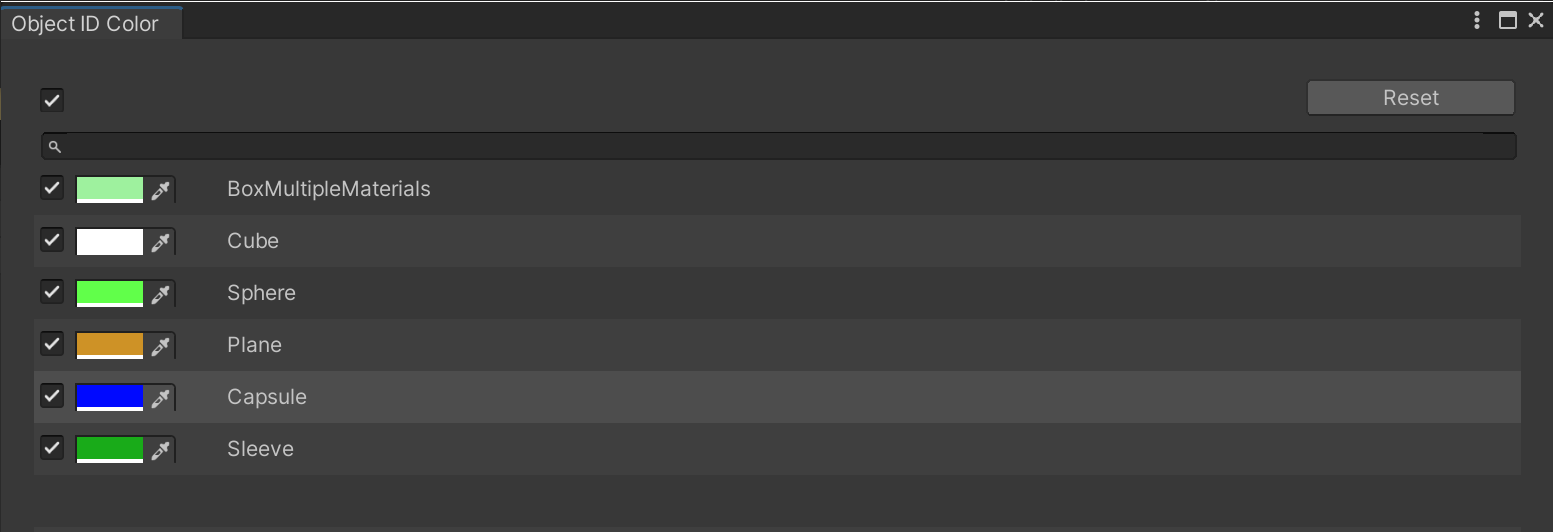

Object ID Color Window

Each object color in Object ID Color Render Node is editable in this window. Pressing Reset button assigns all the colors automatically.

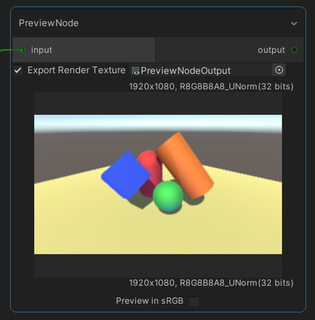

Preview

Previews the graph output at a certain stage in the graph.

Properties	Description
Export Render Texture	If set, this node saves the intermediary output to the assigned render texture per frame.
Preview in sRGB	Preview the result in sRGB. Only functional in linear workflow.

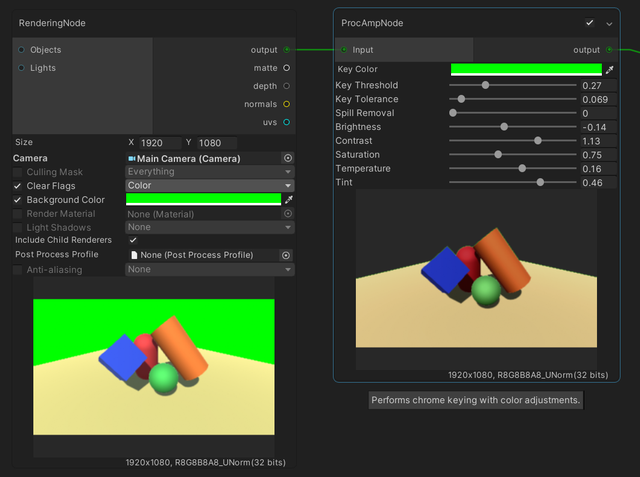

Proc Amp

Performs chrome keying with color adjustments based on ProcAmp.

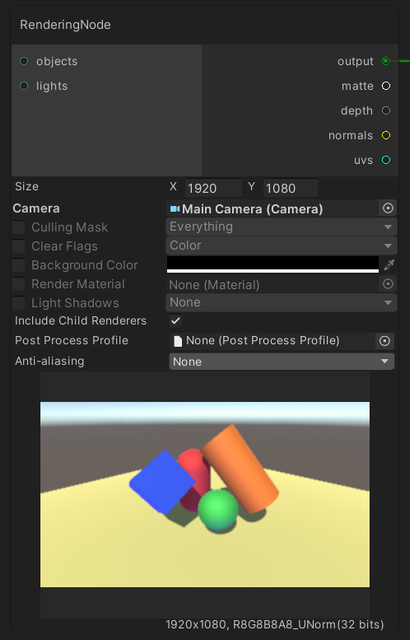

Render

Renders a group of objects and lights with a specified camera into the output port (color).
By default, all objects are rendered using all lights in the scene. We can use the input ports and the following properties to modify the render output.

Properties	Description
Culling Mask	Override the Culling Mask property of the camera.
Clear Flags	Override the Clear Flag property of the camera.
Background Color	Override the Background property of the camera.
Render Material	Make the camera render with this material.
Light Shadows	Override the Shadow Type properties of applicable lights.
Include Child Renderers	Render the children of the selected GameObjects or not.
Post Process Profile	Applies post-processing. This property is only applicable for built-in projects.
Anti-aliasing	The type of anti-aliasing used to reduce the appearance of jagged edges in the scene.

Depending on the used render pipeline, this node can also provide additional output types when the corresponding ports are connected to other nodes. The following table describes the support and cost of each additional output type in each render pipeline.

	Built-In	HDRP	URP
Matte	✔️ with an extra blit op	✔️ with an extra blit op and Depth's Full Screen Custom Pass	✔️ with two extra blit ops.
Depth	✔️	✔️ with a FullScreen Custom Pass	✔️ with an extra blit op.
Normals (View Space)	✔️ with an extra full render	✔️ with a FullScreen Custom Pass	✔️ with an extra full render
UVs	✔️ with an extra full render	✔️ with an extra full render	✔️ with an extra full render

Additionally, Render node use the following setup in each render pipeline.

	Built-In	HDRP	URP
HDR	Follows Use HDR property in GraphicsSettings and Allow HDR in Camera component	Always enabled	Follows HDR settings in Universal Render Pipeline Asset and Allow HDR in Camera component

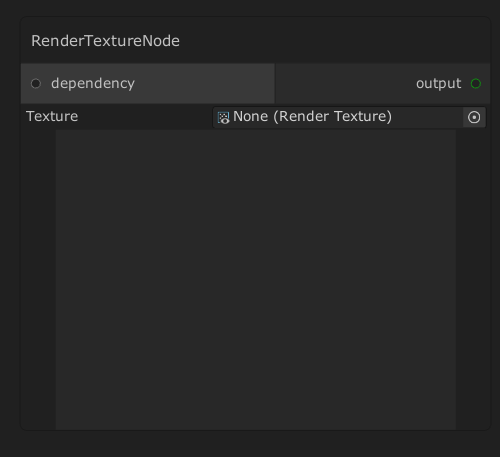

Render Texture

This node outputs the contents of a render texture.
If the render texture is dependent on another node in the graph, the dependency port can be used to make sure this node is processed after the dependee.

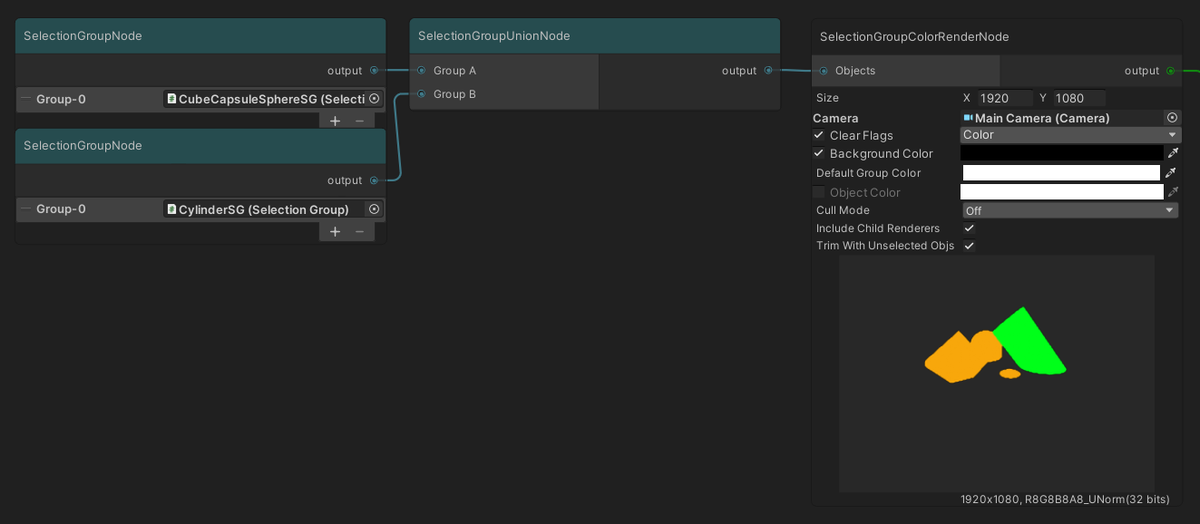

Selection Group Color Render

Renders objects with the colors of the selection groups to which the objects are assigned.
By default, this node will render all objects, and the objects port can be used to render only selected objects.

Properties	Description
Size	The target resolution size.
Camera	The camera to used for rendering.
Clear Flags	Override the clear flags of the camera.
Background Color	Override the background color of the camera.
Default Group Color	The color for rendering objects not assigned in any group.
Object Color	If checked, the node will use this color to render objects instead of using selection group colors.
Cull Mode	Backface culling mode.
Include Child Renderers	Render the children of the selected GameObjects or not.
Trim With Unselected Objs	Let unselected objects trim rendered objects by using the depth buffer.

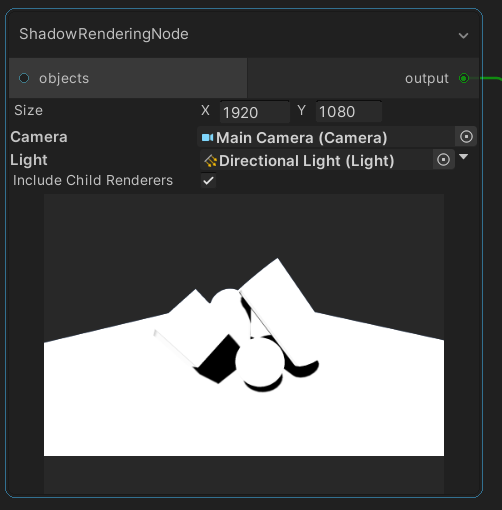

Shadow Render

Outputs the screenspace shadow map generated by Unity when rendering a group of objects with a single light.
By default, this node will use all objects, and the objects port can be used to render only selected objects.

The generated shadow is affected by the following properties:

1. the LightShadow settings of the input light.
2. the shadow quality settings.

Currently, Shadow Rendering Node only outputs the shadows of a directional light.

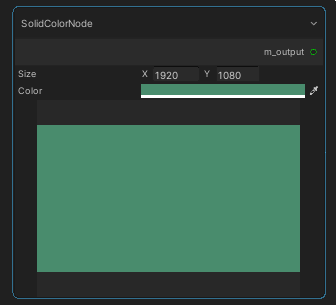

Solid Color

Generates a solid color texture.

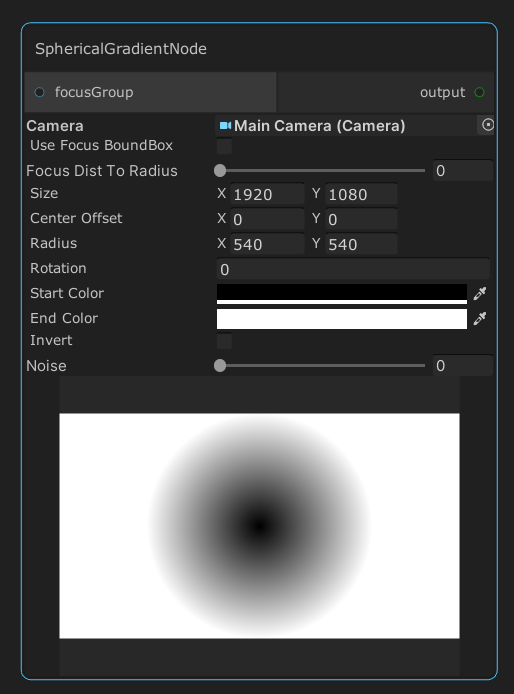

Spherical Gradient

Generates a spherical gradient texture.

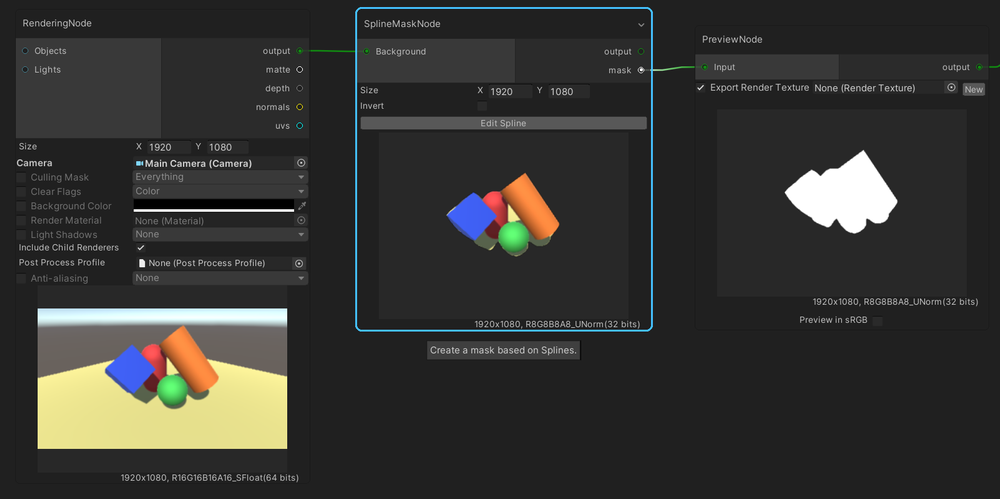

Spline Mask

Outputs a mask and a masked background based on one or more Bezier Spline curves.

Properties	Description
Size	The target resolution size.
Invert	Inverts the mask.

Click on the Edit Spline button to open the Spline Mask Editor window of the node for editing the splines.

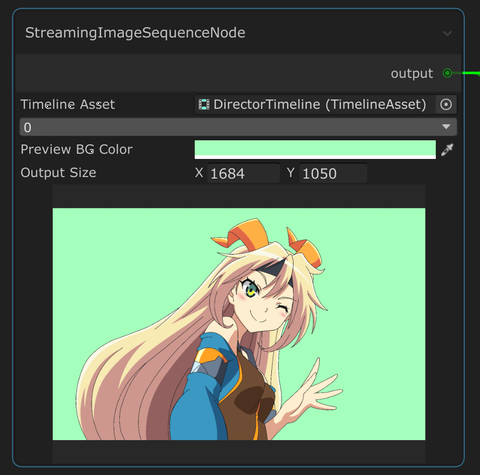

Streaming Image Sequence

Retrieves the current active frame of Streaming Image Sequence.

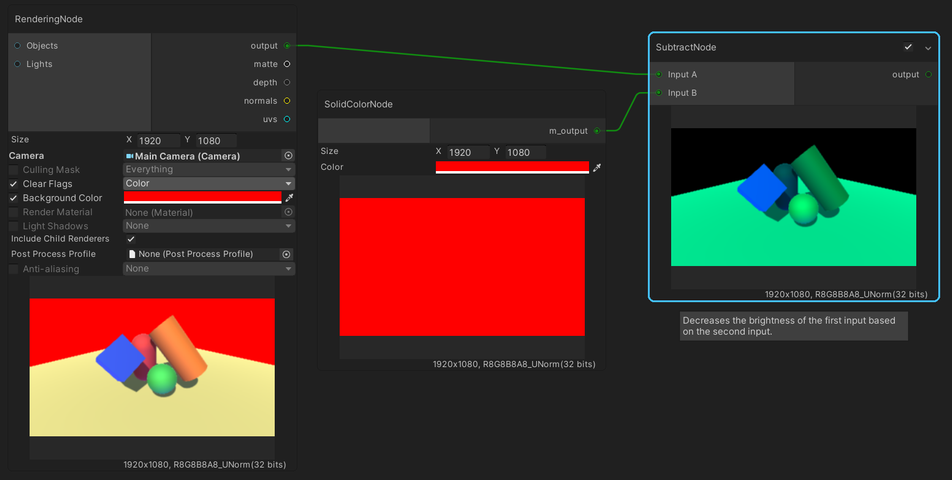

Subtract

Decreases the brightness of the first input based on the second input.
This is the same as Subtract mode in Blend node.

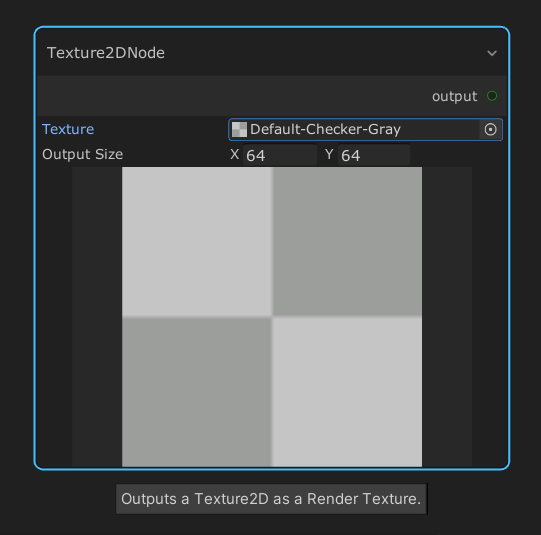

Texture2D

Allows a simple 2D texture to be inserted and used in the graph.

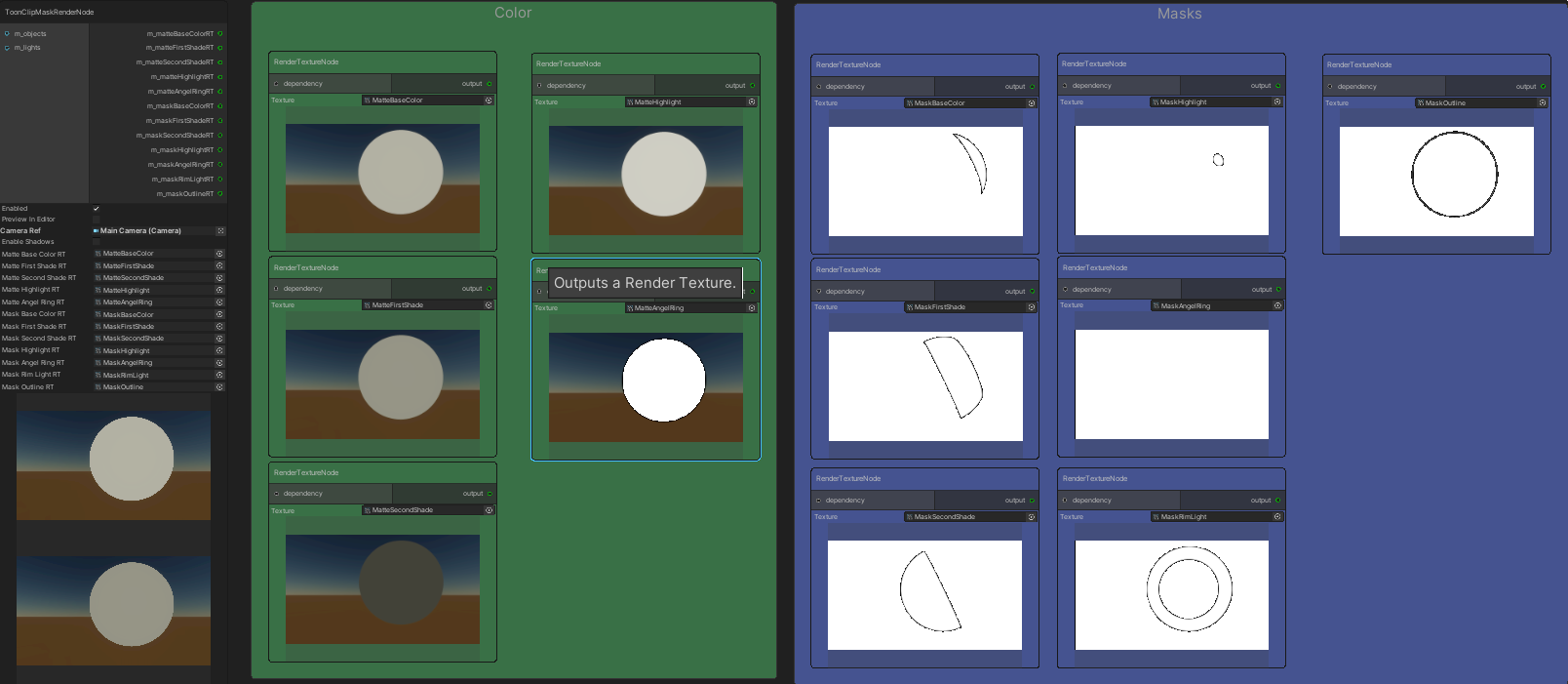

Toon ClipMask Render

Outputs color layers and mask layers of the final Unity Toon Shader output into multiple render textures which are assigned to the node.
Unity Toon Shader is required to use this node, and currently, this node only works for HDRP.

This node is disabled by default in Edit Mode, because a separate render of the same set of objects is needed for each render texture, which can cause very slow performance.

To enable it in Edit Mode, check the Preview in Editor checkbox.

In addition, we can improve the performance of this node by previously assigning RenderTexture assets to the appropriate fields at the bottom of the node, which correspond to the required outputs.

Note:

• This node is experimental. Specifications may change in the future.
• Feather values (blur values) are not reflected in each color or mask.

Transform

This node applies 2D transforms to the input image, allowing for scrolling and zooming effect.

Parameters	Description
Size	The target resolution size.
Tex Wrap Mode	Similar to TextureWrapMode, with additional Border option. Border: makes the texture edge pixels use the specified background color when outside of of 0..1 range.
Background Color	The background color outside texture edge pixels. Only used when Tex Wrap Mode is set to Border.
Resize Mode	The texture resize mode when the target resolution size is different from the input resolution size.
Uniform Scale	Apply uniform scale (force y-scale to equal x-scale).
Scale	The scale.
Rotation	The rotation in degrees.
Rotation Center	The center point of the rotation in pixels. (0,0) is the center of the texture.
Offset	The translation.

The order of the 2D transformation is Scale * Rotation * Translation.

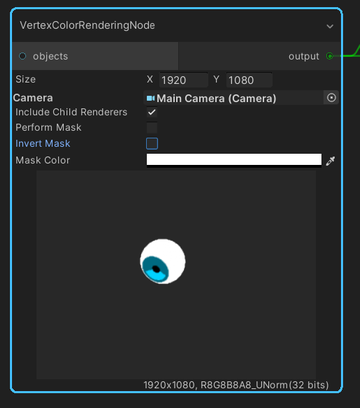

Vertex Color Render

Renders a group of objects using their vertex colors with a specified camera.
By default, all objects in the scene are rendered.

Parameters	Description
Include Child Renderers	Render the children of the selected GameObjects or not.
Perform Mask	If enabled, only output pixels which colors match the Mask Color.
Invert Mask	Invert the output pixels. Only applicable when Perform Mask is enabled.
Mask Color	The color of the mask. Only applicable when Perform Mask is enabled.

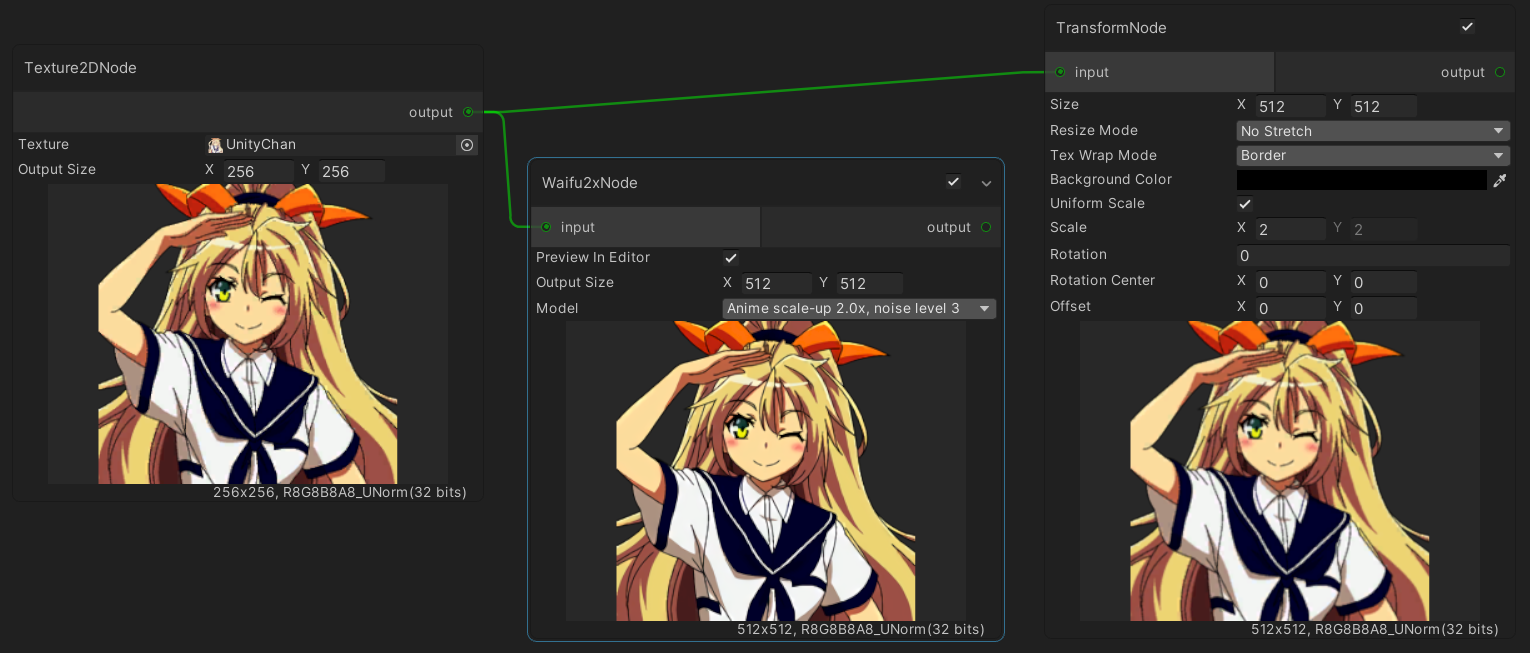

Waifu2x

Upscale an image while reducing noise using Waifu2x with Unity Barracuda neural network inference library.

Parameters	Description
Preview in Editor	Enable/disable the node in edit mode.
Output Size	The target resolution size.
Model	The waifu2x model to apply. Refer to waifu2x-caffe for more details.

---

Value Nodes

Nodes to assign values to the properties of other nodes which have been added as input ports.

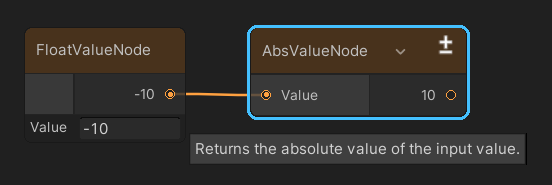

Abs Value

Returns the absolute value of the input value.

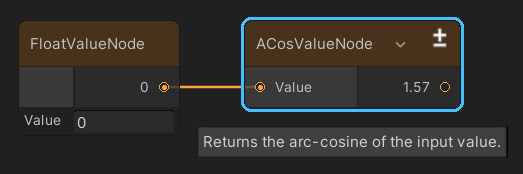

ACos Value

Returns the arc-cosine of the input value.

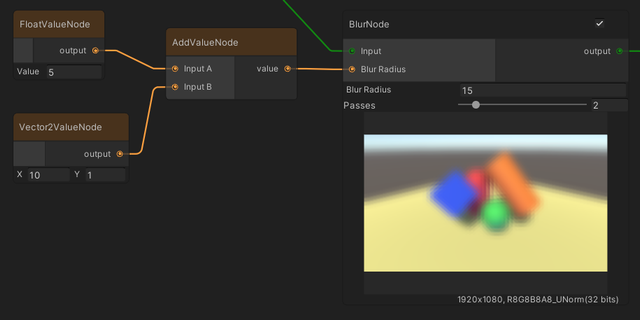

Add Value

Adds two float, Vector2, Vector3, Vector4, or Color operands.

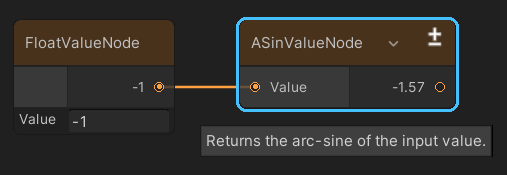

ASin Value

Returns the arc-sine of the input value.

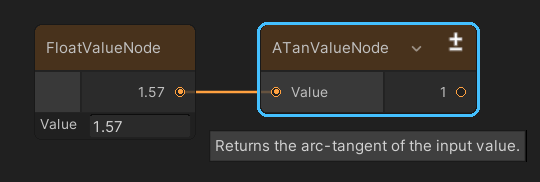

ATan Value

Returns the arc-tangent of the input value.

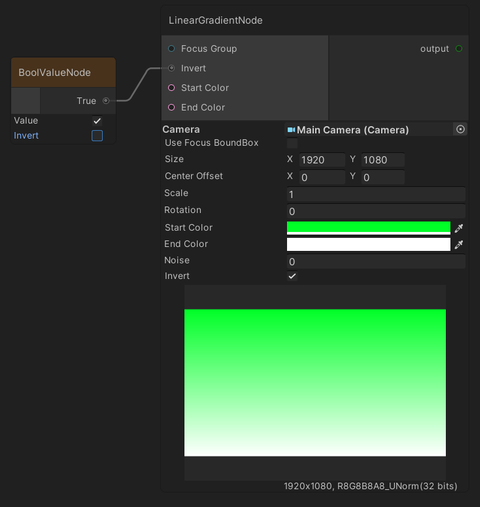

Bool Value

Outputs a boolean value.

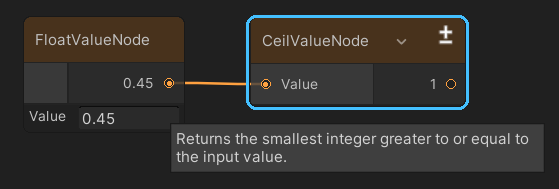

Ceil Value

Returns the smallest integer greater to or equal to the input value.

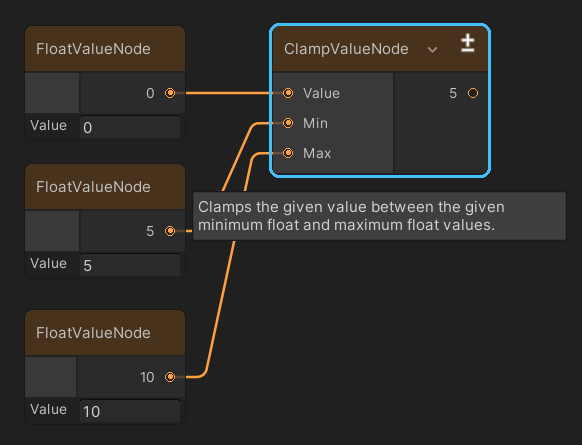

Clamp Value

Clamps the given value between the given minimum float and maximum float values.
See Mathf.Clamp for more details.

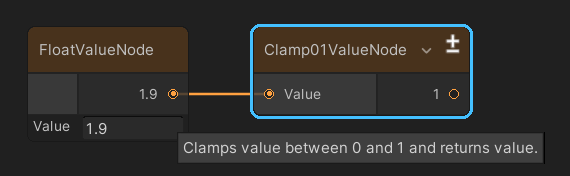

Clamp01 Value

Clamps value between 0 and 1 and returns value.
See Mathf.Clamp01 for more details.

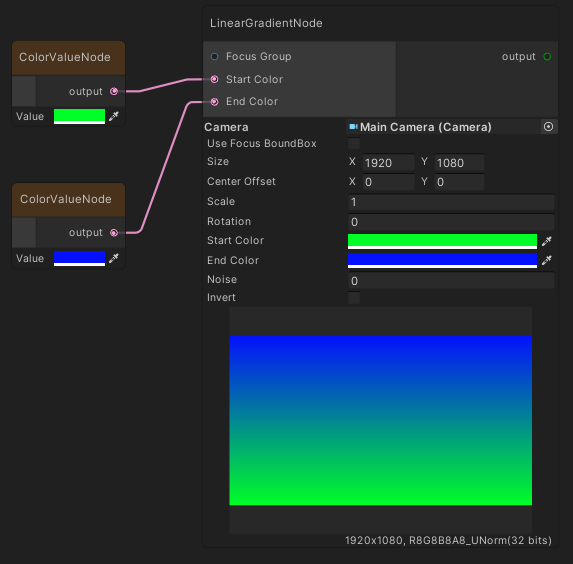

Color Value

Outputs a Color value.

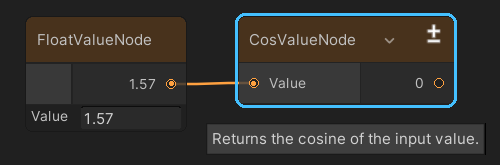

Cos Value

Returns the cosine of the input value.
See Mathf.Cos for more details.

Deg2Rad Value

Performs a Degrees to Radians calculation on the input value.

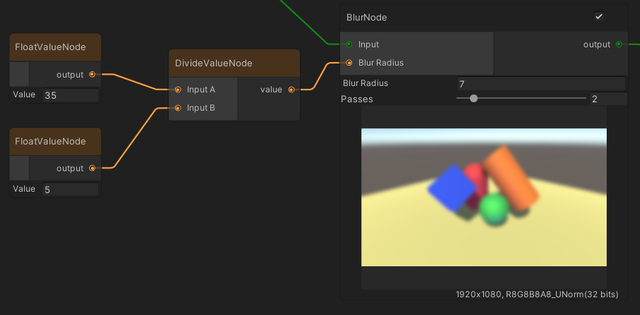

Divide Value

Divides a float, Vector2, Vector3, Vector4, or Color operand with another operand.

Float Value

Outputs a float value.

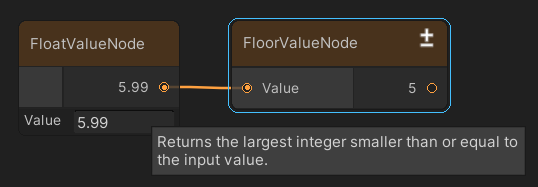

Floor Value

Returns the largest integer smaller than or equal to the input value.

Frac Value

Returns the fractional part of the input value.

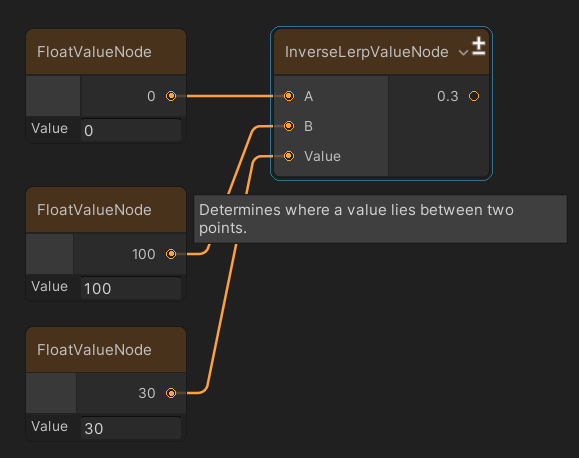

Inverse Lerp Value

Determines where a value lies between two points.
See Mathf.InverseLerp for more details.

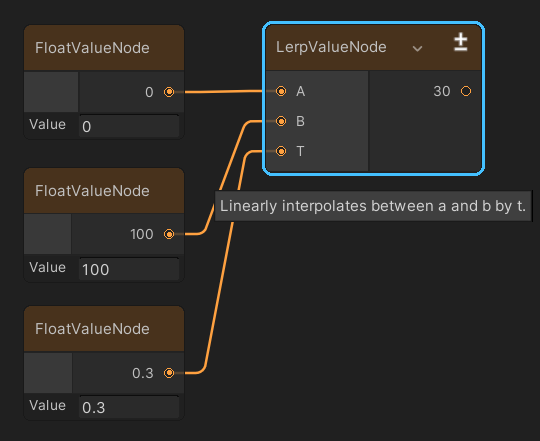

Lerp Value

Linearly interpolates between a and b by t.
See Mathf.Lerp for more details.

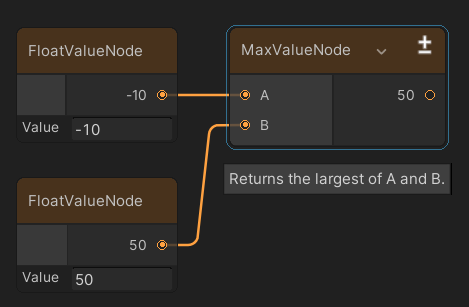

Max Value

Returns the largest of A and B.

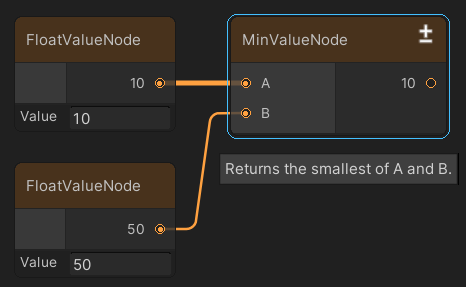

Min Value

Returns the smallest of A and B.

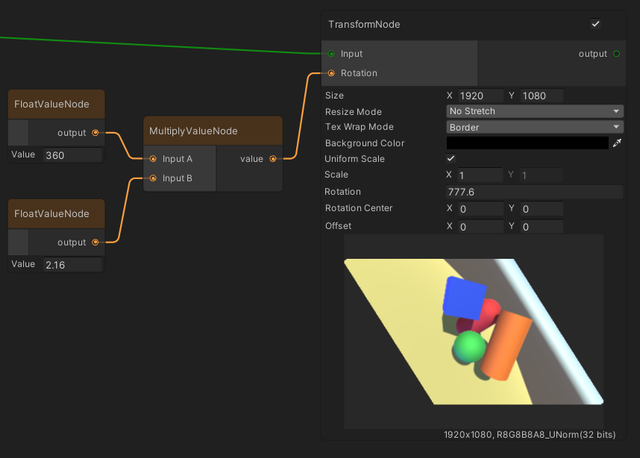

Multiply Value

Multiplies two float, Vector2, Vector3, Vector4, or Color operands.

Pack Vector Value

Packs float values to create Vector2, Vector3, Vector4, and Color values.

Perlin Noise Value

Generates 2D Perlin noise.

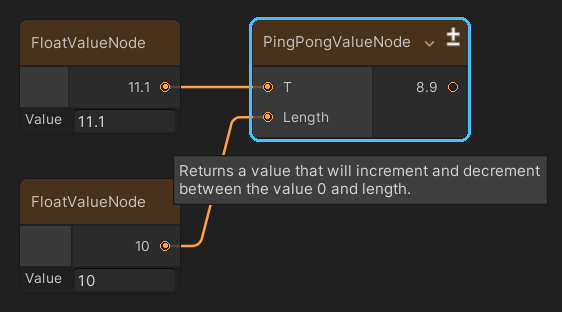

Ping Pong Value

Returns a value that will increment and decrement between the value 0 and length.
See Mathf.PingPong for more details.

Power Value

Returns the first Vector2, Vector3, Vector4, or Color operand raised to the power of the second operand.

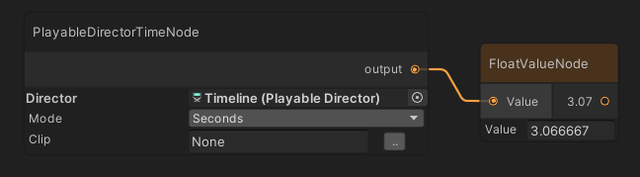

Playable Director Time

Retrieves time values from PlayableDirector (Timeline).

Parameters	Description
Director	The source PlayableDirector. Will be set to the first PlayableDirector found in the scene by default.
Mode	Outputs the time in seconds or frames.
Clip	Outputs the time relative to the clip if set, while following its gap extrapolation properties.

Random Value

Outputs a random value based on an initialization seed.

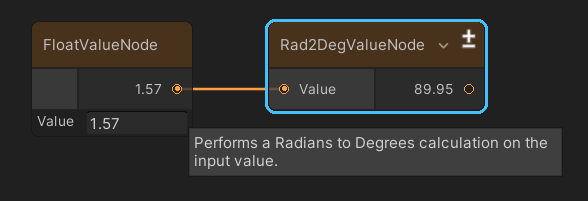

Rad2Deg Value

Performs a Radians to Degrees calculation on the input value.

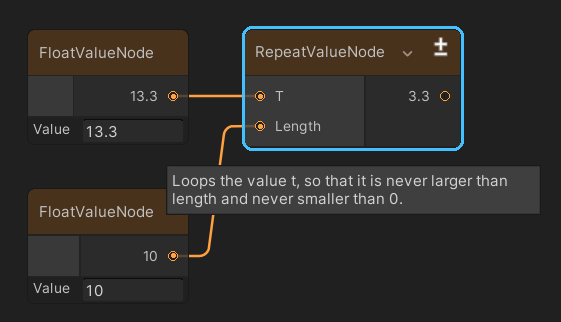

Repeat Value

Loops the value t, so that it is never larger than length and never smaller than 0.
See Mathf.Repeat for more details.

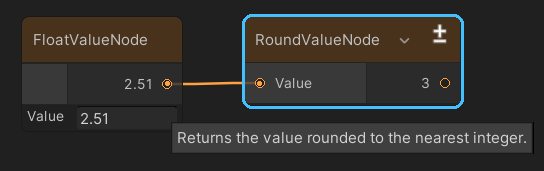

Round Value

Returns the value rounded to the nearest integer.
See Mathf.Round for more details.

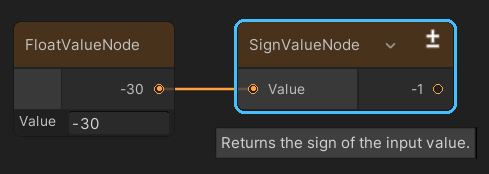

Sign Value

Returns the sign of the input value. See Mathf.Sign for more details.

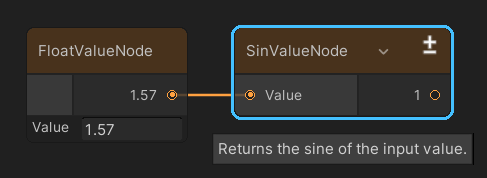

Sin Value

Returns the sine of the input value.

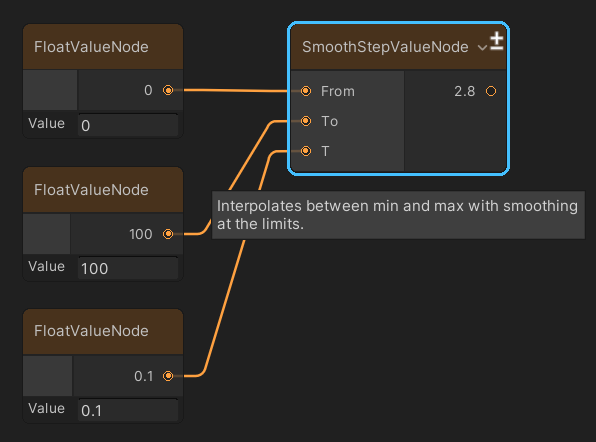

Smooth Step Value

Interpolates between min and max with smoothing at the limits.
See Mathf.SmoothStep for more details.

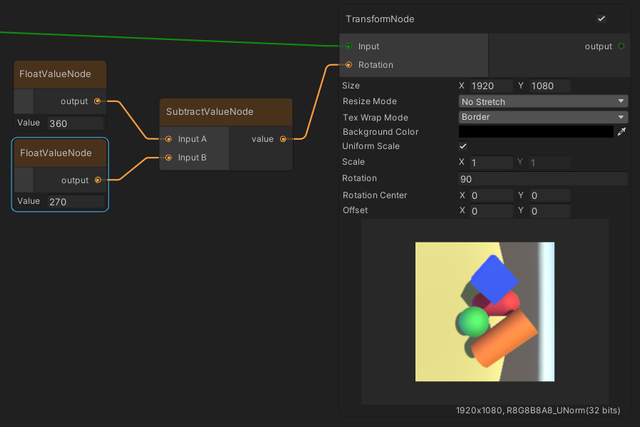

Subtract Value

Subtracts one float, Vector2, Vector3, Vector4, or Color operand from another.

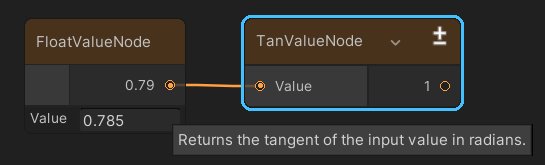

Tan Value

Returns the tangent of the input value in radians.

Unpack Vector Value

Unpacks Vector2, Vector3, Vector4, or Color into its individual float values.

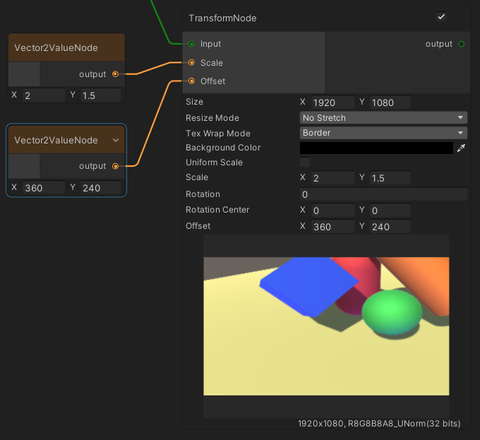

Vector2 Value

Outputs a Vector2 value.

Vector3 Value

Outputs a Vector3 value.

Vector4 Value

Outputs a Vector4 value.

---

GameObject Nodes

Nodes that output a set of GameObjects.

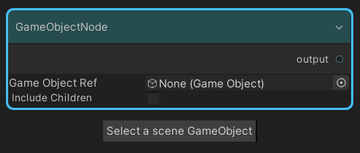

GameObject

Outputs the selected GameObject.

Parameters	Description
Include Children	Adds the children of the selected GameObject to the output if checked.

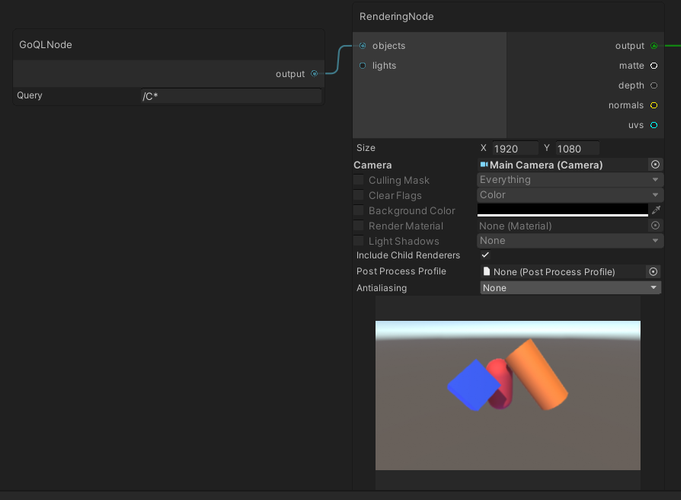

GoQL

Outputs a set of GameObjects that satisfies the assigned GoQL.
Please refer to the SelectionGroups document for more details on GoQL.

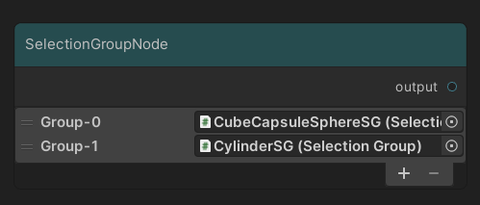

Selection Group

This node outputs the GameObject members of all Selection Groups added in the node.

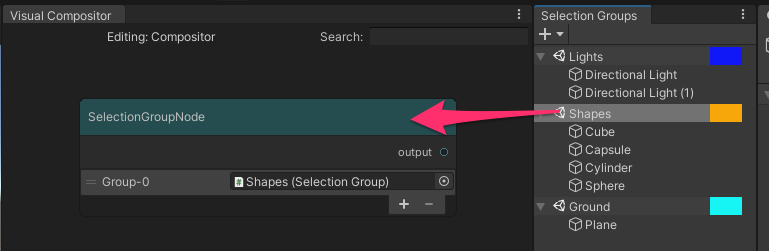

In addition to the general way to create nodes, we can also drag a group from the Selection Groups window to the Visual Compositor window to create this node.

There are also other nodes for operating with Selection Groups:

1. Selection Group Difference
2. Selection Group Intersection
3. Selection Group Union

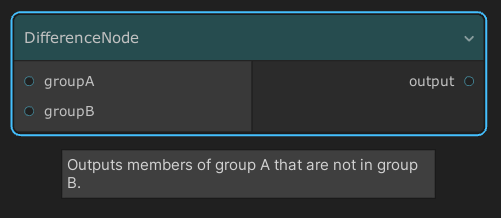

Selection Group Difference

Receives two selection groups as inputs, then outputs the members of group A that are not in group B.

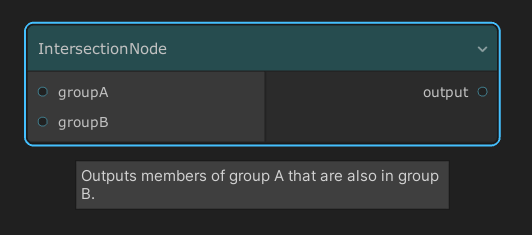

Selection Group Intersection

Receives two selection groups as inputs, then outputs the group members which are common to both groups.

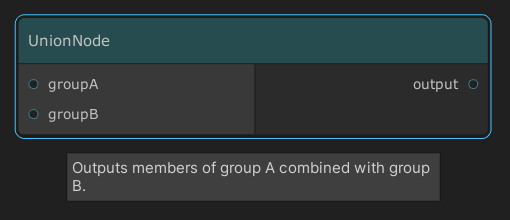

Selection Group Union

Combines all objects from two selection groups into one collection.

---

Organize Nodes

Nodes to organize the graph.

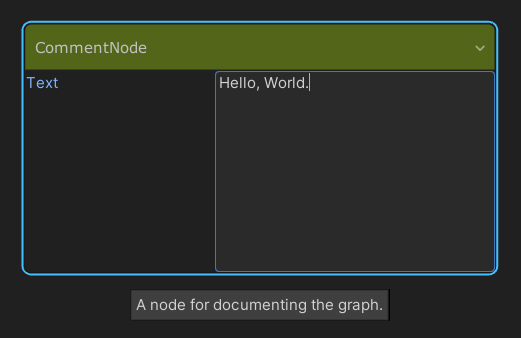

Comment

Adds a text label into the graph, which is used for documentation.

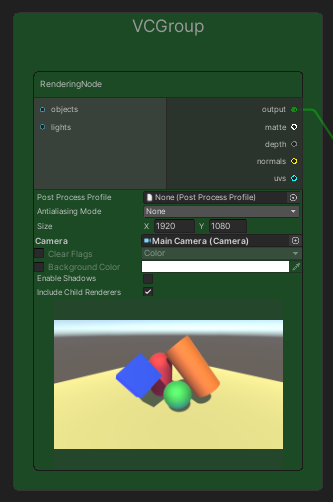

Group

Groups nodes together with a title and a background color for organising the graph.

Operation	Steps
Add to a group	Drag and drop a node on top of the group.
Remove from a group	Do one of the following: 1. Hold Shift and drag the node out of the group. 2. Right-click on the node and select "Remove from Group".

Junction

Passes input directly to output.
