    Deform a water surface

    You can use water decals to achieve deformation effects on the water surface. Water decals use textures and Shader Graph materials to modify the water's appearance dynamically.

    A swimming pool with a deformed water surface.

    Deform a water surface vertically

    To deform a water surface vertically:

    1. Create a water surface.

    2. In the Inspector window of the water surface, go to Water Surface (Script) > Water decals, and enable Deformation.

      To add a deformation only, disable Foam.

    3. In the main menu, go to GameObject > Water > Water Decal.

      Unity adds a Water Decal GameObject to your hierarchy and the water deformation appears in the Scene view.

    4. In the Inspector window of the Water Decal, expand the Water Decal (Script) section.

    5. To create a new Water Decal material, do one of the following:

      • To start from the template shader graph, select New > Deformer and Foam Water Decal.

      • To create a new material from scratch, select New > Empty Water Decal.

      A new material using the water decal master stack is created in your assets subfolder.

    6. In the Inspector window of the Water Decal, select Edit next to the water decal shader graph, then edit the shader graph as needed.

    For example, connect the following gradient texture with your deformation pattern with the Deformation fragment.

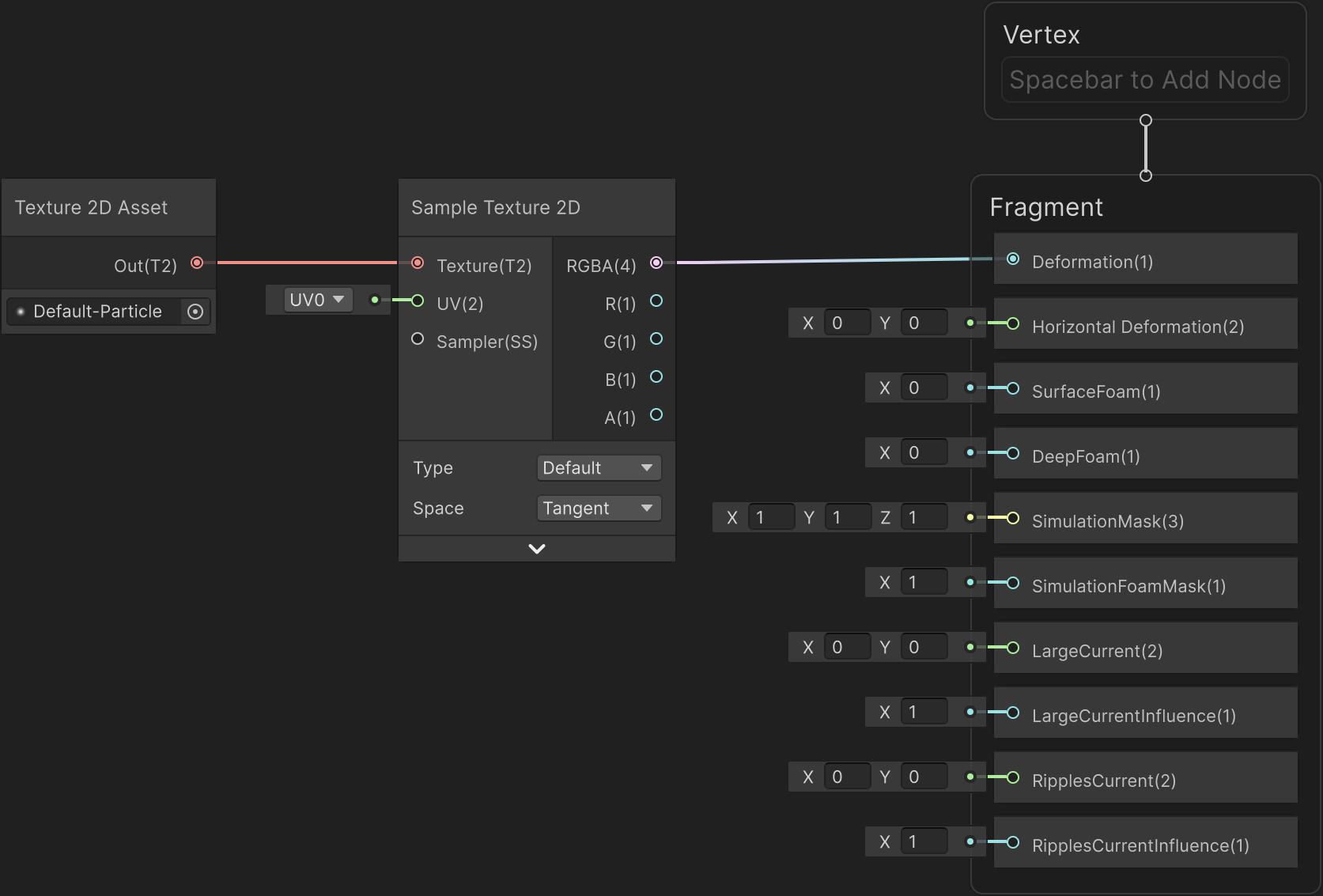

    Water decal shader graph: Vertical deformation.

    This results in the following deformation along the Y-axis:

    Water surface deformed vertically

    Deform a water surface horizontally

    Enabling horizontal deformation has the following effects:

    • HDRP creates a new buffer, which increases the amount of memory HDRP uses.
    • The results of water scripts, underwater effects, and script interactions might be less accurate.

    Follow these steps:

    1. In the main menu, go to Edit > Project Settings.

    2. In the Project Settings window, go to Quality > HDRP > Rendering > Water, then enable Horizontal Deformation.

    3. If the Fragment context doesn't contain a Horizontal Deformation block, right-click the Fragment context and select Add Block Node > Horizontal Deformation.

    4. Connect a gradient texture to the Horizontal Deformation block. HDRP uses the yellow and blue channels of the texture to deform the x-axis and z-axis of the water surface.

      For example, connect the red channel of the default HDRP Default-Particle texture to both the x-axis and z-axis:

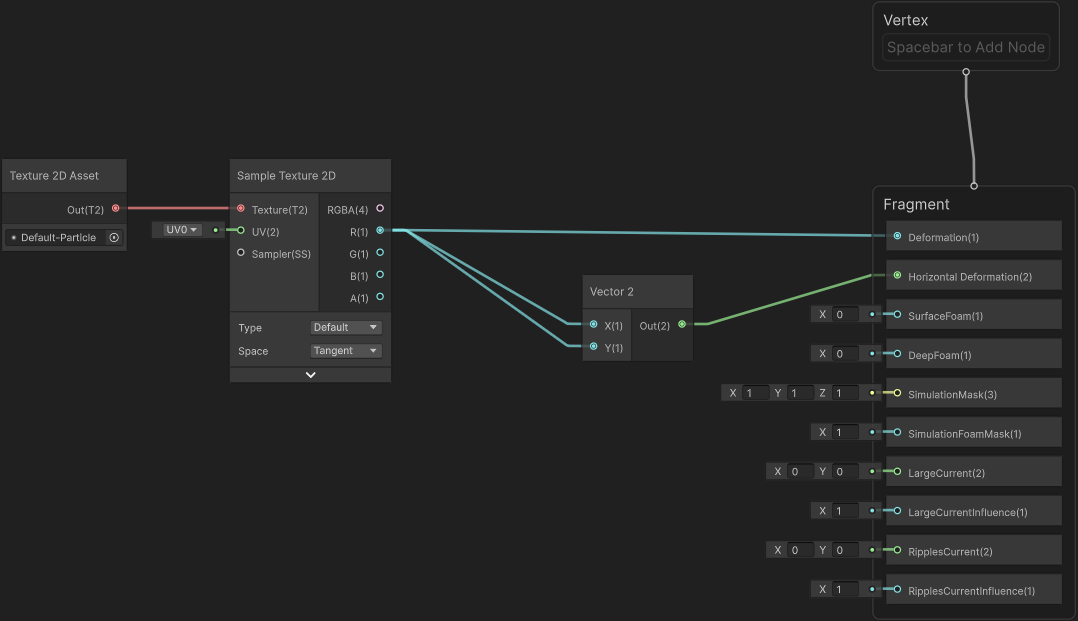

      Water decal shader graph example: A deformation along the x-axis and z-axis, built on top of existing vertical deformation.

      This results in deformation along the x-axis and z-axis, built on top of existing vertical deformation.

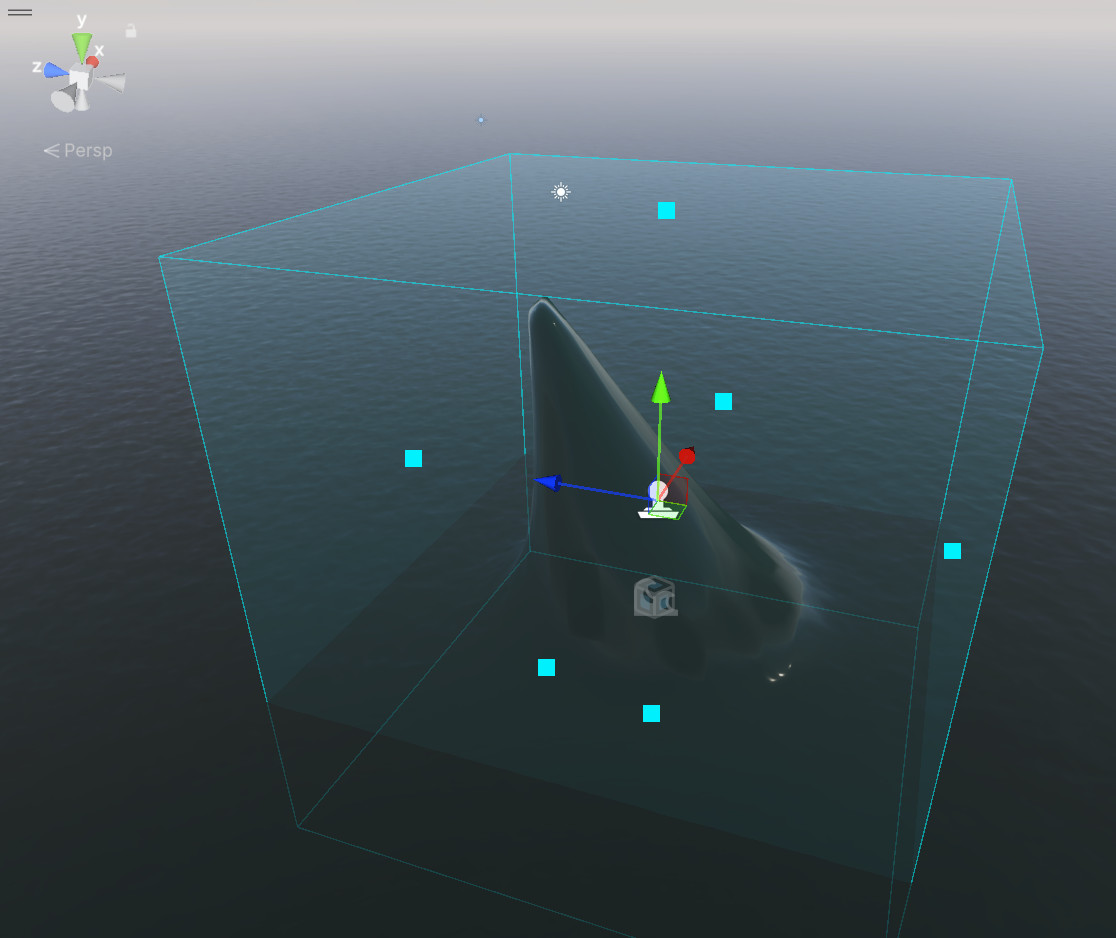

      Water surface deformed in 3D

    You can also view an advanced example of how to apply a 3D deformation to a water surface in the rolling wave water sample.

    Configure the Deformer and Foam Water Decal template

    The properties used in the water decal material Inspector window change based on the type you select.

    Box

    Use the following properties to control the Box type in the Water Decal template shader graph.

    Property Description
    Box Blend Distance Control the range in meters over which HDRP blends this water decal between its height and amplitude. For example, if you set these values to half the values in the Region size property, it results in a pyramid shape.
    Cubic blend Set the blend between the water surface and the water decal’s amplitude to a cubic profile. When disabled, the blend is linear.

    Bow Wave

    Use the following property to control the Bow Wave type in the Water Decal template shader graph.

    Property Description
    Bow Wave Elevation Controls the maximum height, in meters, of the bow wave.

    To make a bow wave move with a boat’s bow, set the Bow Wave as a child of the boat GameObject. However, the Bow Wave water decal can only move within the area defined in the Inspector window of the water surface, in Deformation > Area Size. To preserve the deformation’s resolution, you can use a script to make the deformationAreaOffset follow the boat position.

    Shore Wave

    Use the following properties to control the Shore Wave type in the Water Decal template shader graph.

    Property Description
    Wavelength Controls the height, in meters, of the bow wave.
    Skipped Waves Sets the proportion of skipped shore waves.
    Speed Sets the translation speed of the shore waves in kilometers per hour along the local X axis.
    Offset Sets the local translation offset of the shore waves along the wave direction.
    Blend Range Specifies the range on the local Z axis where the shore waves have their maximal amplitude.
    Breaking Range Controls the range on the X axis where the shore wave should break. The wave reaches its maximum amplitude at the start of the range, generates surface foam inside it and loses 70% of its amplitude at the end of the range.
    Deep Foam Range Controls the range on the X axis where the shore wave generates deep foam. This property has no effect if foam is disabled.
    Surface Foam Dimmer Controls the dimmer for the surface foam generated by the water decal. Does this property require Foam setup? If so, explain that and link out to Foam in the water system.
    Deep Foam Dimmer Controls the dimmer for the deep foam generated by the water decal. This property has no effect if foam is disabled.

    Texture

    These properties are specific to the Texture type in the Water Decal template shader graph.

    Property Description
    Range Remap Specifies the range of the water decal in the [-1, 1] interval. The input texture values will be remapped from [0,1] to the specified range.
    Texture The texture used by the water decal. This is a single channel texture that contains the amplitude of the deformation relative to the water decal’s amplitude.
    This texture can be a regular texture or a Render Texture, which can be updated at runtime by modifying a render target with a compute shader for example. For a Render Texture, use the R16_UNorm format.

    Additional resources

    • Materials and surfaces
    • Shader Graph
