Rigid body data concepts
Unity Physics is based on the Entity Component System (ECS). Rigid bodies are represented by component data on the entities within your project. The built-in Rigidbody and Collider components, and the simplified custom Physics Body and Physics Shape component views in the Unity Editor are composed of multiple data components under the hood at runtime. This allows more efficient access and saves space for static bodies which do not require some of the data.
The current set of data components for a rigid body is as follows:
| Component | Description |
|---|---|
PhysicsCollider |
The shape of the rigid body. Needed for bodies that can collide. |
PhysicsColliderKeyEntityPair |
A buffer element used to associate an original Entity with a collider key in a Compound Collider. Only present when the rigid body contains a compound collider. |
PhysicsCustomTags |
Custom flags applied to the body. They can be used for certain collision event applications. Assumed to be zero if not present, optional component. |
PhysicsDamping |
The amount of damping to apply to the motion of a dynamic body. Assumed to be zero if not present. Every step, a body with this component will have its velocities scaled down. This could slow down objects, making them more stable, or be used as a cheap approximation of aerodynamic drag. |
PhysicsGravityFactor |
A scalar multiplication factor defining how much a dynamic body should be affected by gravity. This is an optional component, with the factor assumed to be 1 if it is not present. Some objects look more realistic if they appear to fall faster. Other objects (for example, hot air balloons) can rise up, which can be emulated with a negative gravity factor. |
PhysicsMass |
The current mass properties (center of mass and moment of inertia) of a dynamic body. Assumed to be infinite mass if not present. |
PhysicsVelocity |
The current linear and angular velocities of a dynamic body. Needed for any body that can move. |
PhysicsWorldIndex |
Shared component required on any Entity that is involved in physics simulation (body or joint). Its Value denotes the index of physics world that the Entity belongs to (0 by default). |
All physics bodies require components from Unity.Transforms in order to represent their position, orientation and scale in world space.
Dynamic Bodies
Dynamic bodies are bodies that require a LocalTransform component and a PhysicsVelocity component. Since a dynamic body is unparented during entity baking for improved performance, its LocalTransform component can be presumed to be in world space and thus fully defines the body's world space position and orientation.
During the baking process of a GameObject into a dynamic body, the GameObject's world-space position and orientation is transferred into the LocalTransform component of the resultant entity.
Static Bodies
Static bodies are bodies with a PhysicsCollider component, but without a PhysicsVelocity component. They are considered to be stationary for the most part and are assumed not to collide with other static bodies, and are optimal for representing environmental obstacles, such as terrain surfaces, buildings, trees or rock formations. Such bodies require at least one of either the LocalTransform, and/or the LocalToWorld components.
Static Bodies and Parents
For best performance and guaranteed functionality, it is recommended that static bodies do not have a Parent component. This section provides important background information and guidelines for scenarios in which this is unavoidable, e.g., to to requirements in the scene design.
The world space transformations of static bodies without a Parent component are obtained by Unity Physics directly from their LocalTransform component values, as the local space transformation corresponds to the world space transformation in this case.
However, if a static body has a Parent component, its world space transformation is obtained from the current value of its LocalToWorld component. This component is updated by the transform systems (specifically, by the LocalToWorldSystem) at the end of every frame. It should therefore be noted that if such static bodies are moved, there is no guarantee that their LocalToWorld value is up-to-date when Unity Physics is run next. This can lead to unexpected differences between the supposed state of these bodies in the scene and their state within the physics engine, manifesting in incorrect collisions and wrong results in collision queries such as ray casts or collider casts. Furthermore, the transform systems which update the LocalToWorld component don't run as part of the FixedStepSimulationSystemGroup in which Unity Physics runs. This means that specifically in cases in which the FixedStepSimulationSystemGroup, and thereby Unity Physics, is run multiple times per frame, e.g., due to the activities of the FixedRateCatchUpManager, the LocalToWorld component will not get updated at the same frequency as the physics systems will run, leading to the aforementioned discrepencies.
To address these issues and for Unity Physics to receive the most up-to-date world space transformation of parented static bodies, they should either not be moved, or, if they are moved, it is advised to manually update their LocalToWorld transformation following the move. This can be achieved by running the LocalToWorldSystem as part of the FixedStepSimulationSystemGroup, which, however, is rather time consuming. Alternatively, the LocalToWorld component can be updated manually, in time for the next physics systems update.
Scaling and Shearing Bodies
The shape of a rigid body, represented by its PhysicsCollider component, together with its mass properties, can be scaled or sheared.
Uniform Scaling
In the Editor
Any pure, world-space uniform scale of the GameObject representing the rigid body at edit-time is transferred into the LocalTransform component's Scale property during baking. See Figure 1 for an example.

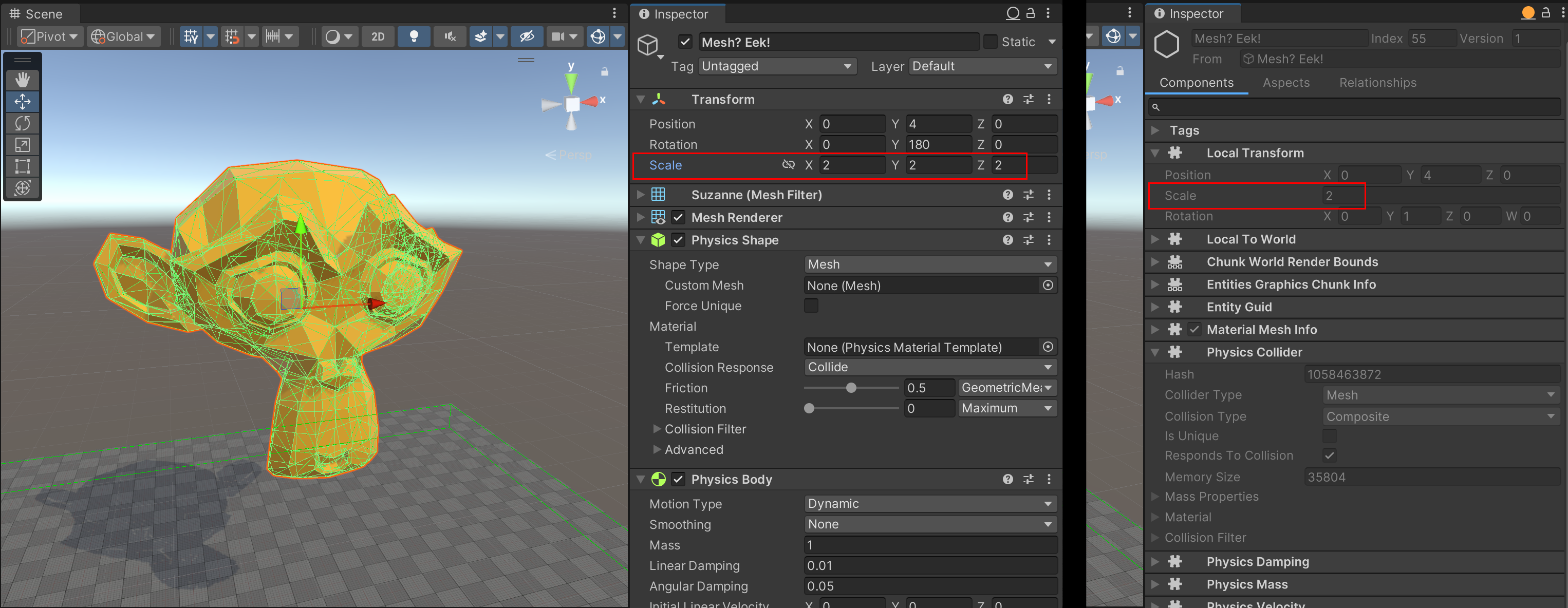

Figure 1: An example of how the uniform scale vector (2,2,2) of a GameObject is transferred into the entity's LocalTransform component as a Scale of 2.
This scale automatically also applies to the collider geometry contained in the entity if present (i.e., within its PhysicsCollider component), no matter the geometry type, and to its moment of inertia (defined by its PhysicsMass component if present).
During Runtime
Dynamic bodies can be uniformly scaled at runtime simply by modifying their LocalTransform component's Scale property mentionde above. The resultant change in the collider scale is automatically considered during collision detection and resolution, and the change in mass properties is accounted for in the rigid body's dynamics simulation.
Non-Uniform Scaling and Shearing
In the Editor
If a GameObject has any non-uniform scale or shear, the scale and shear portion of its world-space transformation matrix is transferred into a PostTransformMatrix component which is added to the resultant entity during baking. At runtime, this post-transform matrix is automatically applied to the entity's LocalTransform matrix, and used to calculate the final local-to-world matrix. This process ensures that any render mesh associated with the GameObject is correctly scaled and sheared and appears as is expected.
In addition, the same scale and shear is baked into the body's collider geometry if present, thereby also affecting its mass distribution (the moment of inertia). This occurs regardless of the collider type, with the caveat that certain non-uniform scales and shears can only be exactly represented in some types of collider geometries. For example, any non-uniform scale can be perfectly applied to a box collider as long as the scale occurs along the box's principle axes. However, this is not the case for a cylinder, capsule or sphere. On the other hand, any scale and shear can be perfectly applied to mesh-based colliders such as mesh colliders or convex colliders.
In summary, this baking process will attempt to apply the GameObject's edit-time non-uniform scale and shear to the rigid body's collider geometry as best as possible, but will not be able to fully represent the scale and shear if the collider geometry type does not support it.
After this process, the entity's LocalTransform.Scale will be set to 1, as the full scale and shear has already been applied to the collider geometry.
During Runtime
It is possible to apply non-uniform scale and shear to the shape of a rigid body at runtime by directly modifying the Collider blob located within the body's PhysicsCollider component. For more information, please refer to the subsection on modifying colliders in the PhysicsCollider component section.
Additional Topics
Next in this chapter, the PhysicsCollider component section describes how the shape and geometry of rigid bodies is defined.
Subsequent chapters describe how to add rigid bodies to your scenes, and how to interact with rigid bodies and their runtime data.
