Apply common effects with built-in filters

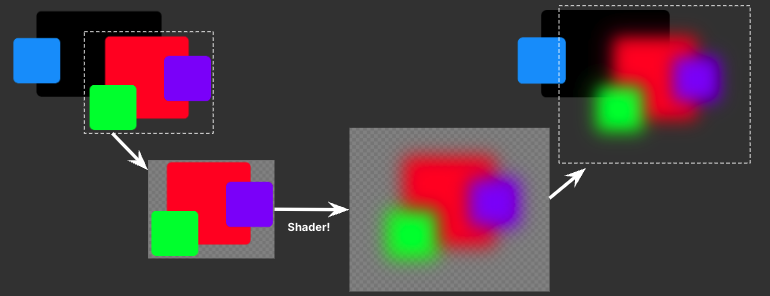

Filters use materials to apply effects to a visual element subtree per-pixel. For example, to post-process a red element, its content and children are rendered to a texture, which can then be processed by a shader. The processed result is then reinserted into the visual element hierarchy. You can expand the processed texture’s bounds with margins to accommodate certain effects. In this example, a blurred texture has enlarged bounds to fit the blur radius.

Built-in filter functions

UI Toolkit provides a set of built-in filter functions that you can use to apply common effects to visual elements. They are similar to CSS filters.

filter: blur(<length>) | grayscale(<number>) | invert(<number>) | opacity(<number>) | sepia(<number>) | tint(<color>) | hue-rotate(<angle>) | contrast(<number>) | drop-shadow(<offset-x> <offset-y> <blur-radius> <color>)

The following example demonstrates different filter functions effects:

Original image	blur(5px)	grayscale(100%)	invert(100%)	opacity(30%)	sepia(100%)	tint(#00ff99)	hue-rotate(90deg)	contrast(200%)	drop-shadow(2px 2px 3px red)

Note: The tint function is a Unity-specific filter function that tints the element with a color. This function isn’t supported in CSS.

Apply built-in filters to visual elements

You can apply built-in filters to visual elements in UI Builder, USS, or C# code. You can also combine multiple filter functions to create complex effects.

Note: Filters work as a sequential pipeline where each pass processes the output from the previous pass. Pass N can only read from pass N–1, not from pass N–2 or earlier.

Apply filters in UI Builder

You can apply built-in filters to visual elements directly in the UI Builder:

1. Open the UI Builder and create a new UXML file or open an existing one.
2. Select the visual element you want to apply the filter to.
3. In the Inspector panel, select Inline Styles > Filter.
4. Click the Add (+) button to add a filter function.
5. Select a built-in filter function from the dropdown menu, such as blur, grayscale, or invert.
6. Set the parameters for the filter function, such as the blur radius or grayscale percentage.
7. Repeat steps 4–6 to add more filter functions if needed.

Apply filters with USS

To apply a filter to a visual element, use the filter property in a USS file. USS filters follow the CSS filter syntax. For example:

.builtin-blur {
    filter: blur(20px);
}

.builtin-blur-invert {
    filter: blur(5px) invert(100%);
}

If you define multiple classes, and each class defines a filter, and apply them to an element: instead of combining the effects, the filter applied last takes precedence over the earlier ones.

For example, if you apply both of the following classes to an element:

.blur {
    filter: blur(20px);
}

.sepia {
    filter: sepia(100%);
}

And you apply both classes to an element like this: <engine:VisualElement class="blur sepia" />. The element only has the sepia effect applied.

For more information, refer to Selector precedence.

Apply filters in C# code

To apply filters to a visual element in C# code, create a list of FilterFunction objects and assign it to the visual element’s style.filter property. For example:

// Apply blur filter directly. This is equivalent to CSS: filter: blur(20px);.
var blur = new FilterFunction(FilterFunctionType.Blur);
blur.AddParameter(new FilterParameter(20.0f));
staticBlurButton.style.filter = new List<FilterFunction> { blur };

To animate filter parameters over time, you can use Unity’s scheduling system to update the filter parameters in a callback. For example, the following code animates the blur radius of a button’s filter. To avoid unnecessary allocations, cache the list for reuse as shown in the following example:

// Initialize cached filter list once.
var animatedBlurFilterList = new List<FilterFunction>(1);

// Animation variables.
float blurAmount = 1.0f;
float animationTime = 0f;
const float animationDuration = 2f;
const float maxBlur = 20f;
bool increasing = true;

// Use Unity's built-in scheduling system to animate the blur amount.
animatedBlurButton.schedule.Execute((timerState) => {
    float deltaTime = (timerState.deltaTime / 1000.0f);
    animationTime += deltaTime;

    // Calculate normalized time (0-1).
    float normalizedTime = (animationTime % animationDuration) / animationDuration;

    // Apply ease in-out sine curve and yoyo behavior.
    if (increasing)
    {
        blurAmount = 1f + (maxBlur - 1f) * Mathf.Sin(normalizedTime * Mathf.PI * 0.5f);
        if (normalizedTime >= 1f)
        {
            increasing = false;
            animationTime = 0f;
        }
    }
    else
    {
        blurAmount = maxBlur - (maxBlur - 1f) * Mathf.Sin(normalizedTime * Mathf.PI * 0.5f);
        if (normalizedTime >= 1f)
        {
            increasing = true;
            animationTime = 0f;
        }
    }

    // Create a new filter with the current blur value.
    var updatedBlur = new FilterFunction(FilterFunctionType.Blur);
    updatedBlur.AddParameter(new FilterParameter(blurAmount));

    // Clear and add the filter to reuse the cached list.
    animatedBlurFilterList.Clear();
    animatedBlurFilterList.Add(updatedBlur);
    animatedBlurButton.style.filter = animatedBlurFilterList;
}).Every(16); // ~60fps (16ms intervals)

Additional resources

• Create and apply custom filters
• Create a custom swirl filter
