Shaders view reference
Build view reference

Project view reference

Contains information about the project settings and packages in your project. The following views are available:

  • Project SettingsA broad collection of settings which allow you to configure how Physics, Audio, Networking, Graphics, Input and many other areas of your project behave. More info
    See in Glossary
  • PackagesPackages are collections of assets to be shared and re-used in Unity. The Unity Package Manager (UPM) can display, add, and remove packages from your project. These packages are native to the Unity Package Manager and provide a fundamental method of delivering Unity functionality. However, the Unity Package Manager can also display Asset Store packages that you downloaded from the Asset Store. More info
    See in Glossary

Project Settings view

Displays issues found in the project’s settings. For each issue, this view also provides an explanation of the problem and a recommended course of action to resolve the issue. For some issues, you can select Quick Fix from the panel on the right to automatically fix it. Alternatively, you can double-click on an issue in the table to be taken to the relevant page in the Project Settings window to examine and change settings yourself.

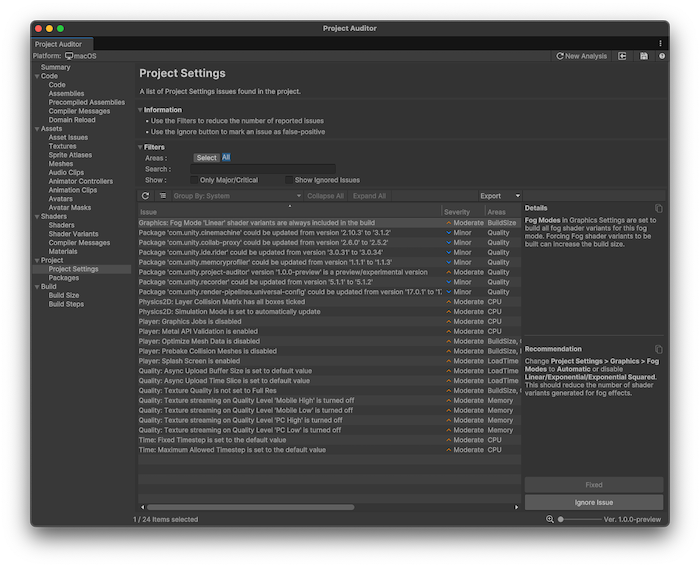

Project Auditor window with the Project Settings view open
Project Auditor window with the Project Settings view open

Issue table

The table of issues has the following columns. Use the table controls to configure how to organize and display the data.

Property Description
Issue A brief description of the issue.
Severity An estimate of how severe the issue might be for your project (Critical/Major/Moderate/Minor).
Areas The area(s) affected by the issue.
System The feature or system which contains the setting related to this Issue. This corresponds to one of the items in the left panel of the Project Settings window.
Platform The build target(s) which this issue affects. Most issues are likely to exist across all platforms, but some issues only affect, or disproportionately affect, a smaller subset of Unity’s supported platforms.
Ignored Displays True if the issue is ignored. To ignore an issue, choose it in the list and then select Ignore Issue in the Details panel to the right. To display ignored issues, select Show Ignored Issues in the Filters panel.

Packages view

The Packages view displays a list of packages in your project, if you have enabled the Analyze Package Contents setting in the Preferences window.

Table

The table of issues has the following columns. Use the table controls to configure how to organize and display the data.

Property Description
Package The name of the package.
Name The package name as its known in the registry, for example com.unity.project-auditor.
Version The installed version number of the package.
Source The source for the package. For example, built-in, registry, or local.
Path The install path of the package.
