Project Auditor provides an API for creating custom analyzers tailored to the needs of your project.
Internally, Project Auditor creates and maintains the following modules:
Every module has a corresponding class inheriting from ModuleAnalyzer
which declares an Analyze
method which takes a type inheriting from AnalysisContext
. During analysis, the module uses reflection to detect and create instances of any Analyzer classes inheriting from its corresponding ModuleAnalyzer
, then constructs AnalysisContext
objects and passes them to the Analyzers.
The following is an example showing how to create a custom Analyzer. Imagine a texture-heavy 2D game with a pixelThe smallest unit in a computer image. Pixel size depends on your screen resolution. Pixel lighting is calculated at every screen pixel. More info
See in Glossary art visual style. In such a project it might be desirable to enforce maximum sizes for spriteA 2D graphic objects. If you are used to working in 3D, Sprites are essentially just standard textures but there are special techniques for combining and managing sprite textures for efficiency and convenience during development. More info
See in Glossary texture assets to help manage memory and to enforce a consistent visual resolution.
The example script demonstrates how to do the following:
Descriptor
, including its custom Fixer
.DiagnosticParameterAttribute
to declare a diagnostic parameter for use during analysis.context
structure passed to it to decide whether to report an issue.IssueCategory
which dictates the view in which the issue appears and the information that is displayed in the Issue table.using System;
using System.Collections.Generic;
using Unity.ProjectAuditor.Editor;
using Unity.ProjectAuditor.Editor.Core;
using UnityEditor;
// Inherit from TextureModuleAnalyzer to allow TextureModule to create and run an
// instance of this analyzer.
class CustomTextureAnalyzer : TextureModuleAnalyzer
{
// Define our custom maximum sprite size
const int k_MaxSpriteSize = 1024;
// Data for constructing a descriptor.
const string k_SpriteTooBigId = "PAA9000"; // Make sure this ID is unique.
const string k_Title = "(Custom) Texture: Oversized Sprite";
const Areas k_ImpactedAreas = Areas.Memory | Areas.Quality;
const string k_Description =
"The source texture for this Sprite is larger than the limit specified by " +
"the game's art direction. Oversized textures can take up too much memory " +
"and compromise visual style.";
const string k_Recommendation =
"Resize the source texture, or set the <b>Max Size</b> option in the " +
"Texture Import Settings to a suitable value.";
// Declare a Descriptor to describe the issue we want to report.
static readonly Descriptor k_CustomSpriteTooBigDescriptor = new Descriptor
(
k_SpriteTooBigId,
k_Title,
k_ImpactedAreas,
k_Description,
k_Recommendation
)
{
// As well as the constructor parameters above, this area can be used to set
// the values of other Descriptor fields.

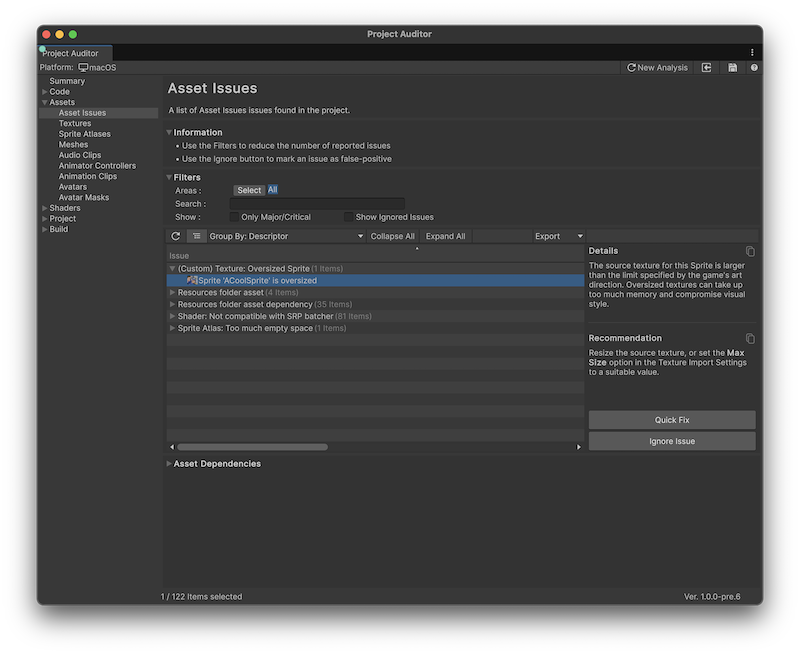

// Project Auditor will format this message using the Name that's passed into
// CreateIssue.
MessageFormat = "Sprite '{0}' is oversized",
// Optionally declare a delegate to fix the issue in a single button click.
Fixer = (issue, analysisParams) =>
{
var textureImporter =
AssetImporter.GetAtPath(issue.RelativePath) as TextureImporter;
if (textureImporter != null)
{
textureImporter.maxTextureSize = k_MaxSpriteSize;
textureImporter.SaveAndReimport();
}
}
};
// Declare m_CustomSpriteSizeLimit as a DiagnosticParam. Give the parameter a
// unique name and a sensible default.
[DiagnosticParameter("CustomSpriteSizeLimit", "Sprite Size Limit",
"Warn if any sprites have a width or height greater than this value.", k_MaxSpriteSize)]
int m_CustomSpriteSizeLimit;
// Override the initialize method in order to pass the custom Descriptor to the
// registerDescriptor Action so that ProjectAuditor knows about it.
public override void Initialize(Action<Descriptor> registerDescriptor)
{
registerDescriptor(k_CustomSpriteTooBigDescriptor);
}
// Implementation of the custom Analyze coroutine method. In the case of a class
// inheriting from TextureModuleAnalyzer, the AnalysisContext passed to this
// method is a TextureAnalysisContext.
public override IEnumerable<ReportItem> Analyze(TextureAnalysisContext context)
{
// Check to see if a texture is treated as a sprite, and check its dimensions
if (context.Importer.textureType == TextureImporterType.Sprite &&
(context.Texture.width > m_CustomSpriteSizeLimit ||
context.Texture.height > m_CustomSpriteSizeLimit))
{
// Create the issue with the correct category, DescriptorId, name and path
yield return context.CreateIssue(IssueCategory.AssetIssue,
k_CustomSpriteTooBigDescriptor.Id, context.Name)
.WithLocation(context.Importer.assetPath);
}
}
}
The analysis for some issues might take a long time to run, particularly in a large project. The Descriptor
for such issues might declare Descriptor.IsEnabledByDefault
to be false to stop them running when running Project Auditor interactively in the Editor.
When running Project Auditor in a CI/CD environment you can re-enable analysis for these descriptors. Use AnalysisParams.WithAdditionalDiagnosticRules
to add temporary Rule
instances to increase the Severity
of a Descriptor to anything other than Severity.None
to re-enable analysis in this context.
Use the following guidelines when writing the strings that appear in Descriptors for the Issues the tool reports:
<b>
and </b>
tags before and after the name.messageFormat
strings. No <b>
bold</b>
tags, for example. These fields don’t support rich text in the UI so it will look bad.
