Play an animation clip

This example demonstrates a PlayableGraph with one playable output linked to one playable node. The playable node plays a single animation clip (clip). Before a playable node can use an animation clip, you must wrap the clip in an AnimationClipPlayable.

Prerequisites

To use the PlayAnimationClip script in your project, your project must have the following:

• A GameObjectThe fundamental object in Unity scenes, which can represent characters, props, scenery, cameras, waypoints, and more. A GameObject’s functionality is defined by the Components attached to it. More info
  See in Glossary such as a cube or a capsule. You don’t need to manually add an Animator componentA component on a model that animates that model using the Animation system. The component has a reference to an Animator Controller asset that controls the animation. More info
  See in Glossary to this GameObject. The RequireComponent attribute adds this component if it is not present.
• An animation clip that animates the properties of the GameObject. For example, a clip that animates the position and rotation of the GameObject.

Add and run the script

To use the PlayAnimationClip script in your project, follow these steps:

1. Add a script component to your GameObject. Name the script file PlayAnimationClip.cs and use the following code:

   using UnityEngine;
   using UnityEngine.Playables;
   using UnityEngine.Animations;

   [RequireComponent(typeof(Animator))]
   public class PlayAnimationClip : MonoBehaviour
   {
       public AnimationClip clip;
       PlayableGraph graph;

       void Start()
       {
           graph = PlayableGraph.Create("PlayAnimationClip");
           graph.SetTimeUpdateMode(DirectorUpdateMode.GameTime);

           var output = AnimationPlayableOutput.Create(graph, "Animation", GetComponent<Animator>());

           // Wrap the clip in a playable.
           var clipPlayable = AnimationClipPlayable.Create(graph, clip);

           // Connect the Playable to an output.
           output.SetSourcePlayable(clipPlayable);

           // Plays the Graph.
           graph.Play();
       }

       void OnDisable()
       {
           // Destroys all Playables and PlayableOutputs created by the graph.
           graph.Destroy();
       }
   }


2. In the Script component, select the animation clip (clip) that the PlayableGraph will play at runtime.

3. Select Play to switch the Editor to Play mode.

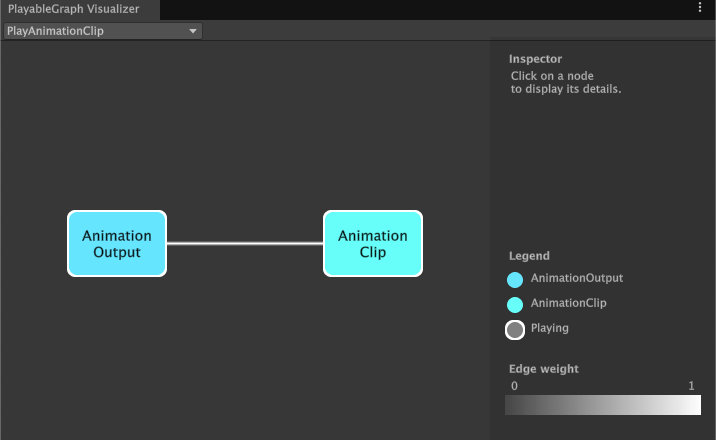

4. If you have installed the PlayableGraph Visualizer package, select PlayAnimationClip to display the PlayableGraph:
