    Using Prebuilt LiDARs

    Note

    This feature is available starting from version 0.4.1 of the Simulation Sensors package.

    The prebuilt LiDAR models that we provide are:

    • Ouster OS0 128
    • Velodyne Puck
    • YDLIDAR X4

    To use the prefabs, import the Prebuilt Sensors from the Package Samples by going to Window > Simulation > Sensors > Prebuilt Sensors > Import Prebuilt Sensors. You can then instantiate a prefab in the scene by clicking on it.

    Alternatively, you can go to Window > Package Manager > Simulation Sensors > Samples, then click the Import button next to Prebuilt Sensors. The prefabs can be found in the Assets > Samples > Simulation Sensors > {version} Prebuilt Sensors > Prefabs in the Project window. There is also a scene for each prefab within the Scenes folder which shows each prefab in action.

    You can also instead add them directly in the Hierarchy by right-clicking, going to Simulation > Prebuilt Sensors and selecting the sensor you want.

    Each of the prebuilt LiDAR models utilizes the Raytraced Lidar Sensor for base functionality. The specifications for each prefab can be seen below. The values are fixed and cannot be modified (except in situations where there are multiple options for a parameter) since the values come from the data sheet for each sensor. Note that all units are in either meters or degrees, unless otherwise noted.

    Comparing our LiDAR sensors to the real world

    To compare the Prebuilt LiDAR sensors in Unity Simulation Pro to the real world, we LiDAR-scanned a real-world location using an Ouster OS0 128 and a Velodyne Puck. This process was then replicated in the Unity Editor, where we recorded the data from the USP Prebuilt LiDAR sensors in an identical Unity Scene. The data was then compared to the real world data and its accuracy was measured to ensure that the data from the USP Prebuilt LiDAR sensors matched the data from the real world.

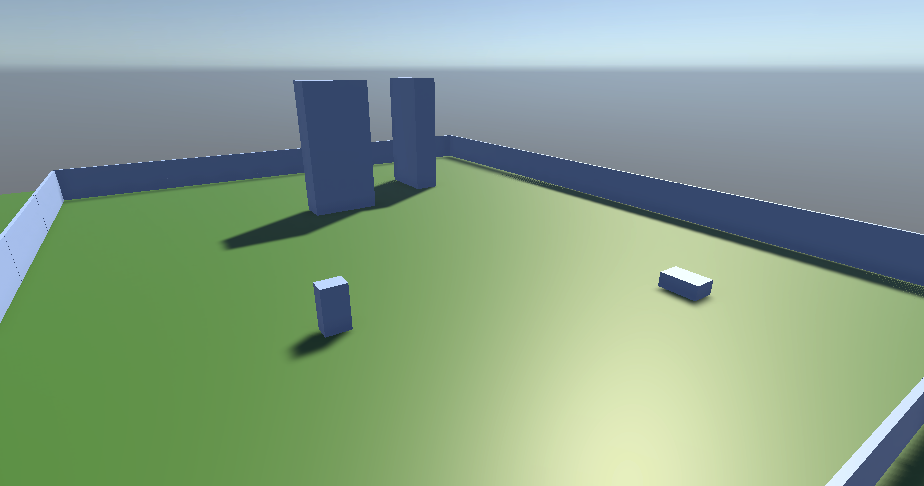

    Virtual scene

    To compare the data from our sensors in the virtual environment to the data from the real world, we calculated the distance between each point from the Unity scene and the closest point in the real world data. We then calculated the percentage of points where this distance was greater than 5 cm.

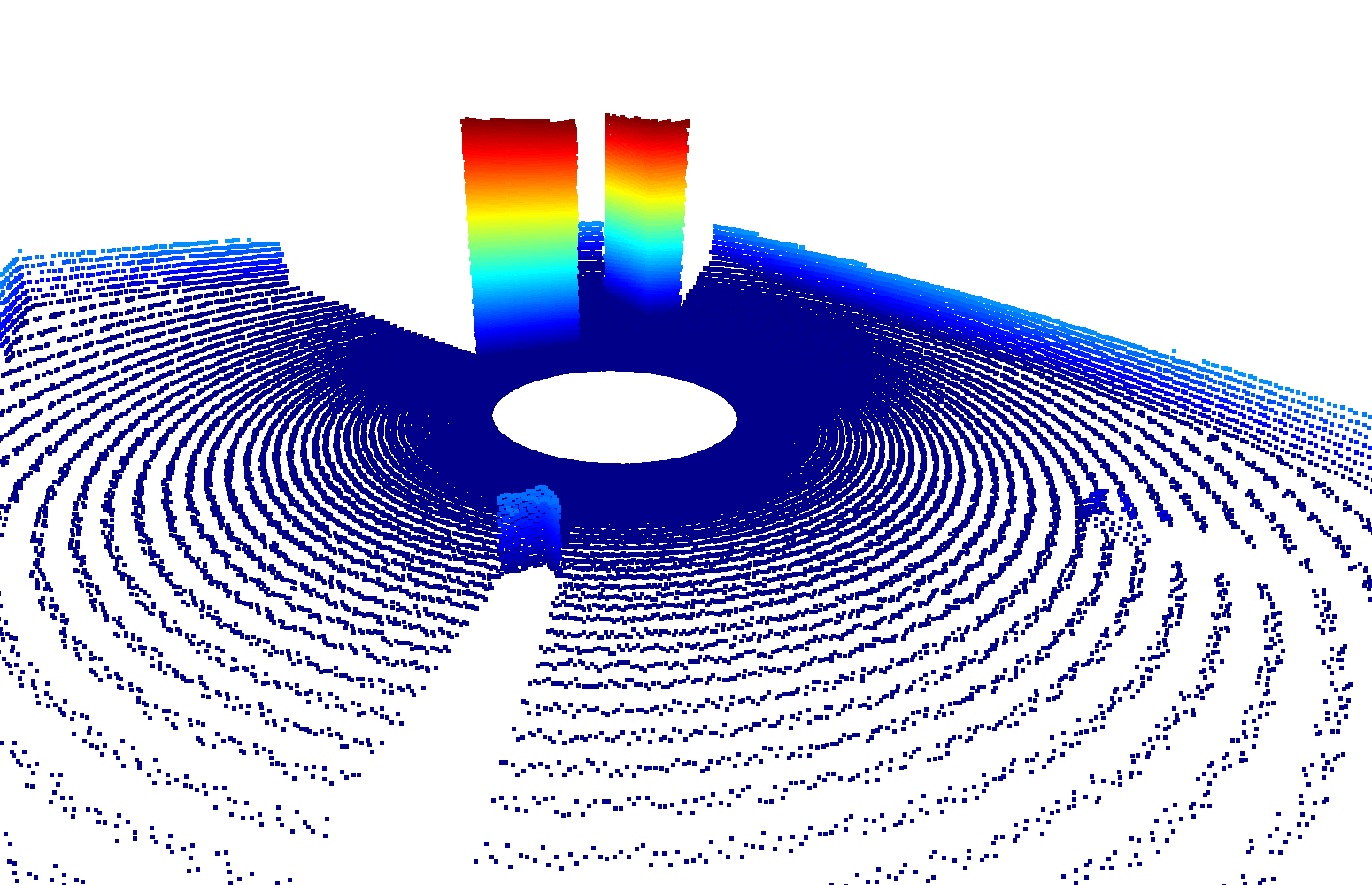

    Point Cloud Data from a) Real Ouster OS0 128 sensor b) USP Ouster OS0 128 sensor

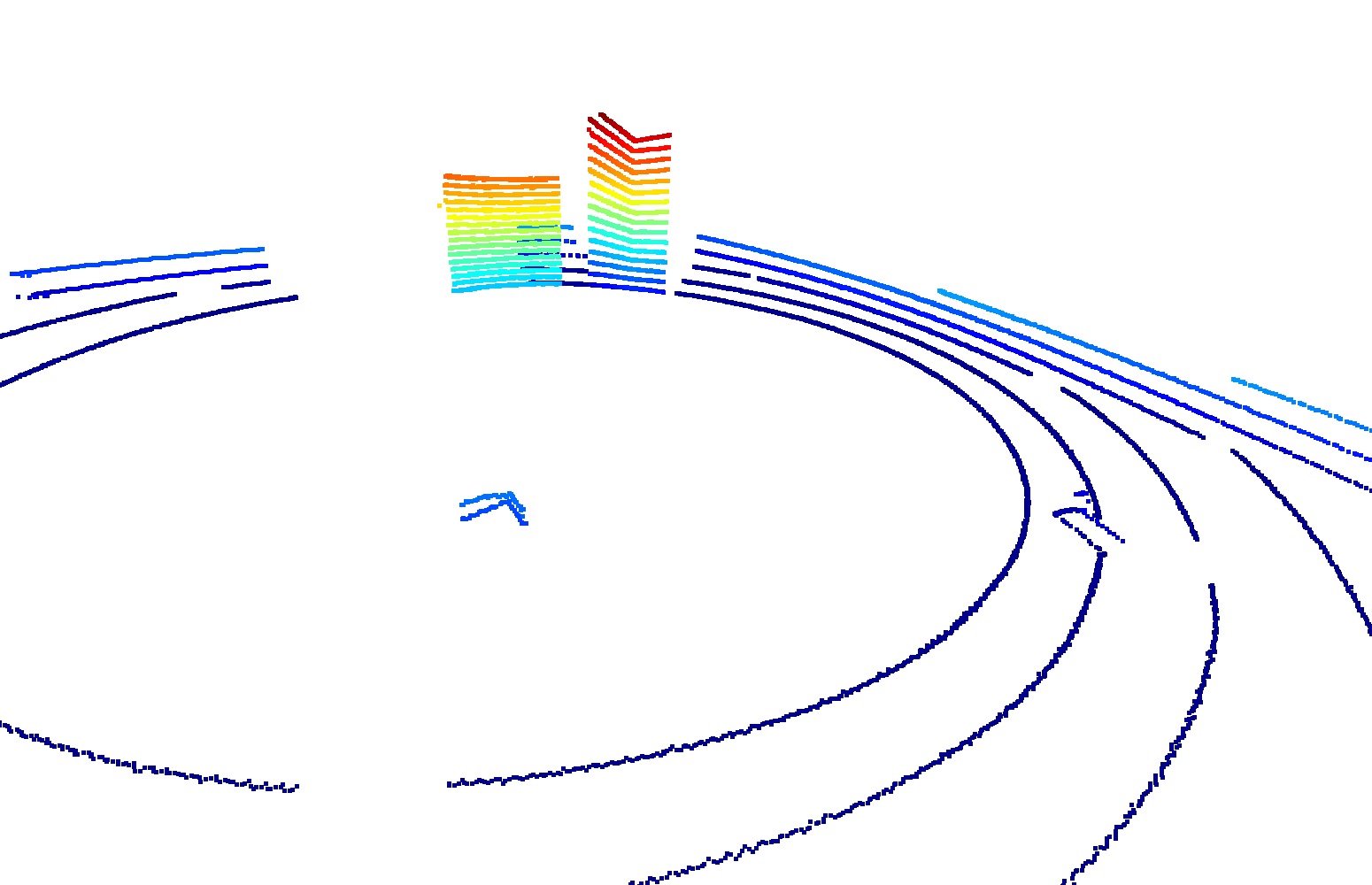

    Point Cloud Data from a) Real Velodyne Puck sensor b) USP Velodyne Puck sensor

    The results of this analysis can be seen in the table below:

    LiDAR Sensor Points off by more than 5 cm (compared to real world data)
    Ouster OS0 128 7.91226%
    Velodyne Puck 4.43004%

    Ouster OS0 128

    The Ouster OS0 is a 90 degree Field of View LiDAR that is best used for near-range distances with dense environments, such as a warehouse.

    Parameter Value
    Rotational Frequency 5 or 10
    Horizontal Samples 512, 1024 or 2048
    Horizontal Angle Range -180 to 180
    Vertical Samples 128
    Vertical Angle Range -45 to 45
    Ray Range Min 0.3
    Ray Range Max 75
    Divergence Angle 0.35
    Wavelength 865 nanometers

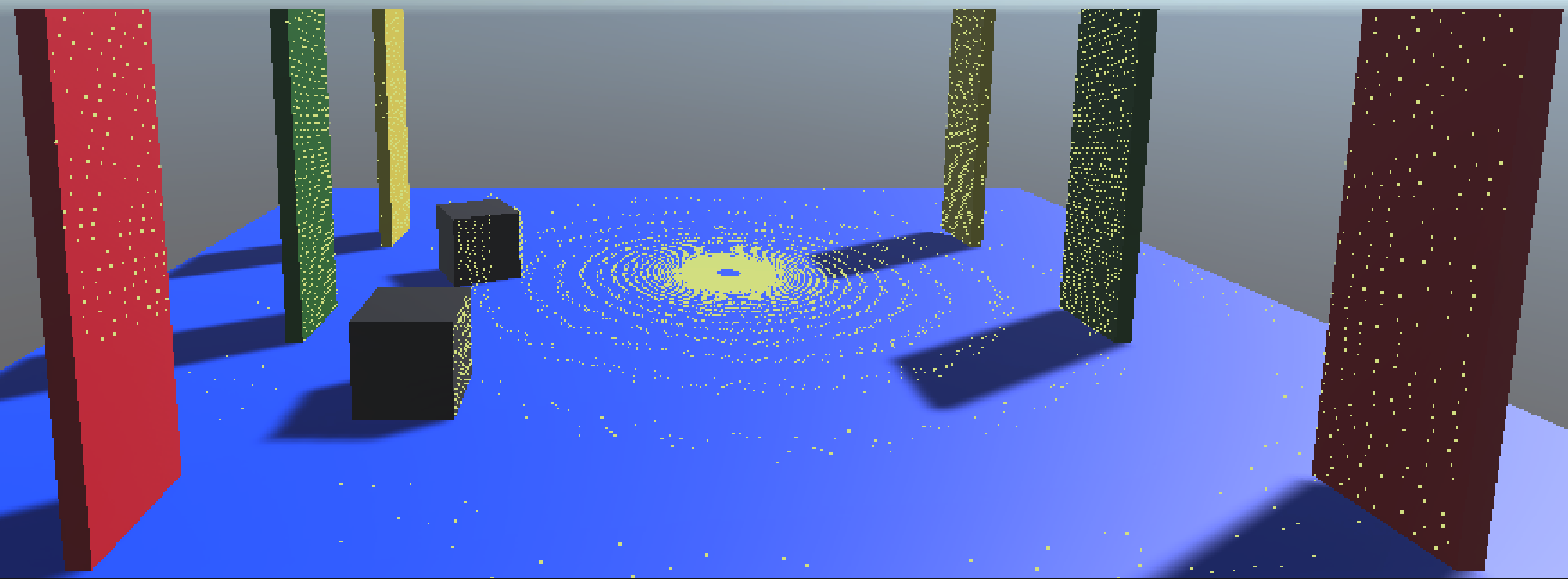

    The sample scene for the Ouster OS0 128 prefab

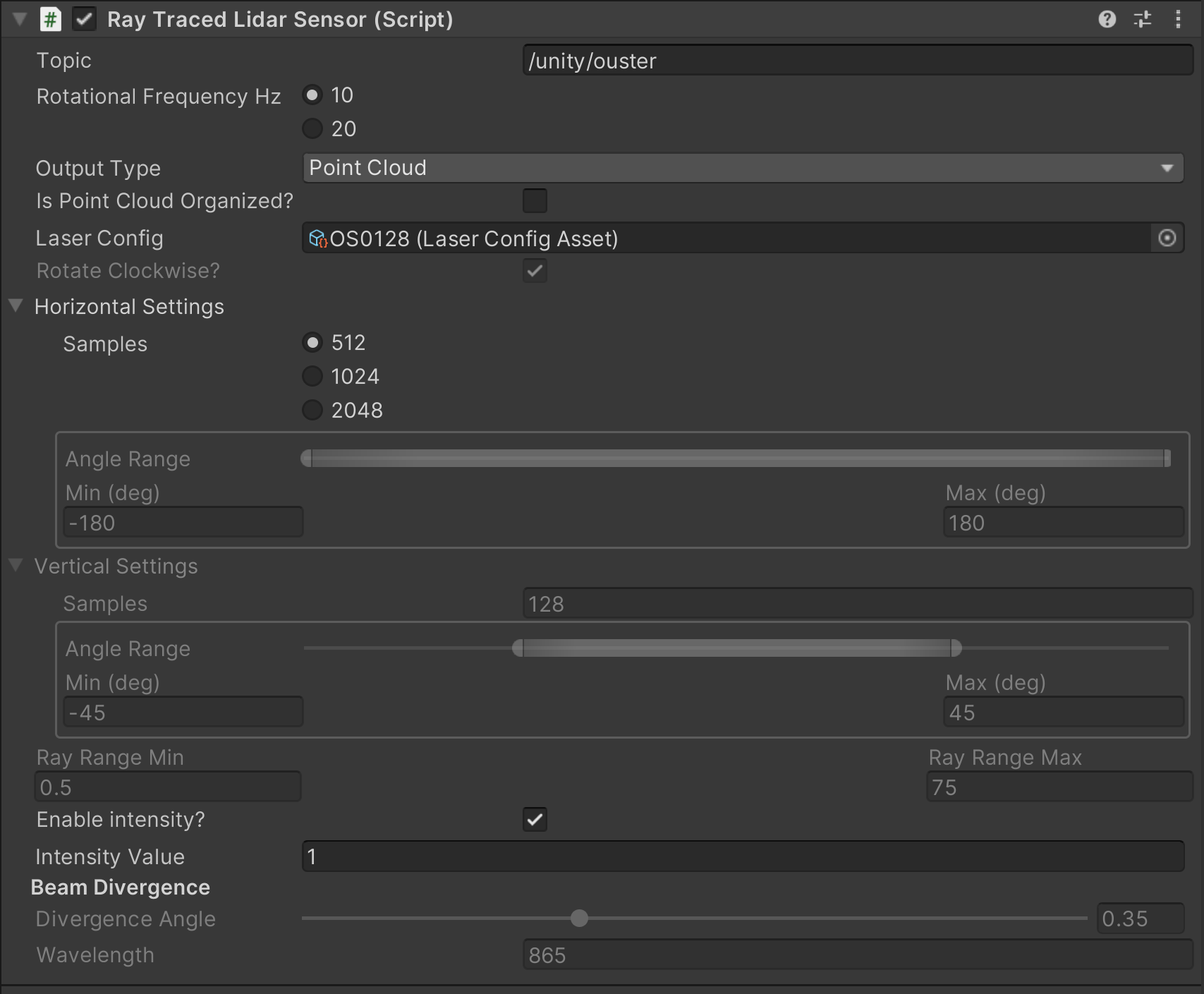

    The inspector for the Ouster OS0 128 prefab

    Velodyne Puck

    The Velodyne Puck is a compact long-range LiDAR that can be used in applications like autonomous vehicles.

    Parameter Value
    Rotational Frequency Integers from 5-20
    Horizontal Samples Calculated based on Rotational Frequency
    Horizontal Angle Range -180 to 180
    Vertical Samples 16
    Vertical Angle Range -15 to 15
    Ray Range Min 0.3
    Ray Range Max 100
    Wavelength 903 nanometers

    Note that although there is no divergence angle specified for this sensor, the divergence angle is set to 0.01 degrees in Unity Simulation Pro to ensure that the wavelength is correctly modeled.

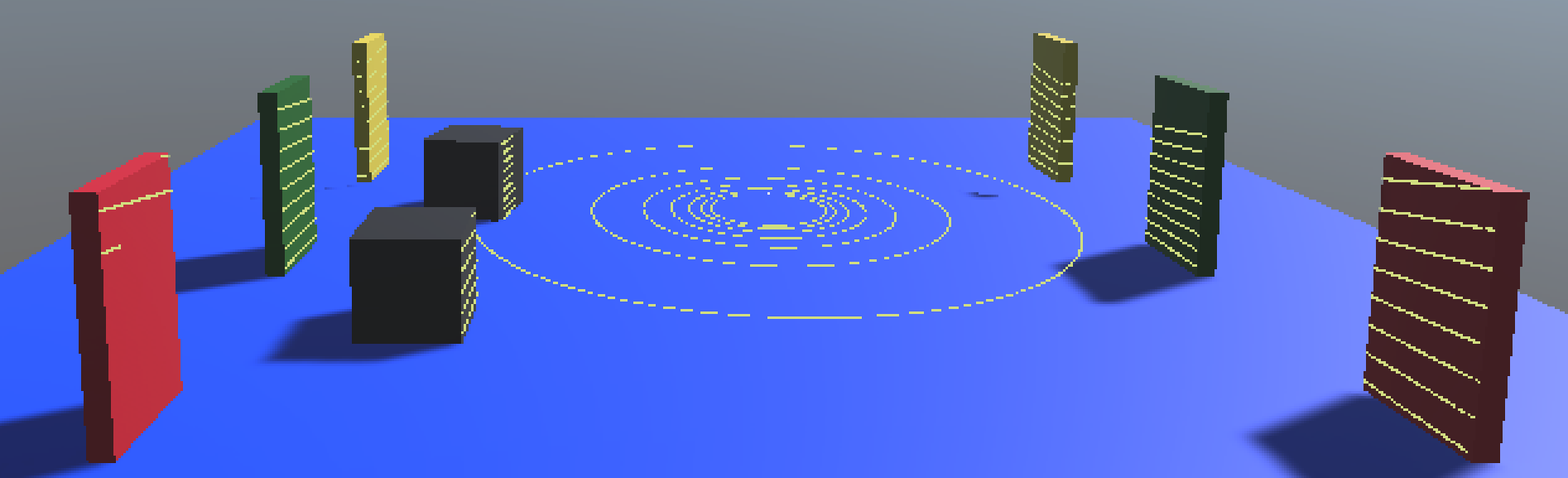

    The sample scene for the Velodyne Puck prefab

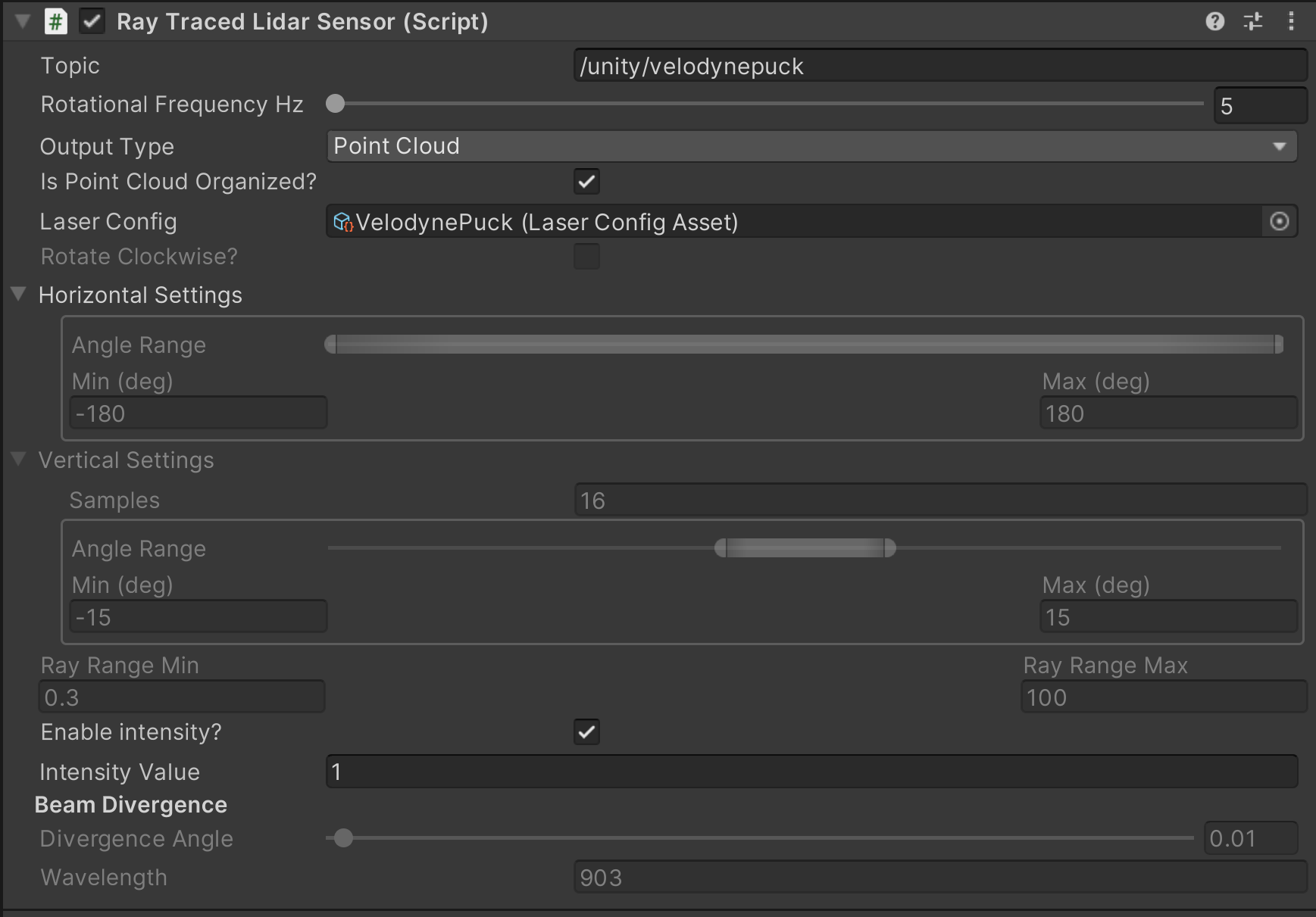

    The inspector for the Velodyne Puck prefab

    YDLIDAR X4

    The YDLIDAR X4 is an affordable 2D LiDAR that is used for small scale applications, like robotics education or within a house.

    Parameter Value
    Rotational Frequency Range from 6-12
    Horizontal Samples 720
    Horizontal Angle Range -180 to 180
    Vertical Samples 1
    Vertical Angle Range -10 to 10
    Ray Range Min 0.12
    Ray Range Max 10
    Wavelength 793
    Intensity N/A

    Note that although there is no divergence angle specified for this sensor, the divergence angle is set to 0.01 degrees in Unity Simulation Pro to ensure that the wavelength is correctly modeled.

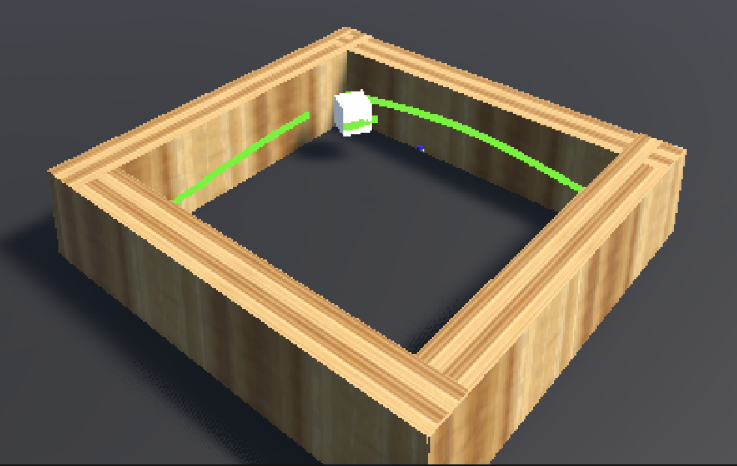

    The sample scene for the YDLIDAR X4 prefab


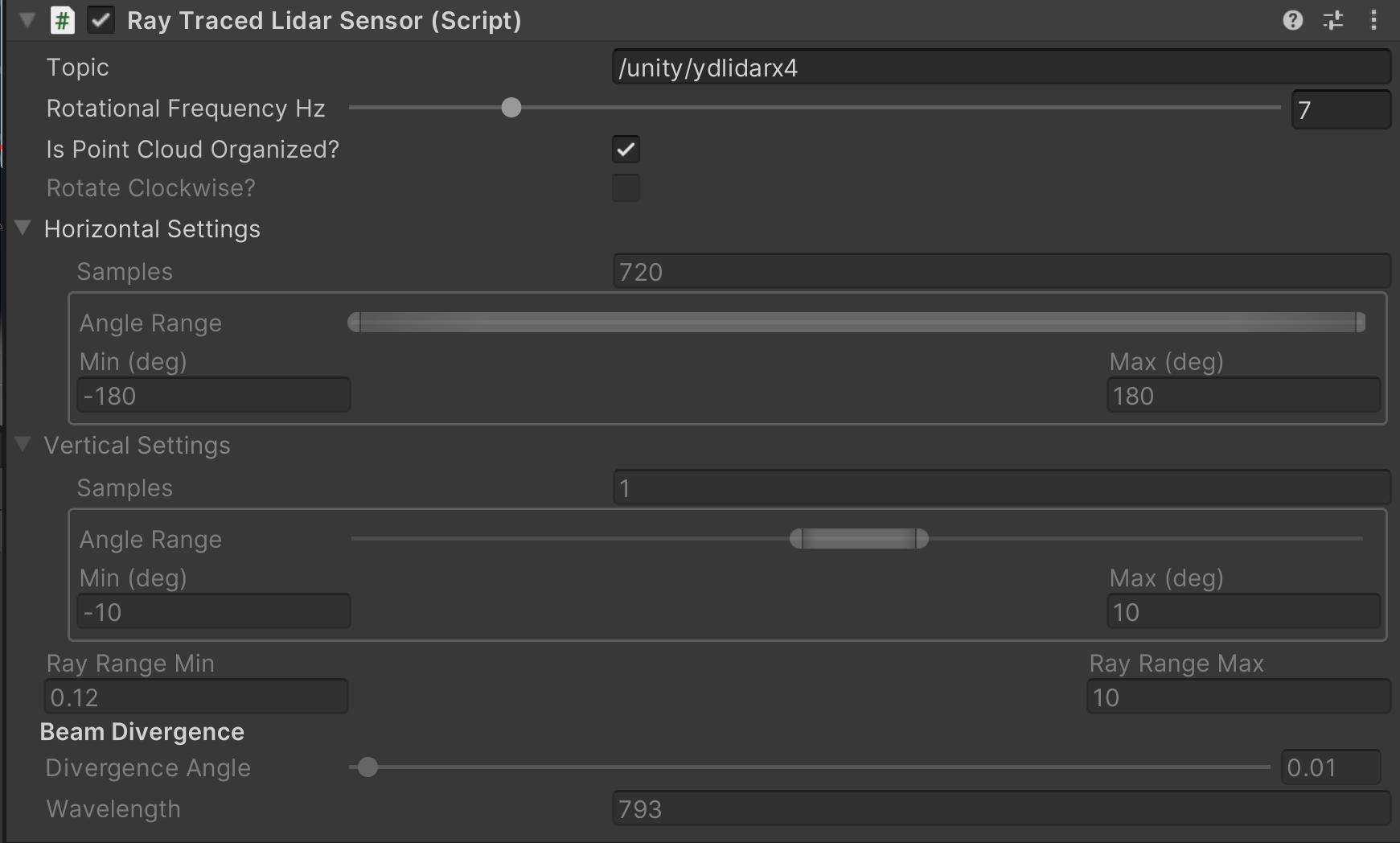

    The inspector for the YDLidar X4 prefab
