XR Socket Interactor

Interactor that automatically selects any interactable that it hovers.

You can use this interactor to recieve interactables that the user moves into its hover range. For example, as a keyhole in which the user can insert a key or as a pedestal on which the user can place objects.

By default, a socket will select any interactable. You can use Interaction Layer Masks and Interactor Filters to limit interaction to specific interactables.

Supporting components

• Collider: a Collider instance set to isTrigger must be present on the same GameObject.

Base properties

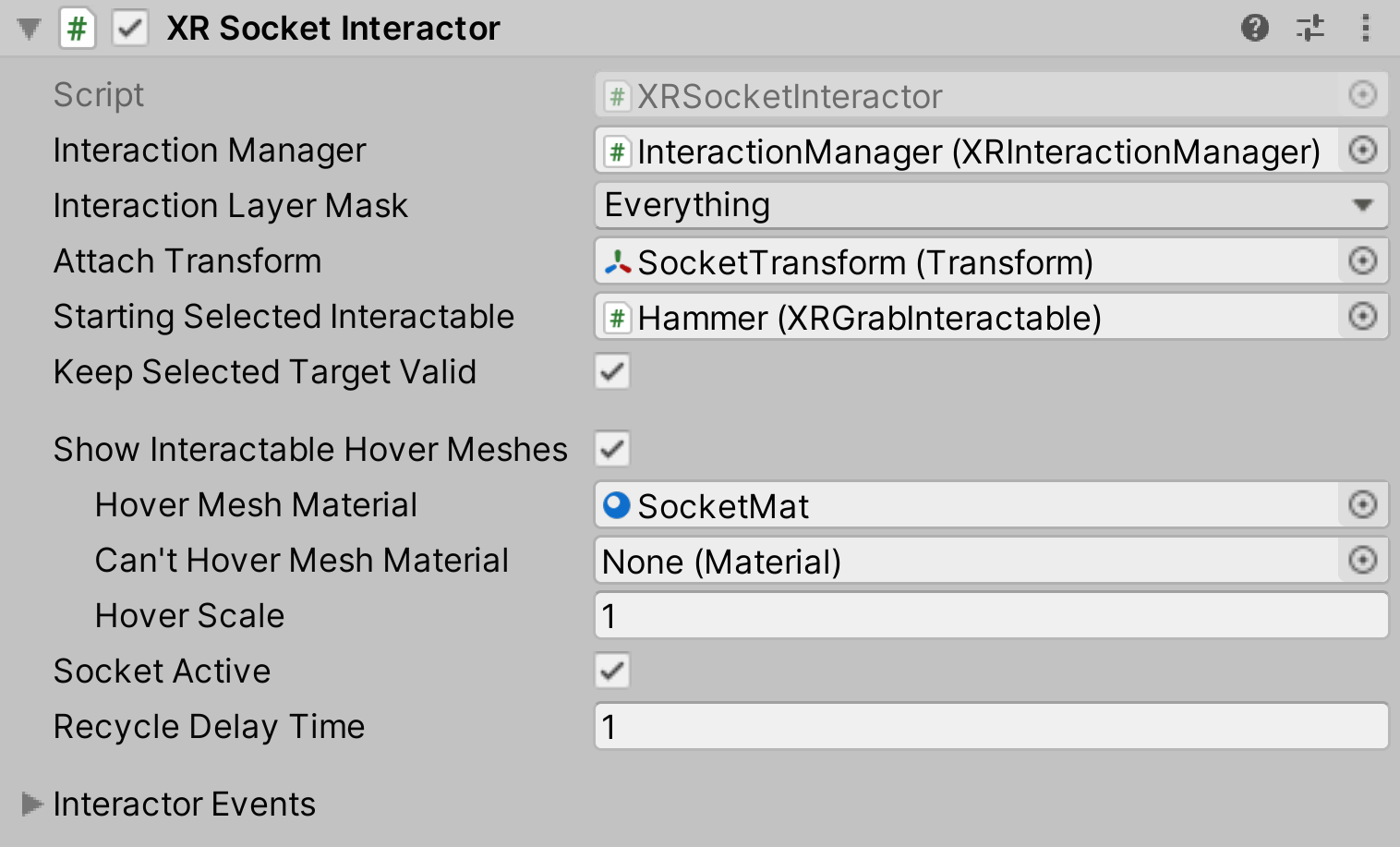

Use the XR Socket Interactor properties

Property	Description
Interaction Manager	The XRInteractionManager that this Interactor will communicate with (will find one if None).
Interaction Layer Mask	Allows interaction with interactables whose Interaction Layer Mask overlaps with any Layer in this Interaction Layer Mask.
Handedness	Set to None (unless mounted on a hand or controller).
Attach Transform	The Transform that is used as the attach point for interactables. Automatically instantiated and set in Awake if None. If you assign a new transform to this property, the previously assigned object is not automatically destroyed.
Disable Visuals When Blocked In Group	Whether to disable visuals when this interactor is part of an Interaction Group and is incapable of interacting due to active interaction by another Interactor in the Group.
Starting Selected Interactable	The interactable that this interactor automatically selects at startup (optional, can be None).
Keep Selected Target Valid	Whether to keep selecting an interactable after initially selecting it even when it is no longer a valid target. Enable to make the XRInteractionManager retain the selection even if the interactable is not contained within the list of valid targets. Disable to make the Interaction Manager clear the selection if it isn't within the list of valid targets.
Parent Interactable	An optional reference to a parent interactable dependency for determining processing order of interactables. Refer to Processing interactables for more information.
Auto Find Parent Interactable	Automatically find a parent interactable up the GameObject hierarchy when registered with the interaction manager. Disable to manually set the object reference for improved startup performance.
Show Interactable Hover Meshes	Whether this socket should show a mesh at socket's attach point for interactables in the hover state.
Hover Mesh Material	Material used for rendering interactable meshes on hover (a default material will be created if none is supplied).
Can't Hover Mesh Material	Material used for rendering interactable meshes on hover when there is already a selected object in the socket (a default material will be created if none is supplied).
Hover Scale	Scale at which to render the hover mesh displayed at the socket's attach point.
Hover Socket Snapping	Determines if the interactable should snap to the socket's attach transform when hovering. Note this will cause z-fighting with the hover mesh visuals, not recommended to use both options at the same time. If enabled, hover recycle delay functionality is disabled.
Socket Snapping Radius	When socket snapping is enabled, this is the distance at which the interactable will snap into or out of the socket's attach transform. The distance is affected by the scale of the interactable.
Socket Scale Mode	Scale mode used to calculate the scale factor applied to the interactable when selected.
Fixed Scale	Scale factor applied to the interactable when scale mode is set to Fixed.
Target Bounds Size	Bounds size used to calculate the scale factor applied to the interactable when scale mode is set to Stretched To Fit Size.
Socket Active	Whether socket interaction is enabled.
Recycle Delay Time	Sets the amount of time the socket will refuse hovers after an object is removed. This property does nothing if Hover Socket Snapping is enabled.
Interactor Filters	Identifies any filters this interactor uses to winnow detected interactables. You can create filter classes to provide custom logic to limit which interactables an interactor can interact with. Filtering occurs after the interactor has performed a raycast to detect eligible interactables.
Interactor Events	The events dispatched by this interactor. You can add event handlers in other components in the scene or prefab and they are invoked when the event occurs.

Tip

You can assign set various scale factors using the Attach Transform, Hover Scale, and Socket Scale Mode properties. These scale properties can interact with each other and behave differently depending on whether the target interactable is hovering or selected.

Interactor Filters

Configure the starting set of filters that an interactor uses to determine which interactables are eligible for interaction. All of these filter properties are optional. If you do not assign them, the interactor uses default behavior.

Refer to Interaction filters for more information about implementing filters.

Property	Description
Starting Target Filter	Filters the list of interactables that are eligible for interaction.
Starting Hover Filters list	Validates which potential hover targets are eligible for hover interaction.
Starting Select Filters list	Validates which potential select targets are eligible for select interaction.

Interactor Events

You can assign listener functions for interaction events in the Inspector window and in a C# class. These events apply to interactors - objects that can interact with interactables.

The UI Hover Entered and UI Hover Exited events are not available on all interactor components. Only those interactors that implement IUIHoverInteractor and enable UI Interaction with the XR UI Input Module, such as XR Poke Interactor, will have these events.

For detailed code examples showing how to subscribe to events and work with the event arguments, refer to Handle interaction events.

Property	Description
Hover Entered	The event that is called when this interactor begins hovering over an interactable.
Hover Exited	The event that is called when this interactor ends hovering over an interactable.
Select Entered	The event that is called when this interactor begins selecting an interactable.
Select Exited	The event that is called when this interactor ends selecting an interactable.
UI Hover Entered Event	Event triggered when a UI element is hovered over by this interactor.
UI Hover Exited Event	Event triggered when a UI element is no longer hovered over by this interactor.

Note

Additional events might be available to listeners you assign in C# code. Refer to the XRBaseInteractor subclass documentation for specific information.
