Interactable Spawning Weapon

This tutorial shows how to create a weapon that spawns networked interactable objects. We'll build a teleport pad launcher—shoot projectiles that place teleport pads on surfaces, letting players teleport between two linked pads.

Prerequisites

Complete the Creating a Custom Weapon guide first.

Part 1: The Interfaces

We need two interfaces: one for projectile behavior, one for interaction effects.

IProjectileEffect

Defines what happens when a projectile is launched, flies, and hits something:

public interface IProjectileEffect
{
    void Initialize(ModularProjectile projectile);  // Called once on Awake
    void Setup(GameObject owner, IWeapon weapon, ShootingContext context);  // Called before launch
    void OnLaunch();  // Projectile spawned
    void ProcessUpdate();  // Every frame
    void Cleanup();  // On despawn
    void ContactEvent(...);  // On collision
}

IInteractionEffect

Defines a single action when a player interacts with something:

public interface IInteractionEffect
{
    int Priority { get; }  // Higher = executes first

    IEnumerator ApplyEffect(GameObject interactor, GameObject interactable);
    void CancelEffect(GameObject interactor);
}

Part 2: How It Works (Pseudo-Code)

We're creating two scripts that work together:

SpawnInteractableEffect (Projectile)

SETUP:
    - Store the shooter's info
    - Ignore collisions between projectile and shooter

ON COLLISION (ContactEvent):
    - If already spawned something → skip
    - If hit the shooter → skip

    - Calculate spawn position (contact point + offset along surface normal)
    - Calculate rotation (align to surface if enabled)
    - Instantiate the teleport pad prefab
    - Tell the pad who owns it (shooter's client ID)
    - Spawn it on the network
    - Disable this projectile

TeleportPadEffect (Interactable)

ON SPAWN:
    - Register this pad in the player's pad list
    - If player has 3+ pads → despawn the oldest one
    - If player has exactly 2 pads → link them together

ON INTERACT (ApplyEffect):
    - If interactor is NOT the pad owner → reject
    - If no partner pad exists → reject

    - Disable player movement
    - Play start VFX/SFX + camera shake
    - Wait for delay
    - Teleport player to partner pad position
    - Play end VFX/SFX + camera shake
    - Re-enable movement

ON DESPAWN:
    - Remove from player's pad list
    - Update partner references

Part 3: Complete Scripts

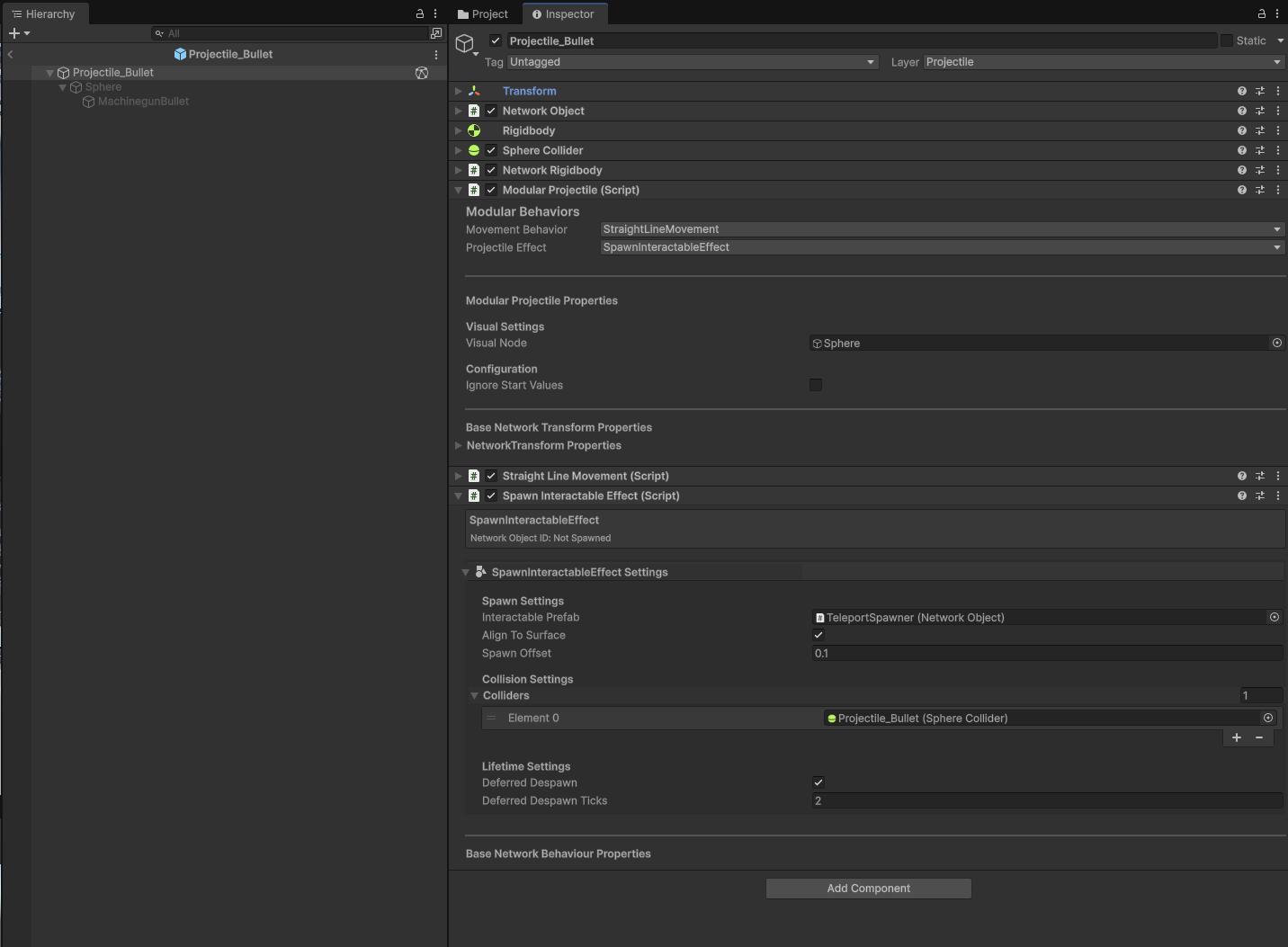

SpawnInteractableEffect.cs

using System;
using UnityEngine;
using Unity.Netcode;
using Blocks.Gameplay.Shooter;
using Unity.Netcode.Components;

public class SpawnInteractableEffect : NetworkBehaviour, IProjectileEffect
{
    [Header("Spawn Settings")]
    [SerializeField] private NetworkObject interactablePrefab;
    [SerializeField] private bool alignToSurface = true;
    [SerializeField] private float spawnOffset = 0.1f;

    [Header("Collision Settings")]
    [SerializeField] private Collider[] colliders;

    [Header("Lifetime Settings")]
    [SerializeField] private bool deferredDespawn = true;
    [SerializeField] private int deferredDespawnTicks = 2;

    private GameObject m_Owner;
    private ModularProjectile m_Projectile;
    private ShootingContext m_ShootingContext;
    private bool m_HasSpawned;

    public bool IsDeferredDespawnEnabled => deferredDespawn;
    public int DeferredDespawnTicks => deferredDespawnTicks;

    public event Action<ModularProjectile> OnEffectComplete;

    // ═══════════════════════════════════════════════════════════════
    // IProjectileEffect Implementation
    // ═══════════════════════════════════════════════════════════════

    public void Initialize(ModularProjectile projectile)
    {
        m_Projectile = projectile;
    }

    public void Setup(GameObject owner, IWeapon sourceWeapon, ShootingContext context)
    {
        m_Owner = owner;
        m_ShootingContext = context;
        m_HasSpawned = false;
        IgnoreCollision(owner, gameObject, true);
    }

    public void OnLaunch()
    {
        m_HasSpawned = false;
        EnableColliders(true);
    }

    public void ProcessUpdate()
    {
        // No time-based logic for this effect
    }

    public void Cleanup()
    {
        if (m_Owner != null)
        {
            IgnoreCollision(m_Owner, gameObject, false);
        }
    }

    public ContactEventHandlerInfo GetContactEventHandlerInfo()
    {
        return new ContactEventHandlerInfo
        {
            ProvideNonRigidBodyContactEvents = true,
            HasContactEventPriority = HasAuthority
        };
    }

    public Rigidbody GetRigidbody()
    {
        return m_Projectile != null ? m_Projectile.GetComponent<Rigidbody>() : null;
    }

    // ═══════════════════════════════════════════════════════════════
    // Collision Handling
    // ═══════════════════════════════════════════════════════════════

    public void ContactEvent(ulong eventId, Vector3 averageNormal, Rigidbody collidingBody,
        Vector3 contactPoint, bool hasCollisionStay = false, Vector3 averagedCollisionStayNormal = default)
    {
        if (!IsSpawned || m_HasSpawned || !HasAuthority) return;
        if (collidingBody != null && collidingBody.gameObject == m_Owner) return;

        SpawnInteractable(contactPoint, averageNormal);
    }

    // ═══════════════════════════════════════════════════════════════
    // Spawning
    // ═══════════════════════════════════════════════════════════════

    private void SpawnInteractable(Vector3 contactPoint, Vector3 surfaceNormal)
    {
        if (!HasAuthority || m_HasSpawned || interactablePrefab == null) return;

        m_HasSpawned = true;

        // Calculate spawn position and rotation
        Vector3 spawnPosition = contactPoint + (surfaceNormal * spawnOffset);
        Quaternion spawnRotation = alignToSurface
            ? Quaternion.LookRotation(Vector3.ProjectOnPlane(transform.forward, surfaceNormal), surfaceNormal)
            : Quaternion.identity;

        // Instantiate and spawn the network object
        NetworkObject spawnedObject = Instantiate(interactablePrefab, spawnPosition, spawnRotation);

        // Initialize TeleportPadEffect if present
        if (spawnedObject.TryGetComponent<TeleportPadEffect>(out var teleportPad))
        {
            teleportPad.InitializeOwner(m_ShootingContext.ownerClientId);
        }

        spawnedObject.SpawnWithOwnership(m_ShootingContext.ownerClientId);

        // Notify all clients to disable the projectile visually
        DisableProjectileRpc();
    }

    [Rpc(SendTo.Everyone)]
    private void DisableProjectileRpc()
    {
        EnableColliders(false);

        var rb = GetRigidbody();
        if (rb != null)
        {
            if (!rb.isKinematic)
            {
                rb.linearVelocity = Vector3.zero;
                rb.angularVelocity = Vector3.zero;
                rb.isKinematic = true;
            }
        }

        if (HasAuthority)
        {
            OnEffectComplete?.Invoke(m_Projectile);
        }
    }

    // ═══════════════════════════════════════════════════════════════
    // Helpers
    // ═══════════════════════════════════════════════════════════════

    private void EnableColliders(bool enable)
    {
        if (colliders == null) return;
        foreach (var col in colliders)
        {
            if (col != null) col.enabled = enable;
        }
    }

    private void IgnoreCollision(GameObject objectA, GameObject objectB, bool shouldIgnore)
    {
        if (objectA == null || objectB == null) return;

        var rootA = objectA.transform.root.gameObject;
        var rootB = objectB.transform.root.gameObject;

        var collidersA = rootA.GetComponentsInChildren<Collider>();
        var collidersB = rootB.GetComponentsInChildren<Collider>();

        foreach (var colliderA in collidersA)
        {
            foreach (var colliderB in collidersB)
            {
                Physics.IgnoreCollision(colliderA, colliderB, shouldIgnore);
            }
        }
    }
}

TeleportPadEffect.cs

using UnityEngine;
using Unity.Netcode;
using UnityEngine.VFX;
using Unity.Cinemachine;
using System.Collections;
using Blocks.Gameplay.Core;
using System.Collections.Generic;

public class TeleportPadEffect : NetworkBehaviour, IInteractionEffect
{
    [Header("Effect Settings")]
    [SerializeField] private int priority = 10;

    [Header("Teleport Start Effects")]
    [SerializeField] private GameObject teleportStartVFX;
    [SerializeField] private SoundDef teleportStartSfx;
    [SerializeField] private float teleportDelay = 0.5f;

    [Header("Teleport End Effects")]
    [SerializeField] private GameObject teleportEndVFX;
    [SerializeField] private SoundDef teleportEndSfx;

    [Header("VFX & Audio Settings")]
    [SerializeField] private float vfxDuration = 2.0f;
    [SerializeField] private float sfxVolume = 1.0f;

    [Header("Movement Control")]
    [SerializeField] private bool disableMovementDuringTeleport = true;

    [Header("Pad Pairing")]
    [SerializeField] private int maxPadsPerPlayer = 2;
    [SerializeField] private float teleportHeightOffset = 1.0f;

    [Header("Access Control")]
    [SerializeField] private bool allowAllPlayers;

    [Header("Cooldown")]
    [SerializeField] private float teleportCooldown = 1.5f;

    // Network variables for pad state
    private readonly NetworkVariable<ulong> m_PadOwnerClientId =
        new NetworkVariable<ulong>(ulong.MaxValue, NetworkVariableReadPermission.Everyone, NetworkVariableWritePermission.Owner);
    private readonly NetworkVariable<NetworkObjectReference> m_PartnerPad =
        new NetworkVariable<NetworkObjectReference>(default, NetworkVariableReadPermission.Everyone, NetworkVariableWritePermission.Owner);

    // Pending owner ID for post-spawn initialization
    private ulong m_PendingOwnerClientId = ulong.MaxValue;

    // Static tracking of pads per player (authority-side)
    private static readonly Dictionary<ulong, List<TeleportPadEffect>> k_PlayerPads =
        new Dictionary<ulong, List<TeleportPadEffect>>();

    // Cooldown tracking per player
    private readonly Dictionary<ulong, float> m_LastTeleportTimes = new Dictionary<ulong, float>();

    public int Priority => priority;

    public TeleportPadEffect PartnerPad
    {
        get
        {
            if (m_PartnerPad.Value.TryGet(out NetworkObject netObj))
            {
                return netObj.GetComponent<TeleportPadEffect>();
            }
            return null;
        }
    }

    // ═══════════════════════════════════════════════════════════════
    // Network Lifecycle
    // ═══════════════════════════════════════════════════════════════

    public override void OnNetworkSpawn()
    {
        base.OnNetworkSpawn();

        if (HasAuthority && m_PendingOwnerClientId != ulong.MaxValue)
        {
            m_PadOwnerClientId.Value = m_PendingOwnerClientId;
            RegisterPad();
        }
    }

    public override void OnNetworkDespawn()
    {
        if (HasAuthority)
        {
            UnregisterPad();
        }

        base.OnNetworkDespawn();
    }

    public void InitializeOwner(ulong ownerClientId)
    {
        m_PendingOwnerClientId = ownerClientId;
    }

    // ═══════════════════════════════════════════════════════════════
    // IInteractionEffect Implementation
    // ═══════════════════════════════════════════════════════════════

    public IEnumerator ApplyEffect(GameObject interactor, GameObject interactable)
    {
        if (!interactor.TryGetComponent<NetworkObject>(out var interactorNetObj))
        {
            yield break;
        }

        // Check if player is allowed to use this pad
        if (!allowAllPlayers && interactorNetObj.OwnerClientId != m_PadOwnerClientId.Value)
        {
            Debug.Log($"[TeleportPadEffect] Player {interactorNetObj.OwnerClientId} " +
                      $"cannot use pad owned by {m_PadOwnerClientId.Value}");
            yield break;
        }

        // Check cooldown to prevent teleport loops
        ulong playerId = interactorNetObj.OwnerClientId;
        if (m_LastTeleportTimes.TryGetValue(playerId, out float lastTime))
        {
            if (Time.time - lastTime < teleportCooldown)
            {
                yield break;
            }
        }

        TeleportPadEffect partner = PartnerPad;
        if (partner == null)
        {
            Debug.Log("[TeleportPadEffect] No partner pad available for teleportation.");
            yield break;
        }

        Vector3 startPosition = interactor.transform.position;
        Vector3 endPosition = partner.transform.position + Vector3.up * teleportHeightOffset;

        CorePlayerManager playerManager = null;
        if (disableMovementDuringTeleport)
        {
            playerManager = interactor.GetComponent<CorePlayerManager>();
            if (playerManager != null)
            {
                playerManager.SetMovementInputEnabled(false);
            }
        }

        PlayTeleportStartEffectsRpc(startPosition);
        CoreDirector.RequestCameraShake()
            .WithImpulseDefinition(CinemachineImpulseDefinition.ImpulseShapes.Rumble,
                CinemachineImpulseDefinition.ImpulseTypes.Dissipating,
                0.15f)
            .WithVelocity(0.15f)
            .AtPosition(transform.position)
            .Execute();

        if (teleportDelay > 0f)
        {
            yield return new WaitForSeconds(teleportDelay);
        }

        PerformTeleport(interactor, endPosition);

        // Set cooldown on both pads to prevent teleport loops
        m_LastTeleportTimes[playerId] = Time.time;
        partner.m_LastTeleportTimes[playerId] = Time.time;

        PlayTeleportEndEffectsRpc(endPosition);
        CoreDirector.RequestCameraShake()
            .WithImpulseDefinition(CinemachineImpulseDefinition.ImpulseShapes.Rumble,
                CinemachineImpulseDefinition.ImpulseTypes.Propagating,
                0.15f)
            .WithVelocity(0.15f)
            .AtPosition(endPosition)
            .Execute();

        if (disableMovementDuringTeleport && playerManager != null)
        {
            playerManager.SetMovementInputEnabled(true);
        }

        yield return null;
    }

    public void CancelEffect(GameObject interactor)
    {
        if (disableMovementDuringTeleport)
        {
            var playerManager = interactor.GetComponent<CorePlayerManager>();
            if (playerManager != null)
            {
                playerManager.SetMovementInputEnabled(true);
            }
        }
    }

    // ═══════════════════════════════════════════════════════════════
    // Pad Registration
    // ═══════════════════════════════════════════════════════════════

    private void RegisterPad()
    {
        ulong ownerId = m_PadOwnerClientId.Value;

        if (!k_PlayerPads.TryGetValue(ownerId, out var padList))
        {
            padList = new List<TeleportPadEffect>();
            k_PlayerPads[ownerId] = padList;
        }

        // If player already has max pads, despawn the oldest
        while (padList.Count >= maxPadsPerPlayer)
        {
            var oldestPad = padList[0];
            padList.RemoveAt(0);
            if (oldestPad != null && oldestPad.IsSpawned)
            {
                oldestPad.NetworkObject.Despawn();
            }
        }

        padList.Add(this);
        UpdatePartnerReferences(padList);
    }

    private void UnregisterPad()
    {
        ulong ownerId = m_PadOwnerClientId.Value;

        if (k_PlayerPads.TryGetValue(ownerId, out var padList))
        {
            padList.Remove(this);

            if (padList.Count > 0)
            {
                UpdatePartnerReferences(padList);
            }
            else
            {
                k_PlayerPads.Remove(ownerId);
            }
        }
    }

    private void UpdatePartnerReferences(List<TeleportPadEffect> padList)
    {
        // Clear all partner references first
        foreach (var pad in padList)
        {
            if (pad != null && pad.IsSpawned)
            {
                pad.m_PartnerPad.Value = default;
            }
        }

        // If we have exactly 2 pads, link them together
        if (padList.Count == 2)
        {
            var pad1 = padList[0];
            var pad2 = padList[1];

            if (pad1 != null && pad1.IsSpawned && pad2 != null && pad2.IsSpawned)
            {
                pad1.m_PartnerPad.Value = new NetworkObjectReference(pad2.NetworkObject);
                pad2.m_PartnerPad.Value = new NetworkObjectReference(pad1.NetworkObject);
            }
        }
    }

    // ═══════════════════════════════════════════════════════════════
    // Teleportation
    // ═══════════════════════════════════════════════════════════════

    private void PerformTeleport(GameObject interactor, Vector3 targetPosition)
    {
        if (interactor.TryGetComponent<CoreMovement>(out var coreMovement))
        {
            coreMovement.SetPosition(targetPosition);
        }
        else
        {
            Debug.LogWarning($"[TeleportPadEffect] Interactor '{interactor.name}' does not have " +
                             "CoreMovement. Using direct transform.");
            interactor.transform.position = targetPosition;
        }
    }

    // ═══════════════════════════════════════════════════════════════
    // Visual & Audio Effects (synced via RPC)
    // ═══════════════════════════════════════════════════════════════

    [Rpc(SendTo.Everyone)]
    private void PlayTeleportStartEffectsRpc(Vector3 position)
    {
        if (teleportStartVFX != null)
        {
            GameObject vfxInstance = Instantiate(teleportStartVFX, position, Quaternion.identity);

            if (vfxInstance.TryGetComponent<VisualEffect>(out var vfx))
            {
                vfx.Play();
            }
            else if (vfxInstance.TryGetComponent<ParticleSystem>(out var ps))
            {
                ps.Play();
            }

            Destroy(vfxInstance, vfxDuration);
        }

        if (teleportStartSfx != null)
        {
            CoreDirector.RequestAudio(teleportStartSfx)
                .WithPosition(position)
                .Play(sfxVolume);
        }
    }

    [Rpc(SendTo.Everyone)]
    private void PlayTeleportEndEffectsRpc(Vector3 position)
    {
        if (teleportEndVFX != null)
        {
            GameObject vfxInstance = Instantiate(teleportEndVFX, position, Quaternion.identity);

            if (vfxInstance.TryGetComponent<VisualEffect>(out var vfx))
            {
                vfx.Play();
            }
            else if (vfxInstance.TryGetComponent<ParticleSystem>(out var ps))
            {
                ps.Play();
            }

            Destroy(vfxInstance, vfxDuration);
        }

        if (teleportEndSfx != null)
        {
            CoreDirector.RequestAudio(teleportEndSfx)
                .WithPosition(position)
                .Play(sfxVolume);
        }
    }
}

Setup

  1. Create the Teleport Pad Prefab: Create a new prefab with NetworkObject, ModularInteractable (set Trigger Mode to OnTriggerEnter), and a trigger collider. Add the TeleportPadEffect component and configure VFX/SFX references.
  2. Configure the Projectile: Use Projectile_Bullet from Shooter/Prefabs/Projectiles as a starting point. Add SpawnInteractableEffect to your ModularProjectile and assign your Teleport Pad prefab to Interactable Prefab. See image below for the setup.
  3. Add to Weapon: Add a ProjectileShootingBehavior to your weapon and assign your projectile prefab.

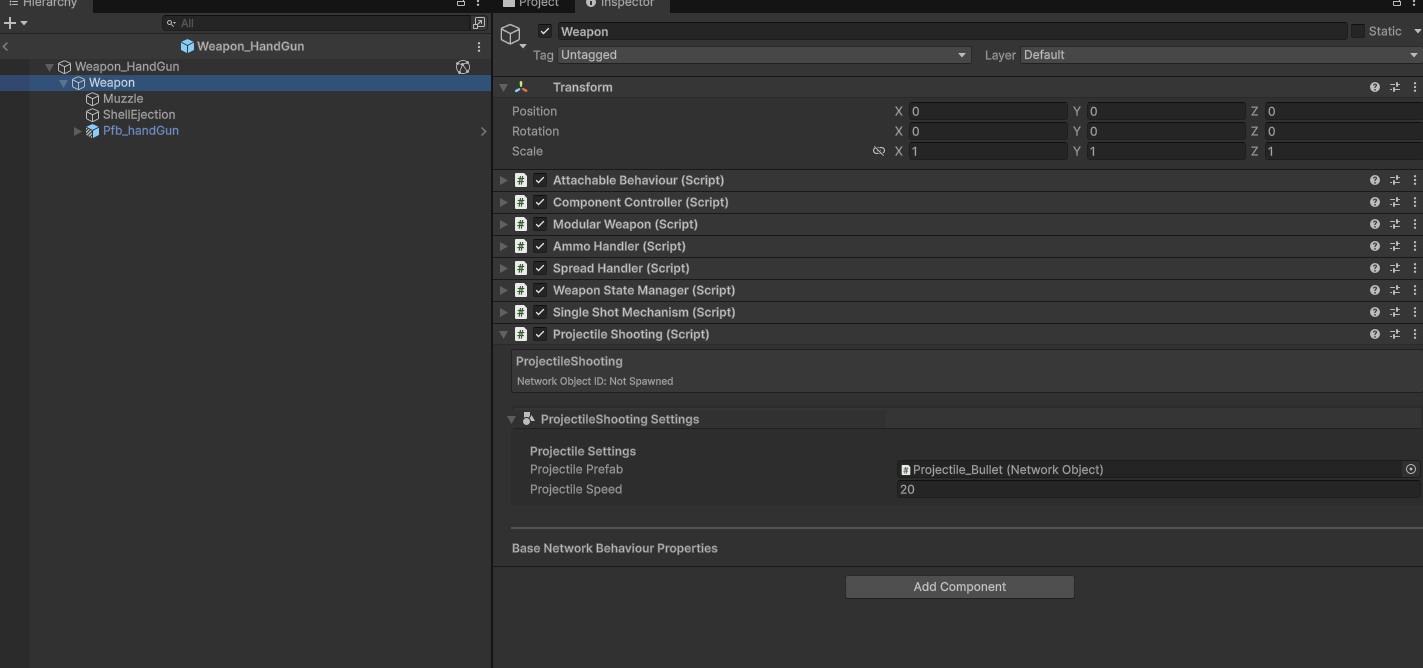

Projectile Setup Weapon Setup

Tip

Reference the existing Teleporter prefab in the Platformer scene as a starting point.

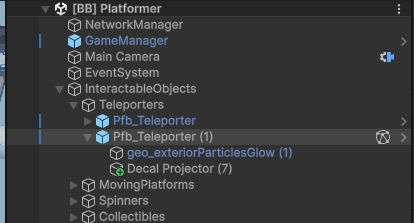

Teleporter in Scene

Result

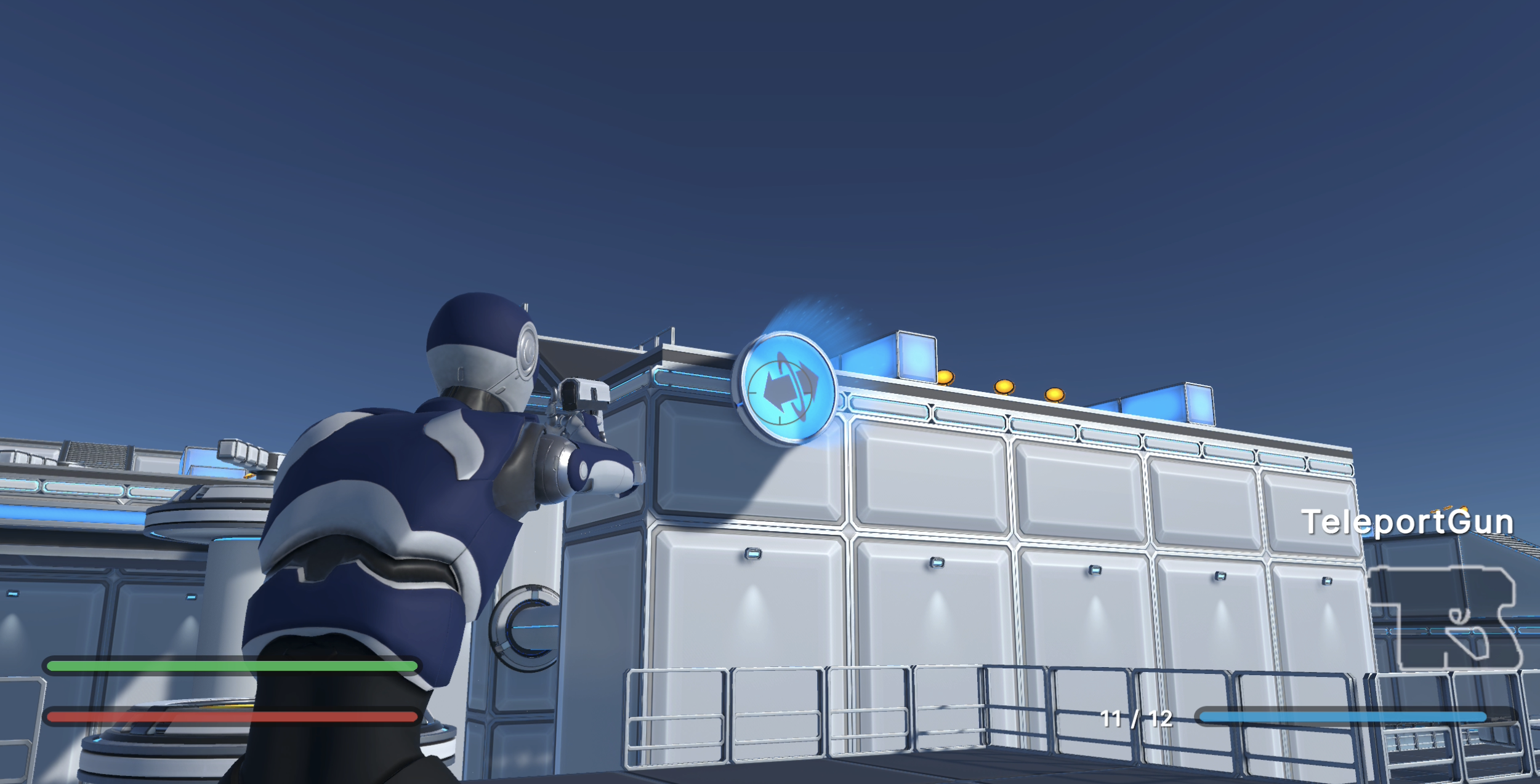

Final Result

Note

This pattern works for other interactable-spawning weapons like turret launchers, shield generators, healing stations, and trap deployers. Simply create a new IInteractionEffect and assign it to the spawned prefab.
