Change Size Effect
The Change Size Effect is a custom interaction effect that modifies the player's scale when they interact with an object. It demonstrates how to extend the Modular Interaction System to create networked gameplay mechanics.
Overview

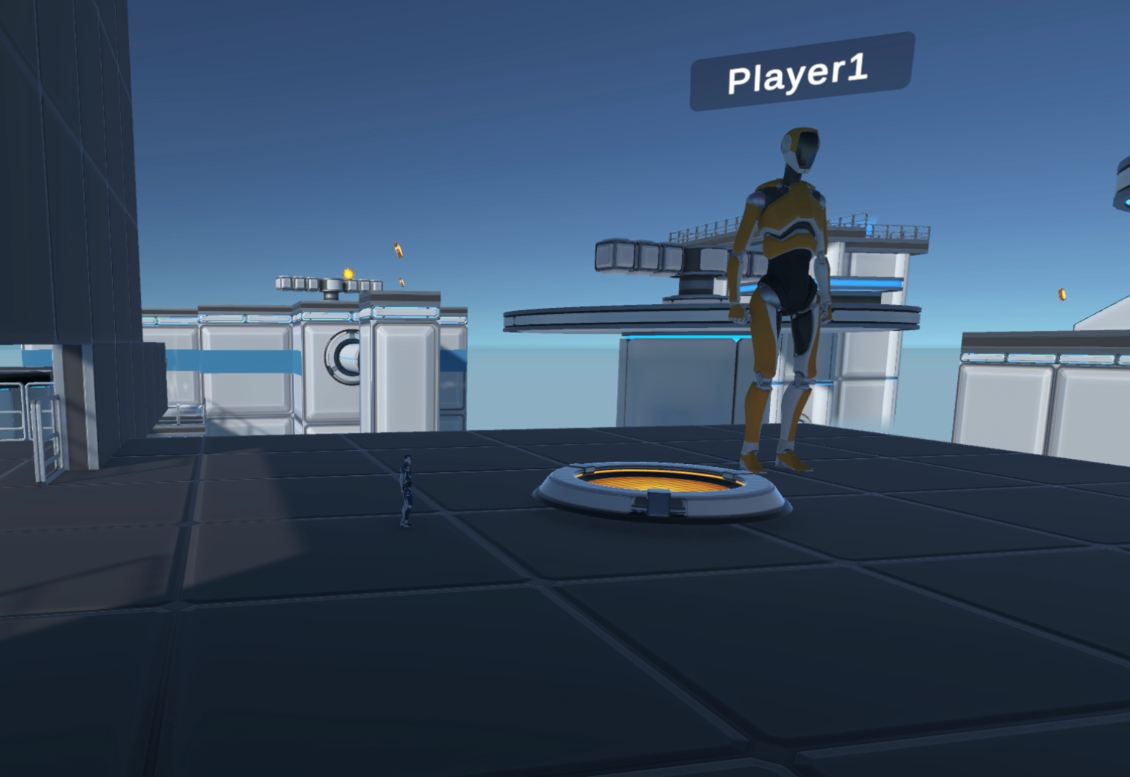

- Smoothly resize the player (grow or shrink) upon interaction for puzzles (shrink to fit), power-ups (Giant mode).
1. The Interface
The IInteractionEffect interface requires the ApplyEffect method. This is where the logic begins.
public class ChangeSizeEffect : NetworkBehaviour, IInteractionEffect
{
// ... Other interface methods
public IEnumerator ApplyEffect(GameObject interactor, GameObject interactable)
{
// Calculate target size (grow or reset)
// Trigger network synchronization
// Wait for transition if we own the object
}
}
2. Network Synchronization (RPC)
Since visual changes must be seen by all players, we use a SendTo.Everyone Rpc to run the animation on every client.
[Rpc(SendTo.Everyone)]
private void TriggerSizeChangeRpc(ulong networkObjectId, Vector3 newTargetScale, bool isReset)
{
// Find the player object by ID
// Stop any running animations
// Store original data for resetting later
// Start the animation coroutine
// Play VFX and Sound
}
3. Full script
using UnityEngine;
using Unity.Netcode;
using System.Collections;
using Blocks.Gameplay.Core;
/// <summary>
/// Changes the scale of the interactor with smooth animation and optional physics adjustments.
/// Fully synchronized across the network using RPCs.
/// Great for creating shrink/grow power-ups or puzzle mechanics.
/// </summary>
public class ChangeSizeEffect : NetworkBehaviour, IInteractionEffect
{

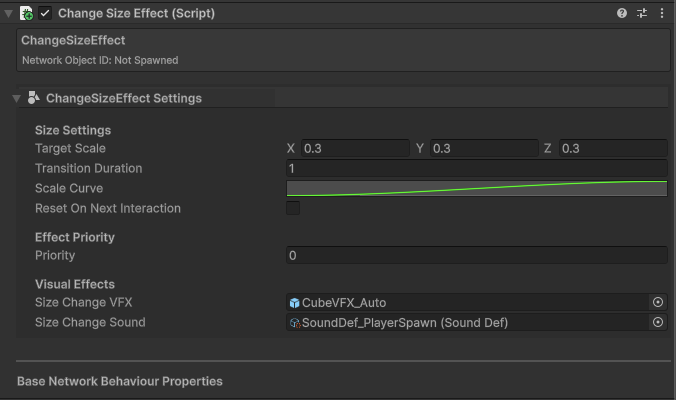

[Header("Size Settings")]
[SerializeField] private Vector3 targetScale = new Vector3(2f, 2f, 2f);
[SerializeField] private float transitionDuration = 0.5f;
[SerializeField] private AnimationCurve scaleCurve = AnimationCurve.EaseInOut(0, 0, 1, 1);
[SerializeField] private bool resetOnNextInteraction = false;
[Header("Effect Priority")]
[SerializeField] private int priority = 0;
[Header("Visual Effects")]
[SerializeField] private GameObject sizeChangeVFX;
[SerializeField] private SoundDef sizeChangeSound;
public int Priority => priority;
private static readonly System.Collections.Generic.Dictionary<ulong, TransformData> k_OriginalData =
new System.Collections.Generic.Dictionary<ulong, TransformData>();
private static readonly System.Collections.Generic.Dictionary<ulong, Coroutine> k_ActiveCoroutines =
new System.Collections.Generic.Dictionary<ulong, Coroutine>();
[System.Serializable]
private class TransformData
{
public Vector3 originalScale;
}
public IEnumerator ApplyEffect(GameObject interactor, GameObject interactable)
{
// Get NetworkObject to identify the player across the network
if (!interactor.TryGetComponent<NetworkObject>(out var netObj))
{
Debug.LogWarning("[ChangeSizeEffect] Interactor does not have a NetworkObject component.", interactor);
yield break;
}
ulong networkId = netObj.NetworkObjectId;
bool shouldReset = resetOnNextInteraction && k_OriginalData.ContainsKey(networkId);
Vector3 targetScaleValue = shouldReset ? k_OriginalData[networkId].originalScale : targetScale;
TriggerSizeChangeRpc(networkId, targetScaleValue, shouldReset);
if (netObj.IsOwner)
{
yield return new WaitForSeconds(transitionDuration);
}
}
/// <summary>
/// RPC that triggers the size change animation on all clients.
/// </summary>
[Rpc(SendTo.Everyone)]
private void TriggerSizeChangeRpc(ulong networkObjectId, Vector3 newTargetScale, bool isReset)
{
// Find the NetworkObject by ID
if (!NetworkManager.Singleton.SpawnManager.SpawnedObjects.TryGetValue(networkObjectId, out var netObj))
{
Debug.LogWarning($"[ChangeSizeEffect] Could not find NetworkObject with ID {networkObjectId}");
return;
}
GameObject interactor = netObj.gameObject;
// Stop any existing size change coroutine for this object
if (k_ActiveCoroutines.TryGetValue(networkObjectId, out var existingCoroutine))
{
if (existingCoroutine != null)
{
StopCoroutine(existingCoroutine);
}
k_ActiveCoroutines.Remove(networkObjectId);
}
// Store original data if not already stored
if (!k_OriginalData.ContainsKey(networkObjectId))
{
k_OriginalData[networkObjectId] = CaptureOriginalData(interactor);
}
// Start the size change animation
var coroutine = StartCoroutine(AnimateSizeChange(interactor, networkObjectId, newTargetScale, isReset));
k_ActiveCoroutines[networkObjectId] = coroutine;
// Play effects
PlayEffects(interactor.transform.position);
}
/// <summary>
/// Coroutine that smoothly animates the scale change on all clients.
/// </summary>
private IEnumerator AnimateSizeChange(GameObject interactor, ulong networkObjectId, Vector3 endScale, bool isReset)
{
if (interactor == null) yield break;
Vector3 startScale = interactor.transform.localScale;
// Animate the scale change
float elapsed = 0f;
while (elapsed < transitionDuration)
{
if (interactor == null) yield break;
elapsed += Time.deltaTime;
float t = scaleCurve.Evaluate(elapsed / transitionDuration);
interactor.transform.localScale = Vector3.Lerp(startScale, endScale, t);
yield return null;
}
// Ensure we end at exactly the target scale
if (interactor != null)
{
interactor.transform.localScale = endScale;
if (isReset)
{
k_OriginalData.Remove(networkObjectId);
}
}
// Clean up coroutine reference
k_ActiveCoroutines.Remove(networkObjectId);
}
/// <summary>
/// Plays visual and audio effects at the specified position.
/// </summary>
private void PlayEffects(Vector3 position)
{
if (sizeChangeVFX != null)
{
CoreDirector.CreatePrefabEffect(sizeChangeVFX)
.WithPosition(position)
.WithName("SizeChange")
.WithDuration(2f)
.Create();
}
if (sizeChangeSound != null)
{
CoreDirector.RequestAudio(sizeChangeSound)
.WithPosition(position)
.Play();
}
}
/// <summary>
/// Captures the original transform and movement data from the interactor.
/// </summary>
private TransformData CaptureOriginalData(GameObject interactor)
{
var data = new TransformData { originalScale = interactor.transform.localScale, };
return data;
}
public void CancelEffect(GameObject interactor)
{
if (!interactor.TryGetComponent<NetworkObject>(out var netObj))
{
return;
}
ulong networkId = netObj.NetworkObjectId;
if (k_ActiveCoroutines.TryGetValue(networkId, out var coroutine))
{
if (coroutine != null)
{
StopCoroutine(coroutine);
}
k_ActiveCoroutines.Remove(networkId);
}
if (k_OriginalData.TryGetValue(networkId, out var data))
{
TriggerSizeChangeRpc(networkId, data.originalScale, true);
}
}
/// <summary>
/// Cleanup when the effect is destroyed or the scene changes.
/// </summary>
public override void OnDestroy()
{
foreach (var coroutine in k_ActiveCoroutines.Values)
{
if (coroutine != null)
{
StopCoroutine(coroutine);
}
}
k_ActiveCoroutines.Clear();
}
}
Usage
Add the Change Size Effect to any Modular Interactable object.
Note
Learn how to create a Modular Interactable object: Creating a Jump Pad.
