NetworkBehaviour spawning and despawning

NetworkBehaviour is an abstract class that derives from MonoBehaviour and is primarily used to create unique netcode or game logic. To replicate any netcode-aware properties or send and receive RPCs, a GameObject must have a NetworkObject component and at least one NetworkBehaviour component.

A NetworkBehaviour requires a NetworkObject component on the same relative GameObject or on a parent of the GameObject with the NetworkBehaviour component assigned to it. If you add a NetworkBehaviour to a GameObject that doesn't have a NetworkObject (or any parent), then Netcode for GameObjects automatically adds a NetworkObject component to the GameObject in which the NetworkBehaviour was added.

NetworkBehaviours can use NetworkVariables and RPCs to synchronize states and send messages over the network. When you call an RPC function, the function isn't called locally. Instead, a message is sent containing your parameters, the networkId of the NetworkObject associated with the same GameObject (or child) that the NetworkBehaviour is assigned to, and the index of the NetworkObject-relative NetworkBehaviour (NetworkObjects can have several NetworkBehaviours, the index communicates which one).

For more information about serializing and synchronizing NetworkBehaviours, refer to the NetworkBehaviour synchronization page.

Note

It's important that the NetworkBehaviours on each NetworkObject remain the same for the server and any client connected. When using multiple projects, this becomes especially important so the server doesn't try to call a client RPC on a NetworkBehaviour that might not exist on a specific client type (or set a NetworkVariable that doesn't exist, and so on).

Spawning

OnNetworkSpawn is invoked on each NetworkBehaviour associated with a NetworkObject when it's spawned. This is where all netcode-related initialization should occur.

You can still use Awake and Start to do things like finding components and assigning them to local properties, but if NetworkBehaviour.IsSpawned is false then don't expect netcode-distinguishing properties (like IsClient, IsServer, IsHost, for example) to be accurate within Awake and Start methods.

For reference purposes, below is a table of when NetworkBehaviour.OnNetworkSpawn is invoked relative to the NetworkObject type:

Dynamically spawned	In-scene placed
`Awake`	`Awake`
`OnNetworkSpawn`	`Start`
`Start`	`OnNetworkSpawn`

Spawn process and invocation order

Unity's event function execution order and script execution order dictate the order of operations for your component scripts. When you add multiplayer elements to your project, you also need to consider how netcode scripts affect the overall order of operations and script execution order.

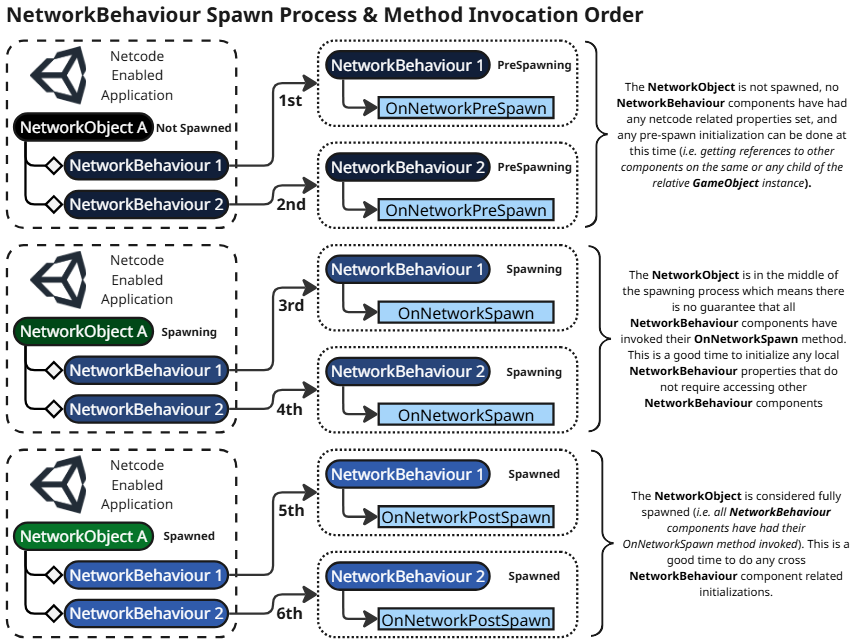

For example, NetworkBehaviour includes several virtual methods that are invoked at different spawn stages of a NetworkObject, as represented in the following diagram:

NetworkBehaviour spawn process and method invocation order

The diagram above represents how the spawn process works for two NetworkBehaviour components, NetworkBehaviour1 and NetworkBehaviour2. The order of NetworkBehaviour components is defined by their placement in the Inspector view of the Unity Editor, relative to the parent NetworkObject. In this example, NetworkBehaviour1 is placed above NetworkBehaviour2 in the Inspector view.

NetworkObjects go through three states during the spawn process:

Spawn states

Prespawning: Before any netcode-related properties have been set.
Spawning: Netcode-related properties have been set.
Spawned: All NetworkBehaviour components have completed their spawn logic.

For each spawn state there is a corresponding NetworkBehaviour virtual method:

Spawn state-related methods

Prespawning: NetworkBehaviour.OnNetworkPreSpawn.
- Used for any post-serialization configuration that has no dependencies on netcode-related properties. For example, at this stage you don't yet know whether the execution context is a server or client, since NetworkBehaviour.IsServer and NetworkBehaviour.IsClient have yet to be set. This is why a reference to the NetworkManager is passed into this virtual method.
Spawning: NetworkBehaviour.OnNetworkSpawn
- Used to handle any NetworkBehaviour-related configurations that depend on serialized states that might have been passed in. Order of operations here is important, since the OnNetworkSpawn method of NetworkBehaviour1 is invoked before NetworkBehaviour2. If NetworkBehaviour1 tries to access a field or property of NetworkBehaviour2 during its OnNetworkSpawn method, it could lead to an order of operations issue, because NetworkBehaviour2 hasn't yet set those values.
Spawned: NetworkBehaviour.OnNetworkPostSpawn
- Any script logic executed here can assume that all properties and fields configured during OnNetworkSpawn have been set. At this stage, order of operations issues are no longer a concern, since all OnNetworkSpawn methods have completed.

For more information about NetworkBehaviour methods and when they're invoked, refer to the prespawn and MonoBehaviour methods section.

Disabling NetworkBehaviours when spawning

If you want to disable a specific NetworkBehaviour but still want it to be included in the NetworkObject spawn process (so you can still enable it at a later time), you can disable the individual NetworkBehaviour instead of the entire GameObject.

NetworkBehaviour components that are disabled by default and are attached to in-scene placed NetworkObjects behave like NetworkBehaviour components that are attached to dynamically spawned NetworkObjects when it comes to the order of operations for the NetworkBehaviour.Start and NetworkBehaviour.OnNetworkSpawn methods. Since in-scene placed NetworkObjects are spawned when the scene is loaded, a NetworkBehaviour component (that is disabled by default) will have its NetworkBehaviour.OnNetworkSpawn method invoked before the NetworkBehaviour.Start method, since NetworkBehaviour.Start is invoked when a disabled NetworkBehaviour component is enabled.

Dynamically spawned	In-scene placed (disabled NetworkBehaviour components)
`Awake`	`Awake`
`OnNetworkSpawn`	`OnNetworkSpawn`
`Start`	`Start` (invoked when disabled NetworkBehaviour components are enabled)

[!NOTE] Parenting, inactive GameObjects, and NetworkBehaviour components If you have child GameObjects that are not active in the hierarchy but are nested under an active GameObject with an attached NetworkObject component, then the inactive child GameObjects will not be included when the NetworkObject is spawned. This applies for the duration of the NetworkObject's spawned lifetime. If you want all child NetworkBehaviour components to be included in the spawn process, then make sure their respective GameObjects are active in the hierarchy before spawning the NetworkObject. Alternatively, you can just disable the NetworkBehaviour component(s) individually while leaving their associated GameObject active. It's recommended to disable a NetworkBehaviour component rather than the GameObject itself.

Prespawn and MonoBehaviour methods

Because NetworkBehaviour is derived from MonoBehaviour, the NetworkBehaviour.OnNetworkSpawn method is treated similarly to the Awake, Start, FixedUpdate, Update, and LateUpdate MonoBehaviour methods. Different methods are invoked depending on whether the GameObject is active in the hierarchy.

When active: Awake, Start, FixedUpdate, Update, and LateUpdate are invoked.
When not active: Awake, Start, FixedUpdate, Update, and LateUpdate are not invoked.

For more information about execution order, refer to Order of execution for event functions in the main Unity Manual.

The unique behavior of OnNetworkSpawn, compared to the previously listed methods, is that it's not invoked until the associated GameObject is active in the hierarchy and its associated NetworkObject is spawned.

Additionally, the FixedUpdate, Update, and LateUpdate methods, if defined and the GameObject is active in the hierarchy, will still be invoked on NetworkBehaviours even when they're not yet spawned. If you want some or all of your update methods to only execute when the associated NetworkObject component is spawned, you can use the NetworkBehaviour.IsSpawned flag to determine the spawned status like the below example:

private void Update()
{
    // If the NetworkObject is not yet spawned, exit early.
    if (!IsSpawned)
    {
        return;
    }
    // Netcode specific logic executed when spawned.
}

Alternatively, you can leverage the NetworkUpdateLoop system by making a NetworkBehaviour implement the INetworkUpdateSystem interface and register each instance for a specific NetworkUpdateStage during the OnNetworkSpawn or OnNetworkPreSpawn invocations, and then use your own script logic to determine which instance should be updating.

This can be useful when you want only the owner, authority, or non-authority to be updating and can help to remove checks like the above. It can also reduce the performance cost of all instances that do not register for the update stage (depending upon how many instances are spawned).

Dynamically spawned NetworkObjects

For dynamically spawned NetworkObjects (instantiating a network prefab during runtime) the OnNetworkSpawn method is invoked before the Start method is invoked. This means that finding and assigning components to a local property within the Start method exclusively will result in that property not being set in a NetworkBehaviour component's OnNetworkSpawn method when the NetworkObject is dynamically spawned. To circumvent this issue, you can have a common method that initializes the components and is invoked both during the Start method and the OnNetworkSpawned method like the code example below:

public class MyNetworkBehaviour : NetworkBehaviour
{
    private MeshRenderer m_MeshRenderer;
    private void Start()
    {
        Initialize();
    }

    private void Initialize()
    {
        if (m_MeshRenderer == null)
        {
            m_MeshRenderer = FindObjectOfType<MeshRenderer>();
        }
    }

    public override void OnNetworkSpawn()
    {
        Initialize();
        // Do things with m_MeshRenderer

        base.OnNetworkSpawn();
    }
}

In-scene placed NetworkObjects

For in-scene placed NetworkObjects, the OnNetworkSpawn method is invoked after the Start method, because the SceneManager scene loading process controls when NetworkObjects are instantiated. The previous code example shows how you can design a NetworkBehaviour that ensures both in-scene placed and dynamically spawned NetworkObjects will have assigned the required properties before attempting to access them. Of course, you can always make the decision to have in-scene placed NetworkObjects contain unique components to that of dynamically spawned NetworkObjects. It all depends upon what usage pattern works best for your project.

Despawning

When a NetworkObject is despawned, it will first iterate over and invoke NetworkBehaviour.OnNetworkPreDespawn and then NetworkBehaviour.OnNetworkDespawnfor each of its assigned NetworkBehaviours.

NetworkBehaviour.OnNetworkPreDespawn: This is invoked by the associated NetworkObject instance at the very start of the despawn process. The associated NetworkObject is still considered to be spawned at the point which OnNetworkPreDespawn is invoked.
NetworkBehaviour.OnNetworkDespawn: This is invoked while the NetworkObject instance is in the middle of the despawn process. The associated NetworkObject is not considered spawned at this stage and there is no guarantee that other NetworkBehaviour components associated with the NetworkObject will have a valid netcode-related state (refer to the despawn process and invocation order section for more information).

Despawning but not destroying

To despawn a NetworkObject without destroying the associated GameObject, you can invoke NetworkObject.Despawn and pass in false for the destroy parameter. This is useful when you want to keep the GameObject instance and its children in the scene for later reuse or respawning.

Despawning and destroying

There are two ways to despawn a NetworkObject and destroy the associated GameObject:

When invoking NetworkObject.Despawn and either not passing any parameters (the default setting is destroy) or passing in true for the destroy parameter.
When invoking GameObject.Destroy on the GameObject that the NetworkObject component belongs to.
- This causes NetworkObject.Despawn to be invoked first (internally) and then NetworkObject.OnDestroy is invoked after that.

Each NetworkBehaviour has a virtual OnDestroy method that you can override to manage any clean up that needs to occur when the NetworkBehaviour is being destroyed. However, the base OnDestroy method also handles other internal destroy-related clean up tasks, so if you override the virtual OnDestroy method it's important to always invoke the base OnDestroy method at the end of your script as in the following example:

        public override void OnDestroy()
        {
            // Local NetworkBehaviour clean up script here:

            // Invoke the base after local NetworkBehaviour clean up script (last).
            base.OnDestroy();
        }

[!NOTE] Destroying the GameObject When destroying a NetworkObject from within an associated NetworkBehaviour component script, you should always destroy the NetworkObject.gameObject and not the NetworkBehaviour.gameObject in case the NetworkBehaviour is located on a child GameObject nested under the NetworkObject's GameObject.

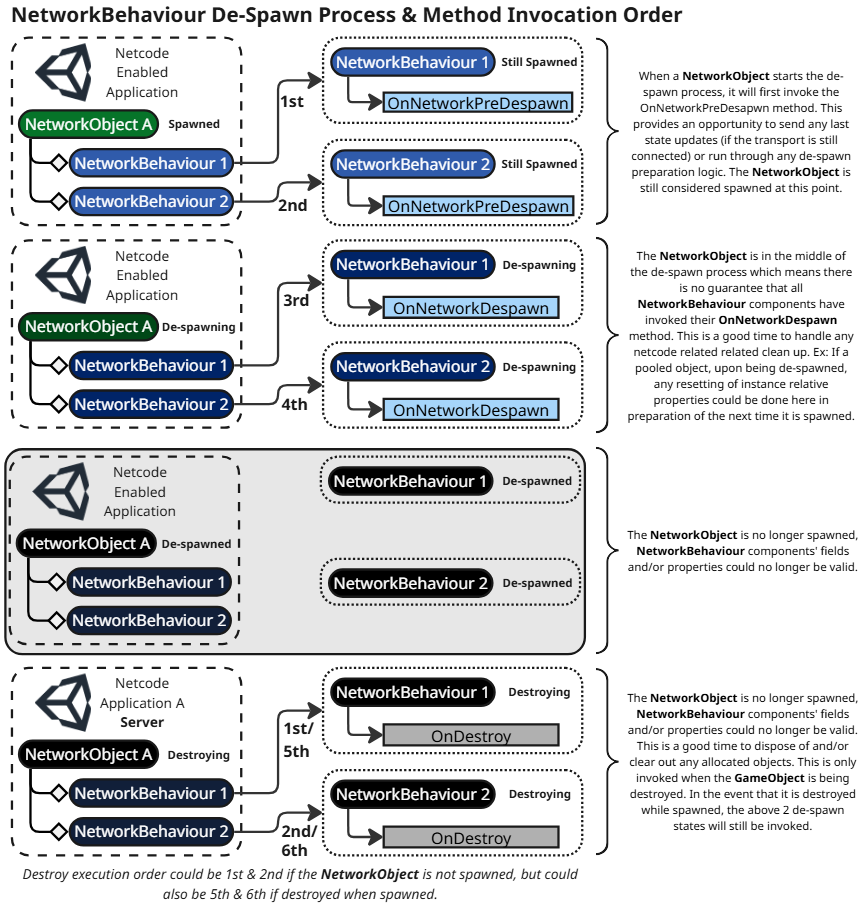

Despawn process and invocation order
