Select a control for a binding

The control path identifies the control (or controls) that a binding is bound to, such as a button or stick on a gamepad, or a specific keyboard key.

When selecting a control path, there are various levels of specificity you can use, such as referring to a common control across all types of gamepad (such as the left stick on a gamepad), a specific control on a specific model of gamepad (such as the A button on an Xbox controller), or a specific control usage across all types of device (such as the control associated with Back on any type of device). Refer to control path specificity for more information.

There are three ways to specify the control path for a binding in the Actions Editor window. These are:

  • Select the control path from a list,
  • Select the control path using the listen feature, or
  • Enter the path directly by typing text

For all these options, you must first:

  1. Open the Actions Editor window
  2. Select the action you want to edit from the actions panel
  3. Expand the action to reveal its bindings, or add a new binding
  4. Select the binding you want to edit

With a binding selected, you can then select the control path using any of these options.

Select the control path from a list

To select the control path for a binding from a list of available controls:

  1. Select the Path dropdown menu.

    This displays a hierarchically arranged tree of input devices and controls that the Input System recognizes, which you can browse to find the control you want to bind.

  2. Select the control you want from the list.

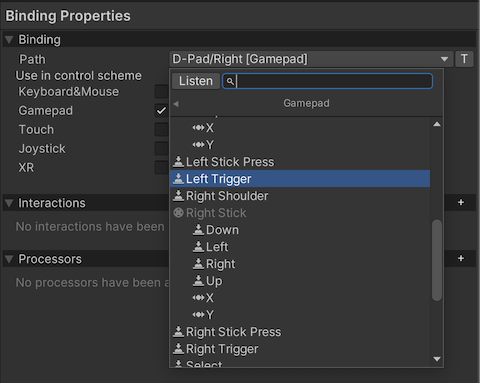

The Binding Properties panel displays the control picker window available from the Path dropdown menu.

Unity filters this list by the Action's Control Type property. For example, if the Control type is Vector2, you can only select a Control that generates two-dimensional values, like a stick.

In this list, use the Usages section to select a control by usage (such as Back), rather than by physical endpoint (such as Button South).

Select the control path using the listen feature

Instead of browsing the tree to find the Control you want, if you have the device connected that you want to bind, it can be easier to let the Input System listen for input from that device. To do this:

  1. Select the Listen button.
  2. Press the button or actuate the control on the device you want to bind to.
  3. While the control picker is in listen mode, all buttons or controls you actuate appear in a list.
  4. Select the binding from the list to finalise the binding.

Enter the path directly by typing text

You can choose to manually type the binding path as text instead of using the Control picker. To do this:

  1. Select the T button next to the Control path popup. This changes the path field from a popup menu to a text field, where you can enter any binding string.
  2. Type the control path's binding string into the text field.

Refer to control paths format for more details about valid syntax for this field.
