Use case | Manage workspaces

This use case outlines how to set up your project to access and manage workspaces.

Prerequisites

Set up a Unity scene

To set up a Unity scene, follow these steps:

  1. In your Unity project window, go to Assets > Scenes.
  2. Right-click the Assets/Scenes folder.
  3. Select Create > Scene.
  4. Name your scene StorageTest.

Set up PlatformServices and login to Unity Cloud

To set up PlatformServices, follow these steps:

  1. Implement the platform services pattern. Refer to Best practices: dependency injection page of the Identity package documentation for more information.
  2. Update the PlatformServices class in your PlatformServices file to look like the following:

using System.Threading.Tasks;
using Unity.Cloud.Common;
using Unity.Cloud.Common.Runtime;
using Unity.Cloud.Identity;
using Unity.Cloud.Identity.Runtime;

public static class PlatformServices
{
    // Makes HTTP requests
    static UnityHttpClient s_HttpClient;

    // Makes authenticated HTTP requests using your PAT
    public static ServiceHttpClient ServiceHttpClient { get; private set; }

    // Required for user login
    public static ICompositeAuthenticator CompositeAuthenticator { get; private set; }

    // Required for fetching service communication configuration
    public static IServiceHostResolver ServiceHostResolver { get; private set; }

    // Required for getting information about organization that the user has access to
    public static IUserInfoProvider UserInfoProvider { get; private set; }

    public static void Create()
    {
        ServiceHostResolver = UnityRuntimeServiceHostResolverFactory.Create();

        var playerSettings = UnityCloudPlayerSettings.Instance;
        s_HttpClient = new UnityHttpClient();

        var compositeAuthenticatorSettings = new CompositeAuthenticatorSettingsBuilder(s_HttpClient, PlatformSupportFactory.GetAuthenticationPlatformSupport(), ServiceHostResolver)
            .AddDefaultBrowserAuthenticatedAccessTokenProvider()
            .AddDefaultPersonalAccessTokenProvider()
            .AddDefaultPkceAuthenticator(playerSettings)
            .Build();

        CompositeAuthenticator = new CompositeAuthenticator(compositeAuthenticatorSettings);
        ServiceHttpClient = new ServiceHttpClient(s_HttpClient, CompositeAuthenticator, playerSettings);
        UserInfoProvider = new UserInfoProvider(ServiceHttpClient, ServiceHostResolver);
    }

    public static async Task InitializeAsync()
    {
        await CompositeAuthenticator.InitializeAsync();
    }

    public static void Shutdown()
    {
        ServiceHttpClient = null;
        CompositeAuthenticator = null;
        s_HttpClient = null;
    }
}

Create a MonoBehaviour

  1. In your Unity project window, go to Assets > Scripts.
  2. If the folder doesn't already exist, create an Assets/Scripts folder.
  3. Right-click the Assets/Scripts folder.
  4. Select Create > C# Script.
  5. Name your script StorageBehaviour.
  6. In the StorageTest scene you created earlier, right-click the hierarchy and select Create Empty.
  7. Name your new object StorageExample.
  8. Select the StorageExample object and add the StorageBehaviour script you created earlier.

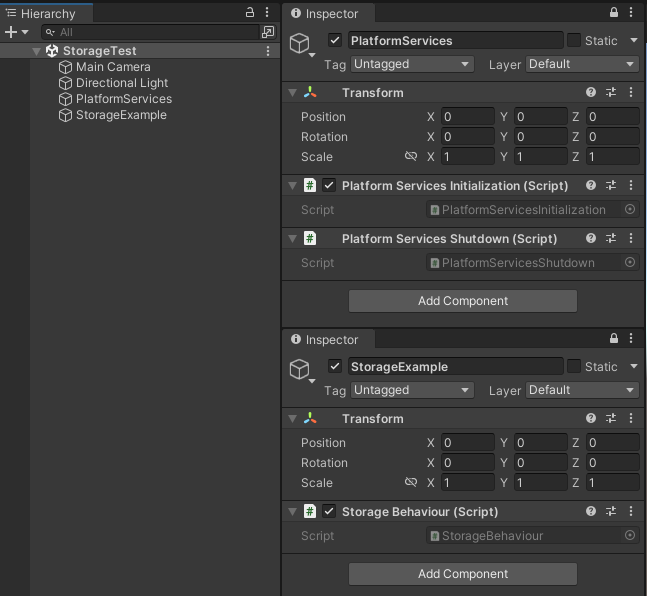

    Screenshot of the scene setup for the storage example
  9. Update the StorageBehaviour class to look like the following:

using System;
using System.Threading.Tasks;
using Unity.Cloud.Identity;
using UnityEngine;

public class StorageBehaviour : MonoBehaviour
{
    // The authenticator responsible for user login
    ICompositeAuthenticator m_CompositeAuthenticator;
    bool m_HasAttemptedLogin;

    void Start()
    {
        // Register to get notified of the login state after the authenticator has initialized
        m_CompositeAuthenticator = PlatformServices.CompositeAuthenticator;
        m_CompositeAuthenticator.AuthenticationStateChanged += ApplyAuthenticationState;

        // Apply the initial state for the authenticator
        ApplyAuthenticationState(m_CompositeAuthenticator.AuthenticationState);
    }

    void ApplyAuthenticationState(AuthenticationState newAuthenticationState)
    {
        switch (newAuthenticationState)
        {
            case AuthenticationState.LoggedIn:
                // If the user is logged in, initialize the repository
                m_CompositeAuthenticator.AuthenticationStateChanged -= ApplyAuthenticationState;
                _ = RunExamples();
                break;
            case AuthenticationState.LoggedOut:
                // If the user is logged out, attempt to automatically login
                // Set a flag to ensure we only attempt an auto-login once
                if (!m_HasAttemptedLogin)
                {
                    m_HasAttemptedLogin = true;
                    _ = m_CompositeAuthenticator.LoginAsync();
                }
                else
                {
                    // Unregister if login attempt failed
                    m_CompositeAuthenticator.AuthenticationStateChanged -= ApplyAuthenticationState;
                }
                break;
        }
    }

    async Task RunExamples()
    {
        // Logs you out after running the examples
        if (PlatformServices.CompositeAuthenticator.RequiresGUI)
            await PlatformServices.CompositeAuthenticator.LogoutAsync();
    }
}

Note: The code sample above automatically logs you in. You can associate the login call with the UI for a better user experience. See the Storage sample page for a UI-driven login and scene selection.

Manage workspaces

Create a CloudWorkspaceRepository

To create a CloudWorkspaceRepository, update the StorageBehaviour class to look like the following:


using System;
using System.Threading.Tasks;
using Unity.Cloud.Identity;
using UnityEngine;

public class StorageBehaviour : MonoBehaviour
{
    // The workspace repository retrieves, creates, edits, and removes workspaces from storage
    IWorkspaceRepository m_WorkspaceRepository;

    // The authenticator responsible for user login
    ICompositeAuthenticator m_CompositeAuthenticator;
    bool m_HasAttemptedLogin;

    void Start()
    {
        // Get the reference to workspace repository
        m_WorkspaceRepository = new CloudWorkspaceRepository(PlatformServices.ServiceHttpClient, PlatformServices.ServiceHostResolver);

        // Register to get notified of the login state after the authenticator has initialized
        m_CompositeAuthenticator = PlatformServices.CompositeAuthenticator;
        m_CompositeAuthenticator.AuthenticationStateChanged += ApplyAuthenticationState;

        // Apply the initial state for the authenticator
        ApplyAuthenticationState(m_CompositeAuthenticator.AuthenticationState);
    }

    void ApplyAuthenticationState(AuthenticationState newAuthenticationState)
    {
        switch (newAuthenticationState)
        {
            case AuthenticationState.LoggedIn:
                // If the user is logged in, initialize the repository
                m_CompositeAuthenticator.AuthenticationStateChanged -= ApplyAuthenticationState;
                _ = RunExamples();
                break;
            case AuthenticationState.LoggedOut:
                // If the user is logged out, attempt to automatically login
                // Set a flag to ensure we only attempt an auto-login once
                if (!m_HasAttemptedLogin)
                {
                    m_HasAttemptedLogin = true;
                    _ = m_CompositeAuthenticator.LoginAsync();
                }
                else
                {
                    // Unregister if login attempt failed
                    m_CompositeAuthenticator.AuthenticationStateChanged -= ApplyAuthenticationState;
                }
                break;
        }
    }

    async Task RunExamples()
    {
        // Logs you out after running the examples
        if (PlatformServices.CompositeAuthenticator.RequiresGUI)
            await PlatformServices.CompositeAuthenticator.LogoutAsync();
    }
}

Create WorkspaceExamples script

  1. In your Unity project window, go to Assets > Scripts.
  2. If the folder doesn't already exist, create an Assets/Scripts folder.
  3. Right-click the Assets/Scripts folder and go to Create > C# Script. Name your script WorkspaceExamples.

"Create workspace" example

  1. Update the WorkspaceExamples class to look like the following:

using System;
using System.Threading.Tasks;
using Unity.Cloud.Common;
using Unity.Cloud.Identity;
using UnityEngine;

class WorkspaceExamples
{
    //Required to create and filter workspaces
    readonly OrganizationInfo m_Organization;

    // The workspace repository retrieves, creates, edits, and removes workspaces from storage
    readonly  IWorkspaceRepository m_WorkspaceRepository;

    public WorkspaceExamples(IWorkspaceRepository workspaceRepository, OrganizationInfo organization)
    {
        m_Organization = organization;
        m_WorkspaceRepository = workspaceRepository;
    }

    public async Task RunWorkspacesExamples()
    {
        await CreateWorkspaceExample();
    }

    async Task CreateWorkspaceExample()
    {
        Debug.Log($"Create workspace example:");

        // Creates a workspace in the repository and waits for the created workspace.
        var createdWorkspace = await CreateWorkspace("CreateWorkspaceExample");
        if (createdWorkspace != null)
        {
            // Outputs the created workspace information
            Debug.Log($"Created Workspace ID: {createdWorkspace.Id}, Created Workspace Name: {createdWorkspace.Name}");

            // Fetches an existing workspace using that existing workspace's ID
            var fetchedWorkspace = await m_WorkspaceRepository.GetWorkspaceAsync(createdWorkspace.Id);

            // Outputs the created workspace information
            Debug.Log($"Fetched Workspace ID: {fetchedWorkspace.Id}, Fetched Workspace Name: {fetchedWorkspace.Name}");
        }
    }

    async Task<IWorkspace> CreateWorkspace(string name)
    {
        IWorkspace createdWorkspace = null;
        if (m_Organization != null)
        {
            var workspaceCreation = new WorkspaceCreation()
            {
                Name = name,
                OrgId = m_Organization.Id
            };

            // Sends the request to the repository and waits for the created workspace.
            try
            {
                createdWorkspace = await m_WorkspaceRepository.CreateWorkspaceAsync(workspaceCreation);
            }
            catch (ServiceException exception)
            {
                var message = exception.StatusCode switch
                {
                    System.Net.HttpStatusCode.Conflict =>
                        $"A workspace {name} already exists in Organization {m_Organization.Name}.",
                    _ =>$"Request was rejected by the service: {exception.StatusCode}"
                };
                Debug.LogWarning(message);
            }
        }
        return createdWorkspace;
    }
}
  2. Update the StorageBehaviour class to look like the following:

using System;
using System.Threading.Tasks;
using Unity.Cloud.Identity;
using UnityEngine;

public class StorageBehaviour : MonoBehaviour
{
    const string k_OrganizationName = "<enter-organization-name-here>";

    // The workspace repository retrieves, creates, edits, and removes workspaces from storage
    IWorkspaceRepository m_WorkspaceRepository;

    // The authenticator responsible for user login
    ICompositeAuthenticator m_CompositeAuthenticator;
    bool m_HasAttemptedLogin;

    void Start()
    {
        // Get the reference to workspace repository
        m_WorkspaceRepository = new CloudWorkspaceRepository(PlatformServices.ServiceHttpClient, PlatformServices.ServiceHostResolver);

        // Register to get notified of the login state after the authenticator has initialized
        m_CompositeAuthenticator = PlatformServices.CompositeAuthenticator;
        m_CompositeAuthenticator.AuthenticationStateChanged += ApplyAuthenticationState;

        // Apply the initial state for the authenticator
        ApplyAuthenticationState(m_CompositeAuthenticator.AuthenticationState);
    }

    void ApplyAuthenticationState(AuthenticationState newAuthenticationState)
    {
        switch (newAuthenticationState)
        {
            case AuthenticationState.LoggedIn:
                // If the user is logged in, initialize the repository
                m_CompositeAuthenticator.AuthenticationStateChanged -= ApplyAuthenticationState;
                _ = RunExamples();
                break;
            case AuthenticationState.LoggedOut:
                // If the user is logged out, attempt to automatically login
                // Set a flag to ensure we only attempt an auto-login once
                if (!m_HasAttemptedLogin)
                {
                    m_HasAttemptedLogin = true;
                    _ = m_CompositeAuthenticator.LoginAsync();
                }
                else
                {
                    // Unregister if login attempt failed
                    m_CompositeAuthenticator.AuthenticationStateChanged -= ApplyAuthenticationState;
                }
                break;
        }
    }

    async Task RunExamples()
    {
        var userProvider = PlatformServices.UserInfoProvider;
        var user = await userProvider.GetUserInfoAsync();

        var organization = user.Organizations.Find(x => x.Name == k_OrganizationName);
        if (organization != null)
        {
            var workspaceExamples = new WorkspaceExamples(m_WorkspaceRepository, organization);
            await workspaceExamples.RunWorkspacesExamples();
        }
        else
        {
            Debug.Log($"Organization {k_OrganizationName} was not found. Try different organization name");
        }

        // Logs you out after running the examples
        if (PlatformServices.CompositeAuthenticator.RequiresGUI)
            await PlatformServices.CompositeAuthenticator.LogoutAsync();
    }
}
  3. Paste your organization name into the string named k_OrganizationName. You can find your organization name in Digital Twin Dashboard (See Get started).

"List workspaces" example

To add List workspaces example, add following code to your WorkspaceExamples class:


async Task ListWorkspacesExample()
{
    Debug.Log($"<color=green>List workspaces example:</color>");
    // Requests the specified range of workspaces in a form of asynchronious collection.
    // For example, Range.All will return all workspaces available, while Range(0, 10) will return the first 10, if exist.
    var workspaces = m_WorkspaceRepository.ListWorkspacesAsync(Range.All);

    // Outputs the fetched workspaces information
    Debug.Log($"Fetched workspaces:");
    await foreach (var workspace in workspaces)
    {
        Debug.Log($"Workspace ID: {workspace.Id}, workspace Name: {workspace.Name}");
    }
}

"Delete workspace" example

To add Delete workspace example, add following code to your WorkspaceExamples class:


async Task DeleteWorkspaceExample()
{
    Debug.Log($"<color=green>Delete workspace example:</color>");

    var workspace = await GetOrCreateWorkspace("Delete Workspace Example");

    // Outputs the count of available workspaces in the repository
    Debug.Log($"Workspaces count: {await m_WorkspaceRepository.GetWorkspacesCountAsync()}");
    await m_WorkspaceRepository.DeleteWorkspaceAsync(workspace.Id);
    Debug.Log($"Workspace {workspace.Name} was deleted!");
    Debug.Log($"Workspaces count: {await m_WorkspaceRepository.GetWorkspacesCountAsync()}");
}

public async Task<IWorkspace> GetOrCreateWorkspace(string name)
{
    IWorkspace result = null;
    if (m_Organization != null)
    {
        var workspaces = m_WorkspaceRepository.ListWorkspacesAsync(Range.All);
        await foreach (var workspace in workspaces)
        {
            if (workspace.OrgId == m_Organization.Id && workspace.Name == name)
            {
                result = workspace;
                break;
            }
        }

        //If the workspace does not exist
        if (result == null)
            result = await CreateWorkspace(name);
    }
    return result;
}

"Workspace metadata" example

To add Workspace metadata example, add following code to your WorkspaceExamples class:


[Serializable]
class WorkspaceMetadata
{
    public int Value;
    public string String;
}

async Task WorkspaceMetadataExample()
{
    Debug.Log($"<color=green>Workspace metadata example:</color>");

    var workspace = await GetOrCreateWorkspace("Workspace Metadata Example");

    // Creates an instance of metadata
    var metadataObject = new WorkspaceMetadata()
    {
        Value = 10,
        String = "metadata string"
    };

    //It is recommended to have a metadata set per application, rather than a plain list of <key-value> pairs.
    //The metadata can be a single string or a Json-serializable object.
    var metadataKey = "StorageExamples";
    await workspace.AddOrUpdateMetadataAsync(metadataKey, metadataObject);

    // Outputs the created workspace information
    var readMetadataObject = workspace.Metadata[metadataKey].GetAs<WorkspaceMetadata>();
    Debug.Log($"Metadata of the Workspace {workspace.Name}: Value: {readMetadataObject.Value}, String: {readMetadataObject.String}");

    await workspace.DeleteMetadataAsync(metadataKey);
    if (!workspace.Metadata.ContainsKey(metadataKey))
    {
        Debug.Log($"Metadata '{metadataKey}' was successfully deleted from the workspace {workspace.Name}");
    }
}

Run examples

  1. Replace RunWorkspacesExamples() method in your WorkspaceExamples class with following code:

public async Task RunWorkspacesExamples()
{
    await CreateWorkspaceExample();
    await ListWorkspacesExample();
    await DeleteWorkspaceExample();
    await WorkspaceMetadataExample();
}
  2. In Unity Editor, select Play.
  3. Check your console to confirm that you have successfully created, listed, and deleted workspaces as well as added, changed, and deleted metadata.
