Define group settings

Configure group settings using schema objects that control how Unity treats assets during content builds, including custom schema creation.

Group settings set how Unity treats the assets in a group in content builds. Group settings control properties such as the location where Unity builds AssetBundles or bundle compression settings.

To open a group's settings, open the Addressables Groups window (Window > Asset Management > Addressables > Groups), then select a group. The group's settings are displayed in the Inspector.

A group's settings are declared in schema objects attached to the group. When you create a group with the Packed Assets template, the Content Packing & Loading and Content Update Restriction schemas define the settings for the group. The default Build scripts expect these settings.

Note

If you create a group with the Blank template, then Unity doesn't attach any schemas to the group. The default build script can't process assets in a blank group.

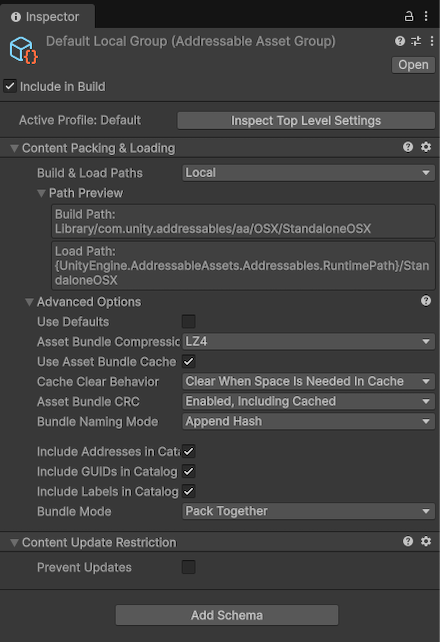

The Inspector window for the Default Local Group.
The Inspector window for the Default Local Group.

Schemas

A group schema is a ScriptableObject that defines a collection of settings for an Addressables group. You can assign any number of schemas to a group and also create custom schemas to support your own build scripts and utilities.

The built-in schemas include:

  • Content Packing & Loading: The main Addressables schema used by the default build script and defines the settings for building and loading Addressable assets.
  • Content Update Restrictions: Defines settings for making differential updates of an earlier build.
Note

If you use the default build script, a group must use the Content Packing & Loading schema. If you use content update builds, a group must include the Content Update Restrictions schema. For more information, refer to Builds.

For information on these settings, refer to Content packing settings reference.

Create a custom schema

To create your own schema, extend the AddressableAssetGroupSchema class, which is a kind of ScriptableObject:

using UnityEditor.AddressableAssets.Settings;

public class CustomSchema : AddressableAssetGroupSchema
{
   public string CustomDescription;
}

Once you have defined a custom schema object, you can add it to existing groups and group templates using the Add Schema button in the Inspector window.

In a build script, you can access the schema settings for a group using its AddressableAssetGroup object.
