9-slicing

9-slicing is a 2D technique that allows you to resize a sprite without creating multiple sprites for all the different sizes.

To use 9-slicing, you create a sprite with nine sections. The different sections stretch or repeat in different ways to keep the sprite in proportion.

9-slicing is useful for creating patterns, walls, or floors in a 2D environment.

Note: You can only use a Box Collider 2D or Polygon Collider 2D component to add a collision shape to a 9-sliced sprite. For more information, refer to 9-slice a sprite.

9-slicing modes

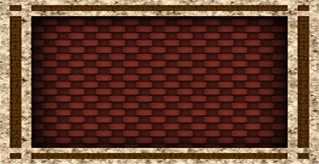

If you don’t use 9-slicing, the entire sprite stretches when you change its dimensions.

With 9-slicing, you can resize the sprite using sliced mode or tiled mode.

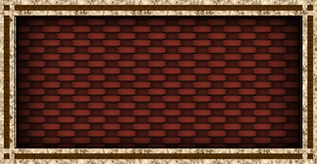

Sliced

In sliced mode, the sprite does the following:

• The corners stay the same size.
• The top and bottom borders of the sprite stretch only horizontally.
• The left and right borders of the sprite stretch only vertically.
• The center stretches horizontally and vertically.

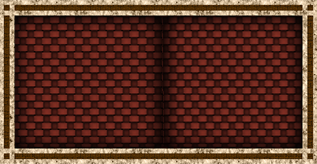

Tiled

In tiled mode, the sprite does the following:

• The corners stay the same size.
• The top and bottom borders of the sprite repeat horizontally.
• The left and right borders of the sprite repeat vertically.
• The center repeats horizontally and vertically.

You can control how Unity repeats the texture across the resized sprite. For more information, refer to 9-slice a sprite.
