BoxBoundsHandle
class in UnityEditor.IMGUI.Controls
/
Inherits from:IMGUI.Controls.PrimitiveBoundsHandle
Description
A compound handle to edit a box-shaped bounding volume in the Scene view.

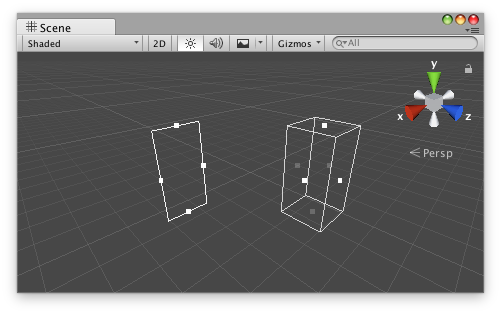

2D and 3D BoxBoundsHandle in the Scene View.
Additional resources: PrimitiveBoundsHandle.
Properties
| Property | Description |
|---|---|
| size | Returns or specifies the size of the bounding box. |
Constructors
| Constructor | Description |
|---|---|
| BoxBoundsHandle | Create a new instance of the BoxBoundsHandle class. |
Protected Methods
| Method | Description |
|---|---|
| DrawWireframe | Draw a wireframe box for this instance. |
Inherited Members
Properties
| Property | Description |
|---|---|
| axes | Flags specifying which axes should display control handles. |
| center | Returns or specifies the center of the bounding volume for the handle. |
| handleColor | Returns or specifies the color of the control handles. |
| midpointHandleDrawFunction | An optional CapFunction to use when displaying the control handles. Defaults to Handles.DotHandleCap if no value is specified. |
| midpointHandleSizeFunction | The SizeFunction to specify how large the midpoint control handles should be. |
| wireframeColor | Returns or specifies the color of the wireframe shape. |
Public Methods
| Method | Description |
|---|---|
| DrawHandle | A function to display this instance in the current handle camera using its current configuration. |
| SetColor | Sets handleColor and wireframeColor to the same value. |
Protected Methods
| Method | Description |
|---|---|
| GetSize | Gets the current size of the bounding volume for this instance. |
| IsAxisEnabled | Gets a value indicating whether the specified axis is enabled for the current instance. |
| OnHandleChanged | A callback for when a control handle was dragged in the Scene. |
| SetSize | Sets the current size of the bounding volume for this instance. |
Static Methods
| Method | Description |
|---|---|
| DefaultMidpointHandleSizeFunction | A SizeFunction that returns a fixed screen-space size. |
