Graphic and font assets preparation
Table of Contents
SpritesA 2D graphic objects. If you are used to working in 3D, Sprites are essentially just standard textures but there are special techniques for combining and managing sprite textures for efficiency and convenience during development. More info
See in Glossary

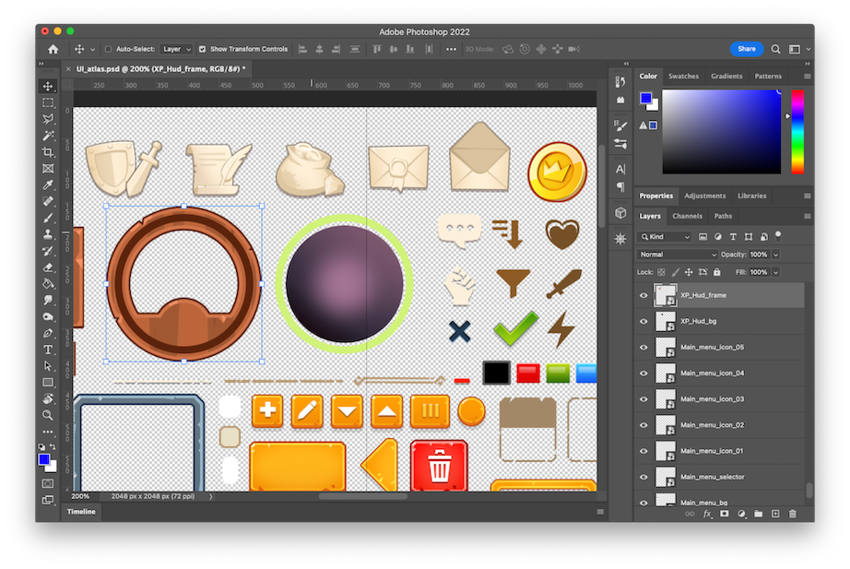

A lot of UI design happens outside of Unity in a Digital Content Creation (DCC) application. Depending on the style and preferences of the UI artist, designing the UI can take place in a raster drawing application like Adobe Photoshop or in a vector-based tool. Typically, every piece of UI graphic is exported as a lossless bitmap image with transparency, such as a PNG, and combined into a texture atlas with other UI elements for runtime efficiency.
If you work in a vector-based DCC application, you’ll need to export vector graphics into a raster format in order to work with UI Toolkit. For more details, refer to the Vector images section.
Bitmap images
Unity supports most common image file types, like PNG, BMP, TIF, TGA, JPG, and PSD. When you add files of these formats to your Assets folder, Unity will import them as Texture 2D assets for 3D projects or as Sprites for 2D projects. You can change the type in the Texture Type field within the InspectorA Unity window that displays information about the currently selected GameObject, asset or project settings, allowing you to inspect and edit the values. More info
See in Glossary once imported. UI Toolkit supports both formats for UI bitmap graphics.
Textures don't contain much more information besides the size and format of the image, but sprites have some additional properties that are used by UI Toolkit.
Sprites
Sprites are textures prepared for 2D game development to be used by the Sprite RendererA component that lets you display images as Sprites for use in both 2D and 3D scenes. More info
See in Glossary component. 2D sprites in Unity can be tiled, rigged and skinned for animation, have custom geometry or include additional maps for 2D lighting. This section solely focuses on settings that are relevant to the UI Toolkit. For a deeper understanding of 2D graphics you can find more in the Unity 6 edition of the 2D game art, animation, and lighting e-book that will soon be available at https://unity.com/resources.
Most UI graphic assets will be rendered on screen space rather than following Unity’s world scale (where one unit represents a cubic meter in 3D space). UI Toolkit manages the scale of these graphics, but the PPU (Pixels Per Unit) of sprites affects the size of the sprites in the UI. For example, if your sprite is meant to have 128 pixelsThe smallest unit in a computer image. Pixel size depends on your screen resolution. Pixel lighting is calculated at every screen pixel. More info
See in Glossary of resolution per grid unit, set the PPU to 128.

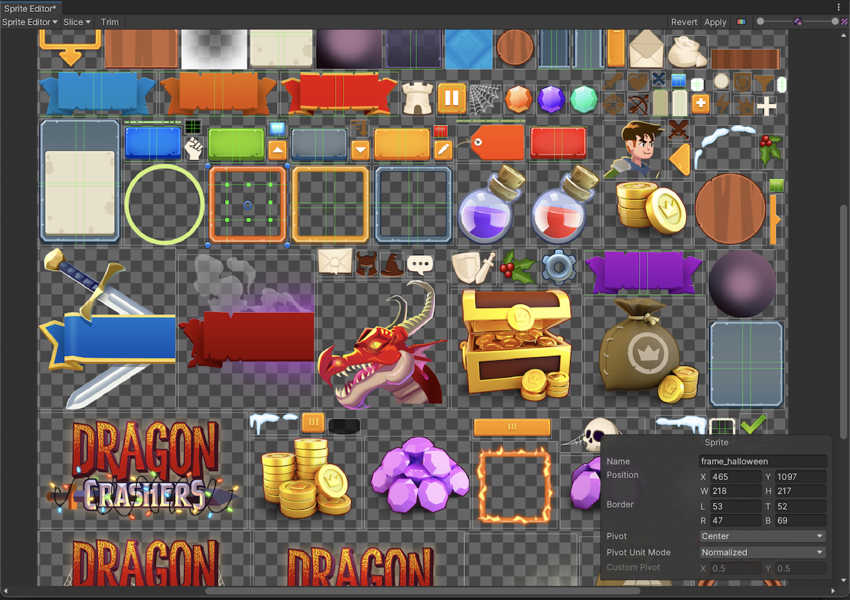

The Sprite Editor provides tools for modifying your graphics, such as cropping with the blue handles or slicing with the green handles. These tools allow you to make the graphic tileable or use the 9-slice technique, a common way to create scalable elements.
Sprites are 2D textures mapped onto flat, rectangular 3D meshes. By default, when imported, they use the setting MeshThe main graphics primitive of Unity. Meshes make up a large part of your 3D worlds. Unity supports triangulated or Quadrangulated polygon meshes. Nurbs, Nurms, Subdiv surfaces must be converted to polygons. More info
See in Glossary Type: Tight. This setting adjusts the mesh to closely follow the outline of the opaque (non-transparent) pixels of the sprite. This improves performance by reducing overdraw, which happens when the GPU draws the same pixel more than once within a single frame, due to transparent overlapping areas. You can manually adjust and optimize this mesh in the Sprite Editor under the Outline section.
Sprite Modes is a useful feature that you can select from the Inspector of a sprite asset. It provides the following modes:
Single: This is the default mode, where the image only contains a single image element.
Multiple: Choose this value if the texture source file has several elements in the same image. Then define the location of the elements in the Sprite Editor so that Unity knows how to split the image into different sub-assets. Once sliced, each graphic becomes an individual sprite that can be used separately in the UI Toolkit.
Polygon: Best for images that are circular or a regular polygon, this mode helps you to set up an outline that closely matches the image shape, resulting in a cleaner outline.
Render Texture asset
Render textures are snapshots of a cameraA component which creates an image of a particular viewpoint in your scene. The output is either drawn to the screen or captured as a texture. More info
See in Glossary view in a texture, updated every frame. They can be created via Assets < Create < Rendering and referenced from a Camera component in the Output menu. You can then use these textures in the UI Toolkit to display elements such as mini-maps, character selection screens, or any other in-game visuals that need to be integrated into the UI.

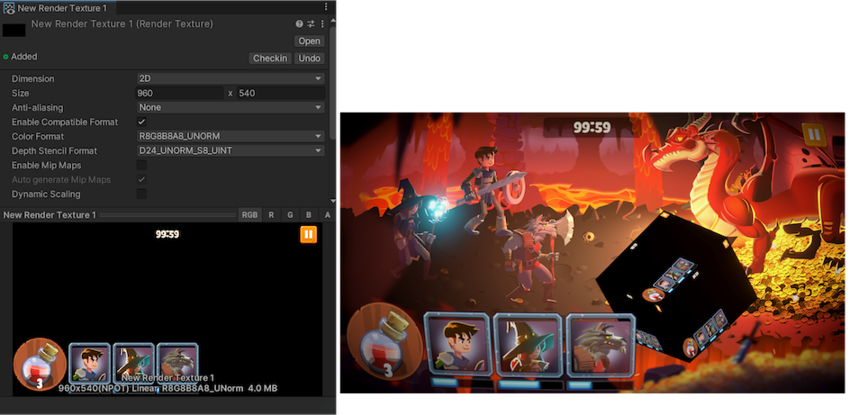

Examples of render texturesA special type of Texture that is created and updated at runtime. To use them, first create a new Render Texture and designate one of your Cameras to render into it. Then you can use the Render Texture in a Material just like a regular Texture. More info
See in Glossary in UI Toolkit Sample: Dragon Crashers include the character preview in the level meter and the particle effects rendered over the UI buttons.
The opposite use case is also possible, where you want the UI to be displayed within a game element. For example, imagine a 3D computer model in your application displaying a functional interface made in UI Toolkit. You can render the UI Toolkit interface to a render texture, assign it in the Panel Settings and Camera, and then apply it to a material of the 3D model.
Just be aware that render textures are expensive. Use them sparingly and be sure to profile your project to optimize performance. For full screen interfaces without other active gameplay elements, adding extra effects this way is unlikely to pose major performance issues.
2D PSD Importer
Unity imports PSD (or Adobe Photoshop files) as flattened textures unless your project has the 2D PSD Importer package installed. PSD files are generally used for storing multiple images in layers in one single file. Most DCC tools support exporting to this format.
PSD files simplify workflows by allowing direct import into Unity, avoiding the need for you to export each layer as individual files and repeat the process whenever changes are needed.

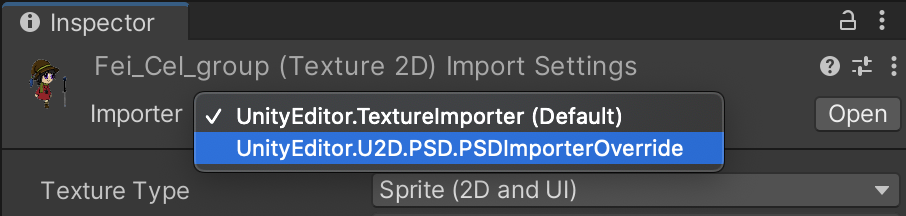

After installing the 2D PSD Importer package from the Package manager, ensure the PSD files are imported from the Inspector.
When working with UI assets, deselect the Use as Rig option in the Inspector under Character Rig. That setting is only relevant for 2D character skeletal animation and is unnecessary for UI elements. You should also find options for importing layers (e.g., discarding hidden layers, grouping objects by layer, etc.)
The sprites in the Project view generated from the PSD are usable as normal sprites. You can slice them, change the outline, or modify the Pixels Per Unit (PPU) from the Sprite Editor just as you would with regular Sprite assets.
💡 Tip: Iterative design
Unity will automatically refresh the sprites included in the PSD file every time you save it. This allows you to make a quick placeholder and iterate on it while viewing changes in the Game view. This can be a great time saver and improve the quality of the work by letting you see it in context without swapping files or needing support from a fellow developer in the team.
Vector images
Although the vector format support is still in development at the time of writing, it’s available as an option for background images in the UI Builder. However, raster images (sprites and textures) are currently the recommended image format for UI Toolkit.

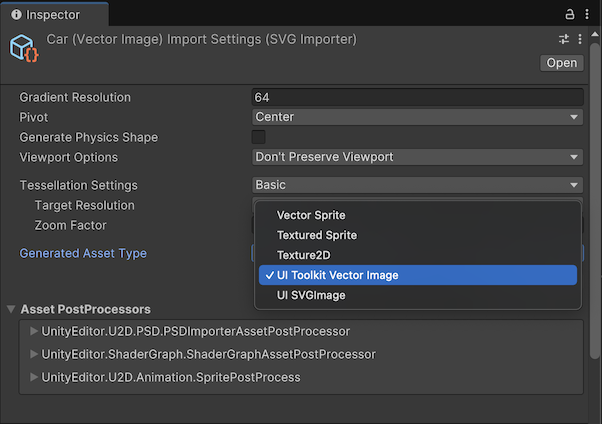

If you want to test this functionality, you will need the Vector Graphics package which is still in preview and hidden from the Package Manager by default. Follow the steps in the documentation to install it. This package includes a setting for defining the tessellation level when converting vector graphics into polygons. For the Generated Asset Type setting, choose UI Toolkit Vector Image to be able to use it in UI Toolkit.
Currently, SVG files are tessellated into polygons when rendering, which limits the benefits of vector images. You may notice polygonal edges when scaling up, rather than the smooth curved edges typical of vector images. At the time of writing, anti-aliasing is not yet enabled for UI Toolkit.
The finalized version of vector support is expected to be able to support real vector shapes natively, eliminating the need for a separate Vector Graphics package.
Fonts
UI Toolkit supports both Font and FontAsset:
Font: Standard font formats, such as TTF or OTF, are supported for backwards compatibility. However, they are automatically converted to Font Assets when UI Builder finds them in the project (the converter is also available manually via the menu).
-
FontAsset: This is the recommended format, and allows you to fine-tune aspects like kerning or baseline without modifying the original font asset. This is useful for the highly stylized fonts commonly found in games.
- Font Asset also provides precise control on how atlases are created, including the character set, resolution, and atlas population options. These settings can help reduce the memory footprint, especially when working with Unicode fonts that support languages with large amounts of characters.
Texture packers
Combining 2D graphics into the same texture is a common optimization technique to reduce draw calls and improve memory usage. UI Toolkit supports two current atlasing systems.
Sprite atlas
Sprite AtlasA utility that packs several sprite textures tightly together within a single texture known as an atlas. More info
See in Glossary is Unity’s atlasing tool for 2D game development and sprites, but you can also use it for UI graphics. It automatically packs assets in the same project folder, creating an atlas for the sprites, and normal and mask maps. It also supports platform-specific variants and has an API for advanced control. Sprite Atlas is commonly used in the Editor to pack assets but not at runtime.
Dynamic atlas

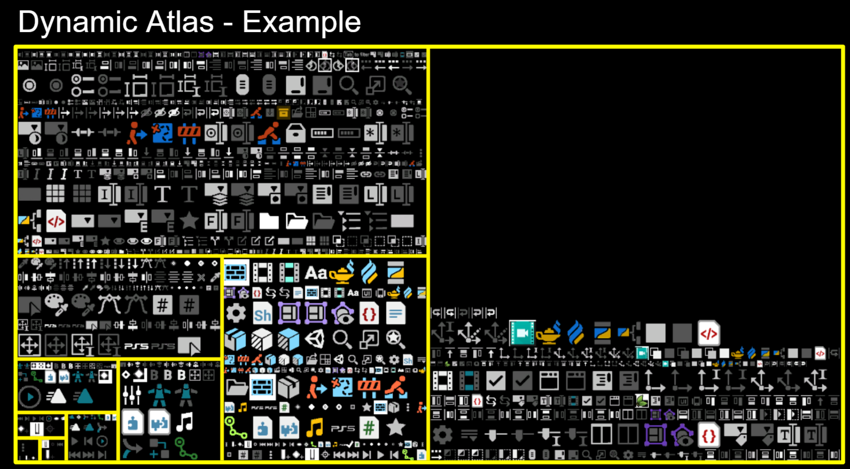

When UI graphics are not packed with Sprite Atlas, they are automatically packed with the dynamic atlas feature in UI Toolkit during a pre-pass.
The referenced images within a visual elementA node of a visual tree that instantiates or derives from the C# VisualElement class. You can style the look, define the behaviour, and display it on screen as part of the UI. More info
See in Glossary will be atlased according to the criteria defined in the Panel Settings of the UI Document. For example, you can define the minimum or maximum texture sizes to be packed or filter images based on other properties. You can preview generated atlases in the Texture Atlas Viewer within the UI Toolkit Debugger.
The dynamic atlas tool works both at runtime and in the Editor, making it useful for UI elements that are dynamically generated, like a player’s inventory.
Common good practices for your graphics include:
Once you start creating mockup screens, make sure to set the highest target resolution in your drawing software to avoid having to redo work later. If you plan to support up to 4K graphics, for instance, make that your minimum working resolution.
Avoid scaling raster images up after they’re created. This can result in pixelation and blurriness, thereby lowering visual quality. Instead, begin from the highest resolution supported, then scale down when exporting from a graphics application.
If you design with vector graphics, resizing assets later is less of an issue. But try to work with a Reference Resolution, so that each asset has the correct relative scale – for example, keeping the outline thickness of the element consistent.
If you are in the situation where the graphic assets have a lower resolution than needed, try 2D Enhancers, and the AI-powered upscale feature within the Sprite Editor.
Make the most out of the 2D PSD Importer by importing PSDs directly into Unity. Any changes to a layer will be reflected in Unity once you save the PSD file. If you have the PSD file in Unity, it can also benefit from Version ControlA system for managing file changes. You can use Unity in conjunction with most common version control tools, including Perforce, Git, Mercurial and PlasticSCM. More info
See in Glossary.Automate your import process. Avoid manually changing the asset settings every time you add a graphic asset. The Preset feature allows you to save settings applied to one asset and automatically apply them to all assets of the same kind in a given folder.
If you need to automate the process even further, such as running checks on assets, or mass-changing settings for multiple assets, you can use the Asset PostProcessor API.
