The PlayableGraph, nodes, and output

Use a PlayableGraph to mix, blend, and modify multiple data sources. You can then play the result through a PlayableOutput. Each Playable in a PlayableGraph can support animation, audio, or scriptsA piece of code that allows you to create your own Components, trigger game events, modify Component properties over time and respond to user input in any way you like. More info
See in Glossary
.

The main parts of a PlayableGraph are as follows: * The PlayableGraph itself which represents the flow of data and indicates what each node produces and consumes. * The nodes in the PlayableGraph which are each PlayablesAn API that provides a way to create tools, effects or other gameplay mechanisms by organizing and evaluating data sources in a tree-like structure known as the PlayableGraph. More info
See in Glossary
. * The PlayableOutput which defines the outputs of the PlayableGraph.

PlayableGraph

The PlayableGraph provides a flexible graph with time-based synchronization of multiple data sources. The Unity Editor implements data sources for animation and audio. Use scripting to create custom data sources.

In comparison, the Mecanim animation system includes a state machineThe set of states in an Animator Controller that a character or animated GameObject can be in, along with a set of transitions between those states and a variable to remember the current state. The states available will depend on the type of gameplay, but typical states include things like idling, walking, running and jumping. More info
See in Glossary
graph that you use to create transitiions between animation states. The state machine graph only supports animation.

The PlayableGraph defines a set of playable outputs bound to a GameObjectThe fundamental object in Unity scenes, which can represent characters, props, scenery, cameras, waypoints, and more. A GameObject’s functionality is defined by the Components attached to it. More info
See in Glossary
or a component. The PlayableGraph also defines playables and their relationships with each other.

A sample PlayableGraph
A sample PlayableGraph

The PlayableGraph manages the lifecycle of its playables and their outputs. The following lists a few of the most commonly used PlayableGraph methods:

  • Create a new PlayableGraph with the PlayableGraph.Create() static method.
  • Play a PlayableGraph with the PlayableGraph.Play() method.
  • Stop a playing PlayableGraph with thePlayableGraph.Stop() method.
  • Manually evaluate the state of a PlayableGraph with the PlayableGraph.Evaluate() method.
  • Connect two playables together with the PlayableGraph.Connect() method.
  • Destroy a PlayableGraph manually with the PlayableGraph.Destroy() method. This method automatically destroys all playables and playable outputs created by the PlayableGraph. If you don’t destroy a PlayableGraph, Unity issues an error message.

For a full list of PlayableGraph methods and for more details, refer to the PlayableGraph struct in the Scripting Reference.

Playable

A playable is a C# struct that implements the IPlayable interface. A playable is a node that connects to other playables and defines its relationship with other playables.

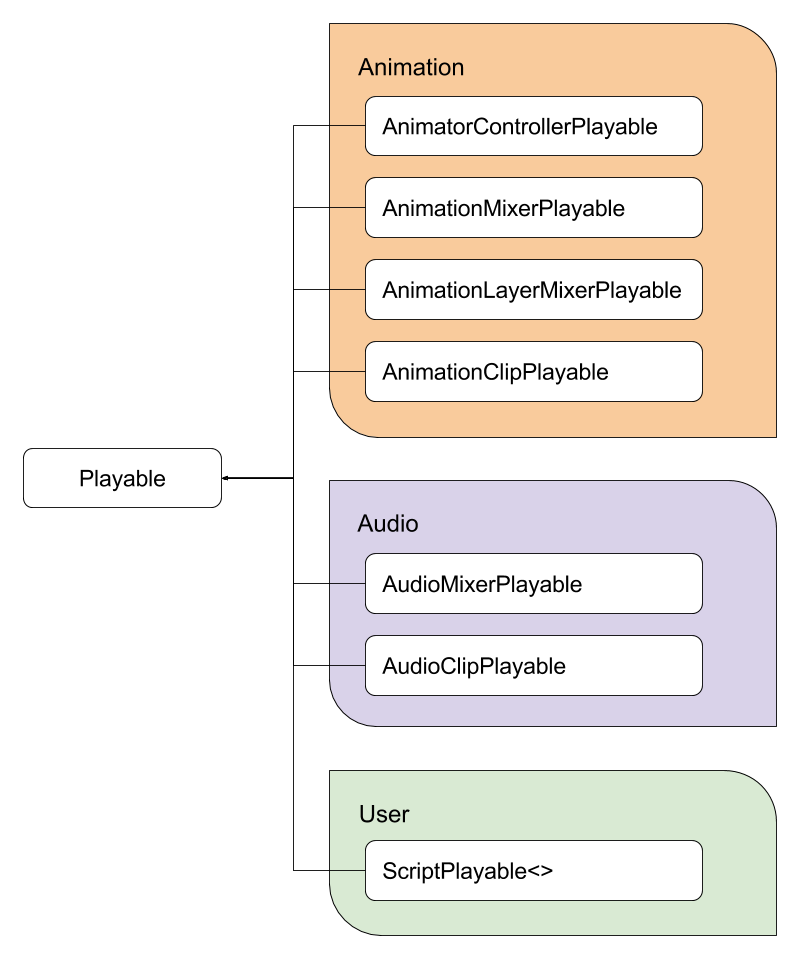

Core playable types
Core playable types

Unity implements core playable types as C# structs to avoid allocating memory for garbage collection. The Playable class defines a few basic methods and is the base type for all playables. The PlayableExtensions static class provides most of the methods for interacting with playables.

Because Playable is the base type for all playables, you can implicitly cast a playable to it. However, the opposite isn’t true. If you explicitly cast a Playable onto an incompatible type, it throws an exception.

The types that inherit from the Playable base type have additional, type specific methods. For example, the AnimationClipPlayable type includes specific methods for an animation clipAnimation data that can be used for animated characters or simple animations. It is a simple “unit” piece of motion, such as (one specific instance of) “Idle”, “Walk” or “Run”. More info
See in Glossary
encapsulated in a playable. To access type specific methods, you must cast your playable to the appropriate type.

Non-abstract playables have the Create() public static method which creates a playable of the corresponding type. The Create() method always takes a PlayableGraph as its first parameter, and that graph owns the new playable. Some playable types might require additional parameters.

Playable output

A playable output is a C# struct that implements an IPlayableOutput. It defines the output of a PlayableGraph.

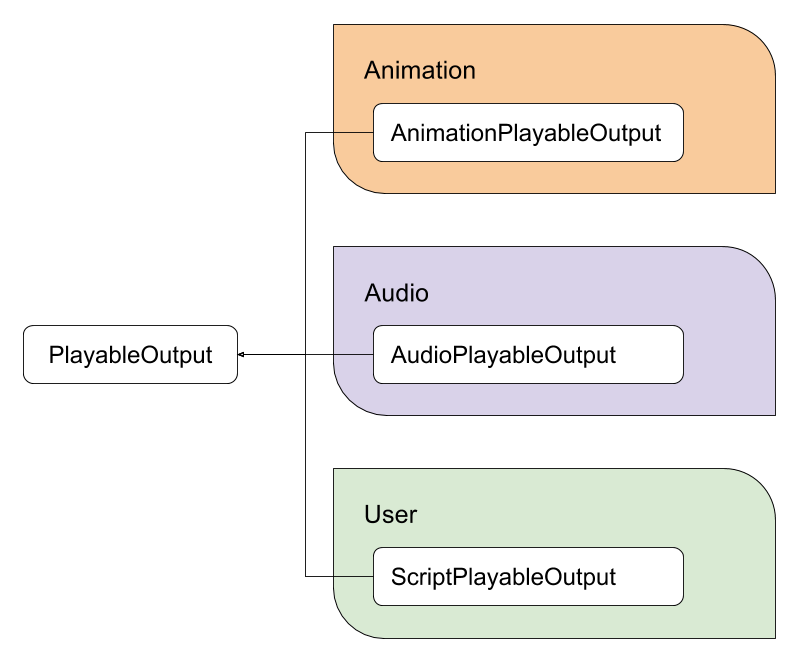

Core playable output types
Core playable output types

Unity implements playable output types as C# structs to avoid allocating memory for garbage collection.

The PlayableOutput class defines a few basic methods and is the base type for all playable outputs. The PlayableOutputExtensions static class provides most of the methods for interacting with playable outputs.

It’s recommended that you link a valid playable output to a playable. If a playable output isn’t linked to a playable, the playable output does nothing. To link a playable output to a playable, use the PlayableOutput.SetSourcePlayable() method. The linked playable acts as the root for that specific playable output.

Non-abstract playable outputs have a public static method, Create(), that creates a playable output of the corresponding type. The Create() method always takes a PlayableGraph as its first parameter, and that graph owns the new playable output. Some playable output types might require additional parameters.
