Get started with UI Builder

Want to learn how to create UI(User Interface) Allows a user to interact with your application. Unity currently supports three UI systems. More info
See in Glossary
with UI Builder? Use this example to get started.

To create UI in the UI Builder:

  1. Create a new UI Document (UXML).
  2. Add elements to create your UI hierarchy.
  3. Set up attributes and style properties in the InspectorA Unity window that displays information about the currently selected GameObject, asset or project settings, allowing you to inspect and edit the values. More info
    See in Glossary
    .
  4. When more than one element starts to need the same style properties, create USS style sheets and selectors.
  5. Test your UI and if you are satisfied with the results, extract inline style properties to USS classes.
  6. Save the UI Document (UXML).

Prerequisites

Before you start, get familiar with the following:

Example overview

This example creates the main view for the Create a list view runtime UI example. It creates a root element as the background, with two containers. One container holds the character name list and another holds the character details. In the character details container, you add background and foreground frames. Finally, you add two labels for the character name. This example won’t create the character name list entry UI.

Final main view layout
Final main view layout

Create the root element

Create a new project and then create a root visual elementA node of a visual tree that instantiates or derives from the C# VisualElement class. You can style the look, define the behaviour, and display it on screen as part of the UI. More info
See in Glossary
that covers the entire screen. Set your root element to have a background color and center all child elements in the middle of the screen.

  1. Create a project in Unity with any template.

  2. Select Window > UI Toolkit > UI Builder.

  3. In the UI Builder window, at the top left of the Viewport window, select File > New to create a new UXML document.

    UI Builder file menu
    UI Builder file menu
  4. Name it as MainView.uxml and save.

  5. Drag VisualElement from Library into the Hierarchy panel.

    Create new elements by dragging from the Library
    Create new elements by dragging from the Library

    Tip: You can also double-click a control to add it to the Hierarchy panel.

  6. Select the element from the Hierarchy panel.

  7. In the Inspector panel, make sure Flex > Grow is 1. This sets the flex-grow property to 1, making it cover the entire screen.

    Set the Flex property
    Set the Flex property
  8. To center all child elements, set both Align Items and Justify Content to Center.

    Center children
    Center children
  9. Set Background > Color to #732526.

    Root element background color
    Root element background color

Create the parent container

Create a new VisualElement underneath the root element. This element becomes the parent container for the left and right sections of the UI.

  1. Drag VisualElement from Library to the root VisualElement in the Hierarchy panel.

    Add a child VisualElement
    Add a child VisualElement
  2. Select the element from the Hierarchy panel.

  3. In the Inspector panel, set Flex > Direction to row.

  4. Set Size > Height to 350 pixels.

    Center container properties
    Center container properties

Create the character names list container

Add a ListView as the child element of the container to hold the character names.

  1. Drag a ListView from the Library to the container VisualElement in the Hierarchy panel.

  2. Select the element from the Hierarchy panel.

  3. In the Inspector panel, set Name to CharacterList.

    Background container with the empty element inside
    Background container with the empty element inside
  4. Set Size > Width to 230 pixels.

  5. Set Spacing > Margin > Right to 6 pixels.

    Size and Margin foldouts for the character list
    Size and Margin foldouts for the character list
  6. Set Background > Color to #6E3925.

  7. Set Border > Color to #311A11.

  8. Set Border > Width to 4 pixels.

  9. Set Border > Radius to 15 pixels.

    Styled character list
    Styled character list

Create the character details container

Add a new VisualElement under the same parent as the #CharacterList to hold the character details container. The purpose is that when the user selects a character from the list on the left, it displays the character’s portrait, name, and class.

  1. Drag a VisualElement from the Library to the container element in the Hierarchy panel. This is the container to hold all the elements on the right.

  2. Select the element from the Hierarchy panel.

  3. In the Inspector panel, set Align > Align Items to flex-end.

  4. Set Align > Justify Content to space-between.

    Justify content property
    Justify content property
  5. Add another VisualElement as the child of the right container.

  6. Select the element from the Hierarchy panel.

  7. Set Size > Width to 276 pixels.

  8. In the Align section, set both Align Items and Justify Content to center.

  9. Set Spacing > Padding to 8 pixels.

    Properties of the character details container
    Properties of the character details container
  10. Set Background > Color to #AA5939.

  11. Set Border > Color to #311A11.

  12. Set Border > Width to 4 pixels.

  13. Set Border > Radius to 15 pixels.

Your UI layout should now look like the following:

Empty character details panel
Empty character details panel

Create the character portrait background

Add the individual UI controls to the character details container. The first step is to add the character portrait background.

  1. Drag VisualElement from Library to the character details container.

  2. Select the element from the Hierarchy panel.

  3. In the Size section, set both Width and Height to 120 pixelsThe smallest unit in a computer image. Pixel size depends on your screen resolution. Pixel lighting is calculated at every screen pixel. More info
    See in Glossary
    .

  4. Set Spacing > Padding to 4 pixels.

  5. Set Background > Color to #FF8554.

    Background frame for the character portrait
    Background frame for the character portrait

Create a USS class for the border style

The character details container will use the same border styles as the character names list container. Create a USS class to apply to both containers.

  1. In the StyleSheet panel, select + > Create New USS.
  2. Name it as MainView.uss and save.
  3. Click on the Add new selector… field and enter .border. A .border selector appears in the StyleSheet panel.
  4. In the StyleSheet panel, select .border.
  5. In the Inspector panel, set Border > Color to #311A11.
  6. Set Border > Width to 2 pixels.
  7. Set Border > Radius to 15 pixels.
  8. Drag .border from the StyleSheet panel to the character details container VisualElement.
  9. Drag .border from the StyleSheet panel to the character names list container VisualElement.
  10. Select the character names list container VisualElement.
  11. In the Inspector panel, right-click Border and select Unset to remove the inline style you set earlier.

Create the character portrait foreground

Next in the character details container is to add the foreground for an actual image.

  1. Drag VisualElement from Library to the character details container.

  2. Select the element from the Hierarchy panel.

  3. Set Name to CharacterPortrait.

  4. Set Flex > Grow to 1, so that the image can use all the available space.

  5. Set Background > Scale Mode to scale-to-fit, so that you can scale the image to match the element size while keeping the correct aspect ratio.

    VisualElement for the portrait image
    VisualElement for the portrait image

Create labels

Add two label controls to the character details container to display the selected character’s name and class.

  1. Drag Label from Library to the character details container in the Hierarchy panel.

  2. Set Name to CharacterName.

  3. Drag Label from Library to the character details container in the Hierarchy panel.

  4. Set Name to CharacterClass.

    Add labels for name and class
    Add labels for name and class
  5. Select the #CharacterName element.

  6. Set Text > Font Style to B.

  7. Set Text > Size to 18 pixels.

    Change font settings
    Change font settings
  8. In the Viewport window, select File > Save to save the changes to MainView.uxml.

Extract inline styles

In UI Builder, you can create elements and use inline styles only to experiment while the number of elements is still small. As you build a more complex UI, it’s easier to manage styles using style sheets. You can extract inline styles to a style sheet in UI Builder.

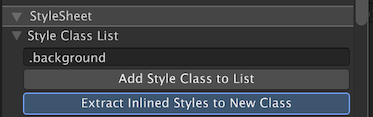

  1. Select the root visual element.
  2. In the Inspector panel, in the Style Class List field, enter .background as the class name.
  3. Select Extract Inlined Styles to New Class. This creates a .background class selector with the inline styles you set for the root element and updates the UI Document (UXML) for the root visual element to use the class selector instead of the inline styles.
  4. In the Viewport window, select File > Save.

If you want to continue to work on the Create a list view runtime UI example, you can repeat the steps to extract styles for all the other elements, and follow the instructions to create the example.
