Wind overview

SpeedTree's powerful wind system is flexible and scalable, ranging from simple mobile device level effects to cinematic quality used in dozens of feature films.

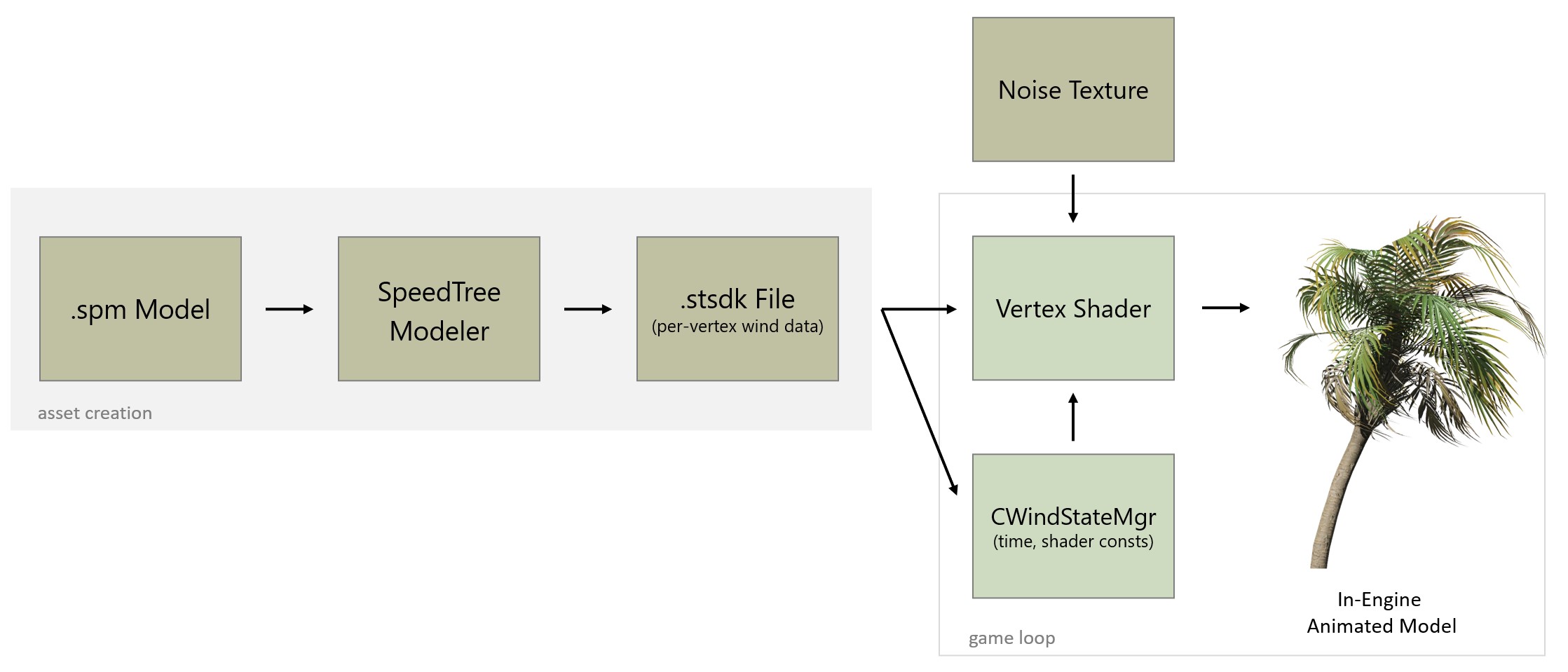

In the Runtime SDK, wind effects are largely implemented by a vertex shader. The general flow is outlined in the figure below:

Property	Relevance to wind effects
.spm file	Holds the original definition of the tree model, including any wind settings the artist tunes.
SpeedTree Modeler	Where artists preview and tune the wind behavior of each model. It is also the tool that exports .stsdk files to be used by the Runtime SDK.
.stsdk file	A tightly baked binary file that captures all of the run-time wind settings.
Vertex shader	Passes the per-vertex wind data (for example: wind weights, noise offsets) to special SpeedTree wind functions that govern wind dynamics.
Noise texture	A special static texture designed to work best with the wind system that the vertex shader uses for rolling wind effects.
CWindStateMgr	A CPU-side C++ class that acts as a state machine for the wind simulation, computing and uploading a few control variables to a wind shader constant buffer.

Shader wind functions, example code, and the full source to CWindStateMgr are all provided to leverage this system outside of the standard SpeedTree pipeline.
