트리거 모듈

Particle systems have the ability to trigger a Callback whenever they interact with one or more Colliders in the Scene. The Callback can be triggered when a particle enters or exits a Collider, or during the time a particle is inside or outside of the Collider.

파티클이 콜라이더에 들어갈 때 파티클을 파괴하는 간단한 방법(예: 빗방울이 옥상에 닿지 않도록)으로 콜백을 사용하거나, 일부 또는 모든 파티클의 프로퍼티를 수정하기 위해 콜백을 사용할 수 있습니다.

The Triggers module also offers the Kill option to remove particles automatically, and the Ignore option to ignore collision events, shown below.

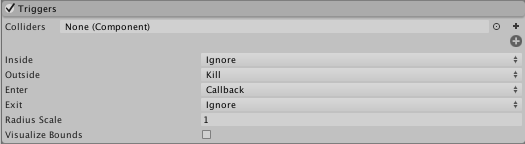

파티클 시스템 트리거 모듈
파티클 시스템 트리거 모듈

이 모듈을 사용하려면 우선 트리거를 생성할 콜라이더를 추가한 다음, 사용할 이벤트를 선택해야 합니다.

다음 조건에 파티클이 해당할 경우 이벤트를 트리거하도록 설정할 수 있습니다.

  • 콜라이더 범위에 있을 때
  • 콜라이더 범위 밖에 있을 때
  • 콜라이더 범위에 진입할 때
  • 콜라이더 범위에서 벗어날 때
프로퍼티: 기능:
Inside Select Callback if you want the event to trigger when the particle is inside the Collider. Select Ignore for the event NOT to trigger when the particle is inside the Collider. Select Kill to destroy particles inside the Collider.
Outside Select Callback if you want the event to trigger when the particle is outside the Collider. Select Ignore for the event NOT to trigger when the particle is outside the Collider. Select Kill to destroy particles outside the Collider.
Enter Select Callback if you want the event to trigger when the particle enters the Collider. Select Ignore for the event NOT to trigger when the particle enters the Collider. Select Kill to destroy particles when they enter the Collider.
Exit Select Callback if you want the event to trigger when the particle exits the Collider. Select Ignore for the event NOT to trigger when the particle exits the Collider. Select Kill to destroy particles when they exit the Collider.

Radius Scale: This parameter sets the particle’s Collider bounds, allowing an event to appear to happen before or after the particle touches the Collider. For example, you may want a particle to appear to penetrate a Collider object’s surface a little before bouncing off, in which case you would set the Radius Scale to be a little less than 1. Note that this setting does not change when the event actually triggers, but can delay or advance the visual effect of the trigger.

  • Enter 1 for the event to appear to happen as a Particle touches the Collider
  • Enter a value less than 1 for the trigger to appear to happen after a Particle penetrates the Collider
  • Enter a value greater than 1 for the trigger to appear to happen after a Particle penetrates the Collider

Visualize Bounds: This allows you to display the Particle’s Collider bounds in the Editor window.

Inside the Callback, you can determine which particles meet which criteria by using ParticleSystem.GetTriggerParticles() along with the ParticleSystemTriggerEventType you want to specify.

아래의 예제에서 파티클은 콜라이더에 진입할 때 빨간색으로 변한 다음, 콜라이더의 범위를 벗어날 때 다시 녹색으로 변합니다.

using UnityEngine;
using System.Collections;
using System.Collections.Generic;

[ExecuteInEditMode]
public class TriggerScript : MonoBehaviour
{
    ParticleSystem ps;

    // these lists are used to contain the particles which match
    // the trigger conditions each frame.
    List<ParticleSystem.Particle> enter = new List<ParticleSystem.Particle>();
    List<ParticleSystem.Particle> exit = new List<ParticleSystem.Particle>();

    void OnEnable()
    {
        ps = GetComponent<ParticleSystem>();
    }

    void OnParticleTrigger()
    {
        // get the particles which matched the trigger conditions this frame
        int numEnter = ps.GetTriggerParticles(ParticleSystemTriggerEventType.Enter, enter);
        int numExit = ps.GetTriggerParticles(ParticleSystemTriggerEventType.Exit, exit);

        // iterate through the particles which entered the trigger and make them red
        for (int i = 0; i < numEnter; i++)
        {
            ParticleSystem.Particle p = enter[i];
            p.startColor = new Color32(255, 0, 0, 255);
            enter[i] = p;
        }

        // iterate through the particles which exited the trigger and make them green
        for (int i = 0; i < numExit; i++)
        {
            ParticleSystem.Particle p = exit[i];
            p.startColor = new Color32(0, 255, 0, 255);
            exit[i] = p;
        }

        // re-assign the modified particles back into the particle system
        ps.SetTriggerParticles(ParticleSystemTriggerEventType.Enter, enter);
        ps.SetTriggerParticles(ParticleSystemTriggerEventType.Exit, exit);
    }
}

The result of this can be seen in the images below:

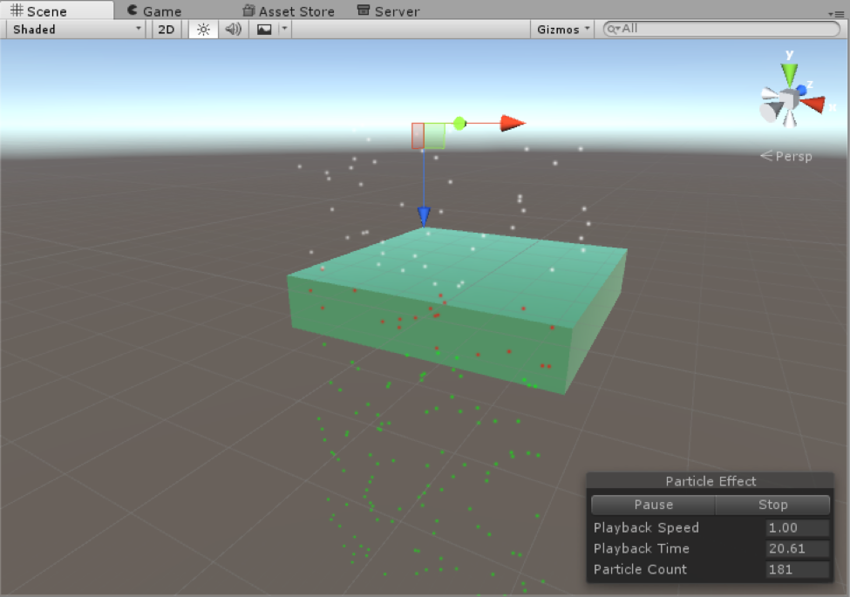

에디터 뷰
에디터 뷰

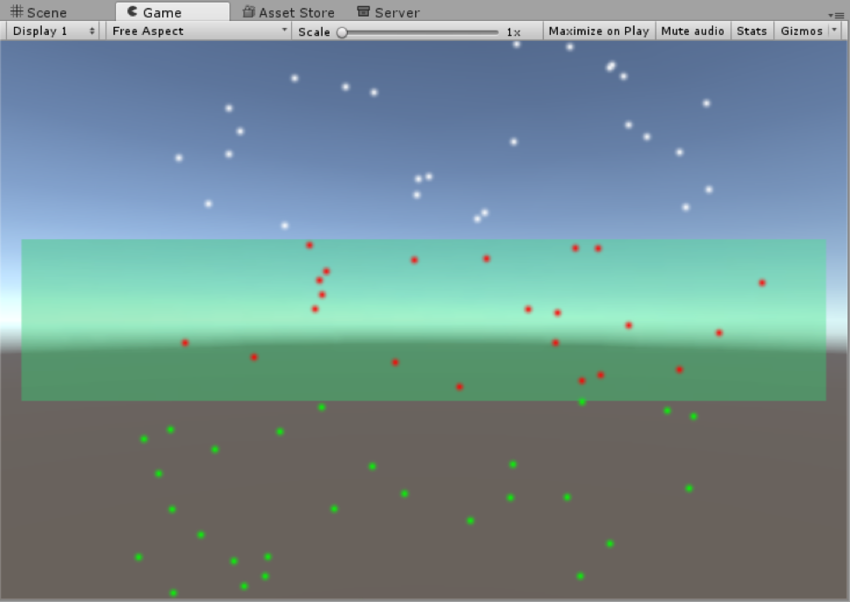

게임 뷰
게임 뷰
