Planes

This page is a supplement to the AR Foundation Plane detection manual. The following sections only contain information about APIs where Meta's OpenXR runtime exhibits unique behavior.

Tip

When developing an AR app, refer to both the AR Foundation documentation as well as the required packages for each platform you support.

Plane provider type

Unity OpenXR: Meta implements two plane provider types that correspond to different OpenXR extensions, as described in the following table:

Meta plane provider type	OpenXR extension	Summary
Xr Fb Scene	XR_FB_scene	Gets all Bounded2D components from the Scene Model (Meta documentation), including tables, couches, wall art, and a simplified representation of the walls, floor, and ceiling.
Xr Meta Spatial Entity Room Mesh	XR_META_spatial_entity_room_mesh	Gets all faces of the room mesh, which provides a higher fidelity representation of the walls, floor, and ceiling, allowing for more detailed surfaces and non-axis-aligned planes.

Note

The planes that each provider type discovers and the data associated with discovered planes might vary. Refer to Meta's documentation for more information about the OpenXR extensions used by each provider type.

When you enable the Meta Quest: Planes, the plane subsystem uses the Xr Fb Scene plane provider type by default.

Choose plane provider type

You can change the plane provider type your project uses as follows:

1. Go to the Meta Quest: Planes feature in XR Plug-in Management for your desired build target.
2. Click the Gear icon (⚙), located on the right side of the Meta Quest: Planes feature.
3. Under Feature Settings, select the relevant type from the Plane Provider Type dropdown.

Note

If you choose the Xr Meta Spatial Entity Entity Room Mesh and it isn’t available on your device, Xr Fb Scene will be used as a fallback.

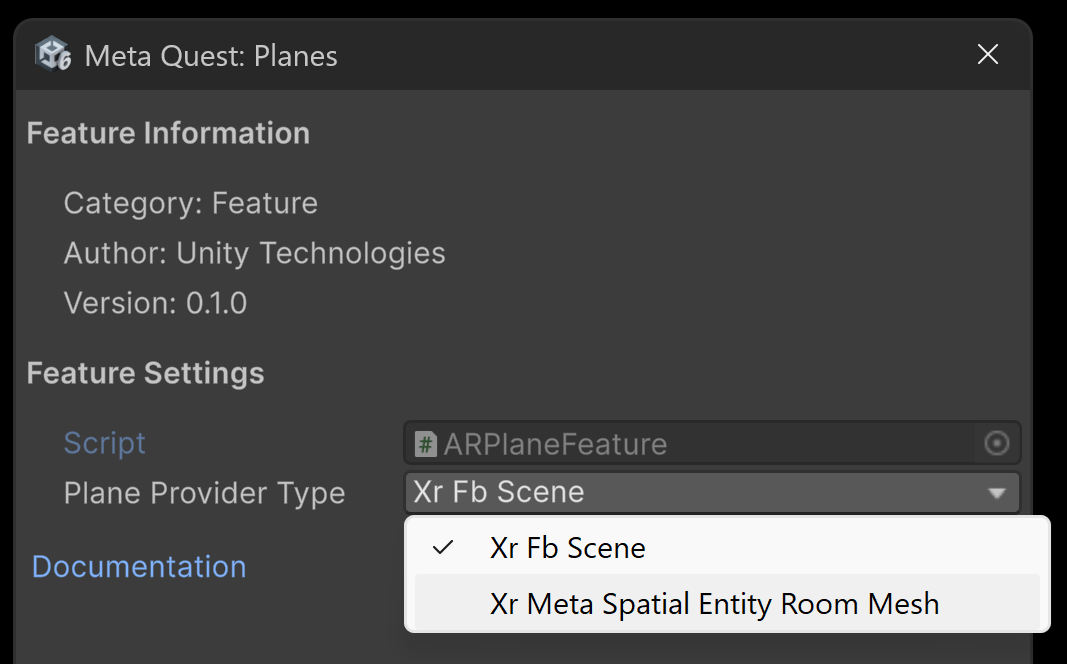

Settings for The Meta Quest: Planes feature, shown with Xr Meta Spatial Entity Room Mesh selected as the Plane Provider Type.

Space Setup

Before your app can access planes from Meta's OpenXR runtime, the user must first complete Space Setup on their device.

Unlike other AR platforms, Meta's OpenXR runtime doesn't dynamically discover planes at runtime. Instead, this provider queries the device's Space Setup data and returns all plane components that are stored in its Scene Model. Some entities in the Scene Model, such as Tables or Couches, include planes, while others do not.

Important

If Space Setup is not complete, AR Foundation cannot access plane data from the device. If your app requires planes, you can use scene capture to prompt the user to complete Space Setup.

Permissions

Your app's user must grant an Android system permission before you can access plane data. Refer to Permissions for more information.

Trackable ID

Unlike other AR platforms, the trackableId property of any ARPlane from Meta's OpenXR runtime persists across multiple sessions in the same space setup. This allows you to, for instance, save the trackableId of a user's table to persist a virtual centerpiece on the table each time the user runs your app.

Plane alignment

Meta's OpenXR runtime doesn't classify planes as horizontal or vertical. Therefore, this package uses a planeAlignmentThreshold property to determine the threshold for PlaneAlignment categorization. Plane alignment is calculated by taking each component of the plane's normal vector and finding their difference from 0. If the difference is less than the planeAlignmentThreshold, then the MetaOpenXRPlaneSubsystem will categorize the plane depending on which of the normal vector's components are within the threshold. The x and z components are both checked for horizontal planes while the y component is checked for vertical planes.

Plane classifications

This package maps Meta's native semantic labels to AR Foundation's PlaneClassifications.

Xr Fb Scene uses the semantic label component.

Xr Meta Spatial Entity Room Mesh uses XrSemanticLabelMETA for semantic labeling.

Refer to the table below to understand the mapping between AR Foundation's classifications and Meta's semantic labels:

AR Foundation Label	Meta Label (Xr Fb Scene)	Meta Label (Xr Meta Spatial Entity Room Mesh)
Table	TABLE
Couch	COUCH
Floor	FLOOR	XR_SEMANTIC_LABEL_FLOOR_META
Ceiling	CEILING	XR_SEMANTIC_LABEL_CEILING_META
WallFace	WALL_FACE	XR_SEMANTIC_LABEL_WALL_FACE_META
WallArt	WALL_ART
DoorFrame	DOOR_FRAME	XR_SEMANTIC_LABEL_DOOR_FRAME_META
WindowFrame	WINDOW_FRAME	XR_SEMANTIC_LABEL_WINDOW_FRAME_META
InvisibleWallFace	INVISIBLE_WALL_FACE	XR_SEMANTIC_LABEL_INVISIBLE_WALL_FACE_META
InnerWallFace		XR_SEMANTIC_LABEL_INNER_WALL_FACE_META
Other	OTHER

Native pointer

BoundedPlane.nativePtr values returned by this package contain a pointer to the following struct:

typedef struct UnityXRNativePlane
{
    int version;
    void* planePtr;
} UnityXRNativePlane;

Cast the void* planePtr to an XrSpace handle in C++ using the following example code:

// Marshal the native plane data from the BoundedPlane.nativePtr in C#
UnityXRNativePlane nativePlaneData;
XrSpace* planeXrSpaceHandle = static_cast<XrSpace*>(nativePlaneData.planePtr);

To learn more about native pointers and their usage, refer to Extending AR Foundation.
