Mirror View Renderer

The MirrorViewRenderer supports mirror view rendering for Main Display on XR mode. It includes all composition layer drawings.

Tip

This component is not required if mirror view rendering with all comosition layers is already implemented on the XR plugin side.

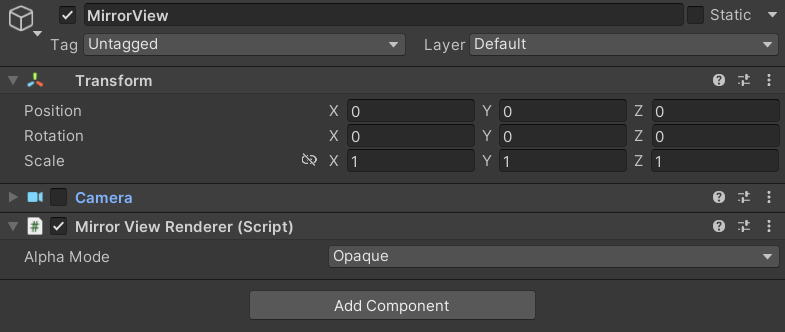

The Mirror View Renderer Component Inspector.
The Mirror View Renderer Component Inspector

Property: Function:
Alpha Mode Set how draw the eye texture. (Opaque, Alpha and Premultiply)

Background

In some case, the mirror view rendering with composition layers isn't supported by default.

  • Some XR Plugins
  • Built-in Render Pipeline

This function is provided to assist them.

Supplement

Below shaders are added to the Always Include Shaders list when the MirrorViewRenderer is added.

  • Unlit/XRCompositionLayers/Uber
  • Unlit/XRCompositionLayers/BlitCopyHDR
