Use reference image libraries with AssetBundles

Understand how to package a reference image library into an AssetBundle.

To include a reference image library in an AssetBundle, AR Foundation requires that you first call ARBuildProcessor.PreprocessBuild before you build AssetBundles. Platform-specific data is attached to XRReferenceImageLibrary assets during this preprocessor step.

Refer to the following sample code to understand how to build AssetBundles that contain reference image libraries:

static void ExportAssetBundles(string directoryPath, BuildTarget buildTarget)
{
    UnityEditor.XR.ARSubsystems.ARBuildProcessor.PreprocessBuild(buildTarget);
    BuildPipeline.BuildAssetBundles(
        directoryPath,
        BuildAssetBundleOptions.ForceRebuildAssetBundle,
        buildTarget);
}

Build AssetBundles window

Alternatively, you can use the Build AssetBundles window, located at Assets > AR Foundation > Build AssetBundles, to export your AssetBundles to the chosen directory.

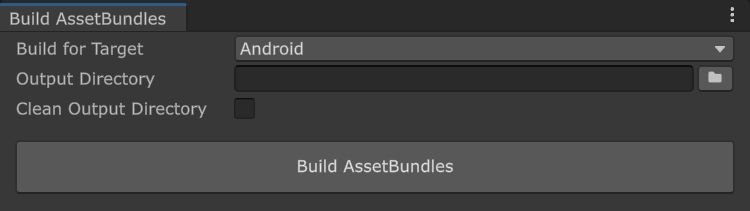

Build AssetBundles window.

The following table describes the fields in the Build AssetBundles window:

Element	Description
Build for Target	Specifies the target platform for the AssetBundles.
Output Directory	The directory in which to save the built AssetBundles. You can either type this into the text field or click the folder icon to open a file picker.
Clean Output Directory	If enabled, all files in the output directory will be deleted before the AssetBundles are built.
Build AssetBundles	Build the AssetBundles to the chosen directory.
