    Video streaming

    WebRTC enables streaming video between peers. It can stream video rendered by Unity to multiple browsers at the same time.

    Note

    The package samples contains the PeerConnection scene which demonstrates video streaming features of the package.

    Invoke Update with StartCoroutine

    First, you need to invoke WebRTC.Update method with StartCoroutine because this method copies textures to video buffer per frame.

    void Start()
    {
        StartCoroutine(WebRTC.Update());
    }


    Sending video

    To implement video streaming, create a VideoStreamTrack instance.

    // Create a track from the Camera
    var camera = GetComponnent<Camera>();
    var track = camera.CaptureStreamTrack(1280, 720);


    There is also a way to directly assign a RenderTexture.

    // Get a valid RendertextureFormat
    var gfxType = SystemInfo.graphicsDeviceType;
    var format = WebRTC.GetSupportedRenderTextureFormat(gfxType);

    // Create a track from the RenderTexture
    var rt = new RenderTexture(width, height, 0, format);
    var track = new VideoStreamTrack("video", renderTexture);


    Add track

    Add the created video track to the RTCPeerConnection instance. The track can be added by calling the AddTrack method. Next, call the CreateOffer or CreateAnswer to create an SDP.

    // Add the track.
    peerConnection.AddTrack(track);

    // Create the SDP.
    RTCAnswerOptions options = default;
    var op = pc.CreateAnswer(ref options);
    yield return op;


    Multi track

    It's possible to use multiple video tracks simultaneously. Simply call the AddTrack method multiple times and add the tracks.

    foreach(var track in listTrack)
    {
        peerConnection.AddTrack(track);
    }

    Note

    When using hardware encoding, the number of tracks that can be used simultaneously may be limited depending on the graphic device's limitations. Generally, on desktop GPUs, up to two tracks can be used simultaneously on an NVIDIA Geforce card (On server-grade GPUs this is typically 4). For details, see the NVIDIA Codec SDK documentation.

    Receiving video

    You can use VideoStreamTrack to receive the video. The class for receiving video is got on OnTrack event of the RTCPeerConnection instance. If the type of MediaStreamTrack argument of the event is TrackKind.Video, The [Track] instance is able to be casted to the VideoStreamTrack class.


    var receiveStream = new MediaStream();
    receiveStream.OnAddTrack = e => {
        if (e.Track is VideoStreamTrack track)
        {
            // You can access received texture using `track.Texture` property.
        }
        else if(e.Track is AudioStreamTrack track)
        {
            // This track is for audio.
        }
    }

    var peerConnection = new RTCPeerConnection();
    peerConnection.OnTrack = (RTCTrackEvent e) => {
        if (e.Track.Kind == TrackKind.Video)
        {
            // Add track to MediaStream for receiver.
            // This process triggers `OnAddTrack` event of `MediaStream`.
            receiveStream.AddTrack(e.Track);
        }
    };


    Receiving multi video

    Multiple VideoTracks can be received in a single RTCPeerConnection. It is a good idea to call the AddTransceiver method on the RTCPeerConnection instance as needed track count, and then do signaling.

    // Call AddTransceiver as needed track count.
    peerConnection.AddTransceiver(TrackKind.Video);
    // Do process signaling

    Note
    • It's impossible to send and receive video in a single VideoStreamTrack instance.
    • The VideoStreamTrack used to receive the video should be the track received in the event of the RTCPeerConnection.OnTrack.

    Video configuration

    Developers can control properties about video streaming quality in real-time.

    • Bitrate
    • Frame rate
    • Video resolution
    Note

    If you want to check these features, the Bandwidth scene in the package sample is good to learn.

    Bitrate control

    To control the bitrate of video streaming, use SetParameters method of RTCRtpSender instance. The instance of RTCRtpSender is obtained from RTCPeerConnection. Or, obtained from AddTrack method as its return value.

    // Get from `GetSenders` method.
    var senders = peerConnection.GetSenders();

    // Get from `AddTrack` method.
    var sender = peerConnection.AddTrack(track);


    After obtained the instance of RTCRtpSender, to get the settings about the sending stream, call the GetParameters method is able. The returning value is defined as RTCRtpSendParameters class. And call the SetParameters method with customized settings. as a result, the settings are reflected.

    // Get `RTCRtpSendParameters`
    var parameters = sender.GetParameters();

    // Changing bitrate of all encoders.
    foreach (var encoding in parameters.Encodings)
    {
        encoding.maxBitrate = bitrate;
    }

    // Set updated parameters.
    sender.SetParameters(parameters);


    Frame rate control

    Developers can also change the encoding frame rate using SetParameters method. The example code below shows how to change the frame rate of the video encoder. You should set this parameter lower than Application.targetFramerate.

    // Get `RTCRtpSendParameters`
    var parameters = sender.GetParameters();

    // Changing framerate of all encoders.
    foreach (var encoding in parameters.Encodings)
    {
        // Change encoding frequency 30 frame per second.
        encoding.maxFramerate = 30;
    }

    // Set updated parameters.
    sender.SetParameters(parameters);


    Video resolution control

    You can also change the video resolution to reduce network traffic. The scaleResolutionDownBy property in RTCRtpEncodingParameters class can resize the video resolution. The type of property is float which represents the factor of the size. If you set 2.0 for this value, it reduces the size of the video, the result's resolution 25% of the original one.

    // Get `RTCRtpSendParameters`
    var parameters = sender.GetParameters();

    // Changing framerate of all encoders.
    foreach (var encoding in parameters.Encodings)
    {
        // Change video size to half.
        encoding.scaleResolutionDownBy = 2.0f;
    }

    // Set updated parameters.
    sender.SetParameters(parameters);


    Checking bitrate

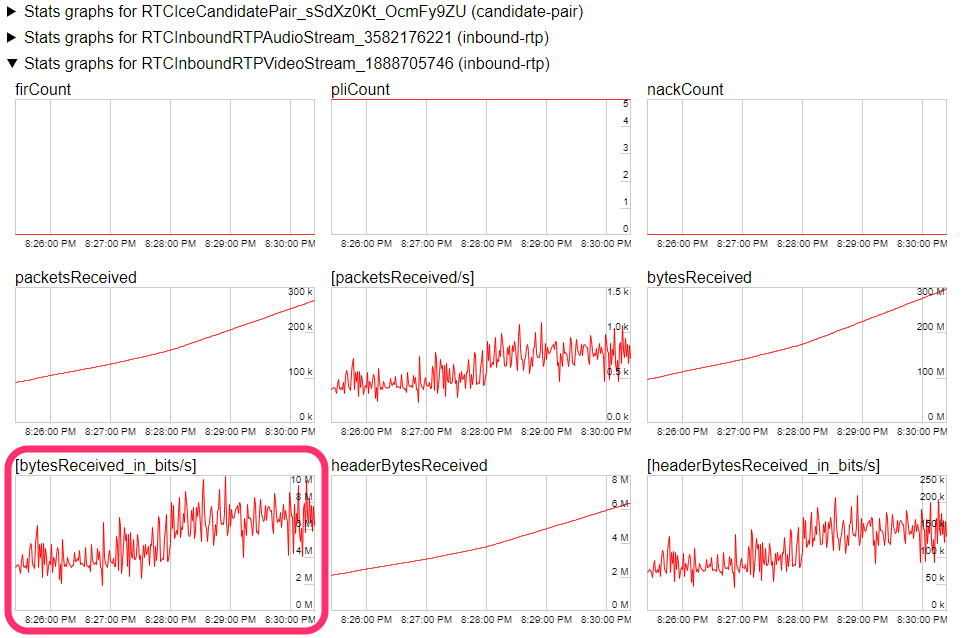

    It's possible to check the current bitrate on browsers. If using Google Chrome, shows statistics of WebRTC by accessing the address chrome://webrtc-internals. Check the graph showing the received bytes per unit time in the category RTCInboundRTPVideoStream of statistics.

    Chrome WebRTC Stats

    Video codec

    You can choose from several codecs to use in this package. Noted that the available codecs vary by platform.

    Selecting video codec

    To select video codec, first call GetCapabilities method to get a list of available codecs on the device. By default, all available codecs are used for negotiation with other peers. When negotiating between peers, each peers search for codecs that are commonly available to both peers in order of priority. Therefore, developers need to filter and sort the video codec list to explicitly select codecs to use. The following example extracts the H.264 codecs from the list of available codecs.

    // Get all available video codecs.
    var codecs = RTCRtpSender.GetCapabilities(TrackKind.Video).codecs;

    // Filter codecs.
    var h264Codecs = codecs.Where(codec => codec.mimeType == "video/H264");


    Create a list of codecs to use and pass it to the SetCodecPreferences method. If an unavailable codec is passed, InvalidParameter is returned.

    var error = transceiver.SetCodecPreferences(h264Codecs.ToArray());
    if (error != RTCErrorType.None)
        Debug.LogError("SetCodecPreferences failed");


    Video Encoder

    There are two types of encoder for video streaming, one is using hardware for encoding and one is using software. Regarding different kinds of codecs, the hardware encoder uses H.264, and the software encoder uses VP8, VP9, AV1.

    Video Decoder

    As with video encoders, we offer hardware-intensive H.264 decoders and non-hardware-intensive VP8, VP9, and AV1 decoders.

    Hardware acceleration codecs

    For codecs that support hardware acceleration, the following codecs are supported.

    • NVCODEC
    • VideoToolbox
    • MediaCodec

    The encoders that support hardware acceleration are shown below.

    Platform Graphics API NVCODEC VideoToolbox MediaCodec
    Windows x64 DirectX11 Y - -
    Windows x64 DirectX12 Y - -
    Windows x64 OpenGL Core N - -
    Windows x64 Vulkan Y - -
    Linux x64 OpenGL Core Y - -
    Linux x64 Vulkan Y - -
    MacOS Metal - Y -
    iOS Metal - Y -
    Android Vulkan - - Y
    Android OpenGL ES - - Y

    The decoders that support hardware acceleration are shown below.

    Platform Graphics API NVCODEC VideoToolbox MediaCodec
    Windows x64 DirectX11 Y - -
    Windows x64 DirectX12 Y - -
    Windows x64 OpenGL Core N - -
    Windows x64 Vulkan Y - -
    Linux x64 OpenGL Core Y - -
    Linux x64 Vulkan Y - -
    MacOS Metal - Y -
    iOS Metal - Y -
    Android Vulkan - - Y
    Android OpenGL ES - - Y

    NVCODEC is available on the PC installed NVIDIA driver.

    • Windows: NVIDIA Driver version 456.71 or higher
    • Linux: NVIDIA Driver version 455.27 or higher

    To check the compatible NVIDIA graphics card, please visit on the NVIDIA VIDEO CODEC SDK web site.
