Transform (Position)

Menu Path : Operator > Math > Geometry > Transform (Position)

The Transform (Position) Operator applies a transformation to a position to offset, rotate, or scale it.

For example, this is useful if you want to spawn particles in a circle and then rotate the circle:

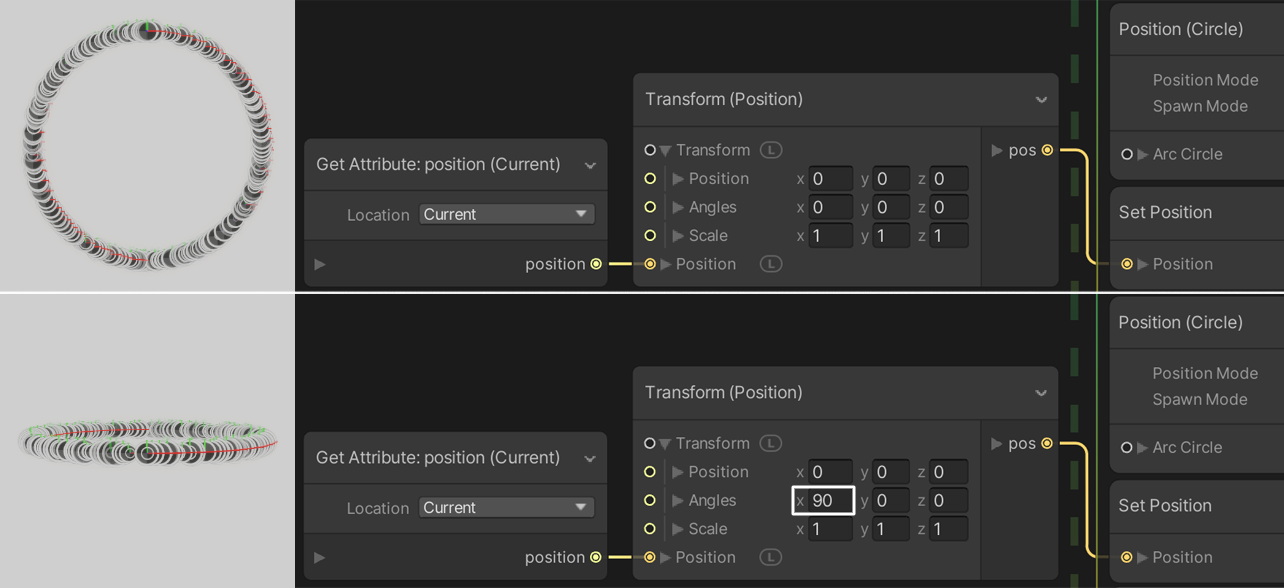

Two examples of a VFX Graph. In each graph, the System starts with a Position: Circle Block. The graph has a Get Attribute Position (Current) Operator that inputs into a Transform Position Operator, then the Position input of a Set Position Block. In the first graph, the x-axis of Angles is set to 0, and the ring of particles faces the camera. In the second graph, the x-axis is set to 90, and the ring of particles faces up.

Operator properties

Input Type Description
Transform Transform The Transform this Operator applies to the Position.
Position Position The Position this Operator transforms.
Output Type Description
pos Position The result of the transformed Position.
