Highlight Settings

The ability to display specular highlights in a cel-animation-like manner is essential for Toon Shaders. The Unity Toon Shader provides a wide variety of expressions with controllability to illuminate the area independently of light color and intensity for impressive cel-shading.

Highlight

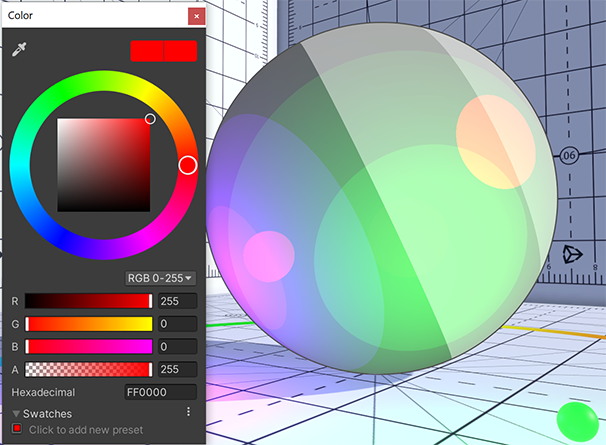

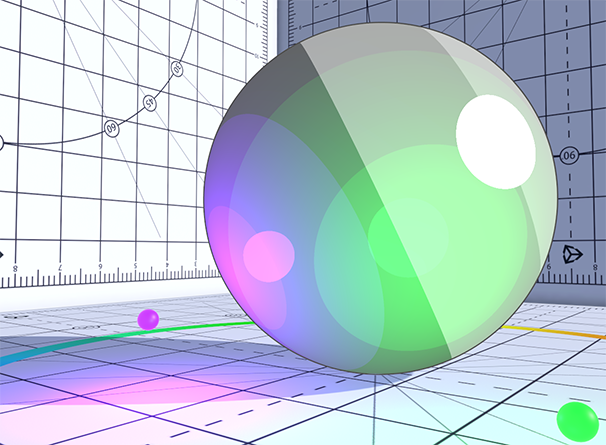

Highlight : Texture(sRGB) × Color(RGB) Default:White. Pattern and color of specularly illuminated area.


Drag the slider to compare the images.

Highlight Power

The size of the Highlight controlled through the High light power slider. The size increase with the formula: pow(x,5).

Specular Mode

UTS provides two modes for the highlight for different occasions and effect. The hard mode provides a crisp and solid edge to the highlight while the soft mode provides a blended blurred effect.


Drag the slider to compare the images.



Color Blending Mode

Specular color blending mode allows the user to control the hardness of the colour applied to the highlight. Users have two options: Multiply or Add. Note that Color Blending Mode is disabled when Specular Mode is Soft.


Drag the slider to compare the images.

Highlight Blending on Shadows

Control the blending for the highlights in shadows. Please refer to the image at Blending Level.

Blending Level

Adjusts the intensity of highlight applied to shadow areas.

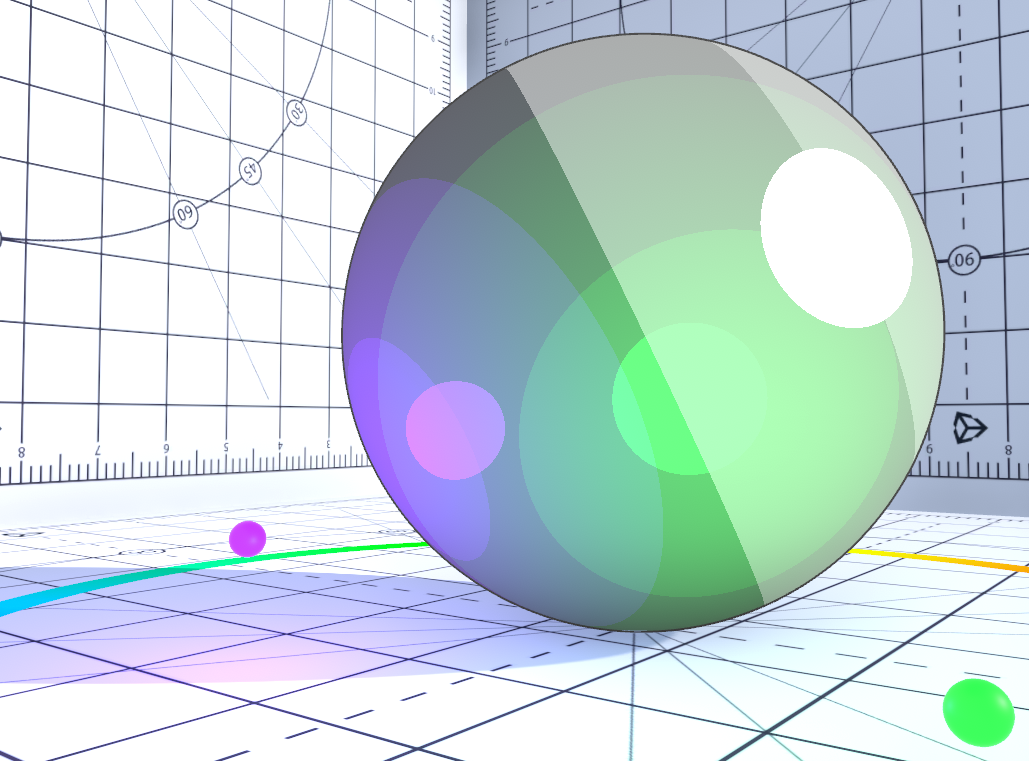

Highlight Mask

A gray scale texture which utilises its brightness to control highlight intensity. Applying the highlight mask allows to fine-tune the reflectivity on the material.

A square texture with a black and grey checkerboard pattern. Each square has a small plus symbol in its center.
An example of a grayscale texture highlight mask.


Drag the slider to compare the images.

Highlight Mask Level

Highlight mask texture blending level to highlights.
