Angel Ring Projection Settings

The Angel Ring effect for UTS expresses shine or luster in hair. This effect always appears in a fixed position as seen from the Camera. Angel Ring requires the 2nd UV in the meshes.

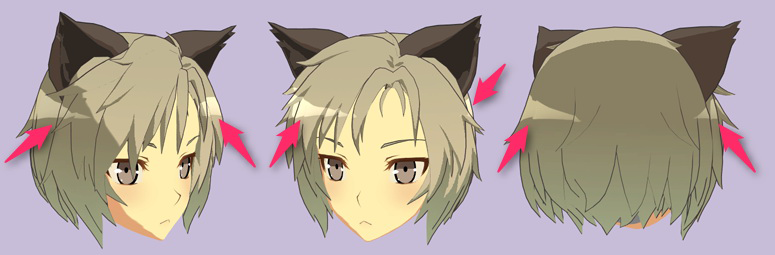

The head of a chibi-style character with feathered hair and cat ears. The head is oriented from three angles: side, front, and back. In each angle, two bright highlights appear in the same place on the left and right.

Angel Ring Projection

Enable the Angel Ring effect for UTS, which expresses shine or luster in hair.

Angel Ring

Angel Ring : Texture(sRGB) × Color(RGB). Default:Black. By default, the Unity Toon Shader adds the color to the lighting results. Texture alpha channel doesn't affect. Please refer to Alpha Channel as Clipping Mask when alpha clipping is desirable.

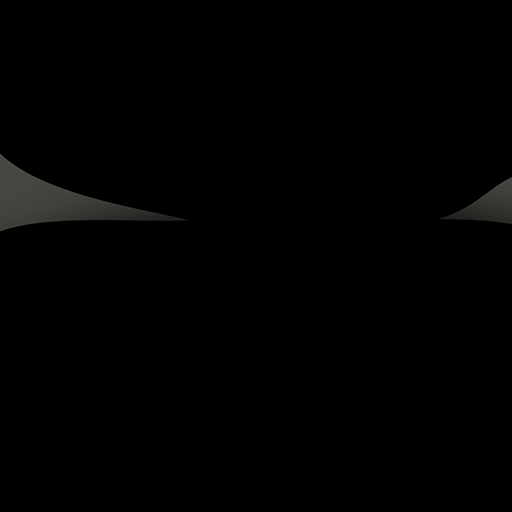

A dark square texture, with lighter v-shaped areas at the left and right edges.
Angel Ring Texture Example

Offset U

Adjusts the Angel Ring’s shape in the horizontal direction. The range is from 0.0 to 0.5. The default is 0. please refer to the image in Offset V.

Offset V

Adjusts the Angel Ring’s shape in the vertical direction. The range is from 0.0 to 1.0. The default is 0.3.

Alpha Channel as Clipping Mask

Texture alpha channel is a clipping mask. If disabled, the alpha doesn't affect at all. The color of the Angel Ring can directly affects instead of using the additive method.

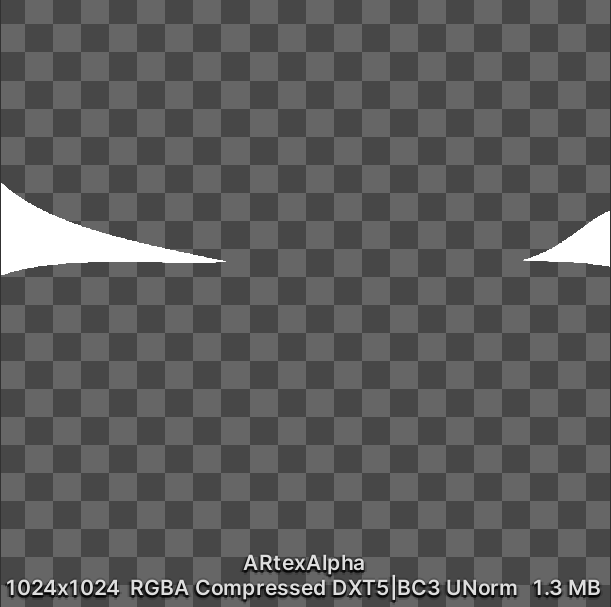

A 1024 x 1024 RGBA Compressed DXT5|BC3 Norm transparent square texture with white v-shaped areas at the left and right edges. The size of the texture is 1.3MB.
Example texture.

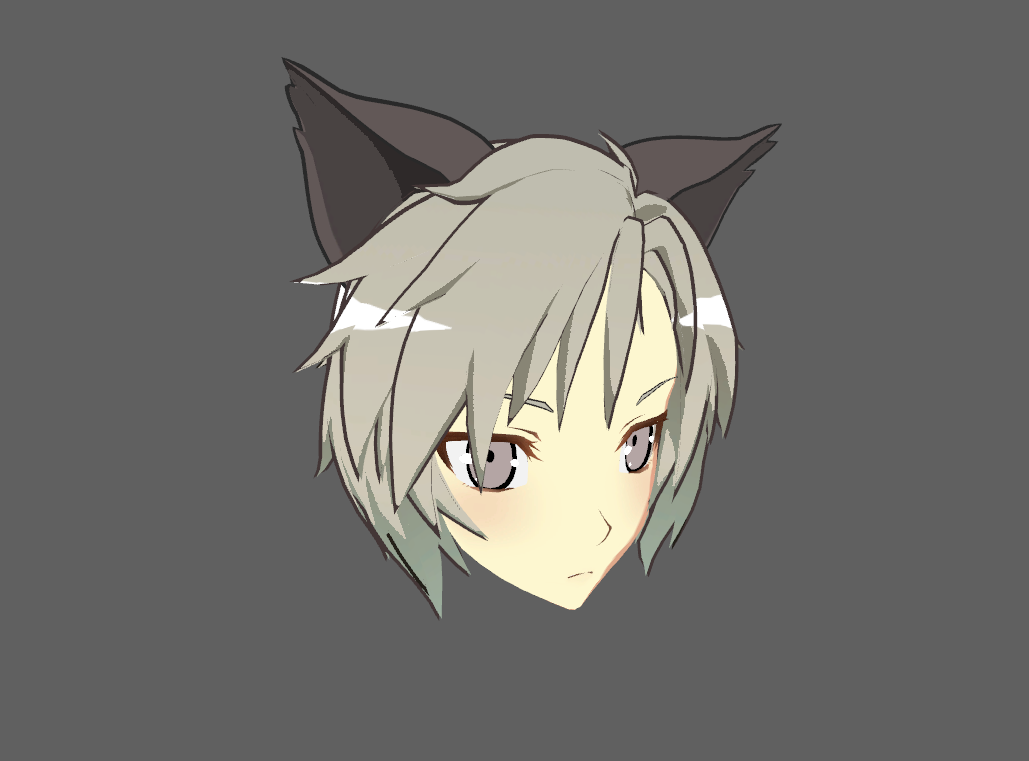

The head of a chibi-style character, with the v-shaped highlights on the left and right of their hair.
Applied the texture with Alpha Channel as Clipping Mask.
