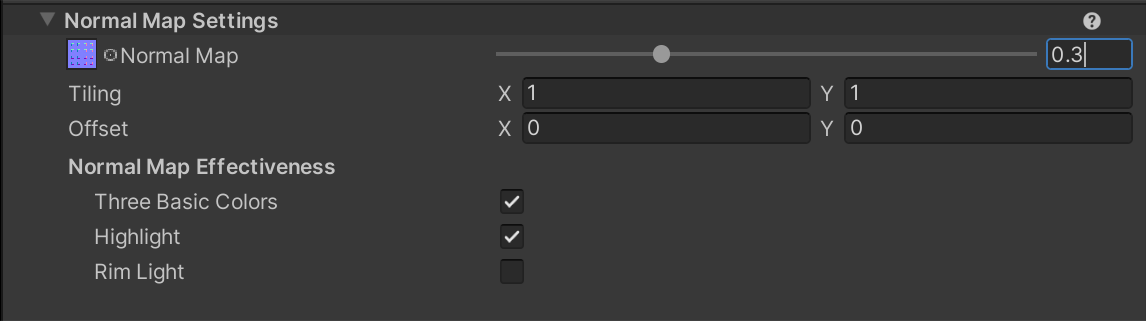

Normal Map Settings
Normal Map is a texture that dictates the bumpiness of the material. The Unity Toon Shader allows control over Normal Map strength and which areas it applies to.
Normal Map
A Normal Map texture and its strength.

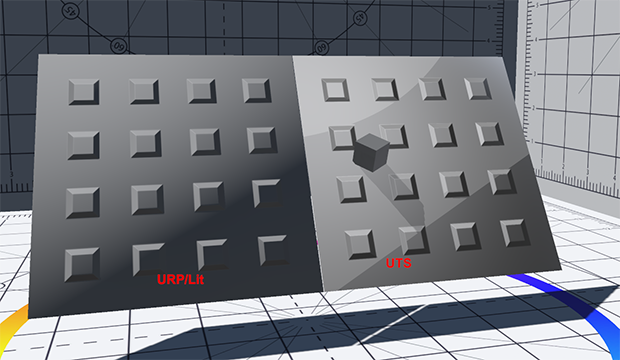

| Normal Map Example |
 |
| Strength |
Results |
| 1.0 |
 |
| 0.3 |
 |
| 0.0 |
 |
Normal Map Effectiveness
| Properties |
Description |
| Three Basic Colors |
The effectiveness of the Normal Map on Three Basic color areas, lit, the 1st shading and the 2nd. |
| Highlight |
Normal map effectiveness to high lit areas. |
| Rim Light |
Normal map effectiveness to rim lit areas. |

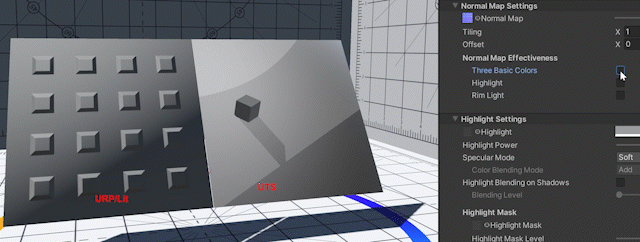

Example of Normal Map Effectiveness Operation
