Surfgrad Compositor

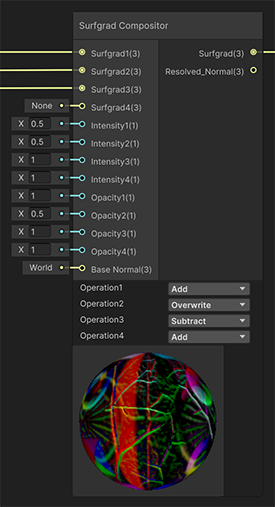

Combines up to four Surface Gradient inputs and returns the resulting Surface Gradient or resolved world space normal. Each input has an operation, intensity, and opacity value. Multiple Surgrad Compositor subgraphs can be chained together.
Ports
| Name | Direction | Type | Binding | Description |
|---|---|---|---|---|
| Surfgrad1 | Input | Vector 3 | None | Input surface gradient 1 |
| Surfgrad2 | Input | Vector 3 | None | Input surface gradient 2 |
| Surfgrad3 | Input | Vector 3 | None | Input surface gradient 3 |
| Surfgrad4 | Input | Vector 3 | None | Input surface gradient 4 |
| Intensity1 | Input | Float | None | Scale applied to Surfgrad1 |
| Intensity2 | Input | Float | None | Scale applied to Surfgrad2 |
| Intensity3 | Input | Float | None | Scale applied to Surfgrad3 |
| Intensity4 | Input | Float | None | Scale applied to Surfgrad4 |
| Opacity1 | Input | Float | None | Opacity of Surfgrad1, only applies if Operation1 is set to Overwrite |
| Opacity2 | Input | Float | None | Opacity of Surfgrad2, only applies if Operation2 is set to Overwrite |
| Opacity3 | Input | Float | None | Opacity of Surfgrad3, only applies if Operation3 is set to Overwrite |
| Opacity4 | Input | Float | None | Opacity of Surfgrad4, only applies if Operation4 is set to Overwrite |
| Base Normal | Input | Vector 3 | None | Base normal |
| Surfgrad | Output | Vector 3 | None | Output surface gradient |
| Resolved_Normal | Output | Vector 3 | None | Resolved world space normal |
Controls
| Name | Type | Options | Description |
|---|---|---|---|
| Operation1 | Dropdown | Add, Subtract, Overwrite | Operation for Surfgrad1 |
| Operation2 | Dropdown | Add, Subtract, Overwrite | Operation for Surfgrad2 |
| Operation3 | Dropdown | Add, Subtract, Overwrite | Operation for Surfgrad3 |
| Operation4 | Dropdown | Add, Subtract, Overwrite | Operation for Surfgrad4 |
