Fading Image objects

1. Quick Start
2. Gap Extrapolation
3. FaderPlayableAsset

Quick Start

From an empty scene, do the following:

1. Create an empty GameObject and add a Director component to it

2. Copy the sequential images in a folder inside the Unity project, preferably under StreamingAssets

   Copying to a folder under StreamingAssets will save us from the process to import those images in Unity, which may take a long time if there are a lot of images

3. Open the Timeline window

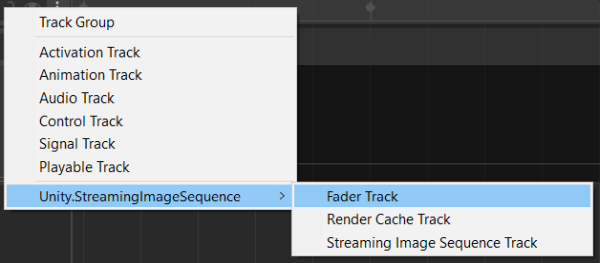

4. Add a FaderTrack in the Timeline Window

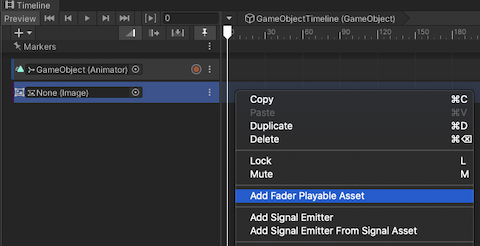

5. Right click on the timeline window and click Add Fader Playable Asset



6. Create an Image object by clicking the menu: GameObject -> UI -> Image

7. Drag and drop the Image object to the object property of the FaderTrack

The Image object will be faded in/out as we play the Timeline or drag the time slider of the Timeline window.

Gap Extrapolation

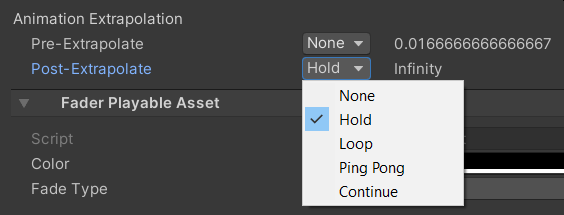

The behaviour of a gap before or after a FaderPlayableAsset clip can be set in a similar way to setting gap extrapolation for Animation clips using one of the following options:

1. None (default): hide the bound object by deactivating its Renderer component.
2. Hold: hold and show the first/last state of the fading in the gap.
3. Loop: loop the entire fading with the same clip duration.
4. Ping Pong: loop the entire fading backwards, then forwards, and so forth, with the same clip duration.
5. Continue: same as Hold

By default, FaderPlayableAsset sets both Pre-Extrapolate and Post-Extrapolate properties to None.

FaderPlayableAsset

FaderPlayableAsset is a type of PlayableAsset which is used for fading Image component in Unity Timeline.
We can view or modify the following properties through the inspector.

• Color
  The color to be applied to the Image component attached to the track.
• Fade Type
  • FadeIn : from invisible (alpha=0) to visible (alpha=1)
  • FadeOut: from visible (alpha=1) to invisible (alpha=0)
