Properties UI

The com.unity.properties.ui package offers utilities to generate UIElements-based visual trees from data using the com.unity.properties package. This API is found in the Unity.Properties.UI.Editor assembly (referenced automatically for convenience), under the Unity.Properties.UI namespace.

The main goal of this package is to allow:

the creation of generic inspector-like visual trees,
the creation of custom inspectors and property drawers
data-binding
enhanced support for collection types in the editor

This manual targets developers that intends to create custom inspectors.

Glossary

Custom Inspectors are drawers based on a given type. These drawers will be used for every field of that type.

Property Drawers are drawers based on an attribute. Theses drawers will be used when a field is tagged with a PropertyAttribute. This allows to draw fields of heterogeneous types in a similar fashion.

Getting Started

Here are short examples illustrating a basic usage of the Properties UI API.

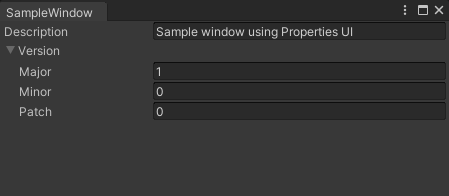

Creating a simple editor window

namespace Unity.Properties.Samples
{
    using Unity.Properties.UI;
    using UnityEditor;
    using UnityEngine;

    public class SampleWindow : EditorWindow
    {
        public class WindowVersion
        {
            public int Major = 1, Minor = 0, Patch = 0;
        }

        public class WindowData
        {
            public string Description = "Sample window using Properties UI";
            public WindowVersion Version = new WindowVersion();
        }

        [MenuItem("Properties/Samples/Sample Window")]
        public static void ShowExample()
        {
            var wnd = GetWindow<SampleWindow>();
            wnd.titleContent = new GUIContent("SampleWindow");
        }

        public void OnEnable()
        {
            var propertyElement = new PropertyElement();
            propertyElement.SetTarget(new WindowData());
            rootVisualElement.Add(propertyElement);
        }
    }
}

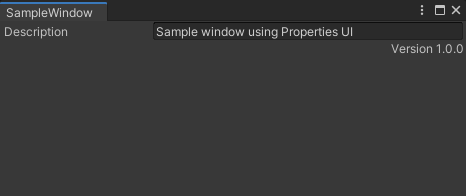

Creating a custom inspector

namespace Unity.Properties.Samples
{
    using Unity.Properties.UI;
    using UnityEngine.UIElements;

    class WindowVersionInspector : Inspector<SampleWindow.WindowVersion>
    {
        public override VisualElement Build()
        {
            var version = Value;
            var valueLabel = new Label {text = $"Version {version.Major}.{version.Minor}.{version.Patch}"};

            valueLabel.style.alignSelf = Align.FlexEnd;
            return valueLabel;
        }
    }
}

Creating a property drawer

namespace Unity.Properties.Samples
{
    using Unity.Properties.UI;
    using UnityEngine;
    using UnityEngine.UIElements;

    public class CenteredLabelAttribute : PropertyAttribute
    {
        public int FontSize = 16;
    }

    public class CenteredLabelDrawer : PropertyDrawer<string, CenteredLabelAttribute>
    {
        public override VisualElement Build()
        {
            var attribute = DrawerAttribute;
            var label = new Label {text = Value};
            label.style.fontSize = attribute.FontSize;
            label.style.alignSelf = Align.Center;
            return label;
        }
    }
}

public class WindowData
{

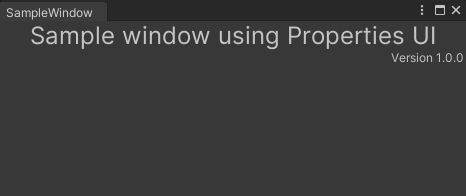

    [CenteredLabel(FontSize = 24)]
    public string Description = "Sample window using Properties UI";
    public WindowVersion Version = new WindowVersion();
}

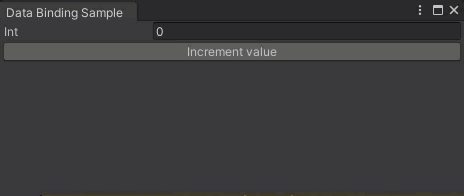

Built-in data-binding

namespace Unity.Properties.Samples
{
    using Unity.Properties.UI;
    using UnityEngine.UIElements;
    using UnityEditor;
    using UnityEngine;

    public class DataBindingSampleWindow : EditorWindow
    {
        public class Data
        {
            public int Int;
        }

        [CreateProperty] Data m_Data;

        [MenuItem("Properties/Samples/Data-binding Sample Window")]
        public static void ShowExample()
        {
            var wnd = GetWindow<DataBindingSampleWindow>();
            wnd.titleContent = new GUIContent("Data Binding Sample");
        }

        public void OnEnable()
        {
            m_Data = new Data();

            var propertyElement = new PropertyElement();
            propertyElement.SetTarget(m_Data);
            rootVisualElement.Add(propertyElement);
            rootVisualElement.Add(new Button(IncrementValue){ text = "Increment value"});
        }

        void IncrementValue()
        {
            m_Data.Int++;
        }
    }
}

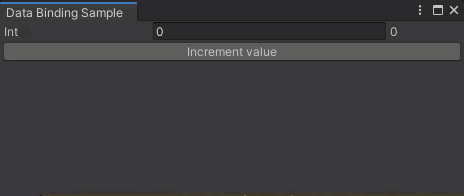

Manual data-binding

using Unity.Properties.UI;
using UnityEditor.UIElements;
using UnityEngine.UIElements;

namespace Unity.Properties.Samples
{
    public class DataBindingInspector : Inspector<DataBindingSampleWindow.Data>
    {
        Label m_ValueAsLabel;

        public override VisualElement Build()
        {
            var root = new VisualElement();
            var fieldName = nameof(DataBindingSampleWindow.Data.Int);
            var integerField = new IntegerField(fieldName);
            integerField.style.flexGrow = 1;

            // using the binding path will automatically update the value whenever possible.
            integerField.bindingPath = fieldName;
            root.Add(integerField);

            // there is no automatic binding between int => label, so we will use the Update method to update the
            // text of the label to match the value.
            m_ValueAsLabel = new Label(Value.Int.ToString());
            m_ValueAsLabel.style.alignSelf = Align.Center;
            m_ValueAsLabel.style.width = 75;
            root.Add(m_ValueAsLabel);

            root.style.flexDirection = FlexDirection.Row;
            return root;
        }

        public override void Update()
        {
            m_ValueAsLabel.text = Value.Int.ToString();
        }
    }
}

These samples focus on code-driven workflows. It is possible to use uxml and uss files to drive the look and feel of a custom inspector or property drawer. Setting the binding-path attribute in uxml files will kick-off automatic data-binding.

Uxml-based data-binding

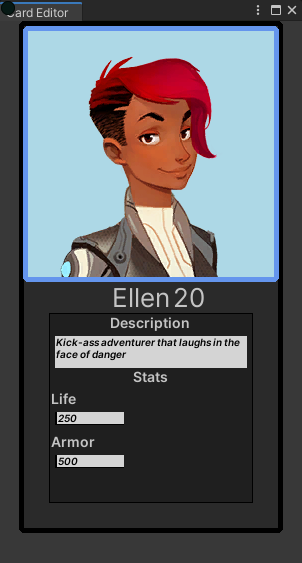

Editor Window

using Unity.Properties.UI;
using UnityEditor;
using UnityEngine;
using UnityEngine.UIElements;

namespace Unity.Properties.Samples
{
    public class CardEditorWindow : EditorWindow
    {
        [MenuItem("Properties/Samples/Card Editor")]
        public static void ShowExample()
        {
            var wnd = GetWindow<CardEditorWindow>();
            wnd.titleContent = new GUIContent("Card Editor");
        }

        struct CharacterInfo
        {
            public string Name;
            public float Level;
        }

        struct Stats
        {
            public float Life;
            public float Armor;
        }

        class Character
        {
            public CharacterInfo Info;
            public Texture2D Texture;
            public string Description;
            public Stats Stats;
        }

        class UICard
        {
            public Character Character;
        }

        class CharacterInspector : Inspector<UICard>
        {
            public override VisualElement Build()
            {
                var root = AssetDatabase.LoadAssetAtPath<VisualTreeAsset>("Assets/Samples/3. EditorWindow/Editor/card.uxml").Instantiate();
                var styleSheet = AssetDatabase.LoadAssetAtPath<StyleSheet>("Assets/Samples/3. EditorWindow/Editor/card.uss");
                root.styleSheets.Add(styleSheet);
                return root;
            }
        }

        public void OnEnable()
        {
            // Setup the character data.
            var character = new Character
            {
                Texture = AssetDatabase.LoadAssetAtPath<Texture2D>("Assets/Samples/3. EditorWindow/Editor/Ellen_CutscenePortrait_000.png"),
                Info = new CharacterInfo { Name = "Ellen",  Level = 20 },
                Description = "Kick-ass adventurer that laughs in the face of danger",
                Stats = new Stats { Life = 250,  Armor = 500 }
            };

            var card = new UICard {Character = character};
            var cardElement = new PropertyElement();
            cardElement.SetTarget(card);
            rootVisualElement.Add(cardElement);
        }
    }
}

UXML file

<?xml version="1.0" encoding="utf-8"?>
<engine:UXML
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:engine="UnityEngine.UIElements"
    xmlns:editor="UnityEditor.UIElements"
    xsi:noNamespaceSchemaLocation="../../../../UIElementsSchema/UIElements.xsd"
>
    <engine:BindableElement binding-path="Character">
        <engine:VisualElement class="self-centered card-info thin-border">
            <engine:BindableElement class="card-character regular-border" binding-path="Texture"/>
            <engine:BindableElement class="row self-centered" binding-path="Info">
                <engine:Label class="big-label" binding-path="Name"/>
                <engine:Label class="big-label" binding-path="Level"/>
            </engine:BindableElement>
            <engine:VisualElement class="card-info regular-border">
                <engine:Label text="Description" class="self-centered bold-title"/>
                <engine:Label class="card-description" binding-path="Description"/>
                <engine:Label text="Stats" class="self-centered bold-title"/>
                <engine:BindableElement binding-path="Stats">
                    <engine:Label text="Life" class="bold-title"/>
                    <engine:Label class="card-stats" binding-path="Life"/>
                </engine:BindableElement>
                <engine:BindableElement binding-path="Stats">
                    <engine:Label text="Armor" class="bold-title"/>
                    <engine:Label class="card-stats" binding-path="Armor"/>
                </engine:BindableElement>
            </engine:VisualElement>
        </engine:VisualElement>
    </engine:BindableElement>
</engine:UXML>

USS file

.row
{
    flex-direction: row;
}

.thin-border
{
    border-width: 1px;
    border-radius: 5px;
}

.regular-border
{
    border-width: 3px;
    border-radius: 5px;
}

.thick-border
{
    border-width: 5px;
    border-radius: 5px;
}

.big-label
{
    font-size: 26px;
}

.self-centered
{
    align-self: center;
}

.bold-title
{
    font-size: 14px;
    padding-bottom: 5px;
    -unity-font-style: bold;
}

.card-character
{
    background-color: lightskyblue;
    width:256px;
    height:256px;
    border-color: gold;
}

.card-frame
{
    background-color: rgba(0, 0, 0, 0.25);
    width:264px;
    height:512px;
    border-color: black;
}

.card-info
{
    background-color: rgba(0, 0, 0, 0.25);
    margin-left: 25px;
    margin-right: 25px;
    margin-bottom: 25px;
    border-color: black;
}

.card-description
{
    font-size: 10px;
    margin-left: 5px;
    margin-right: 5px;
    flex-wrap: wrap;
    -unity-font-style: bold-and-italic;
    white-space: normal;
    padding-bottom: 8px;
    background-color: #d4d4d4;
    color:black;
}

.card-stats
{
    font-size: 10px;
    margin-left: 5px;
    margin-right: 128px;
    flex-wrap: wrap;
    -unity-font-style: bold-and-italic;
    white-space: normal;
    margin-bottom: 8px;
    border-left-width: 2px;
    border-color: black;
    border-bottom-width: 1px;
    background-color: #d4d4d4;
    color:black;
}

Performance Considerations

PropertyElement

Unity.Properties.UI.PropertyElement will generate new VisualElement instances whenever a new target is set, which can result in heavy allocation-spikes for large data set. We're looking at ways to pool and reuse visual trees so that these spikes occur less often.

Other Considerations

Multi-selection

At the moment, it is not possible to bind multiple targets to a Unity.Properties.UI.PropertyElement. This is mainly because UIElements doesn't have a way to show mixed values. When this feature will become available, we will add support for multiple targets.

Inspectors and Drawers

Specifying an inspector or a drawer for a base type is currently not supported. This will be added in a future version.
