Simulation Environment Components Reference guide

This section refers to components that are not part of Unity MARS proxies yet they are used in the MARS simulation environments. Commonly these components set how the simulation environment is organized.

For reading about components that simulate realworld data in the simulated environments please refer to the Synthetic Data section.

Ignore for environment persistence (IgnoreForEnvironmentPersistence)

This is used when you have simulation environment objects that move / change and you want to ignore said objects to not trigger an environment pop up save dialog. This script is used on synthetic bodies.

Target Relation	Description
Ignore Children Also	If checked, ignores any change that this object or any of its children do.

Simulated Object (SimulatedObject)

Identifies this object as a simulated replacement for real world data. This component is used in place of Synthesized Object to feed data from synthetic components through the MARS data provider layer, enabling you to test your content with data as it would come through on a device.

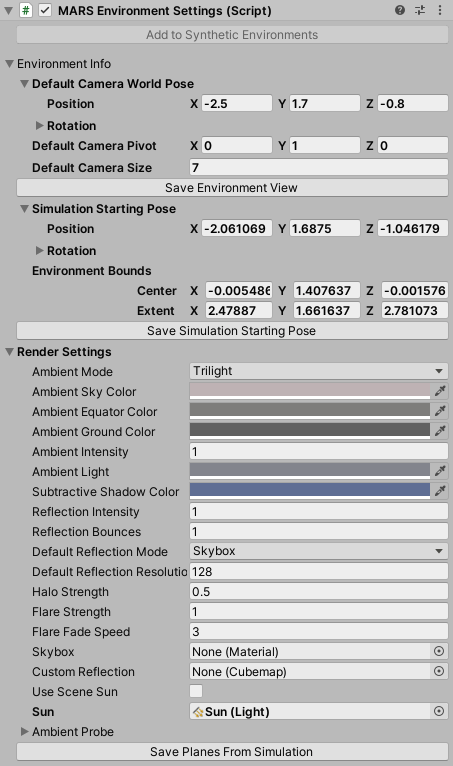

MARS Environment Settings (MARSEnvironmentSettings)

The MARSEnvironmentSettings component holds all the data related to viewing a simulated environment in a simulated view. In it, you can control the default camera pose, define where simulations start, and configure several options on how the environment is drawn.

Environment info

These properties control the starting camera position for Simulation view and the starting position for a MARSCamera.

Target Relation	Description
Environment Info	Holds environment scene settings
Default Camera World Pose	Refers to the initial world pose of the camera when this environment scene is loaded
Default Camera Pivot	Default world pivot of the scene camera for this environment scene
Default Camera Size	Default orbit radius of the camera when viewing this environment scene
Save Environment View button	When pressed, saves the default camera settings for this environment scene to match your current scene or simulation view camera
Simulation Starting Pose	Refers to the world pose of the device (device view mode) when starting a simulation
Environment Bounds	Sets the bounds that encapsulate the whole simulation environment
Save Simulation Starting Pose button	When pressed saves the simulated device starting pose for this environment to match your current scene or sim view camera

Render settings

The Render settings section override the Scene's Light Settings when the synthetic environment is being rendered with Composite Rendering in Unity MARS. These settings are limited to real-time lighting options since any baked settings are tied to a Scene.

Target Relation	Description
Render Settings	Set of settings that define how the simulation environment is rendered
Ambient Mode	Refers to the ambient mode type applied to the simulation environment; for example directional ambient with separate sky, equator and ground colors, or flat ambient with a single color.
Ambiend Sky Color	When the Ambient Mode is set to Trilight; Trilight ambient lighing mode uses this color to affect upwards-facing object parts.
Ambient Ground Color	When the Ambient Mode is set to Trilight; Trilight ambient lighing mode uses this color to affect downwards-facing object parts.
Ambient Intensity	How much the light from the Ambient Source affects the Scene.
Ambient Light	Refers to the Flat ambient lighting color.
Substractive Shadow Color	Refers to the color used for the sun shadows in the Subtractive lightmode.
Reflection Intensity	Sets how much the skybox / custom cubemap reflection affects the Scene.
Reflection Bounces	Defines in how many passes reflections are calculated. In a given pass, the Scene is rendered into a cubemap with the reflections calculated in the previous pass applied to reflective objects.If set to 1, the Scene will be rendered once, which means that a reflection will not be able to reflect another reflection and reflective objects will show up black, when seen in other reflective surfaces. If set to 2, the Scene will be rendered twice and reflective objects will show reflections from the first pass, when seen in other reflective surfaces.
Default Reflection Mode	Refers to the default reflection mode to use in the environment; this can use a custom texture or generate a specular reflection texture from the skybox
Default Reflection Resolution	Refers to the cubemap resolution for the default reflection.
Halo Strength	Refers to the size of the Light halos. For any light, the size of the halo is this value multiplied by Light.range.
Flare Strength	Sets the intensity of all flares in the environment.
Flare Fade Speed	Refers to the fade speed of all flares in the environment.
Skybox	Sets a skybox material to use on the simulation environment
Custom Reflection	Specifies a cubemap for use as a default specular reflection.
Use Scene Sun	When checked uses the light in the environment as the sun
Ambient Probe	Skybox ambient lighting mode uses this Spherical Harmonics (SH) probe to calculate ambient. You can also assign a completely custom SH probe this way. The GI system will bake the ambient probe, but it actually won't be used on geometry that uses light probes or lightmaps, as the environment lighting is already in the light probes and the lightmaps. It is used as the last fallback if light probes or lightmaps are not present or enabled for an object.

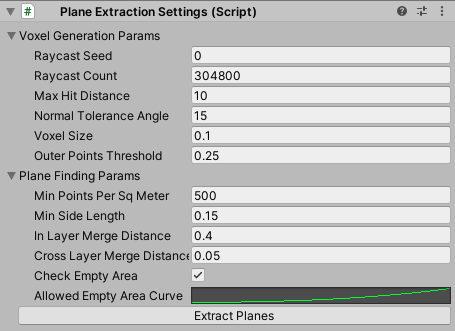

Plane Extraction Settings(PlaneExtractionSettings)

The PlaneExtractionSettings component lets you generate synthetic planes from Mesh Renderers in your environment. Currently, only Mesh Renderers contribute to plane extraction. Unity MARS doesn't support generating planes from other types of renderers such as Skinned Mesh Renderers and Sprite Renderers. These generated planes are baked into the environment and used to provide data for instant simulation. In temporal simulation (play mode in Simulation view or Game view), these planes will be ignored, and new planes will instead be discovered interactively.

The plane extraction process consists of two steps: a voxel generation step and a plane finding step within the generated voxels. By clicking the Extract Planes button, planes in the current synthetic environment will be extracted.

Note: If there are previously generated planes in your Scene (parented to a Generated Planes GameObject), Unity MARS will destroy them. If you want to preserve any of these planes you can move them out of the hierarchy of the parent before extracting planes.

Voxel Generation Params

Plane extraction involves generating a point cloud from environment meshes and adding each point to one of 6 grids of voxels (one for each cardinal direction in 3D). The voxel generation params are parameters for how the rays are generated, how big the voxels are, and how points are added to voxels. It is suggested to set Raycast Count to the square footage of your environment * 50,000 for good coverage during plane extraction.

Target Relation	Description
Voxel Generation Params	The Voxel generation params are settings used by MARS to generate and voxelize a point cloud of the simulated environment, this is used when preparing the environment for plane extraction.
Raycast Seed	Seed with which to initialize the random number generator used to create rays
Raycast Count	Refers to the number of raycasts used to generate a point cloud
Max Hit Distance	Sets the maximum hit distance for each raycast
Normal Tolreance Angle	If the angle between a point's normal and a voxel grid direction is within this range, the point is added to the grid
Voxel Size	Refers to the side length of each voxel
Outer Points Threshold	This is a threshold, The points that are within this distance from the bounds outer side facing the same way as the point's normal will be ignored

Plane Finding Params

In the plane finding params step, planes are found in each voxel grid based on which voxels have a sufficient number of points.

Target Relation	Description
Plane Finding Params	The Plane finding params defines settings that are used by MARS to generate environment surface data based on points and voxels generated using Voxel Generation Params
Min Points Per Square Meter	Defines the voxel point density threshold that is independent of voxel size
Min Side Length	Planes with x or y extent less than this value will be ignored
In Layer Merge Distance	Planes within the same layer that are at most this distance from each other will be merged (A value between 0.2 and 0.4 will generally give you clean authoring planes).
Cross Layer Merge Distance	Planes in adjacent layers with an elevation difference of at most this much will be merged
Check Empty Area	When enabled, planes will only be created if they do not contain too much empty area
Allowed Empty Area Curve	Curve that maps the area of a plane to the ratio of area that is allowed to be empty

Simulated Playable (SimulatedPlayable)

This components automatically attaches a Playable Director component if there are none; the Playable Director attached to this game object will pause and resume play based on whether temporal simulation is active or not.

X Ray Collider (XRayCollider)

This component is part of the x-ray system for synthetic environments. This component marks a collider as being one that can be disabled through the x-ray system so when the object is being hidden by the x-ray system, the collider is disabled. This allows the user to drag-and-drop content inside the environment, and select objects inside the closed space, without interacting with hidden colliders. To enable this functionality, any outer collider should have the XRayCollider component attached to it.

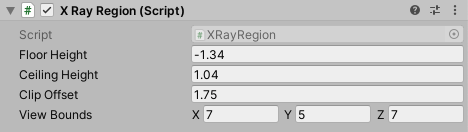

X Ray Region (XRayRegion)

The XRay Region component sets areas of an environment that can be seen through outer walls and other obstructions. A x-ray region is split into three parts: a ceiling, an interior, and a floor. Unity MARS will cull a region based on the following criteria:

• The ceiling is culled entirely if the camera is above it; otherwise, it is completely visible.
• The floor is culled entirely if the camera is below it; otherwise, it is completely visible.
• The interior is culled with a camera facing billboard centered at the position of the XRayRegion component.

Any renderer that is influenced by the x-ray system should use the MARS/Room X-Ray shader. Existing standard materials that use this shader are in the Content/Common/Materials and include floor, walls, ceiling, carpet, and accent.

Target Relation	Description
Floor Height	Defines the height of the floor in local coordinates.
Ceiling Height	Defines the ceiling height in local coordinates.
Clip Offset	Sets how much the camera clipping plane moves forward from the center of this region.
View Bounds	Refers to the active size of the clipping region.

Simulated Mesh Classification (SimulatedMeshClassification)

Marks an object in a simulated environment with a classification type to apply to the tracked mesh generated from this object and its children. For more info on simulated meshing, refer to the simulation environments section.

Target Relation	Description
Classification Type	The classification type for the tracked mesh generated from this object and its children
