Conditions reference guide

Conditions are components that you add to MARS proxies that lets you specify what type of content you want to match against the real world.

Alignment condition (AlignmentCondition)

Requires the proxy (a surface) to have the specified alignment (Horizontal, vertical, other).

Target Relation	Description
Alignment	Sets which alignments the proxy can have so this condition can be fulfilled (Can have more than alignment at the same time).
Set rotation	Sets the rotation of this object in the scene as a visual convenience.

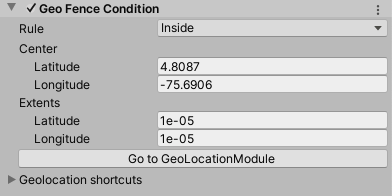

Geo fence condition (GeoFenceCondition)

Requires the proxy to be located inside or outside of the specified geolocation.

Target Relation	Description
Rule	Describes whether the condition relies on the user being inside or outside the fence.
Center Latitude	Center of the latitude position (in degrees) where the condition is applied.
Center Longitude	Center of the longitude position (in degrees) where the condition is applied.
Extents Latitude	Distance from the center in latitude degrees that the boundary condition extends.
Extents Longitude	Distance from the center in longitude degrees that the boundary condition extends.
Go to GeoLocationModule	Upon pressed takes you quickly to the GeoLocationModule for simulating/setting options.
Geolocation shortcuts	Dropdown that contains several geolocation presets for some cities in the world.

Height above floor condition (HeightAboveFloorCondition)

Requires the proxy to be raised certain distance above the floor.

Target Relation	Description
Ideal Height	Sets the "ideal" height the proxy should be from the floor for this condition to happen.
Range From Ideal Height	Sets the range from the ideal height in case you want to have a range where the condition should be met.
Require In Range	Sets the requirement that the height must be within the ideal height +/- the range from the ideal height.

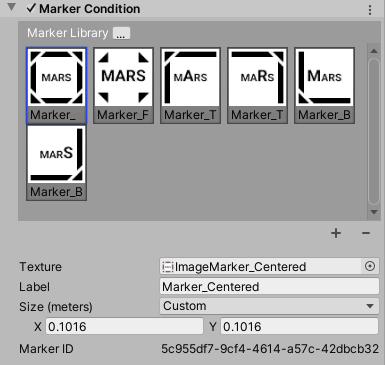

Marker condition (MarkerCondition)

Requires the proxy to have a particular image marker (the current selected one) with a set size to be matched.

Target Relation	Description
Marker Library	Contains all the image markers available in the current set marker library.
Texture	Texture selected for this marker condition.
Label	Optional label to use to refer the image marker.
Size	Physical size (in meters) the image marker to match against should have.
Marker ID	Internal marker GUID in the marker library (read only).

Flat floor condition (FlatFloorCondition)

This condition ensures the proxy to have both a floor tag and a horizontal alignment.

Plane size condition (PlaneSizeCondition)

Requires the proxy to be a plane within the specified size range.

Target Relation	Description
Edit Condition	Pressing this toggle lets you edit the plane size in the scene view with handles.
Minimum Size	Minimum plane size for the condition to be met (optional).
Maximum Size	Maximum plane size for the condition to be met (optional).

Semantic tag condition (SemanticTagCondition)

Requires the proxy to have (or lack) the specified trait.

Target Relation	Description
Trait Name	Sets the name of the trait that must be present (or absent).
Match Rule	Makes the condition to whether require a semantic tag to be present or be excluded.

Tracking state condition (TrackingStateCondition)

Requires the trackable object to have a minimum tracking quality.

Target Relation	Description
Minimum Tracking State	The minimum quality of object tracking needed to maintain this Proxy's match. (Unknown: No tracking, Tracking: Tracking is working normally, Limited: Some tracking information is available, but it is limited or of poor quality)
