Create an on-screen button control

To create an on-screen button:

  1. Add a UI Button object.
  2. Add the OnScreenButton component to it.
  3. Set the controlPath to refer to a ButtonControl (for example, <Gamepad>/buttonSouth). The type of device referenced by the control path determines the type of virtual device created by the component.

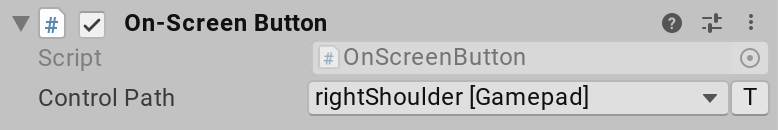

The OnScreenButton component displays the Control Path value as rightShoulder [Gamepad].

The OnScreenButton component requires the target control to be a Button control. OnScreenButton sets the target control value to 1 when it receives a pointer-down (IPointerDownHandler.OnPointerDown) event, or 0 when it receives a pointer-up (IPointerUpHandler.OnPointerUp) event.
