Merge
Merge all input GameObjects into a single object. By merging, you will lose additional components such as Metadata.
Parameters
| Parameter | Type | Description |
|---|---|---|
| type | MergeMode | Merge All: Merge all objects from the initial model as a single object. To merge each selected object recursively with all of its child objects, select Keep Parent. Merge By Material: Merge all objects that are from the initial model and that share the same material. Merge Final Level: Merge the last hierarchy level below the input objects. Merge By Hierarchy level: Merge the specified hierarchy levels below the input objects. The selected GameObjects must be placed at the same hierarchy level. Merge By Name: Merge all input objects that share the same name. Merge By Regions: Merge input GameObjects within the same area |
| hierarchyLevel | Int32 | |
| keepParent | Boolean | Will merge each GameObjects with all of its own children. |
| mergeByRegionsStrategy (Merge By) | MergeByRegionsStrategy | Number: specify the number of output GameObject (or the number of regions of output GameObject) Size: specify the diagonal size of the output regions |
| numberOfRegions | Int32 | Specify the number of output GameObject (or the number of regions of output GameObject) |
| sizeOfRegions | Single | Specify the diagonal size of the output regions (in Unity unit) |
| mergeStrategy | MergeStrategy | Choose whether to merge GameObjects into one GameObject or merge GameObjects by materials (one GameObject per material) |
Additional Information
Caution
During merge, additional components such as metadata are lost.

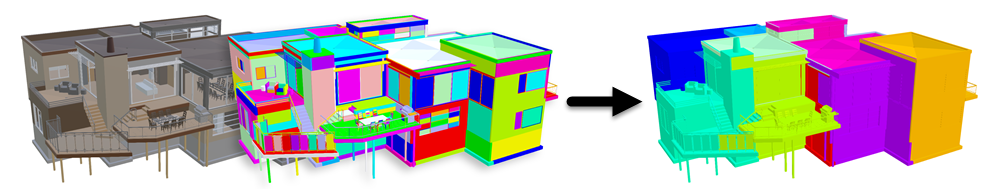

Merge by Regions
Identifies regions in the model and merges them based on one of these criteria:
- The number of regions
- The size of each chunk
