Sample: Manage metadata field definitions

You can use the Metadata Management sample to list and manage the metadata field definitions in your Organization.

Organization or Asset Manager Project role	List field definitions	Create/edit/delete field definitions
Asset Management Viewer	yes	no
Asset Management Consumer	yes	no
Asset Management Contributor	yes	yes
Organization Owner	yes	yes

Before you start

Before you can use the Metadata Management sample, you must have the following:

• Installed Assets package
• Installed Identity package
• A valid Unity ID Account
• Access to your Unity Gaming Services account
• A Unity Project with the Asset Manager service enabled, see: Assets documentation
• Access to the Asset Manager service

Note

While the Assets package itself doesn't depend on the Identity service, it is necessary in the sample to control the authentication process.

Install the sample

To install the sample, follow these steps:

1. Inside your Unity Project window, go to Package Manager > Unity Cloud Assets.

2. Expand the Samples section.

3. On the right of the Collection Management sample, select Import.



4. After the import process is complete, you can view your imported samples under the Assets/Samples/Unity Cloud Assets folder.



Run the sample

To run the sample, follow these steps:

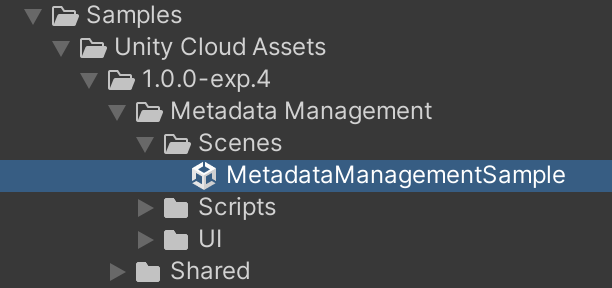

1. Go to Assets/Samples/Unity Cloud Assets/<package-version>/Metadata Management/Scenes/MetadataManagementSample.unity and run the scene.

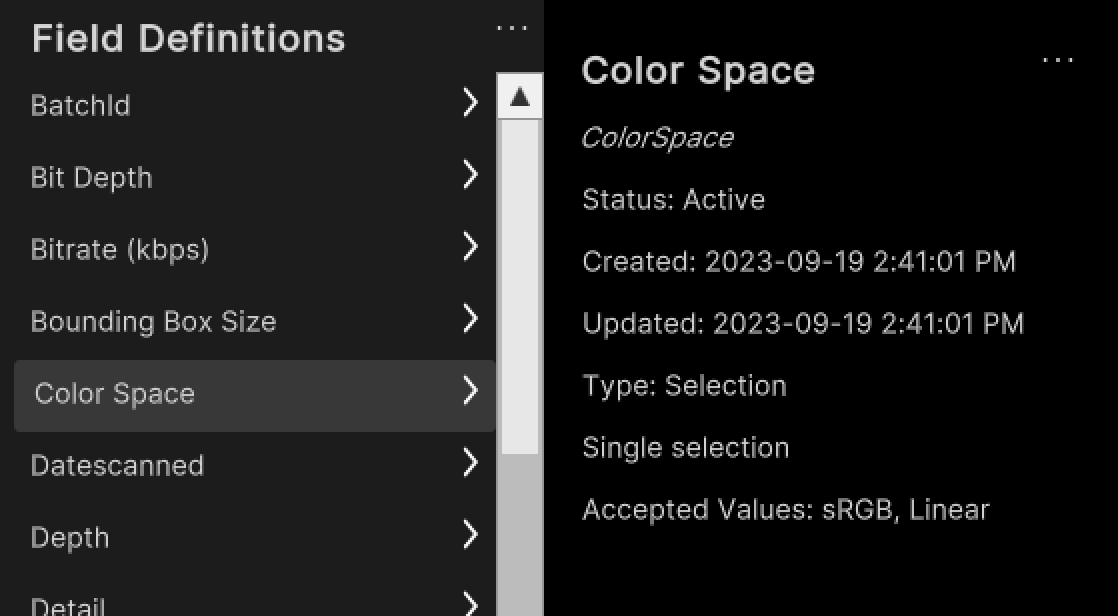

2. Select an Organization. The left column displays the list of Field Definitions from that Organization.



3. Select a Field Definition. The information for that field will be displayed.



Create a new metadata field definition

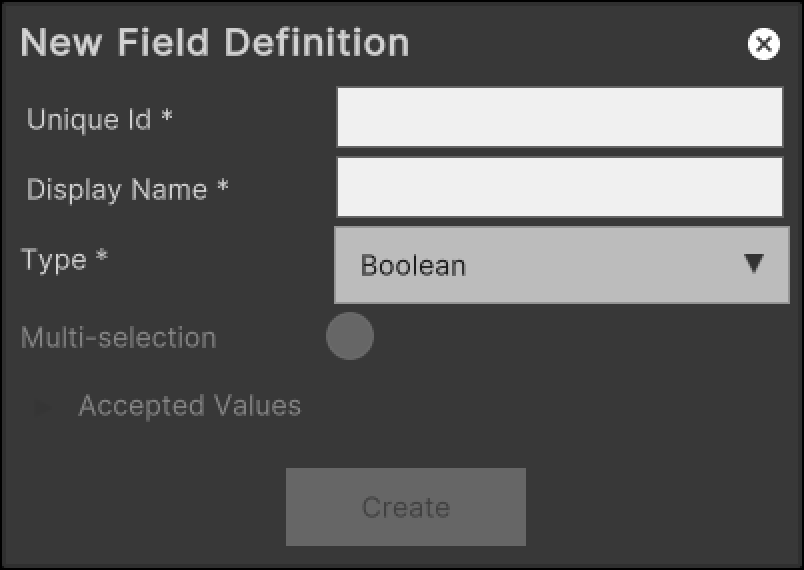

To create a new field definition, follow these steps:

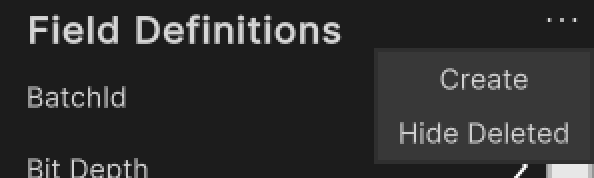

1. Next to the Field Definitions label, select the ... button to open the context menu.



2. Select Create.



3. Enter a unique id and a display name for the field definition.

4. Select a type for the field definition.

5. (Optional) If you selected Selection as the type, enter the accepted values.

6. Select Create.

Edit an existing metadata field definition

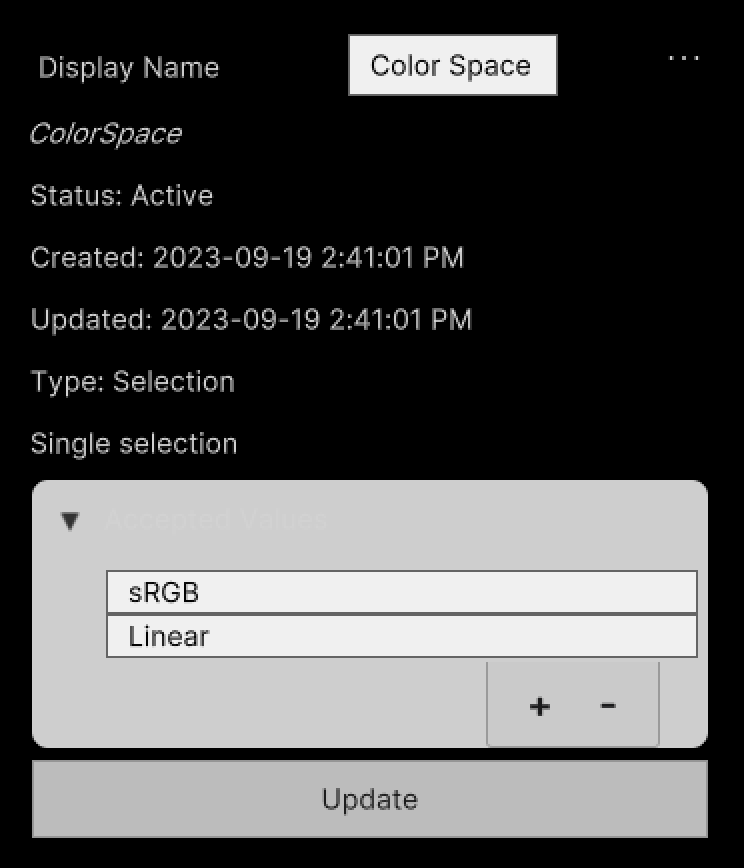

To edit an existing field definition, follow these steps:

1. Select one of the entries in the list.

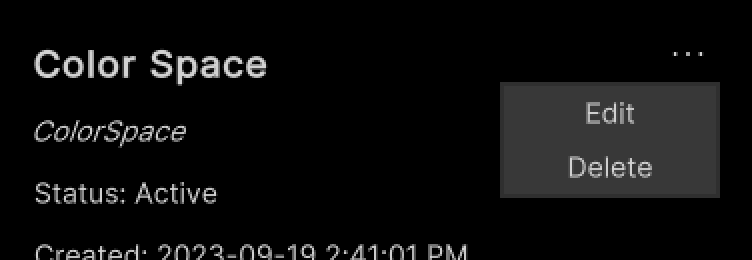

2. Next to the display name, select the ... button to open the context menu.



3. Select Edit.



4. Enter a new display name for the field.

5. If the field is of type Selection, update the list of accepted values.

6. Select Update.

Delete an existing metadata field definition

To delete an existing collection, follow these steps:

1. Select one of the entries in the list.

2. Next to the display name, select the ... button to open the context menu.



3. Select Delete.

Main components

This section describes the scripts that make up the main components of the Metadata Management sample.

Platform services script

The PlatformServices class initializes and disposes of dependencies required by the IAssetRepository. You can use this class to retrieve the IFieldDefinition you want to modify.

To open the platform services script, go to your Assets/Samples/Unity Cloud Assets/<package-version>/Shared/Scripts/Services/PlatformServices.cs file.

The PlatformServices class has two accompanying classes called PlatformServicesInitialization and PlatformServicesShutdown that call the initialization and shutdown methods through Unity's standard Monobehaviour methods Awake(), Start() and OnDestroy().

Field definition controller script

The FieldDefinitionController class inherits from the OrganizationController class which enables signing into your application and uses your ID to grant access to the Collection Management sample. For more information on authentication, see the Get user information use case in the Identity package documentation. The FieldDefinitionController class uses the IOrganizationRepository of the PlatformServices to retrieve the list of organizations you have access to. The FieldDefinitionController class uses the IAssetRepository of the PlatformServices to retrieve the list of field definitions for the selected organization.

To open the field definition controller script, go to your Assets/Samples/Unity Cloud Assets/<package-version>/MetadataManagement/Scripts/Controllers/Field.cs file.

Metadata management sample script

The Metadata shows you how to do the following:

• Integrate the login flow with the FieldDefinitionController class
• Retrieve Organizations and Field Definitions from the Asset Manager service

To open the metadata management sample script, go to your Assets/Samples/Unity Cloud Assets/<package-version>/MetadataManagement/Scripts/MetadataManagementSample.cs file.

Metadata field definition panel

• The FieldDefinitionPanelController displays the information of a IFieldDefinition.
• The CreateFieldDefinitionPopupController class displays the necessary fields to create a new field definition.

Shared UI scripts

The sample includes a set of UI scripts and prefabs. To open shared UI scripts, go to Assets/Samples/Unity Cloud Assets/<package-version>/Shared/Scripts/Controllers.

Troubleshooting

Refer to the troubleshooting section for help with sample issues.
