Sample: Manage assets

The sample available as part of the Unity Asset Manager SDK demonstrates how to update and publish assets. A typical example of audience for this guide is the developers who want to integrate asset management features in their app.

The sample use the management endpoints that requires a minimum role of:

Before you start

To use the Asset Management sample, you need the following:

Note: While the Assets package doesn't depend on the Identity service, It is used in the sample to control the authentication flow.

Install the sample

To install the sample, follow these steps:

  1. Inside your Unity project window, go to Package Manager > Unity Cloud Assets.

  2. Expand the Samples section and select Import next to the Asset Management sample.
    Screenshot of the samples import section of the package manager window

After the import process completes, you can view the imported assets in the Unity Cloud Assets/Samples/Samples/Asset Management folder.
Screenshot of the imported sample

Run the sample

To run the sample, follow these steps:

  1. Go to Assets/Samples/Unity Cloud Assets/<package-version>/Asset Management/Scenes/AssetManagerSample.unity and run the scene. If this is your first time launching the sample, make sure to sign in with your Unity Gaming Services account.
  2. Select an Organization. The list of projects from that organization appears on the left column.

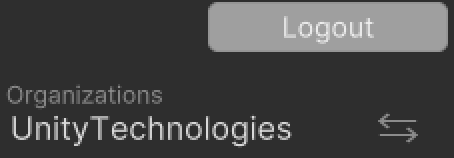

    Screenshot of the organization selection
  3. Select a project. The list of published assets from that project appears on the right column.

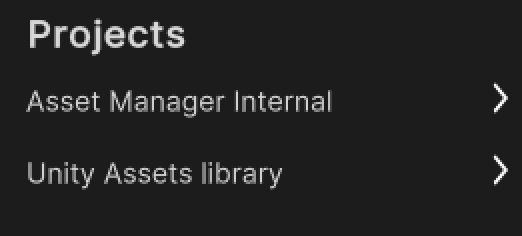

    Screenshot of the project list

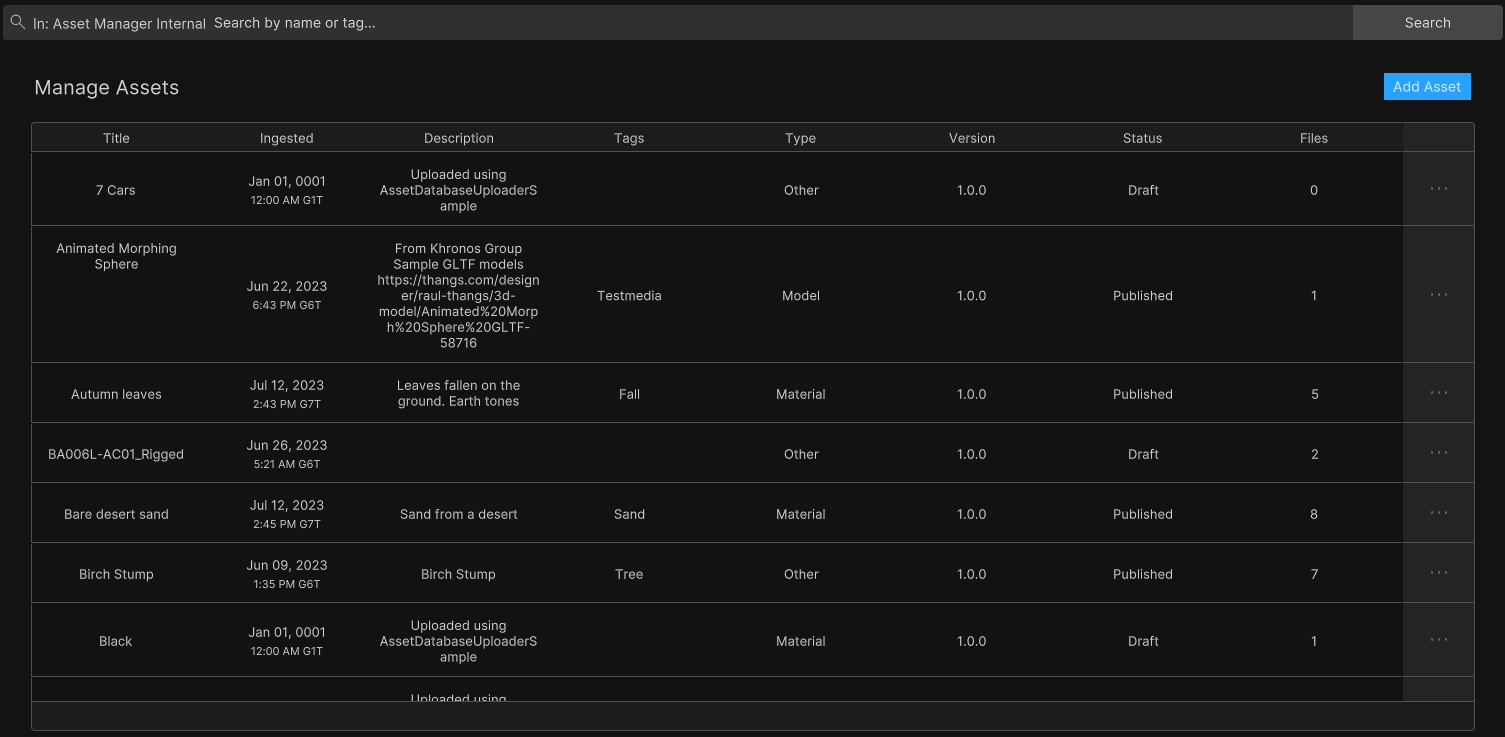

    Screenshot of the assets grid

Search for specific assets

To search for specific assets by tag or name in this sample, follow these steps:

  1. Select a project.
  2. In the search bar, type the keywords by which you want to search your assets and select Search.

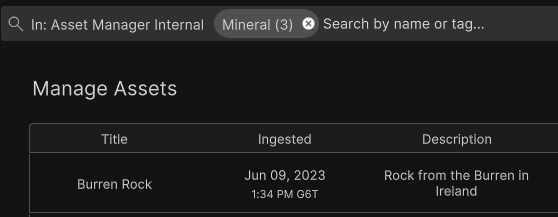

    Screenshot of the created topic

Note: While using the SDK, you will be able to build different and more complex queries. For more information on asset search, see the Search Assets manual.

Search prompts

As you type in the search bar, the sample will display a list of keyword suggestions based on your search. These keywords are aggregated from the tags and names of your assets. To select a keyword, click on it. The search bar will add it as a parameter and the sample will refresh the asset list to match the new search.

Update/edit an asset

To update an asset in this sample, follow these steps:

  1. Select a project.
  2. On the right side of the screen, select ... button of the asset you want to update and select Open.
    Screenshot of the open button

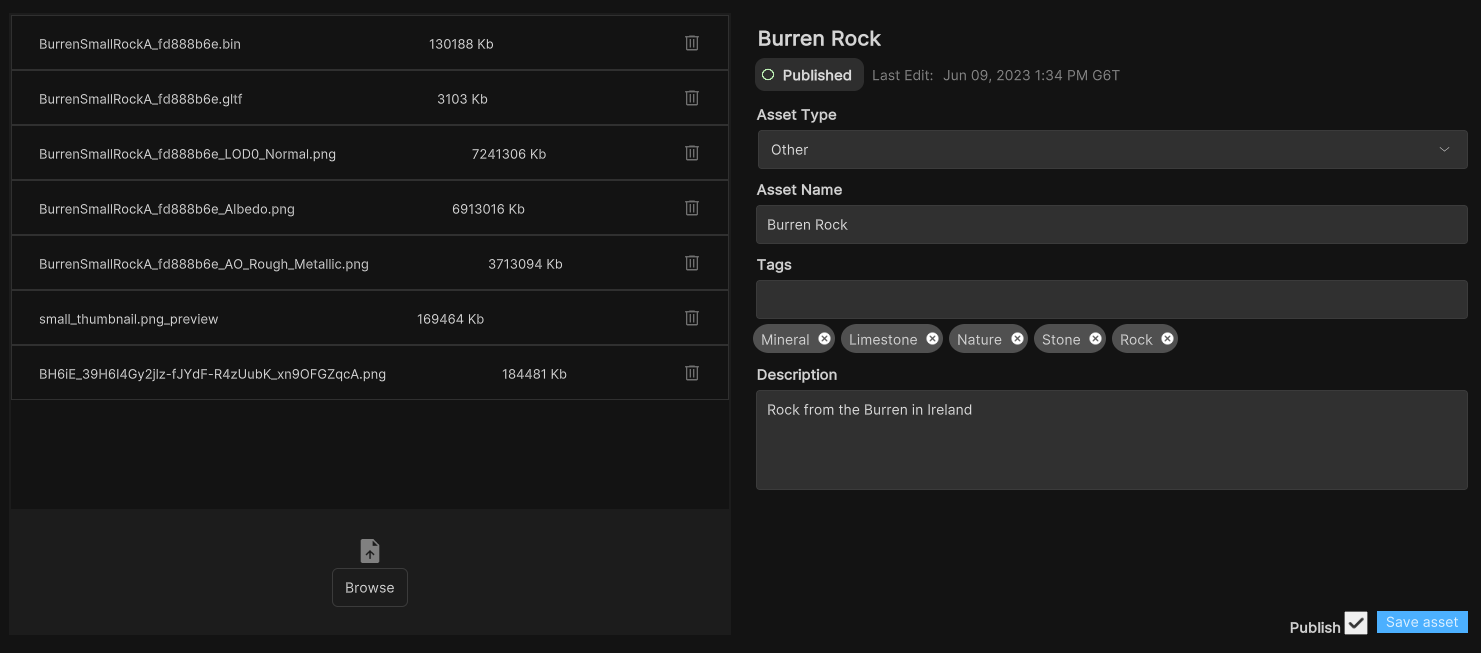

  3. In the asset details page, edit the asset's information and select the Save asset button.
    Screenshot of the save button
  4. To go back to the list of assets of the project, select the desired project in the project list.

Note: When an asset is not published, you can do the two following actions :

  1. you can save the asset by selecting the Save asset button.
    Screenshot of the save button
  2. you can publish it by checking the Publish checkbox and selecting the Publish asset button.
    Screenshot of the publish button

Main components

This section describes the scripts that make up the main components of the Asset Management sample.

Platform services script

The PlatformServices class initializes and disposes of dependencies required by the AssetManager. You can use this class to manage the Unity Cloud services and dependencies you use in your application.

To open the platform services script, go to your Assets/Samples/Unity Cloud Assets/<package-version>/Shared/Scripts/Services/PlatformServices.cs file.

The PlatformServices class has two accompanying classes called PlatformServicesInitialization and PlatformServicesShutdown that call the initialization and shutdown methods through Unity's standard Monobehaviour methods Awake(), Start() and OnDestroy().

User Controller script

The UserController class lets you sign in and provides the Asset Management sample with your Unity Gaming Services ID. For more information on authentication, see the Get user information page of the Identity package documentation.

To open the UserController script, go to your Assets/Samples/Unity Cloud Assets/<package-version>/Shared/Scripts/Controllers/UserController.cs file.

Asset Management sample script

The AssetManagerSample shows you how to do the following:

  • Integrate the login flow with the UserController class
  • Retrieve organizations and projects from the Asset Manager service
  • Retrieve assets from the Asset Manager service and manage them
  • Search for assets by tag or name

To open the Asset Management sample script, go to your Assets/Samples/Unity Cloud Assets/<package-version>/AssetManager/Scripts/AssetManagerSample.cs file.

Shared UI scripts

The UI sample includes a set of UI scripts and prefabs used by Unity Asset Manager SDK samples. To open shared UI scripts, go to Assets/Samples/Unity Cloud Assets/<package-version>/Shared/Scripts/Controllers.

Troubleshooting

Refer to the troubleshooting section for help with sample issues.
