Windows and Shortcuts

Note
To use Bolt, which is Unity's visual scripting solution, download it from the Unity Asset Store.

There are 3 main windows in Bolt. You can find them all in the "Windows" menu.

• Graph : The main graph editor
• Graph Inspector : The inspector for nodes and other graph elements
• Variables : A window to define and edit variables

Open all three windows.

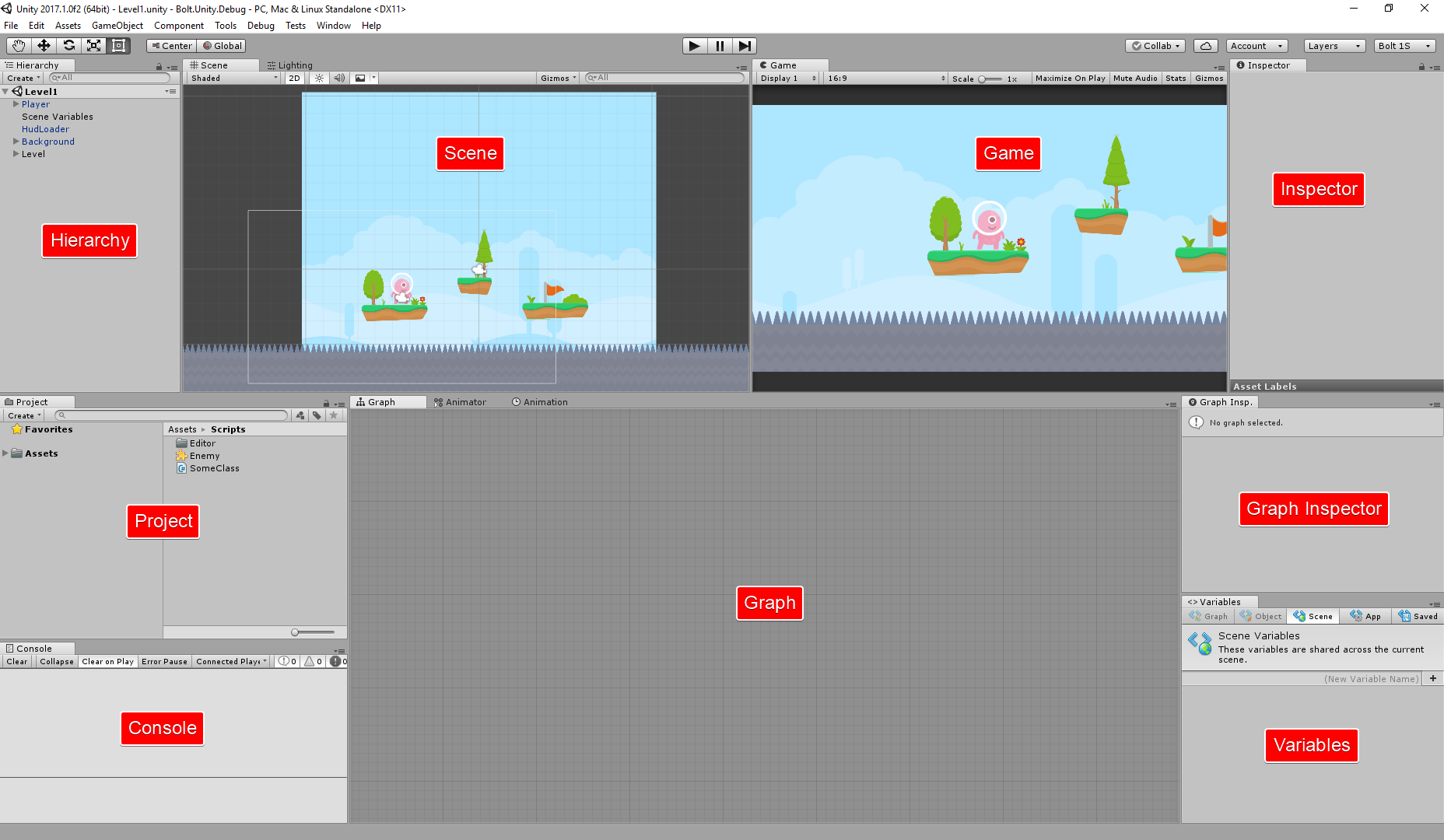

The layout in which you decide to place the windows is a matter of preference. We recommend giving equal space for the graph window and the scene view -- you'll need it! We also suggest adding the graph inspector as another tab next to the Unity inspector.

For example:

Maximizing

You can maximize the graph window to the whole screen. This will enable sidebars for the graph inspector and variable tabs. Maximizing makes it a lot easier to visualize complex graphs. There are three ways to maximize:

• Hit Shift+Space while your mouse is over the graph window
• Double-click the graph window background
• Click Maximize in the toolbar

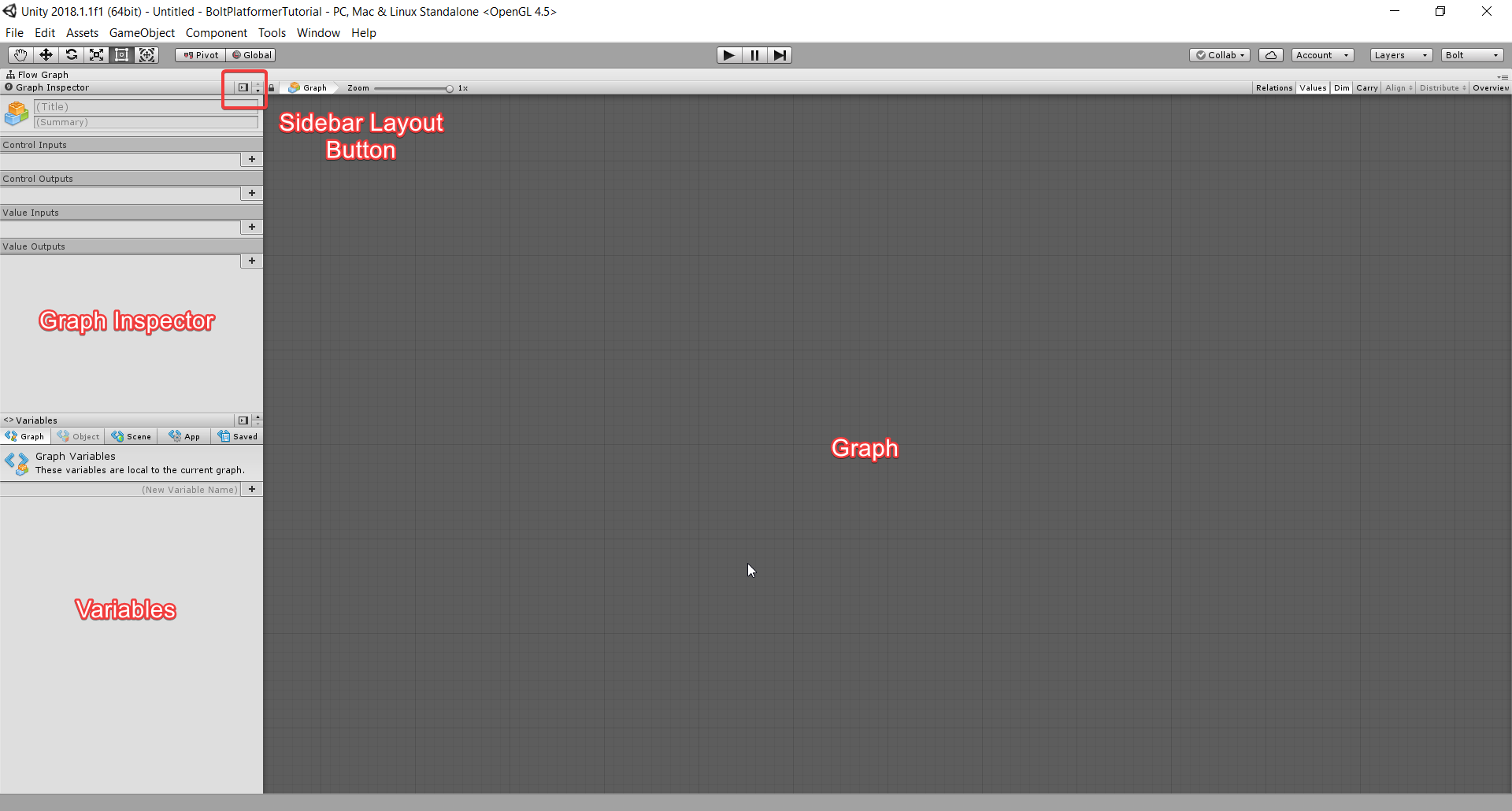

The Sidebar Layout Buttons allow you to reorder and move each panel around your maximized viewport.

Note: If you have dual monitors, you may want to put Bolt on your second monitor entirely. This gives you a lot of room for graph editing and keeps your usual Unity layout intact. The window will automatically detect that it has enough space to display the sidebars.

Graph Window

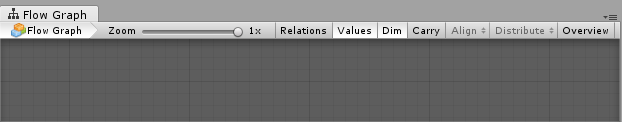

Once you select a graph, a toolbar will display in the graph window.

On the left, you can see the breadcrumb path to the currently selected graph.

The Zoom slider allows you to zoom out and get a bird's eye view of the graph.

When the Relations option is checked, units will display their inner connections (flow graphs only).

When the Values option is checked, Bolt will attempt to predict values and show them in graph connections (flow graphs only).

When the Carry option is toggled, child nodes of your current selection will be dragged along it. This is useful if you want to reorganize a large part of the graph without manually selecting each node.

The Overview button will pan and zoom the graph in order to show all of its elements within the area of the window.

Once at least two elements are selected in the graph, the Align and Distribute dropdowns will allow you to perform common automatic layout operations:

Shortcuts and Keybindings

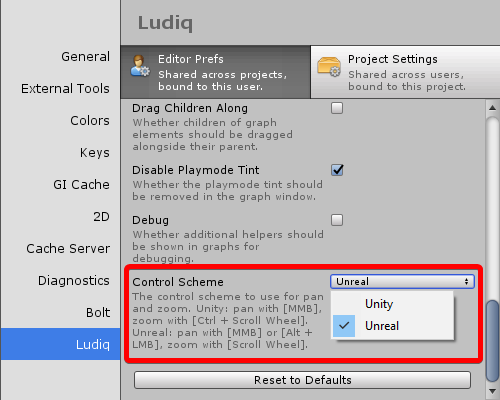

When in the graph window, there are two Control Schemesthat determine how to pan and zoom. You can configure your control scheme in Edit > Preferences > BoltEx. By default, it is set to Unreal.

Note: If you have a trackpad, try changing that setting to Unity. This will make navigating the graph with easier with two fingers.

The keybindings are:

Action	Unity Control Scheme
Pan	Middle Mouse Button
Zoom	Ctrl/Cmd + Scroll Wheel
Select	Drag Left Mouse Button
Select All	Ctrl/Cmd + A
Context Menu	Right Mouse Button Ctrl+Click (Mac) Ctrl/Cmd + E
Create Group	Ctrl/Cmd + Drag Left Mouse Button
Copy	Ctrl/Cmd + C
Paste	Ctrl/Cmd + V
Cut	Ctrl/Cmd + X
Duplicate	Ctrl/Cmd + D
Delete	Del
Maximize	Shift + Space Double-Click
