    Script and serialization architecture

    In the Runtime Serialization sample, the serialization system consists of scene scripts and data classes.

    Use this section to do the following:

    • Learn how SerializationExampleSceneController manages agent instantiation
    • Understand the save and load operations
    • Learn about the underlying data structures like AgentData and SaveData
    • Explore the basic runtime resolver implementation that restores object links during deserialization

    Scene and script breakdown

    The Runtime Serialization sample includes a single scene and a main controller script, SerializationExampleSceneController.cs. This script performs the following tasks:

    • Instantiates all behavior agents in the scene
    • Saves agent data to a file named serializationSaveFile.json
    • Loads agent data from the same file
    • Resolves GameObject and prefab references at runtime

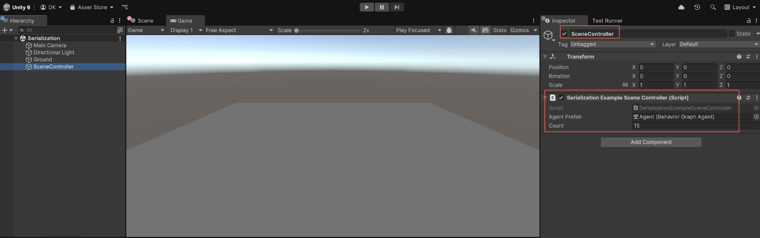

    Inspector window with the SerializationExampleSceneController script

    The serializationSaveFile.json file is automatically created in your project's Application.dataPath directory after the first save.

    Key classes and methods

    The sample includes the following helper classes and methods to handle agent serialization, data management, and reference resolution at runtime:

    • AgentData: Stores the agent’s identifier, position, and serialized behavior graph data.
    • SaveData: A container class that holds a list of AgentData objects to serialize.
    • SerializeAgents() / DeserializeAgents(): Methods used to save and load from the serializationSaveFile.json file.
    • GameObjectResolver: A basic runtime reference resolver included at the bottom of the controller script.
    Note

    This example uses GameObject.Find() and Resources.FindObjectsOfTypeAll() to resolve basic references. You're encouraged to create a more efficient resolver for production use.

    Additional resources

    • Set up and run the sample
    • How behavior graph works
