    Inspect models with the Model Visualizer

    Use the Model Visualizer to explore the internal structure of your machine learning (ML) model as a node-based graph inside the Unity Editor. It inspects how the model was optimized after import and helps you understand the flow of data and operations throughout the graph.

    With the Model Visualizer, you can:

    • Check how Inference Engine transforms your model during import, so you can inspect the actual structure that will run in your application.
    • Get a visual, node-based view of your model’s structure to understand complex architectures.
    • Trace data flow and tensor connectivity to debug issues, such as shape mismatches, disconnected layers, or unexpected operations.
    • Examine inputs, outputs, and constant tensors to understand what data the model consumes and how it's processed.
    • Detect issues, such as redundant outputs, missing connections, or unusual runtime behavior before running the model.
    Note

    Model Visualizer is read-only. You can inspect models but not edit them.

    To use inspect your model with the Model Visualizer, follow these steps:

    1. To open the Model Visualizer, do one of the following:

      • In the Project window, double-click a ModelAsset.
      • In the Inspector, select a ModelAsset, then select Visualize Model.

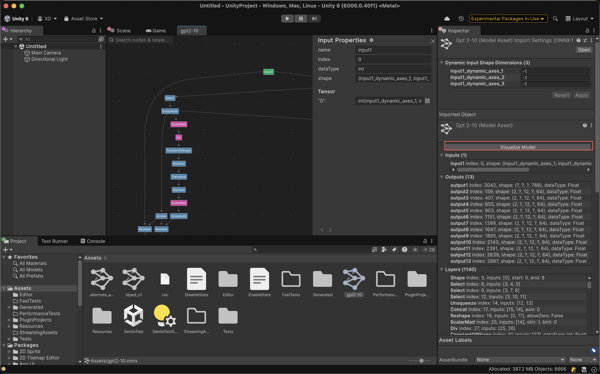

      Unity Editor with the model and Visualize Model button highlighted

    2. Use mouse or touchpad controls to pan, zoom, and move around the graph.

      Note

      Press F at any time to reframe the view around the first node in the graph.

      For details on available navigation shortcuts, refer to Control scheme shortcuts.

    3. Select a node (represents a model layer, input, or output) or an edge (represents a tensor) to inspect it.

      The selected element is highlighted and shown in the Properties panel. This panel shows detailed information about:

      • Inputs, outputs, and constants.
      • Data type, shape, and index.
      • Which layers use a particular value or output.

      Edges in the graph represent tensors, which are the data produced by one operation (layer) and used as inputs to others. A single tensor might be used as input to multiple downstream layers. In these cases, the Model Visualizer displays multiple arrows from one node to indicate shared usage.

      Note

      Constant tensors don’t appear in the graph view, but appear on the Properties panel if they’re used by any nodes. These values are set at import time and don’t change at runtime.

    4. To find specific nodes or tensors, open the search bar. Press (macOS: Cmd+F) or select the search icon in the Model Visualizer window.

    5. Enter a layer name or index. You can search for node names and indexes associated with inputs or outputs. The matching nodes are highlighted in the graph.

    Control scheme shortcuts

    The Model Visualizer supports two interaction modes: Modern (default) and Editor. You can change the active control scheme in Project Settings > Inference Engine > Model Visualizer.

    Action Shortcut for Editor scheme Shortcut for Modern scheme
    Pan Alt (macOS: Option) + left mouse button Space + left mouse button
    Pan (alternative) Middle mouse button Middle mouse button
    Pan (trackpad) Swipe gesture
    Zoom Mouse or trackpad scroll Ctrl (macOS: Cmd) + mouse scroll
    Zoom (trackpad) Pinch gesture
    Zoom (incremental) Ctrl (macOS: Cmd) + + or – Ctrl (macOS: Cmd) + + or –
    Reset zoom Ctrl (macOS: Cmd) + 0 Ctrl (macOS: Cmd) + 0
    Note

    These shortcuts apply only within the Model Visualizer and persist across all sessions in your project.

    Understand node types

    Each node in the graph represents one of the following:

    Node type Description
    Input A tensor provided by the user to the model at runtime.
    Output A tensor produced by the model as the final result.
    Layer A model operation that transforms input tensors into output tensors.

    Additionally, some layers produce multiple distinct output tensors, each shown as a separate edge in the graph.

    Properties panel

    The Properties panel displays context-specific information based on what you select in the graph.

    When you select a node (layer, input, or output), the panel shows the following information:

    • Node type
    • Shape and data type
    • Operation-specific attributes
    • Index and name
    • For constants: value preview (if available)

    When you select an edge (tensor), the panel shows the following information:

    • Tensor shape, data type, index, and name
    • References to all layers that use the tensor as an input

    Use the navigation buttons in the Properties panel to move between related nodes and edges, or return to the previous selections.

    Control scheme settings

    To configure how you interact with the Model Visualizer, go to Project Settings > Inference Engine > Model Visualizer.

    On the Model Visualizer Settings page, the Canvas Control Scheme has the following two options:

    Mode Description
    Modern (default) Uses a control scheme similar to Figma or Sketch.
    Editor Matches the Unity Shader Graph interaction model.

    If you change the control scheme, it updates all the current and future Model Visualizer windows.

    Additional resources

    • Get output from a model
    • Create and modify tensors
    • Importing models into Unity
