AutoTile

AutoTiles match themselves based on the mask set on Textures to generate the AutoTile ruleset. Two types of Masks are available for the AutoTile, the 2x2 type for 16 Sprites and the 3x3 type for 47 Sprites set.

Properties

Property	Function
Default Sprite	The Sprite set when there are no matches.
Default GameObject	The GameObject instantiated when set on the Tilemap.
Tile Collider	The Collider Type used for generating colliders.
Mask Type	Mask Type for setting Rules for the AutoTile. Use 2x2 for a 16 Sprite ruleset and 3x3 for a 47 Sprite ruleset
Used Textures	Sprites will be used from the selected Textures to make up the ruleset. You will be able to set the appropriate Sprites by painting the masks on the Sprites.

Usage

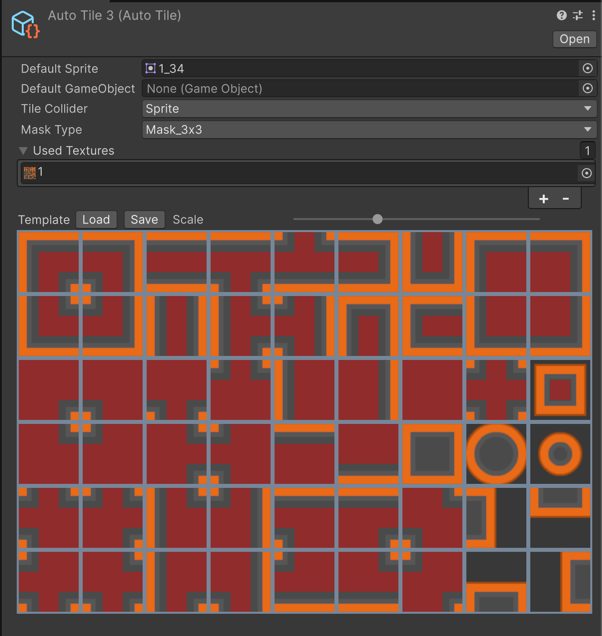

Set up the AutoTile by selecting the appropriate Mask Type and add the required Textures to be used. You can adjust the Scale per Texture to have it sized appropriately in the window.

Each Texture will have its Sprites outlined as a rectangle. Depending on the Mask Type set, the rectangle will be split into portions, either 2x2 or 3x3. Click on each portion to set a mask on that portion. Doing these sets up the painting rule for that Sprite. Paint masks on each Sprite to set up the entire ruleset for the AutoTile.

2x2

Each corner mask must be matched with the same Tiles bordering that corner. For example, if the top right corner is masked, for this to be matched, there must be the same Tiles to its top, top right and right for it to be matched.

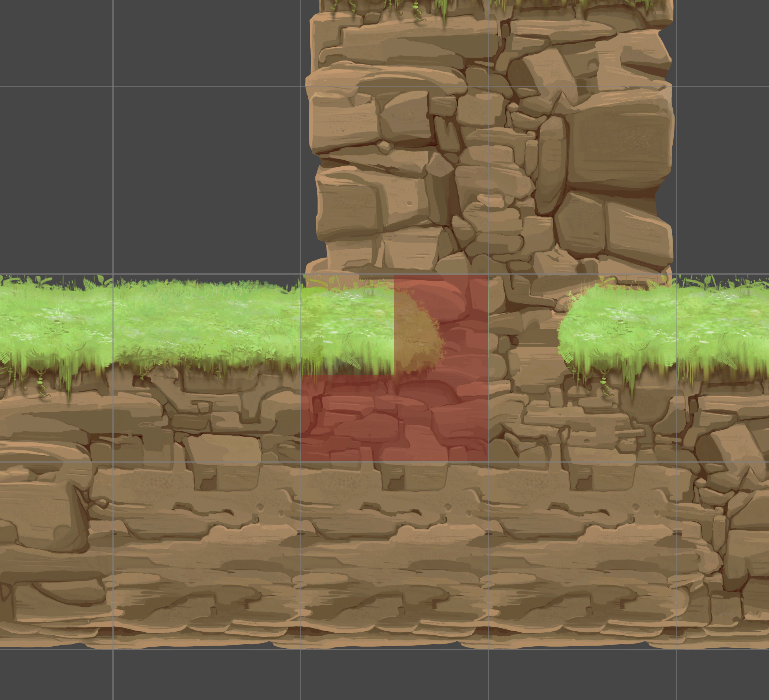

In the below example, the center Tile has the same Tile on all corners except the top left. This matches the mask on the top right, bottom left and bottom right and will use the corresponding Sprite.

3x3

Each mask on the borders must be matched with the same Tile for the painted Rule to be matched. The center mask determines if this mask rule is active.

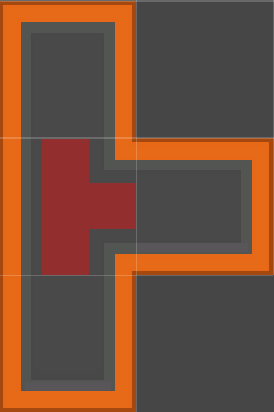

In the below example, the center Tile has the same Tile on the top, right and bottom. This matches the mask with the borders on the top, right and bottom and will use the corresponding Sprite.

If two or more Sprites have the same mask painted on, they will each have a red border to highlight this. If this error is not corrected, the first Sprite from the top left will be used when there is a match in the mask.

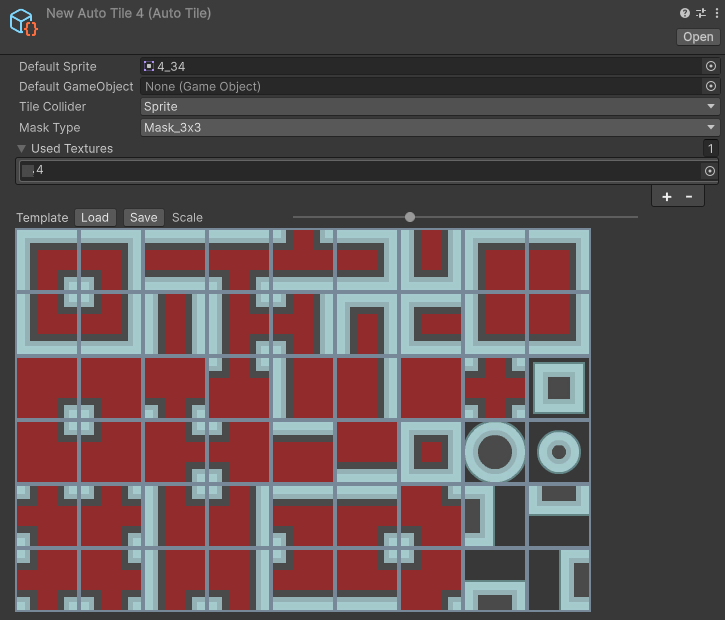

You can save the finished AutoTile ruleset as a TileTemplate by clicking on the Save button. This exports the ruleset for the current Texture. You can load the TileTemplate for another AutoTile using a similar Texture with the same layout without having to set up the masks again. The example below shows an AutoTile with a Texture loaded with an AutoTileTemplate created from the AutoTile above.

Assets used are from https://kenney.nl/assets/top-down-shooter
